Toyota Starlet Cross
2024-04 → present · chassis K15B · catalogue 13E310 · General
Supported model
Data version 2024-04

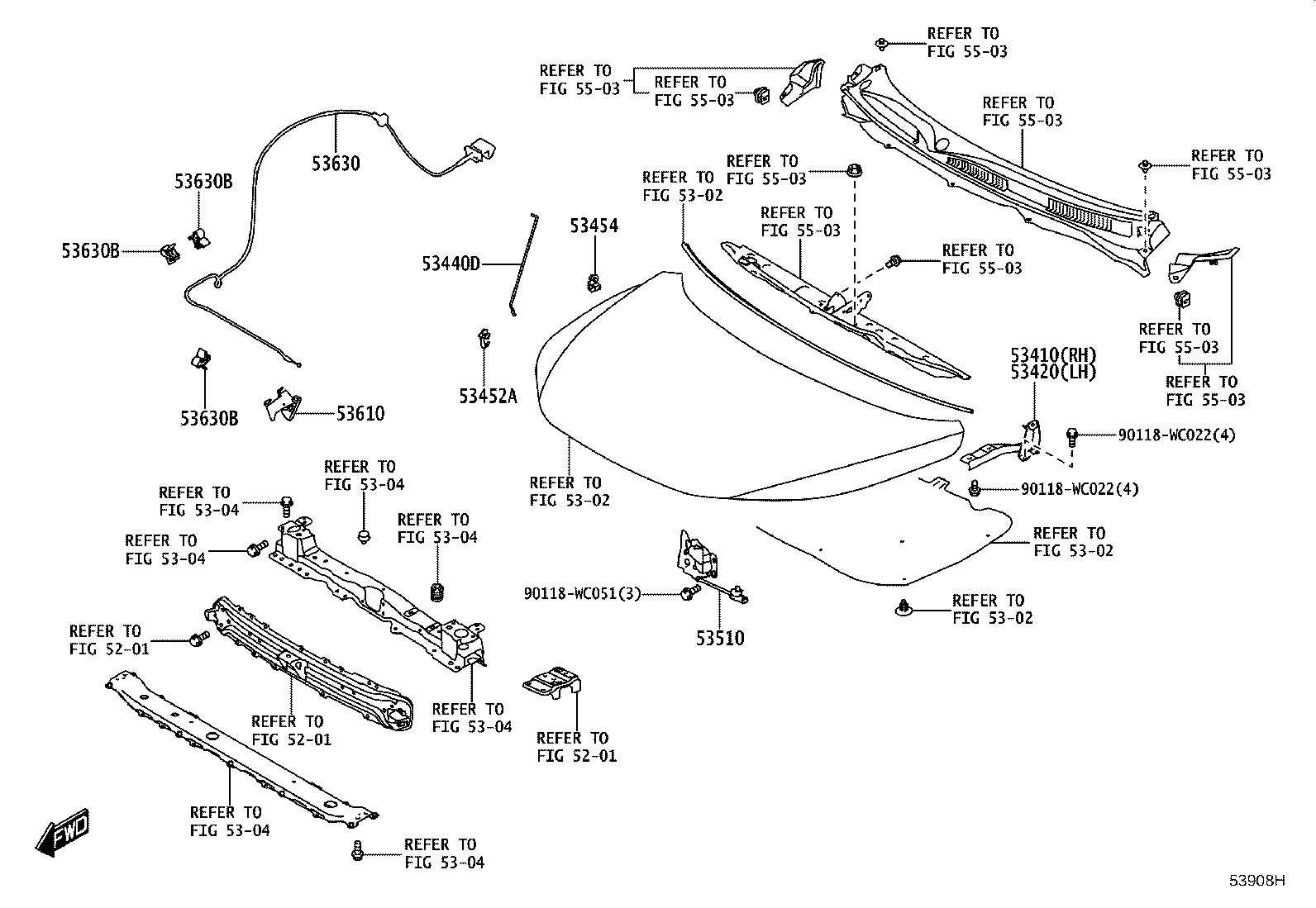

Hood Lock & Hinge
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440D | Support Assy, Hood |
| 53452A | Holder, Hood Stay |
| 53454 | Clip, Hood Support Rod |
| 53510 | Lock Assy, Hood |
| 53610 | Lever Assy, Hood Lock Release |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
