Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 10 illustrations

Illustrations

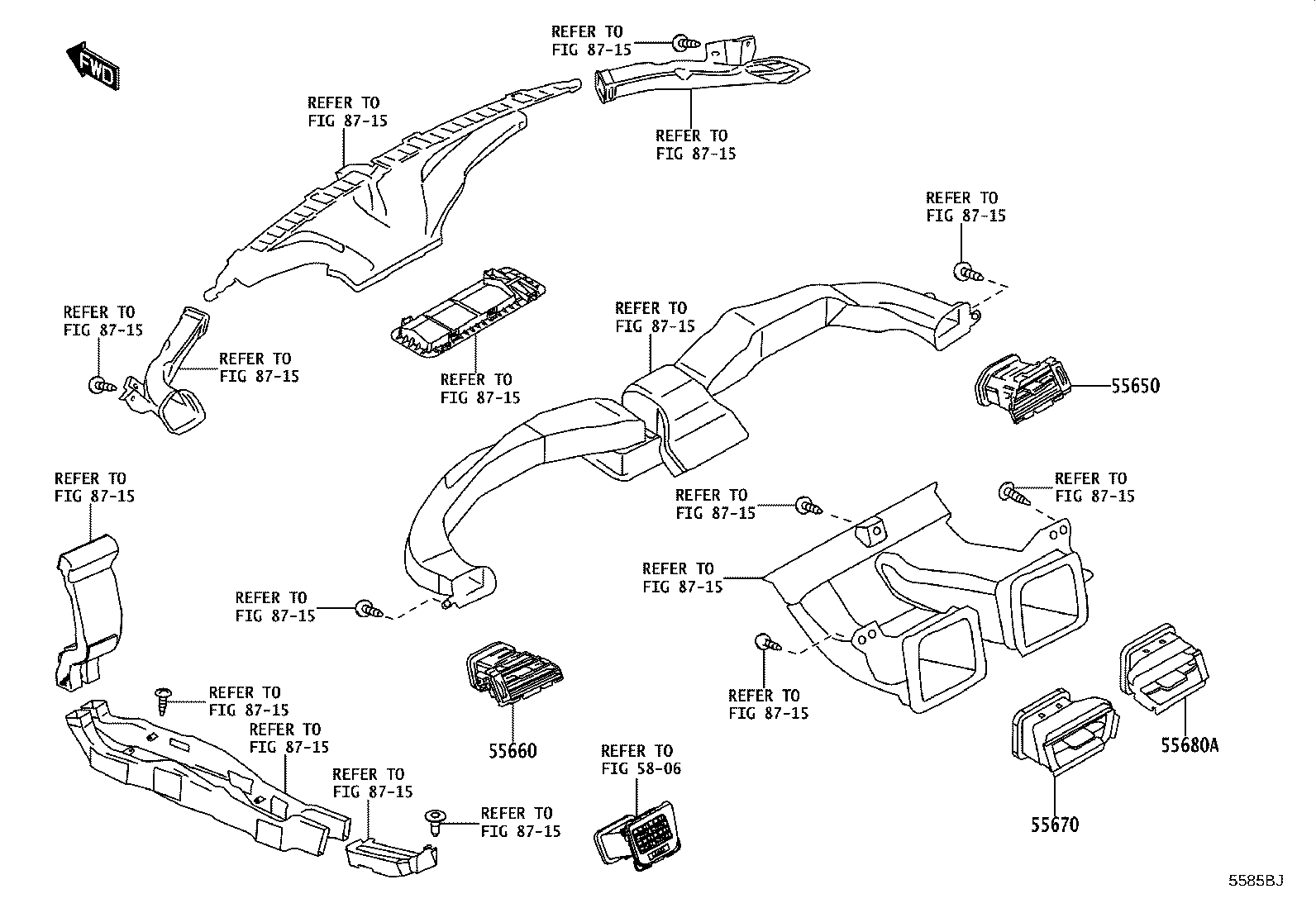

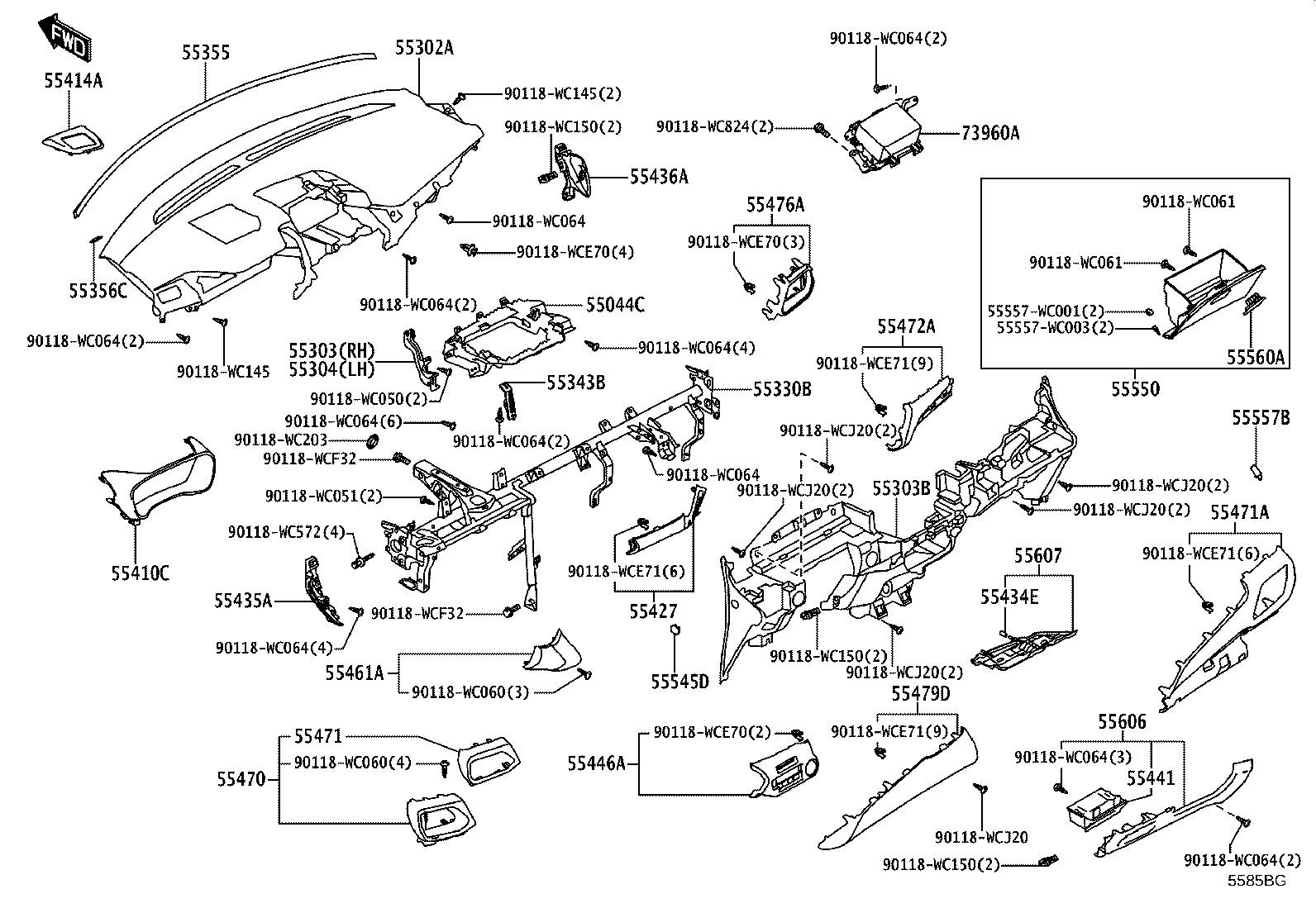

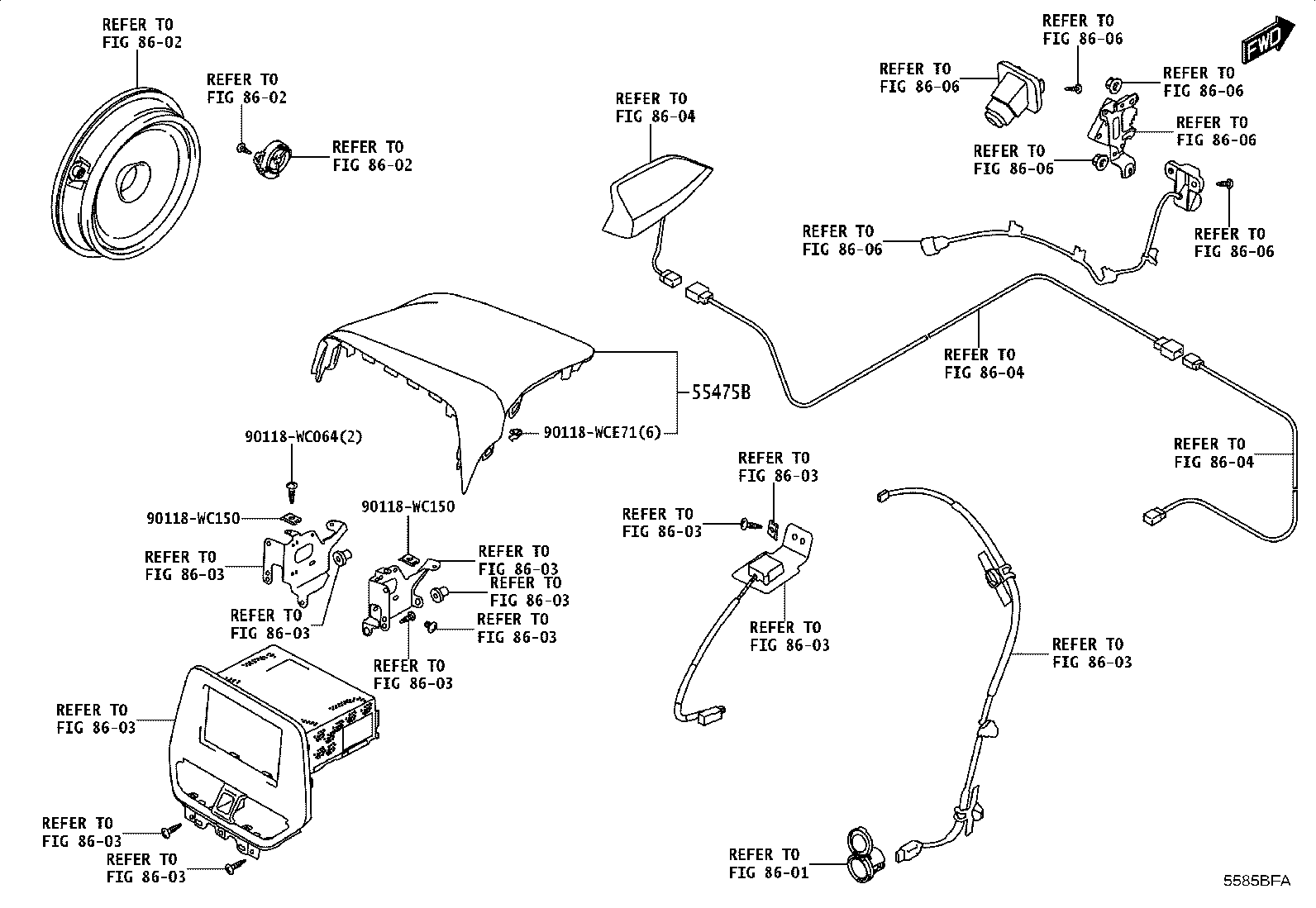

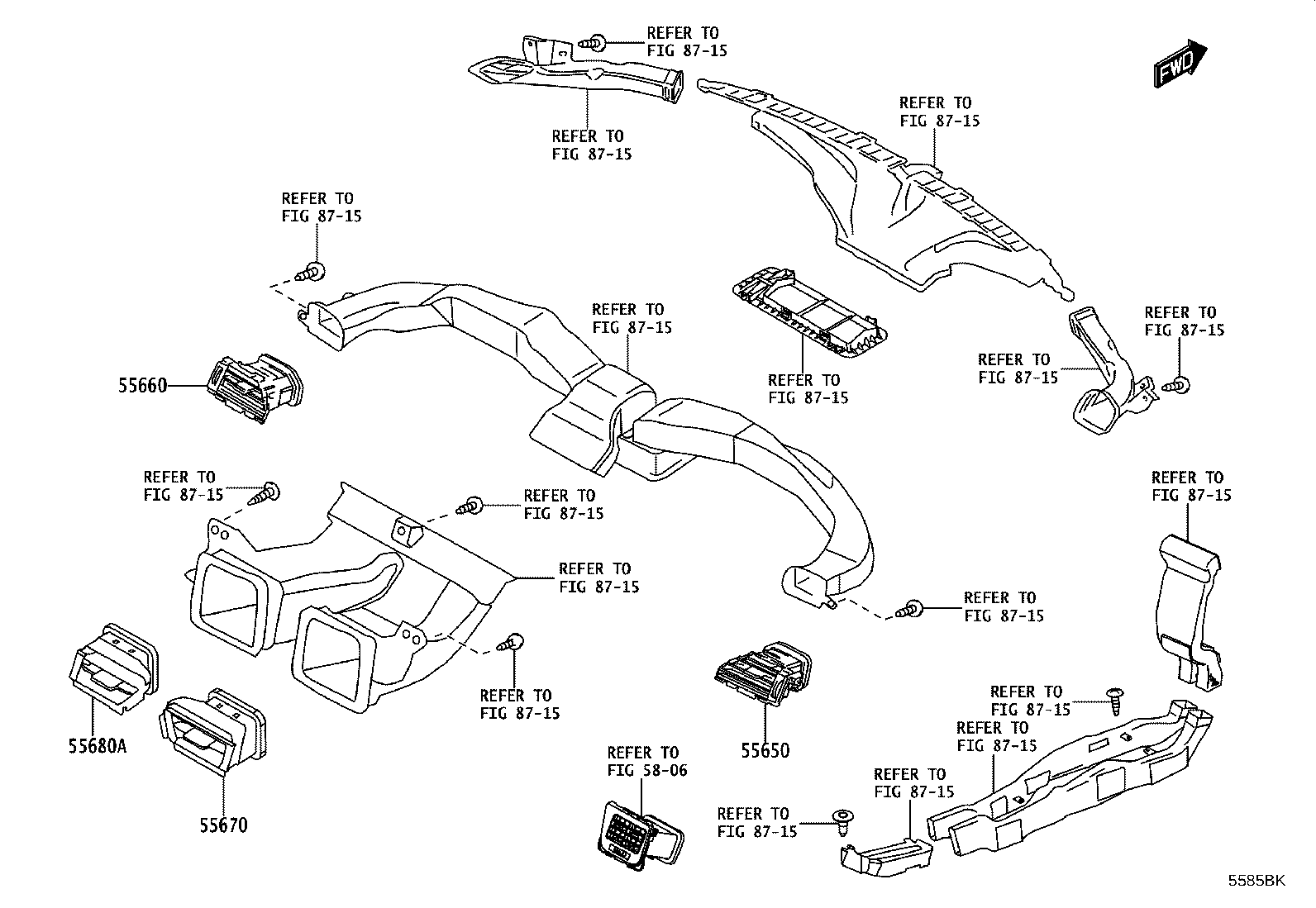

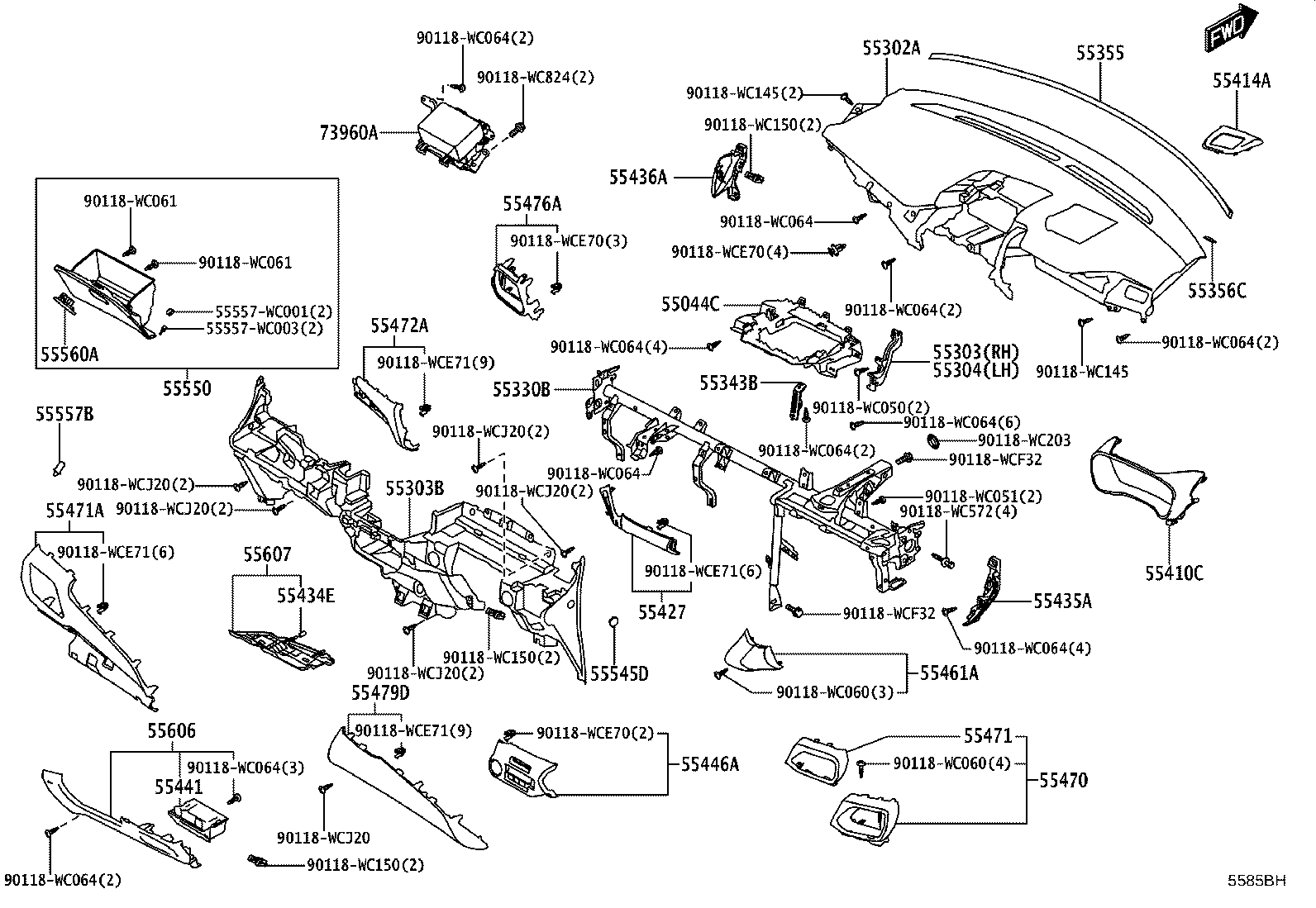

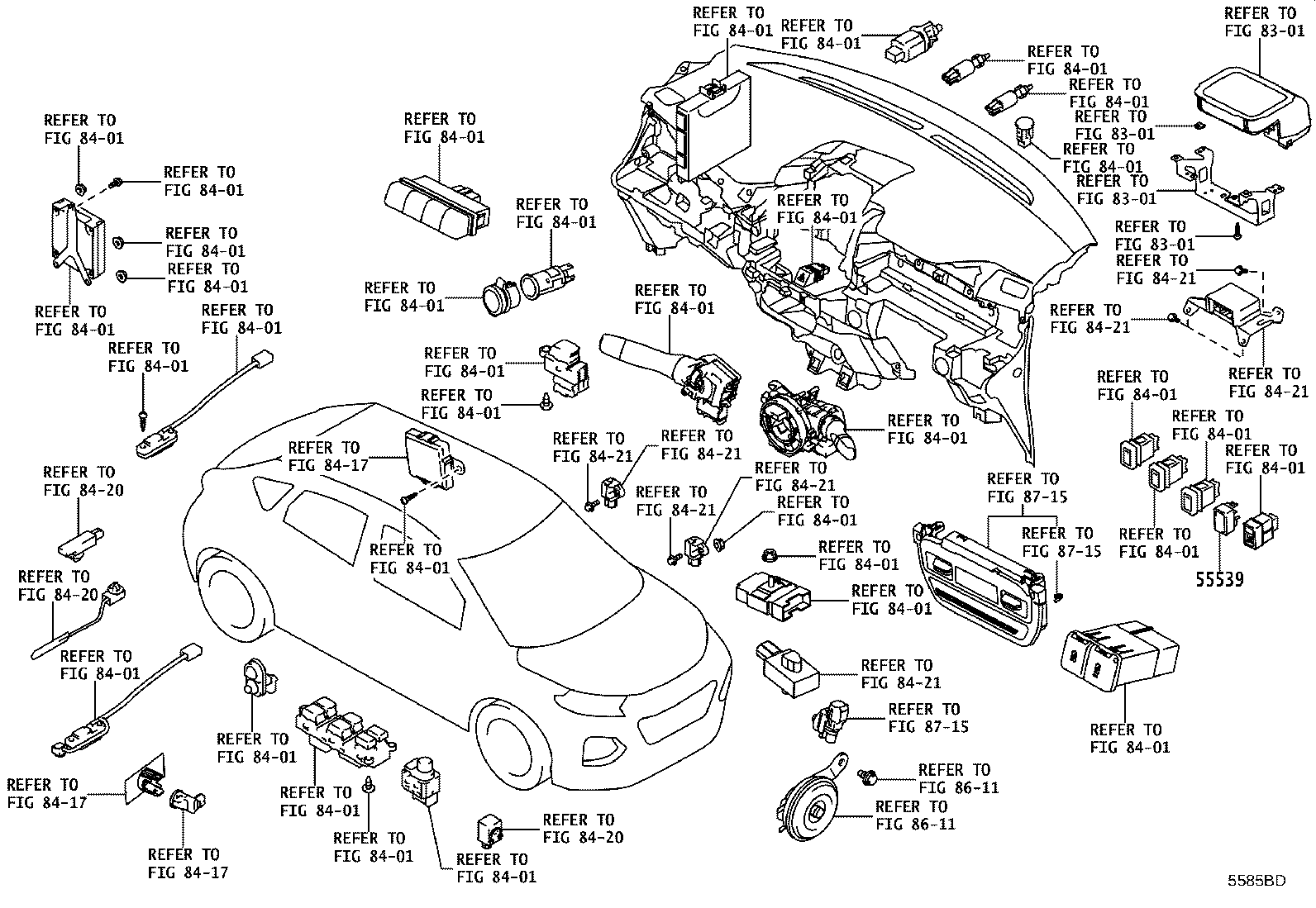

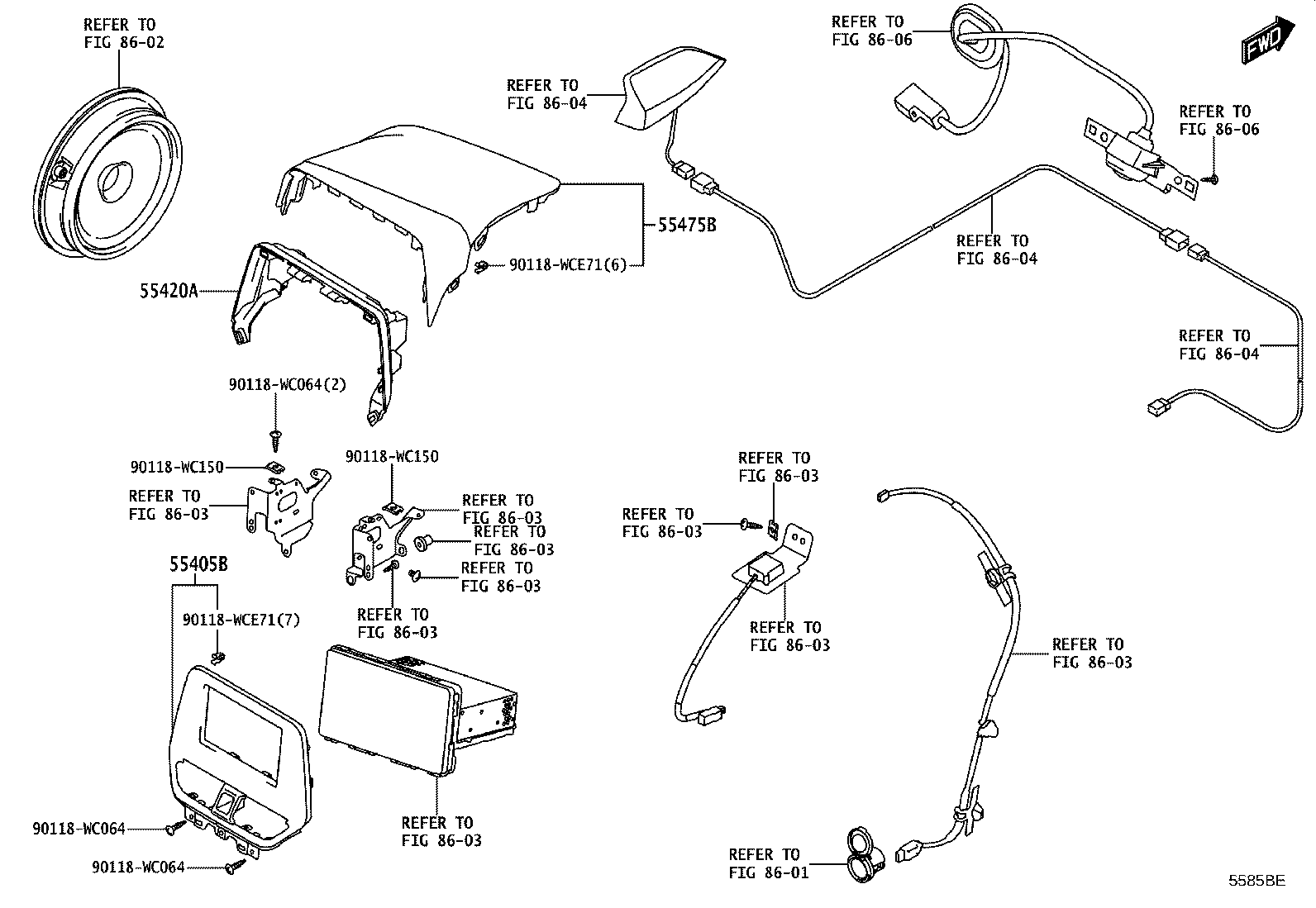

Figure 5585BC 5585BC 2024-04 → — Figure 5585BD 5585BD 2024-04 → — Figure 5585BE 5585BE 2024-04 → — Figure 5585BFA 5585BFA 2024-04 → — Figure 5585BG 5585BG 2024-04 → — Figure 5585BH 5585BH 2024-04 → — Figure 5585BI 5585BI 2024-04 → — Figure 5585BJ 5585BJ 2024-04 → — Figure 5585BK 5585BK 2024-04 → — Figure 5585BL 5585BL 2024-04 → —

Part groups

PNCDescription
55044C Panel Sub-assy, Instrument Panel Finish
55302A Panel Sub-assy, Instrument, Upper
55303 Stay Sub-assy, Instrument Panel, RH
55303B Panel Sub-assy, Instrument, Lower
55304 Stay Sub-assy, Instrument Panel, LH
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55410C Panel Assy, Instrument Cluster Finish
55414A Panel, Instrument Cluster Finish, End
55420A Panel Assy, Instrument Cluster Finish, Center
55427 Ornament, Instrument Panel, Center
55434E Cap
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55441 Box, Instrument Panel
55446A Base, Switch Hole, NO.1
55461A Ornament, Instrument Panel
55470 Garnish Assy, Instrument Cluster Finish Panel
55471 Moulding, Instrument Cluster, NO.1
55471A Ornament, Instrument Cluster Finish Panel
55472A Moulding, Instrument Cluster, NO.2
55475B Garnish, Instrument Cluster Finish Panel, Center
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55479D Garnish, Instrument Cluster Finish Panel, Lower
55539 Cover, Spare Switch Hole
55545D Cover, Instorument Panel Hole, NO.1
55550 Door Assy, Glove Compartment
55557B Stopper, Glove Compertment Door Check
55560A Lock Assy, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
