Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

15 part groups · 5 illustrations

Illustrations

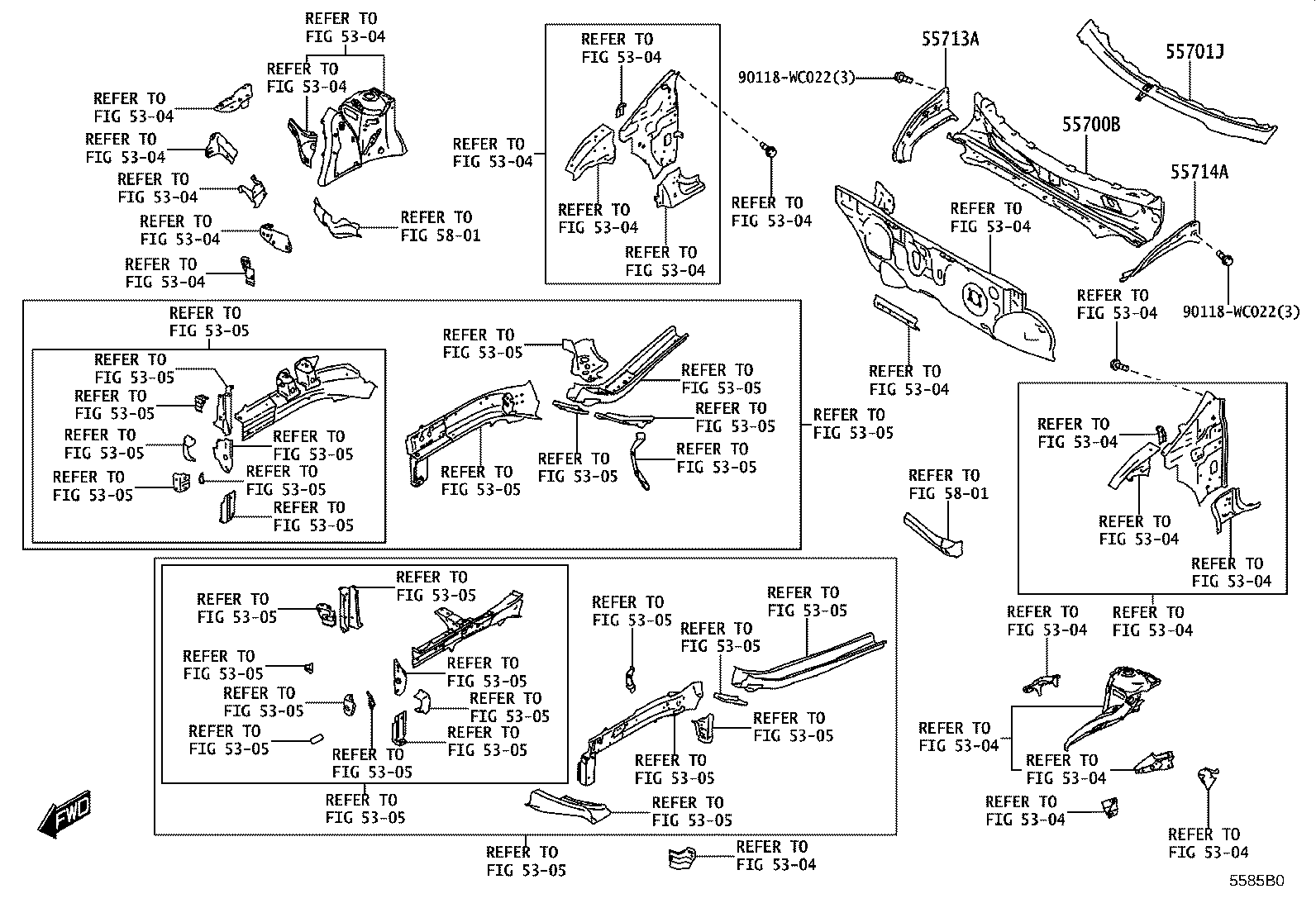

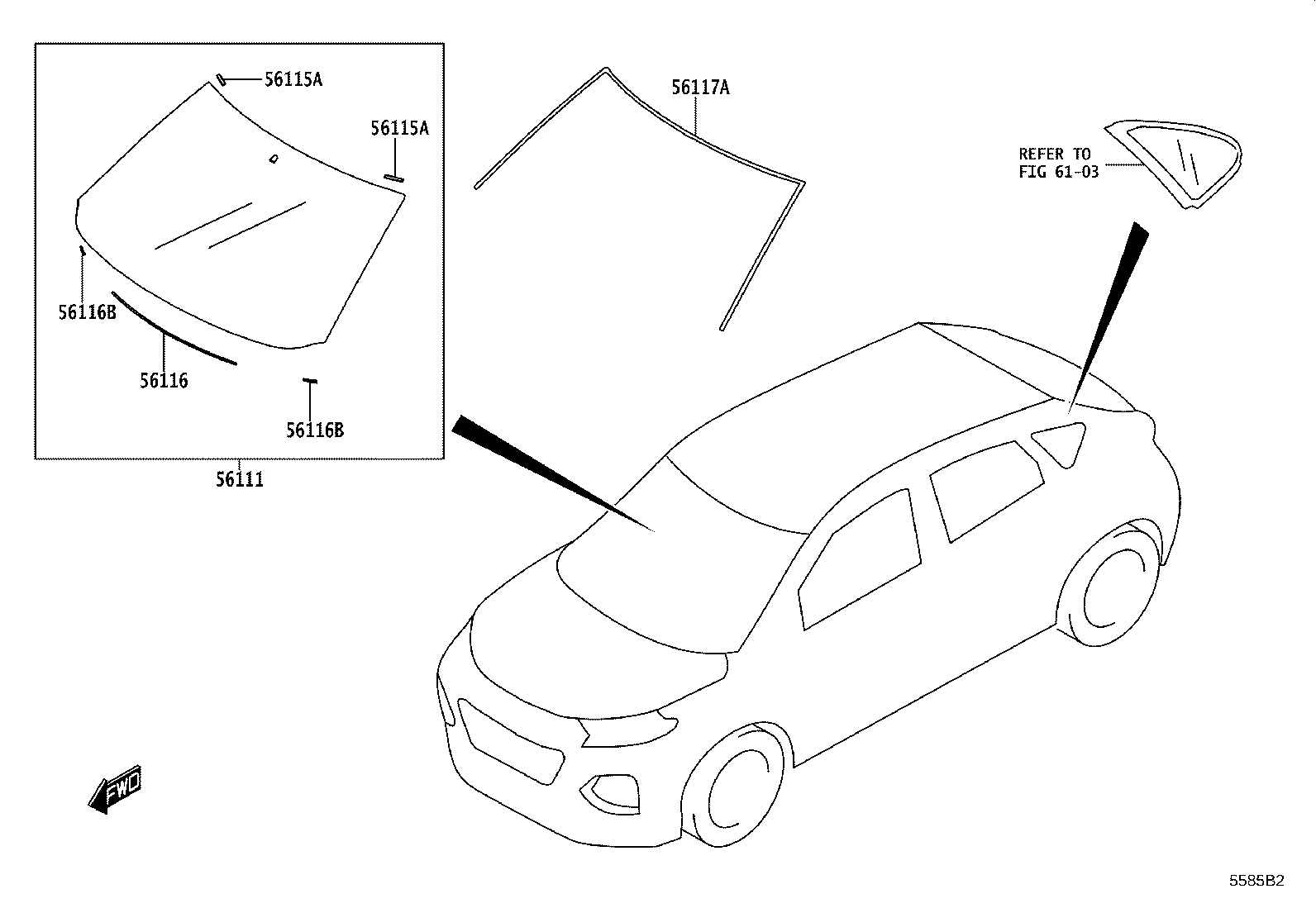

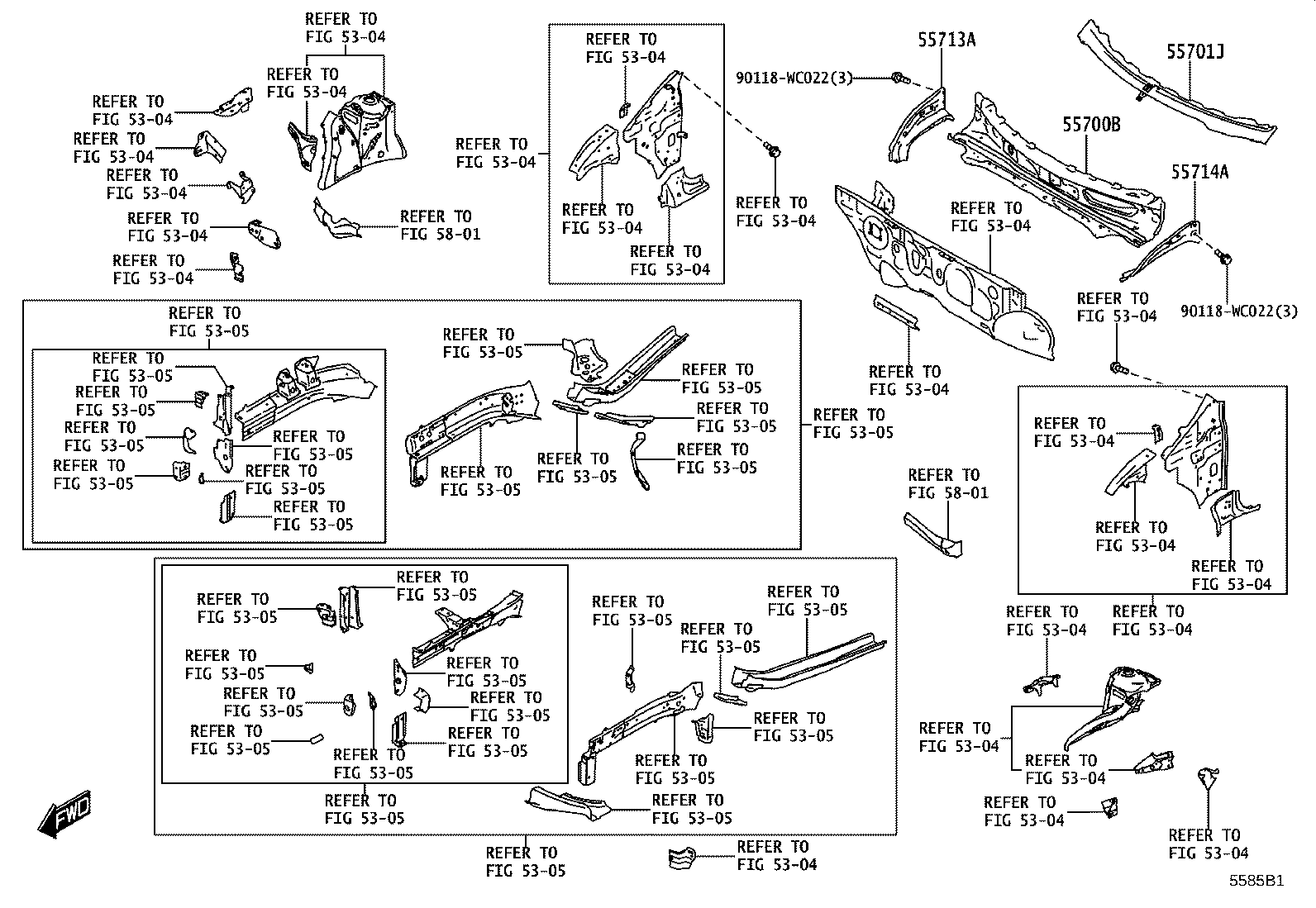

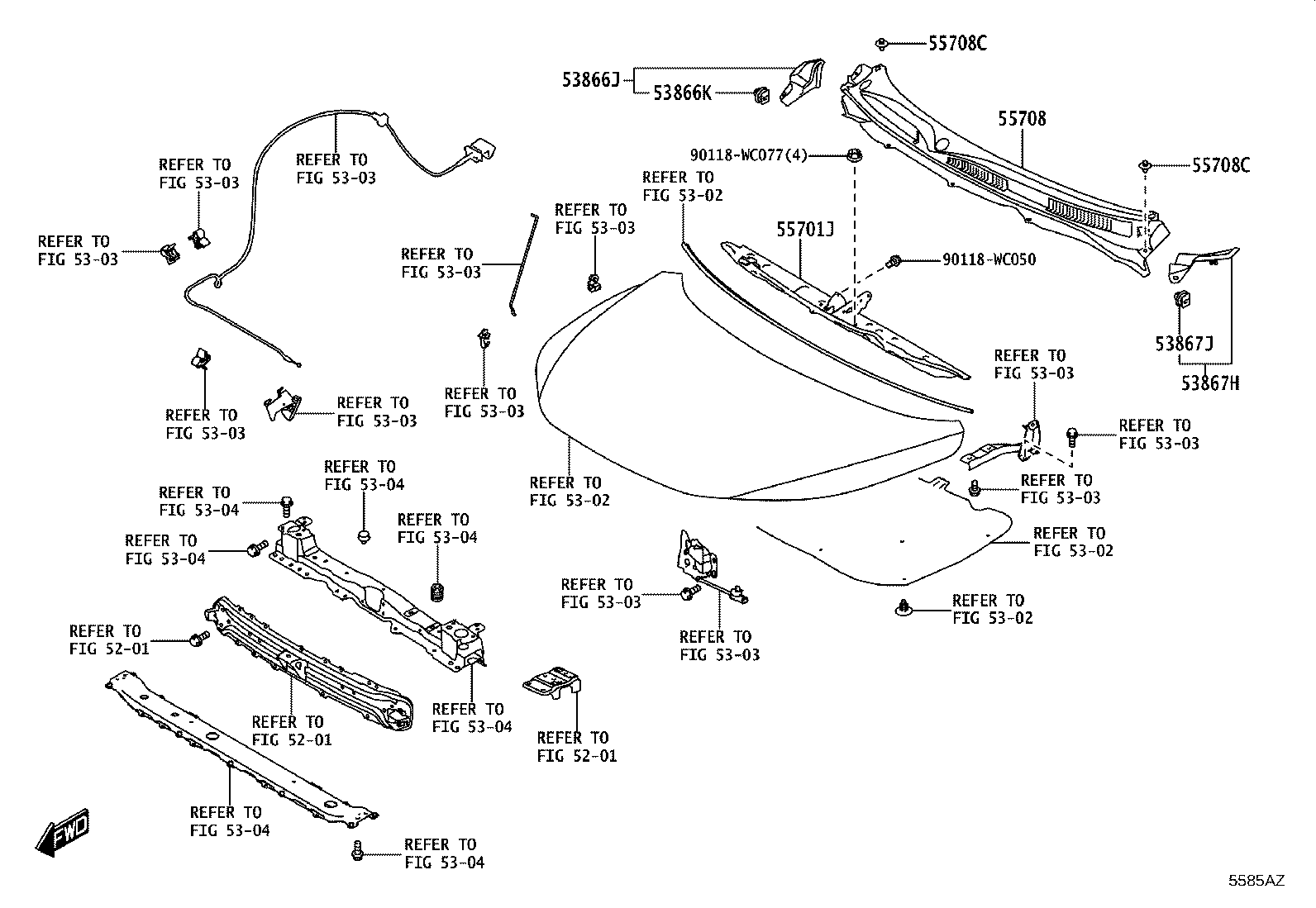

Figure 5585AY 5585AY 2024-04 → — Figure 5585AZ 5585AZ 2024-04 → — Figure 5585B0 5585B0 2024-04 → — Figure 5585B1 5585B1 2024-04 → — Figure 5585B2 5585B2 2024-04 → —

Part groups

PNCDescription
53866J Seal, Front Fender TO Cowl Side, RH
53866K Clip, Front Fender TO Cowl Side Seal
53867H Seal, Front Fender TO Cowl Side, LH
53867J Clip, Front Fender TO Cowl Side Seal
55700B Cowl Assy
55701J Panel Sub-assy, Cowl Top, Outer
55708 Louver Sub-assy, Cowl Top Ventilator
55708C Clip, Cowl Top Ventilator Louver
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116 Spacer, Windshield Glass
56116B Spacer, Windshield Glass
56117A Dam, Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
