Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 6 illustrations

Illustrations

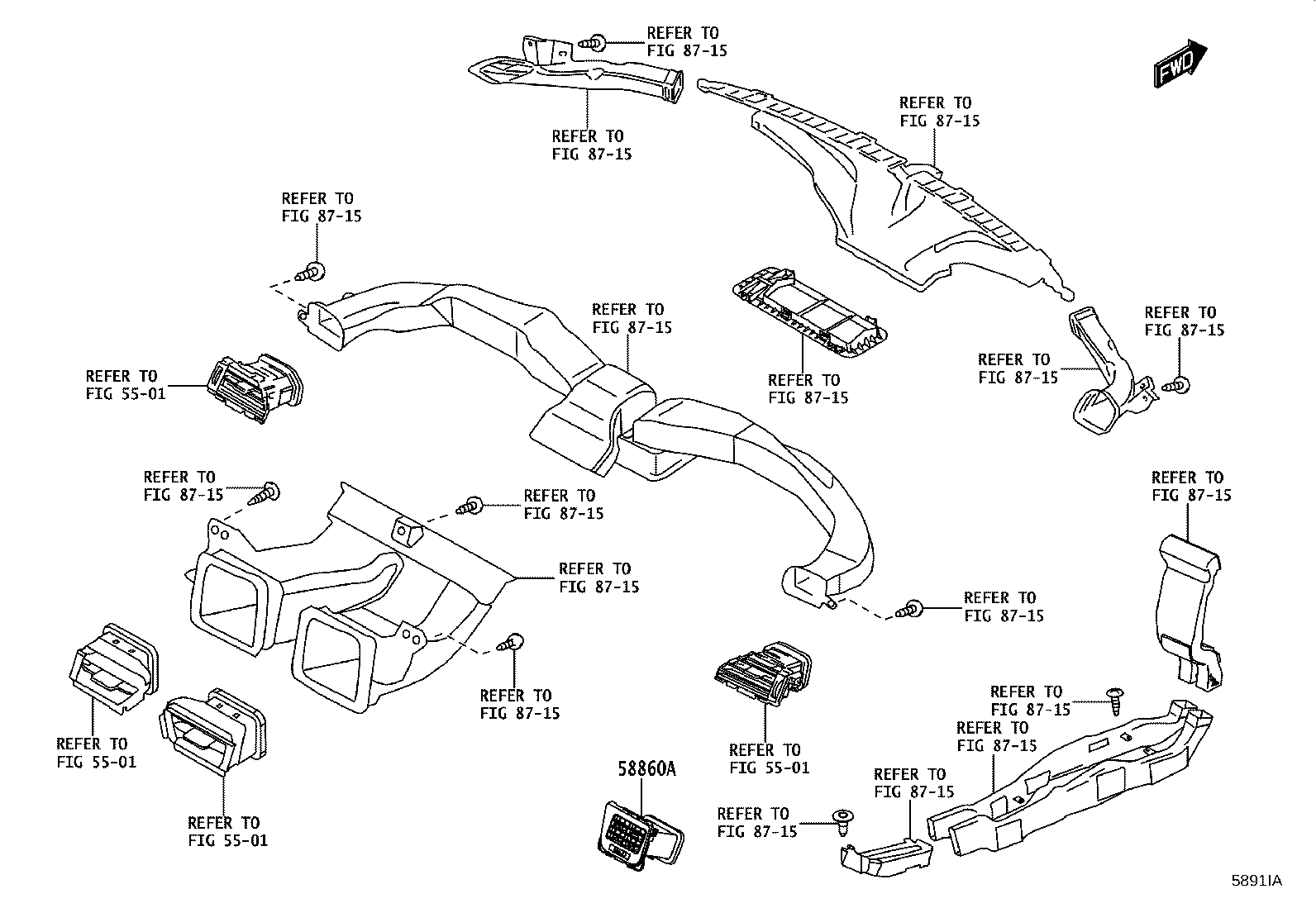

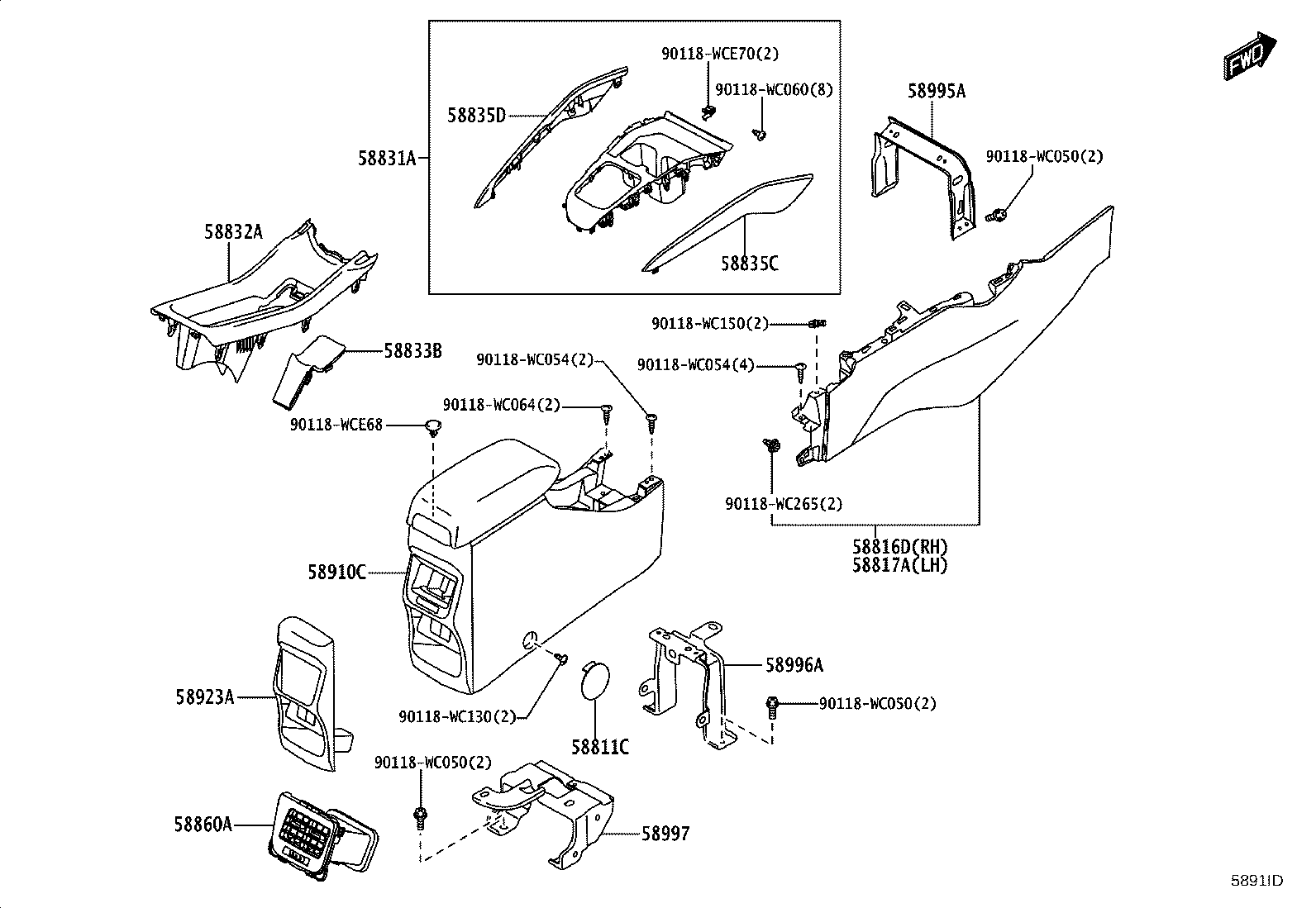

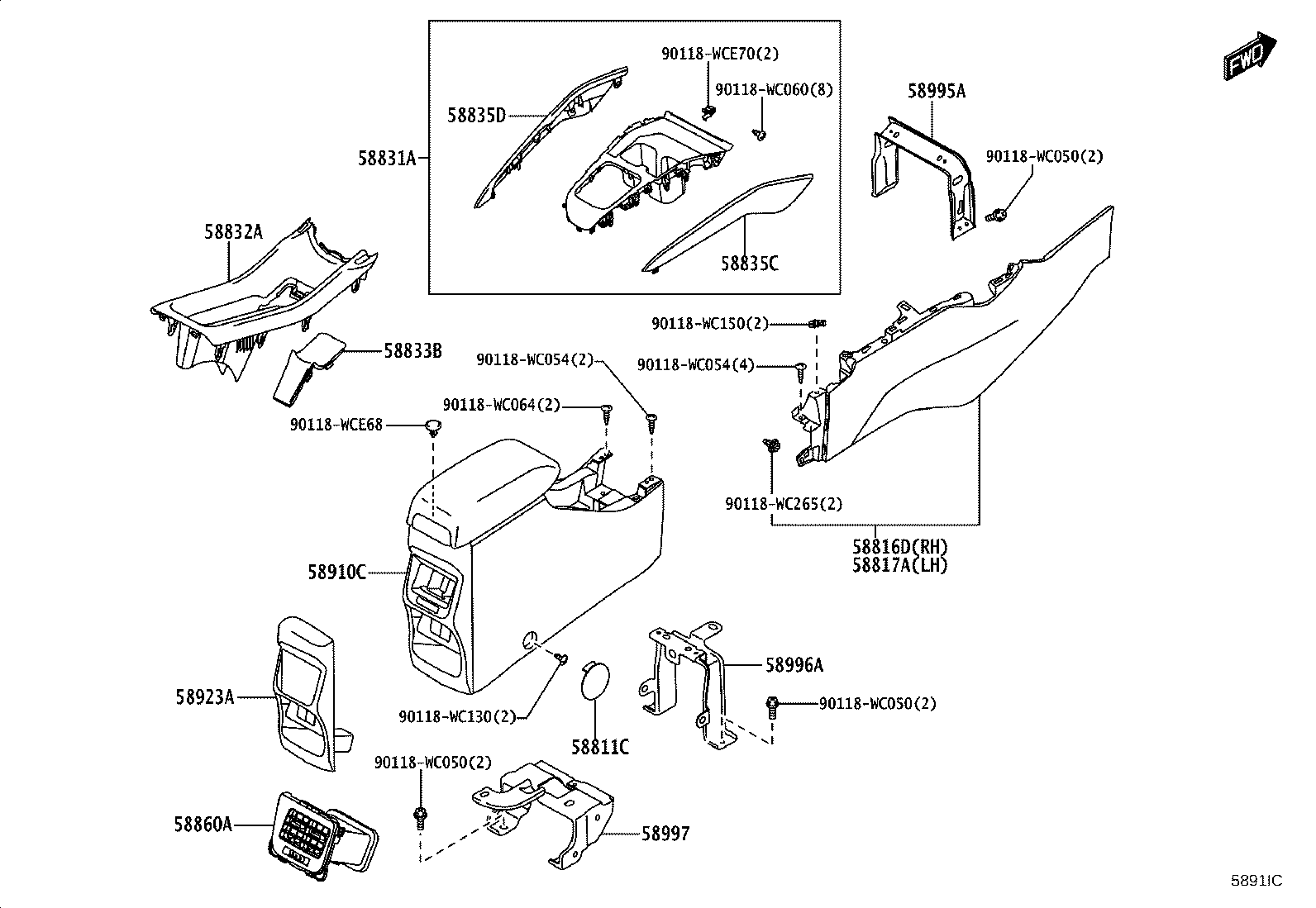

Figure 5891I8 5891I8 2024-04 → — Figure 5891I9 5891I9 2024-04 → — Figure 5891IA 5891IA 2024-04 → — Figure 5891IB 5891IB 2024-04 → — Figure 5891IC 5891IC 2024-04 → — Figure 5891ID 5891ID 2024-04 → —

Part groups

PNCDescription
58811C Cap(FOR CONSOLE)
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58833B Garnish, Console Upper Panel, NO.1
58835C Ornament, Console Box
58835D Ornament, Console Box, NO.2
58860A Register Assy, Console Box
58910C Box Assy, Console, Rear
58923A Panel, Console Rear End
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
