Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

15 part groups · 2 illustrations

Illustrations

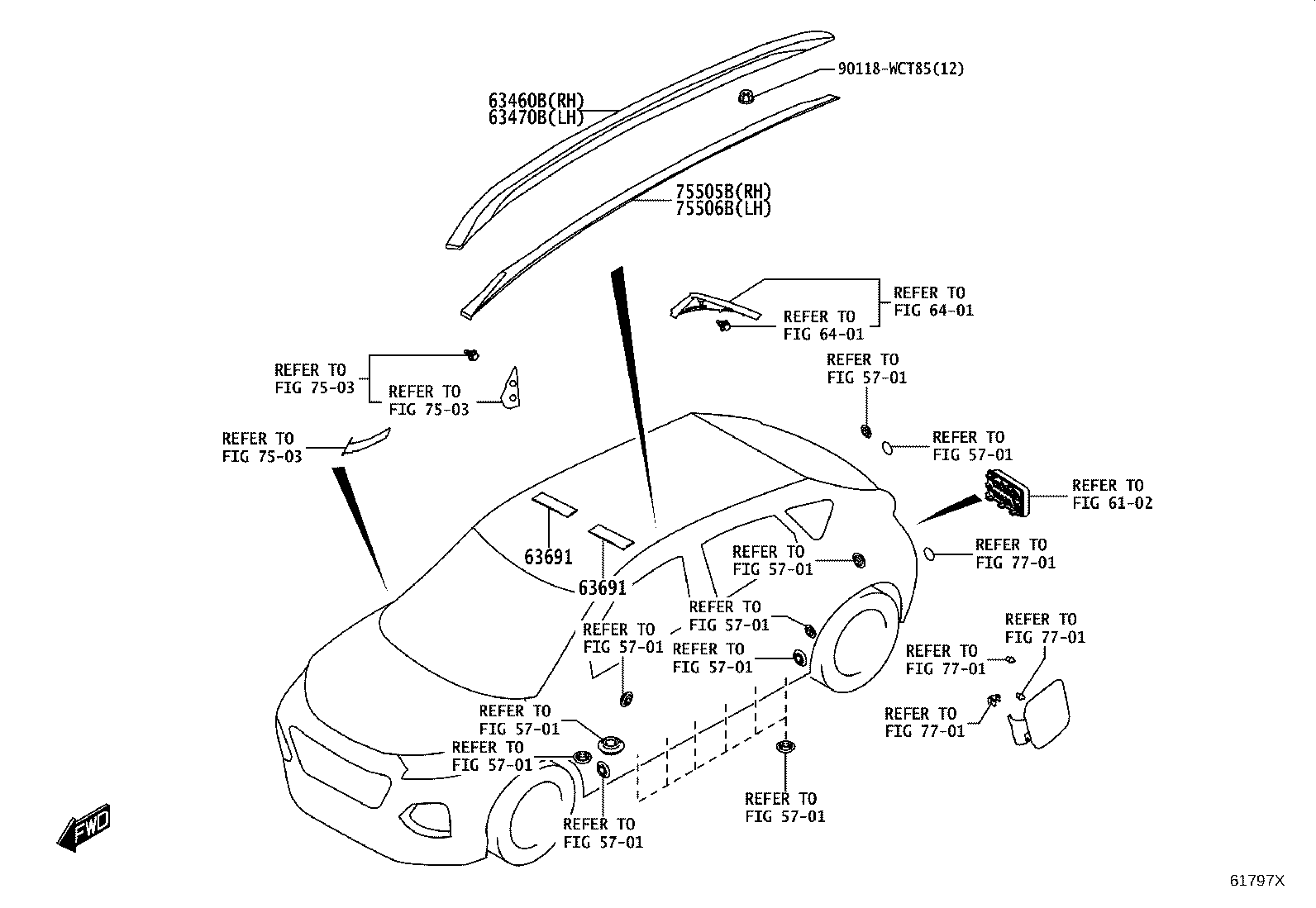

Figure 61797W 61797W 2024-04 → — Figure 61797X 61797X 2024-04 → —

Part groups

PNCDescription
63042A Bolt
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63146D Reinforcement, Roof Panel, NO.6
63147 Bracket, Roof Panel Reinforcement
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
63691 Pad, Roof Silencer, NO.21
75505B Garnish Sub-assy, Roof Side, Front RH
75506B Garnish Sub-assy, Roof Side, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
