Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

25 part groups · 3 illustrations

Illustrations

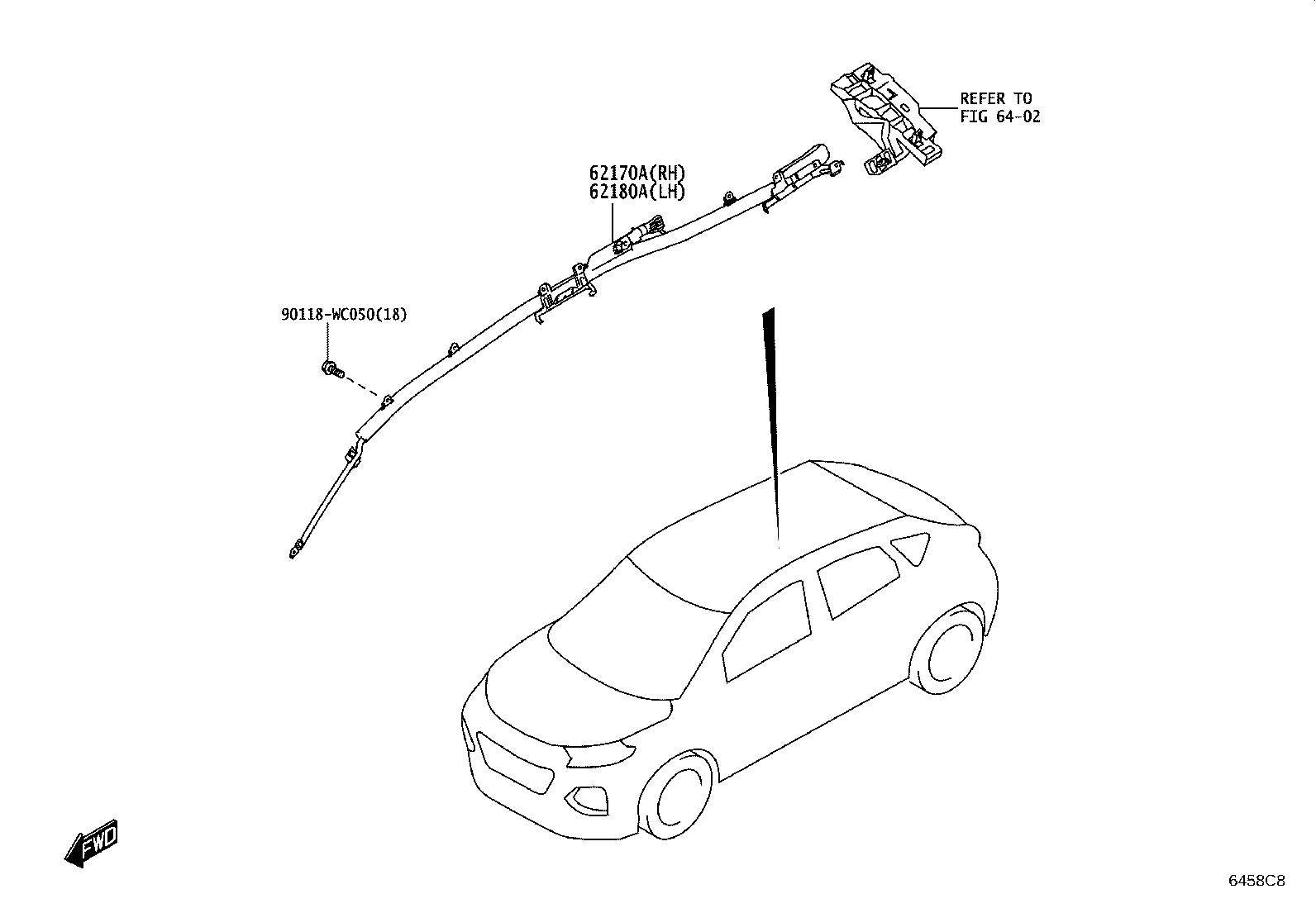

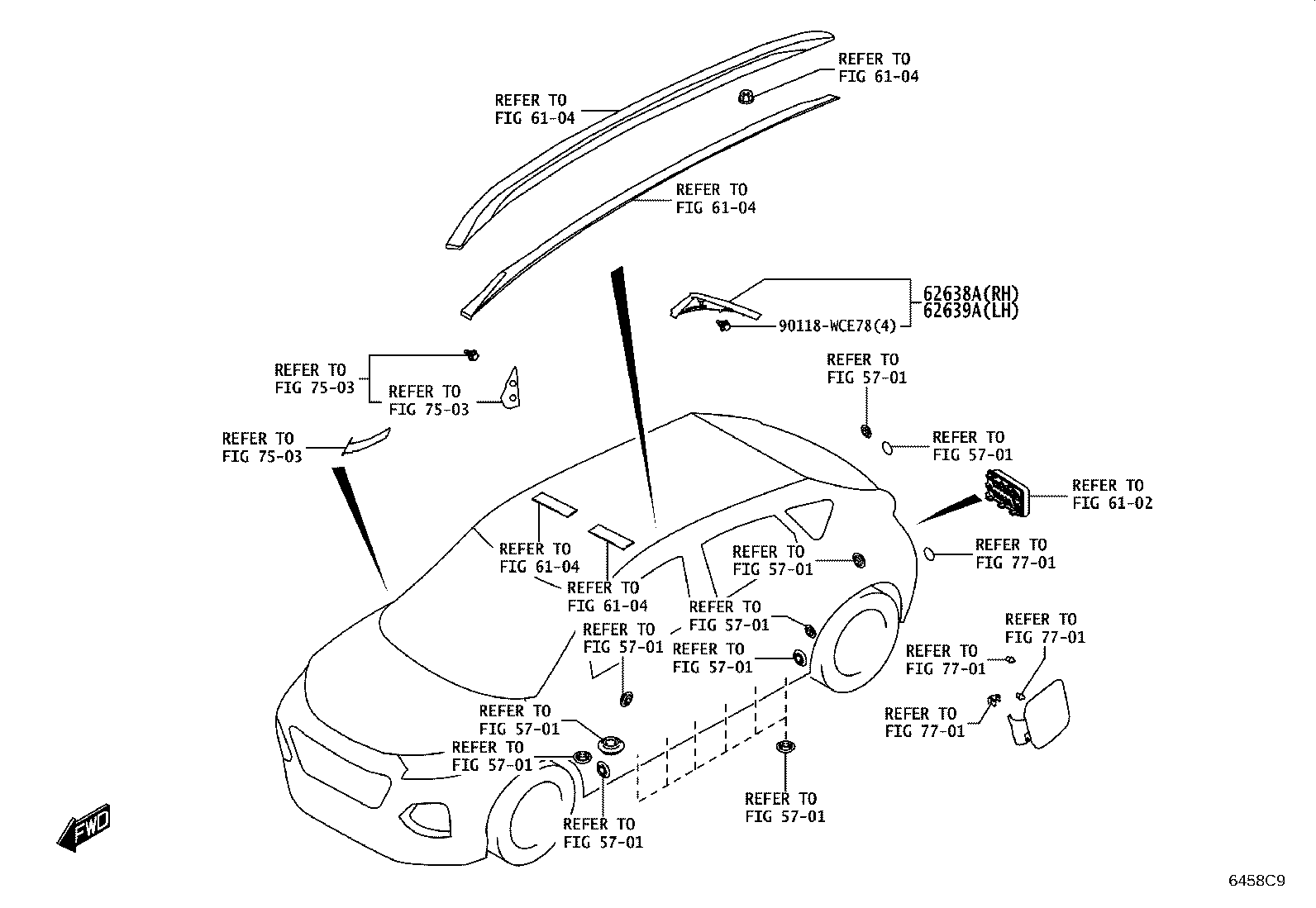

Figure 6458C7 6458C7 2024-04 → — Figure 6458C8 6458C8 2024-04 → — Figure 6458C9 6458C9 2024-04 → —

Part groups

PNCDescription
58521K Hook, Floor Carpet
62111A Trim Sub-assy, Cowl Side, RH
62112A Trim Sub-assy, Cowl Side, LH
62170A Airbag Assy, Curtain Shield, RH
62180A Airbag Assy, Curtain Shield, LH
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62331A Weatherstrip, Rear Door Opening Trim, RH
62332A Weatherstrip, Rear Door Opening Trim, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62471A Garnish, Roof Side, Inner RH
62471G Clip, Roof Side Inner Garnish
62472A Garnish, Roof Side, Inner LH
62472G Clip (FOR ROOF SIDE GARNISH)
62638A Garnish, Quarter Pillar, RH
62639A Garnish, Quarter Pillar, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
