Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

8 part groups · 3 illustrations

Illustrations

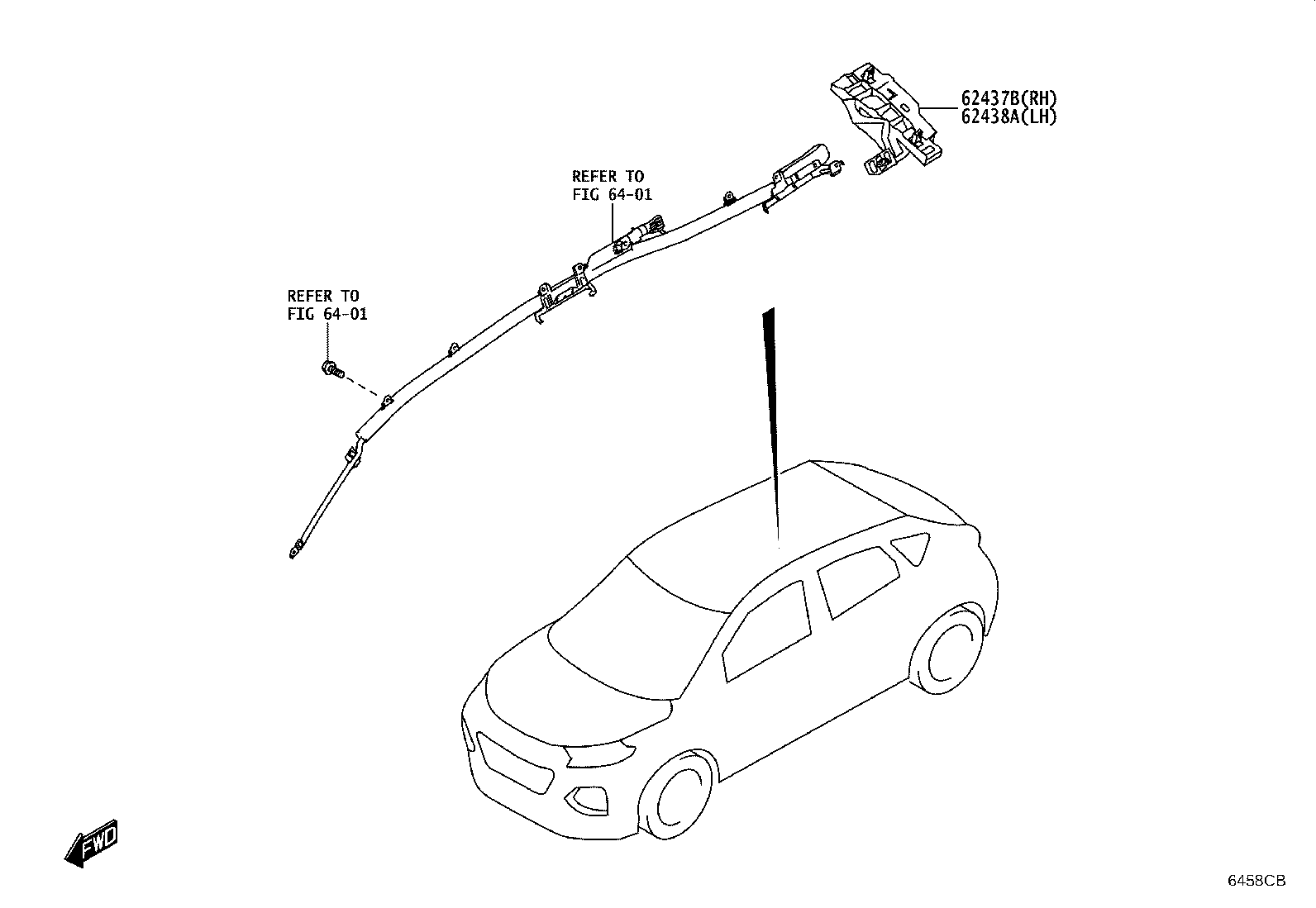

Figure 6458CA 6458CA 2024-04 → — Figure 6458CB 6458CB 2024-04 → — Figure 6458CC 6458CC 2024-04 → —

Part groups

PNCDescription
62437B Pad, Roof Side Rail, Rear RH
62438A Pad, Roof Side Rail, Rear LH
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
