Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

16 part groups · 4 illustrations

Illustrations

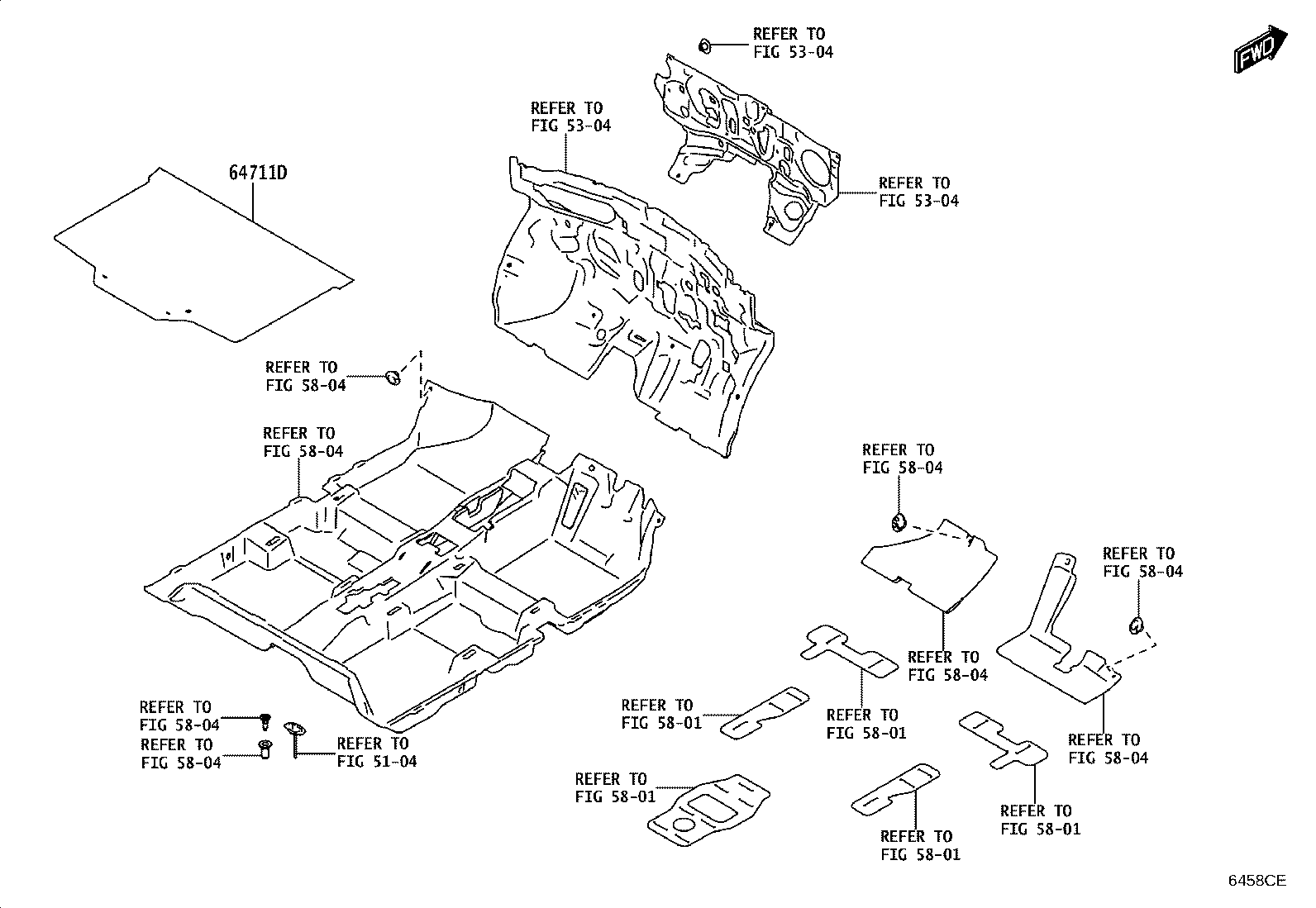

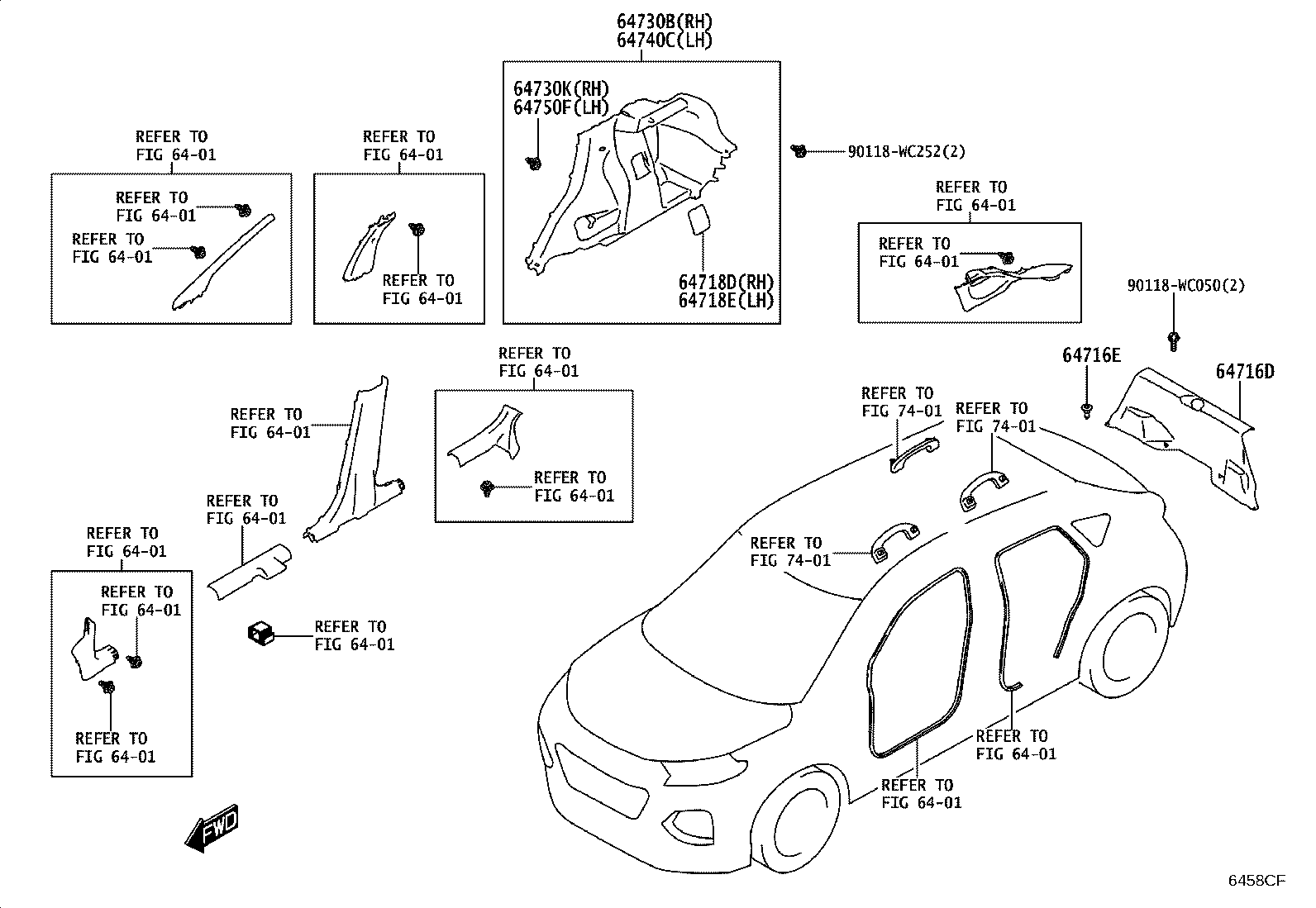

Figure 6458CD 6458CD 2024-04 → — Figure 6458CE 6458CE 2024-04 → — Figure 6458CF 6458CF 2024-04 → — Figure 6458CG 6458CG 2024-04 → —

Part groups

PNCDescription
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64335 Pad, Package Tray Trim Silencer, Rear
64361 Hinge, Package Tray Trim, RH
64362 Hinge, Package Tray Trim, LH
64377 Cushion, Package Tray Trim
64381A Hanger, Package Tray Trim
64711D Carpet, Luggage Compartment Floor
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64718D Cover, Deck Trim Service Hole
64718E Cover, Deck Trim Service Hole, NO.2
64730B Panel Assy, Deck Trim Side, RH
64730K Clip(FOR DECK SIDE TRIM PANEL)
64740C Panel Assy, Deck Trim Side, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
