Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

26 part groups · 10 illustrations

Illustrations

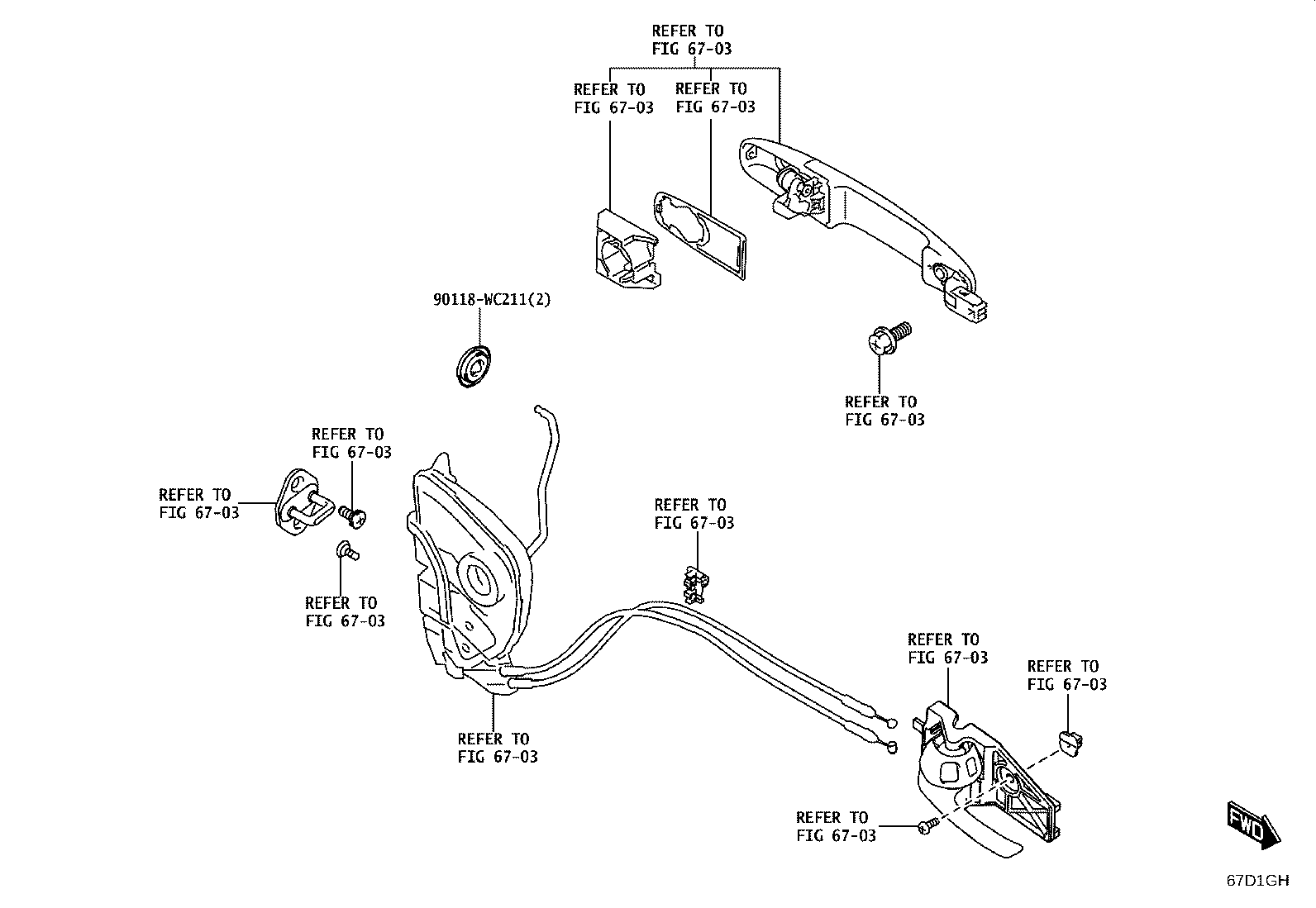

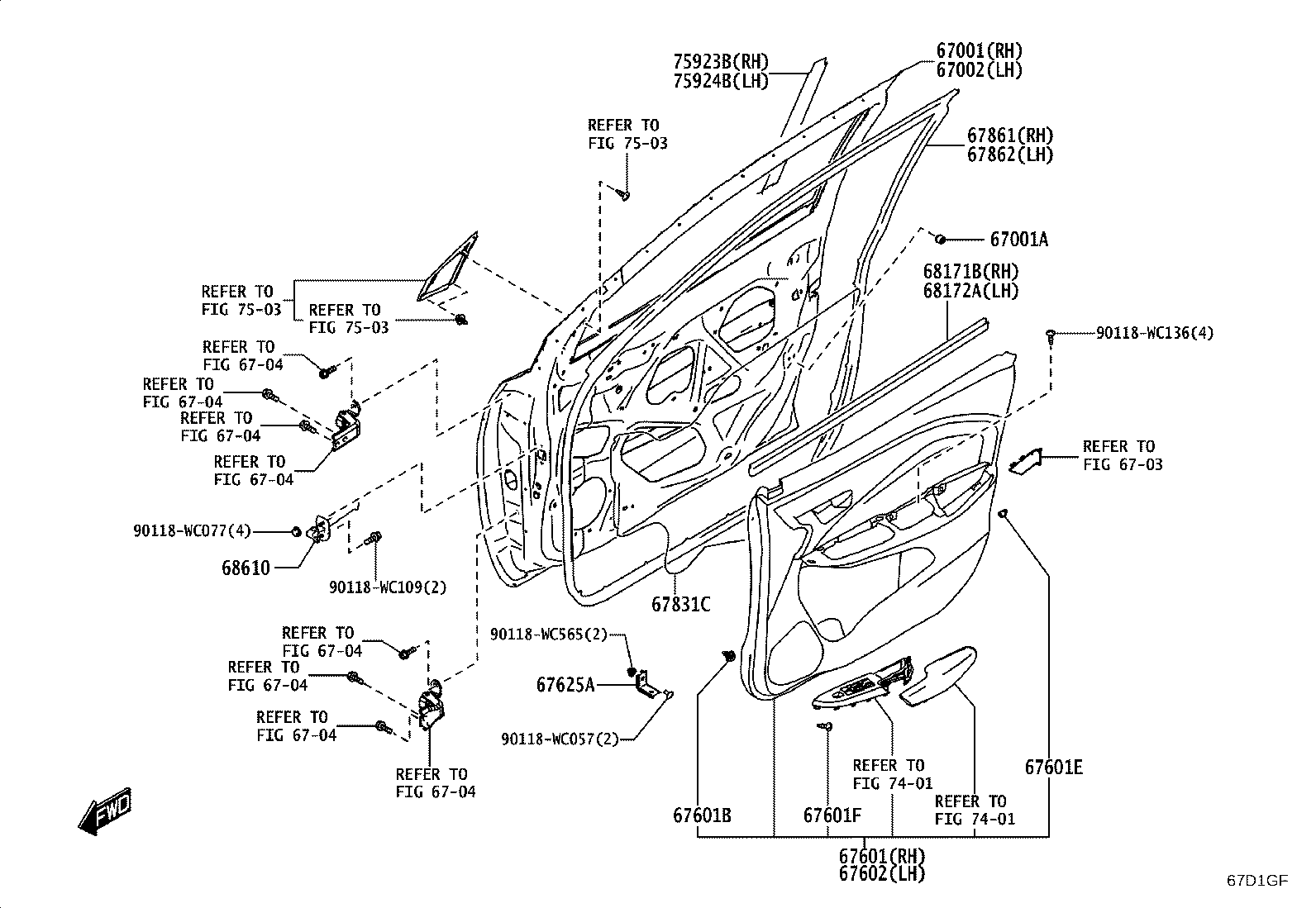

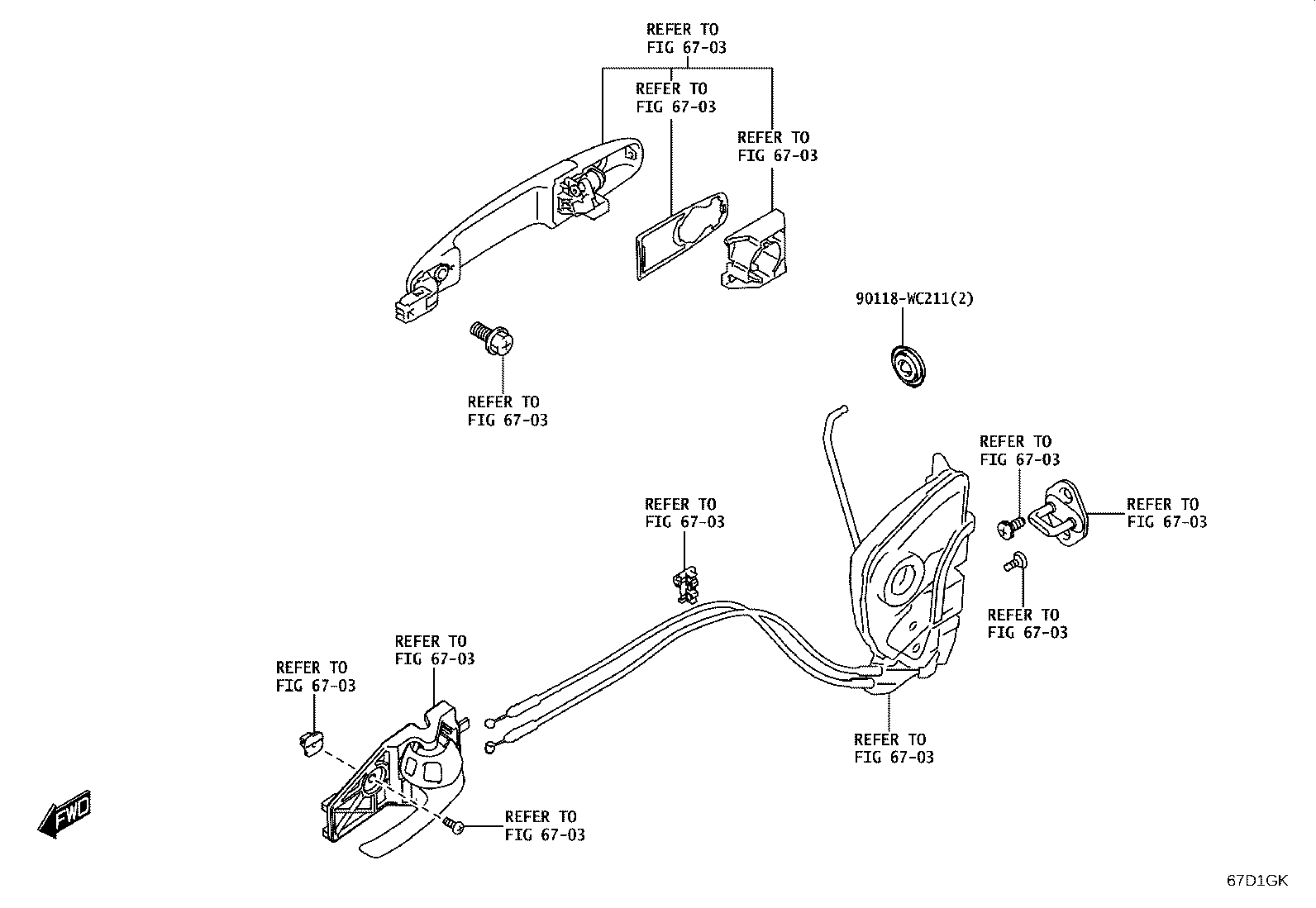

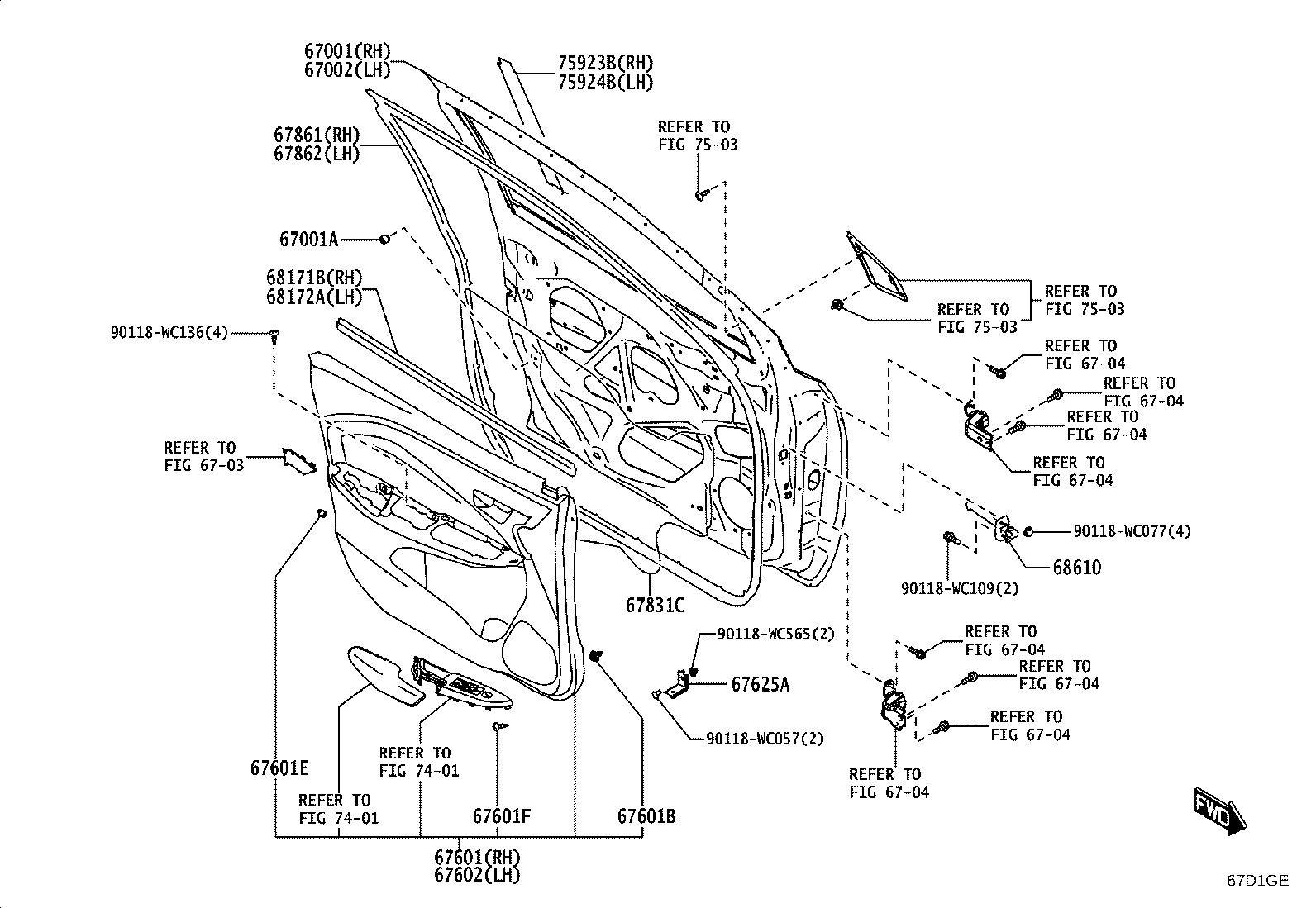

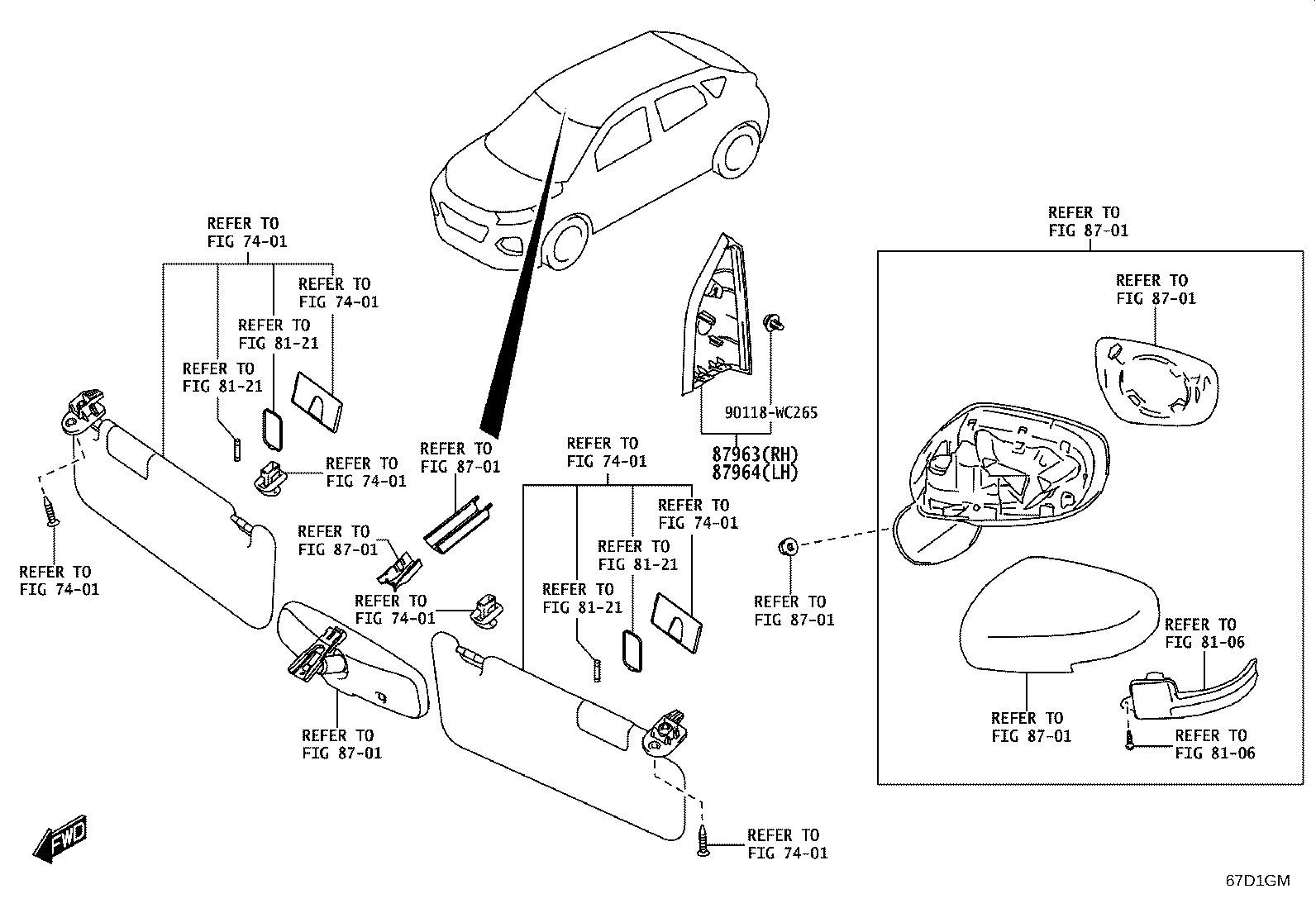

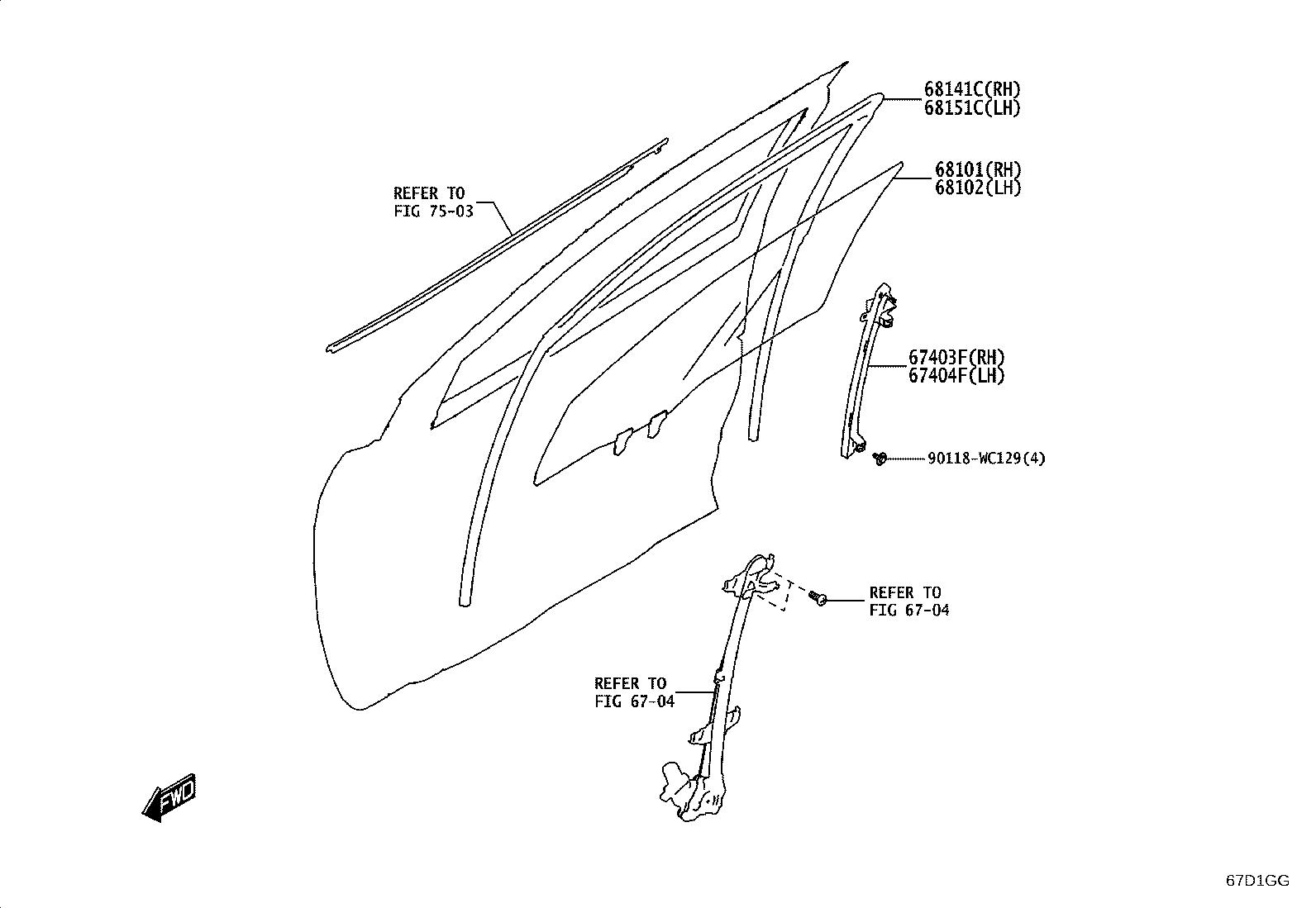

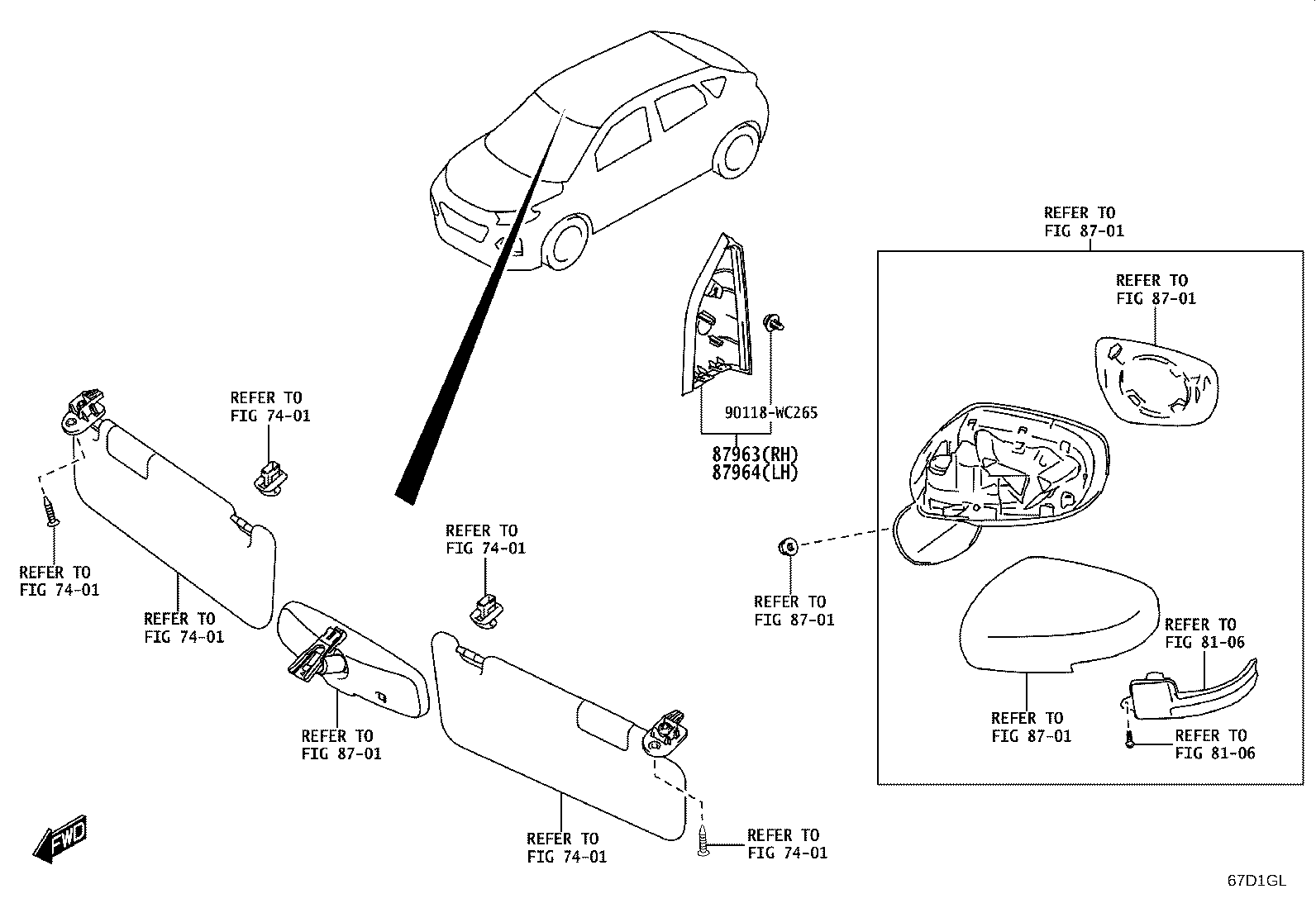

Figure 67D1GD 67D1GD 2024-04 → — Figure 67D1GE 67D1GE 2024-04 → — Figure 67D1GF 67D1GF 2024-04 → — Figure 67D1GG 67D1GG 2024-04 → — Figure 67D1GH 67D1GH 2024-04 → — Figure 67D1GI 67D1GI 2024-04 → — Figure 67D1GJ 67D1GJ 2024-04 → — Figure 67D1GK 67D1GK 2024-04 → — Figure 67D1GL 67D1GL 2024-04 → — Figure 67D1GM 67D1GM 2024-04 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601E Cap(FOR FRONT DOOR TRIM BOARD)
67601F Screw(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67811C Cover, Front Door Hole
67831C Cover, Front Door Service Hole
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68610 Check Assy, Front Door
75923B Tape, Black Out, NO.2 RH
75924B Tape, Black Out, NO.2 LH
87963 Cover, Outer Mirror Install Hole, RH
87964 Cover, Outer Mirror Install Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
