Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

13 part groups · 6 illustrations

Illustrations

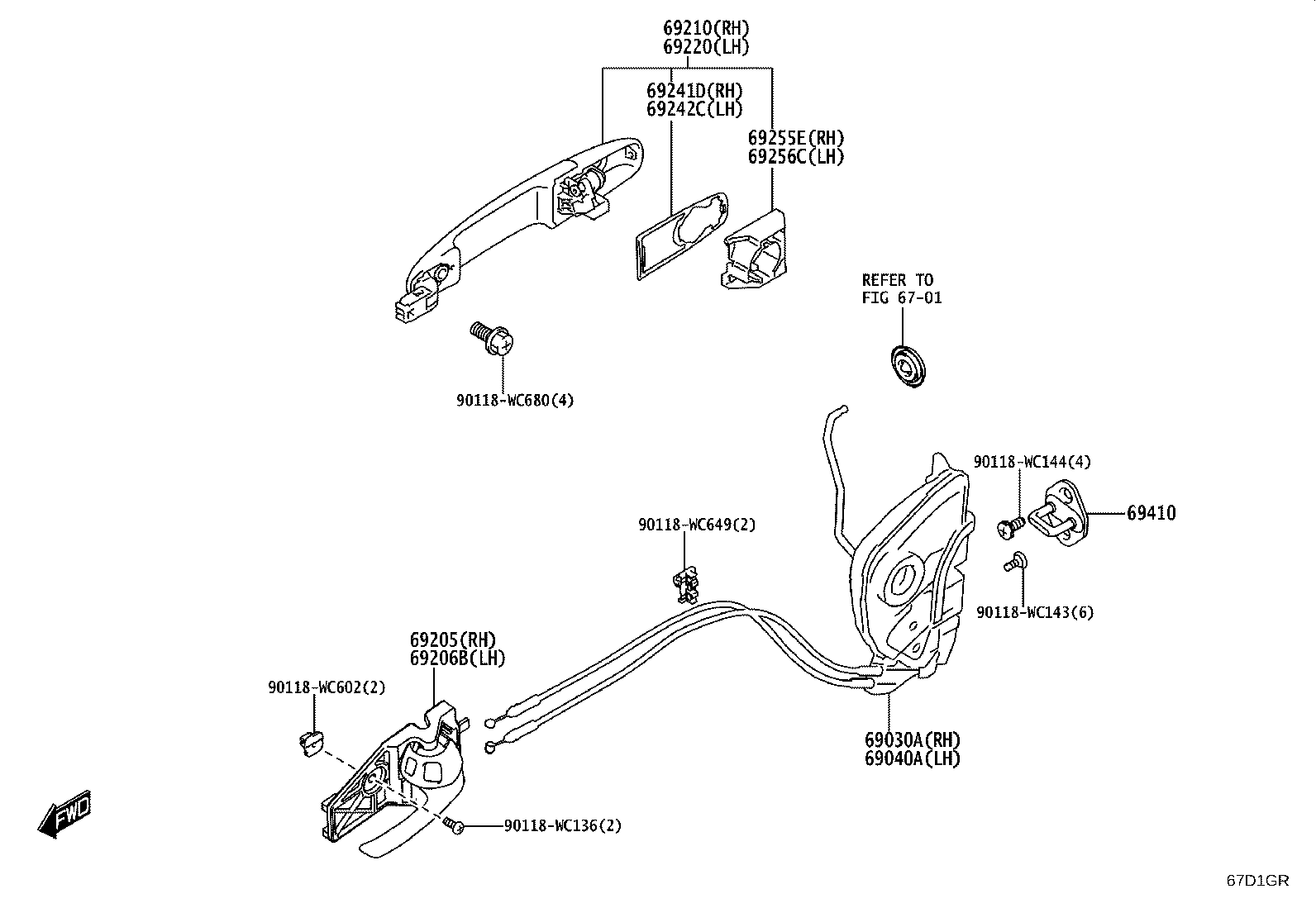

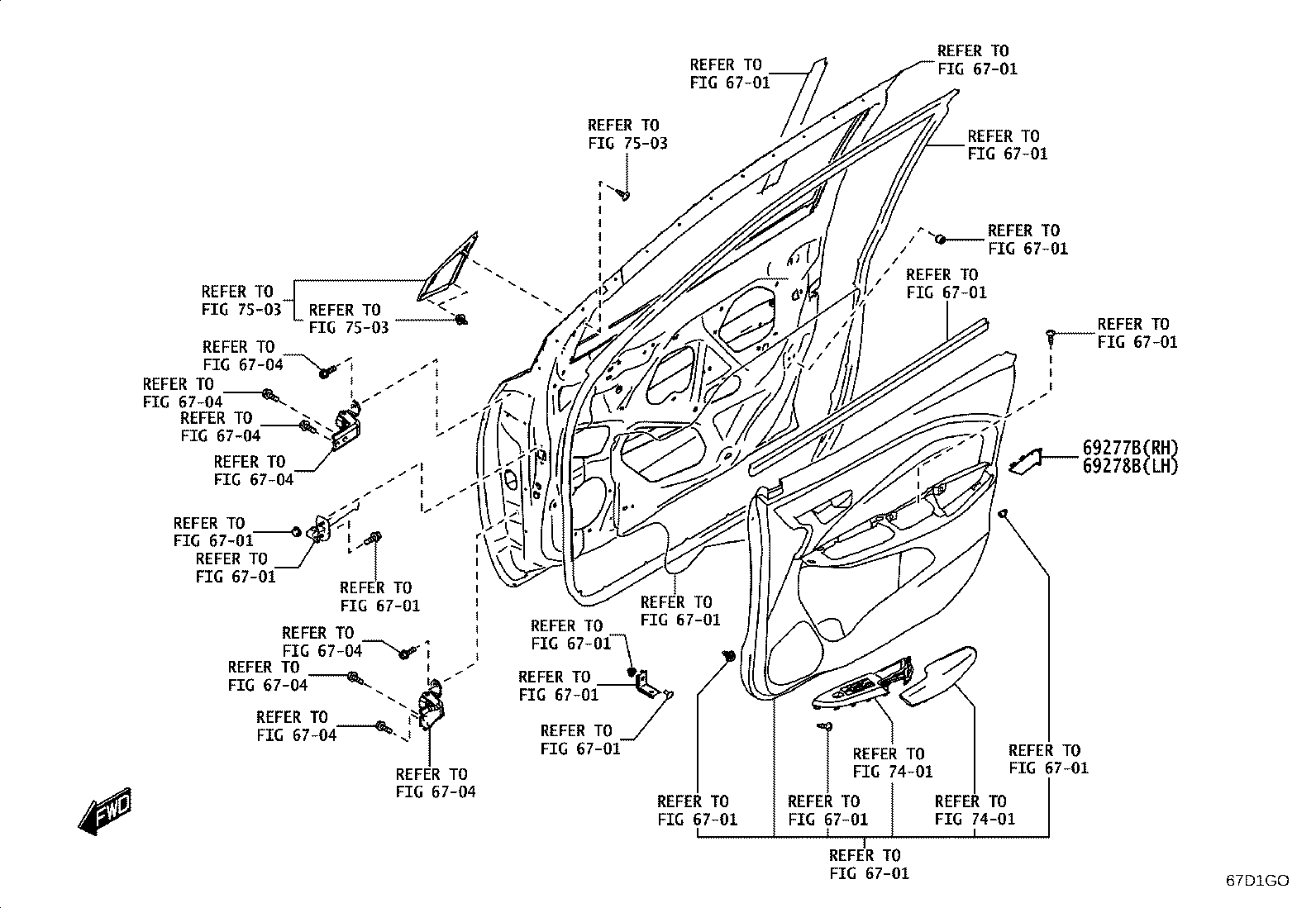

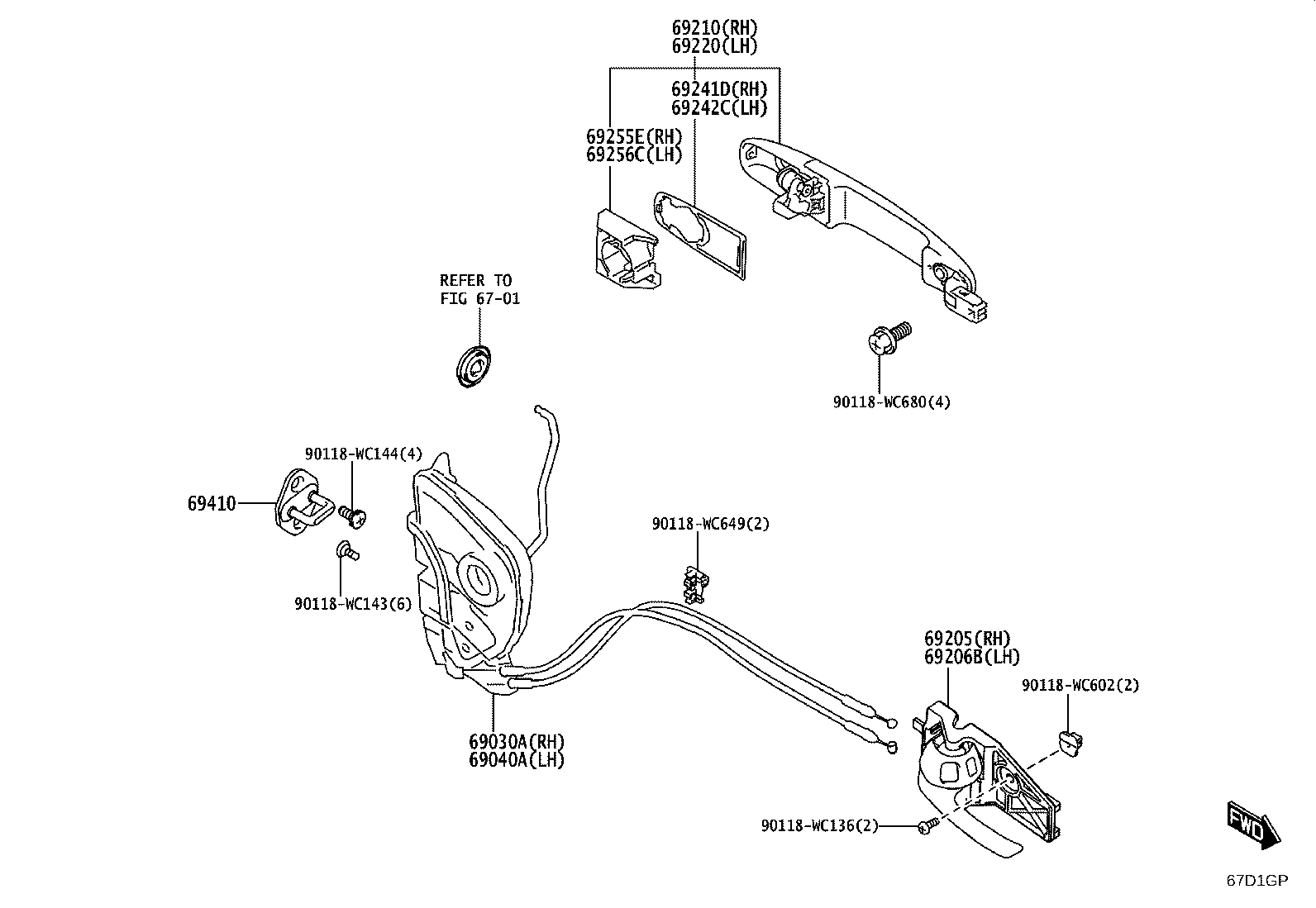

Figure 67D1GN 67D1GN 2024-04 → — Figure 67D1GO 67D1GO 2024-04 → — Figure 67D1GP 67D1GP 2024-04 → — Figure 67D1GQ 67D1GQ 2024-04 → — Figure 67D1GR 67D1GR 2024-04 → — Figure 67D1GS 67D1GS 2024-04 → —

Part groups

PNCDescription
69030A Lock Assy, Front Door W/Motor, RH
69040A Lock Assy, Front Door W/Motor, LH
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69241D Pad, Front Door Outside Handle, RH
69242C Pad, Front Door Outside Handle, LH
69255E Protector, Door Outside Handle, RH
69256C Protector, Door Outside Handle, LH
69277B Bezel, Front Door Inside Handle, RH
69278B Bezel, Front Door Inside Handle, LH
69410 Plate Assy, Front Door Lock Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
