Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

25 part groups · 2 illustrations

Illustrations

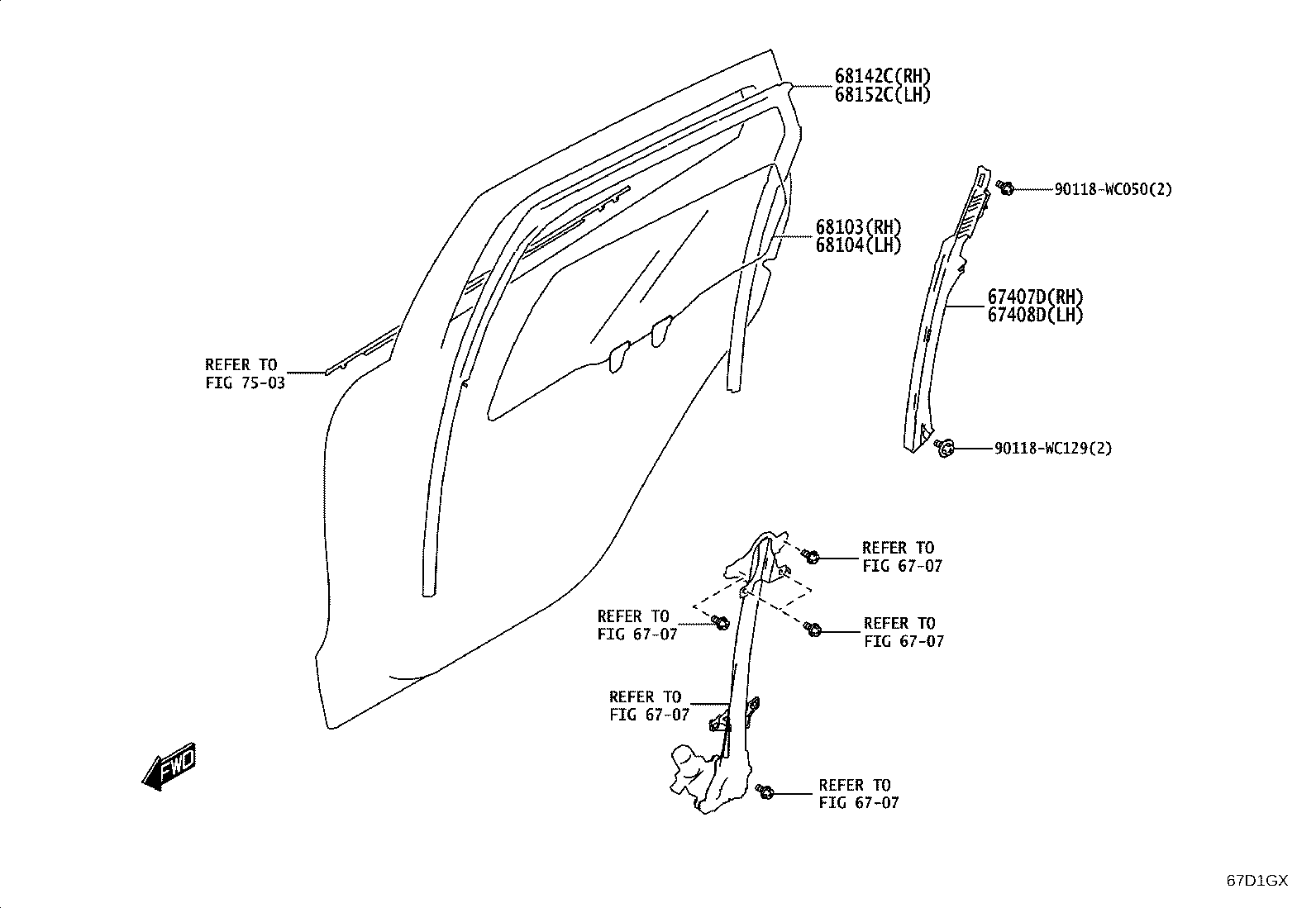

Figure 67D1GW 67D1GW 2024-04 → — Figure 67D1GX 67D1GX 2024-04 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67603 Board Sub-assy, Rear Door Trim, RH
67603B Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67625D Bracket, Rear Door Trim
67841B Cover, Rear Door Service Hole
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
67873L Weatherstrip, Rear Door, NO.5 RH
67874C Weatherstrip, Rear Door, NO.5 LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68142C Run, Rear Door Glass, RH
68152C Run, Rear Door Glass, LH
68173B Weatherstrip, Rear Door Glass, Inner RH
68174A Weatherstrip, Rear Door Glass, Inner LH
68630 Check Assy, Rear Door
75923 Tape, Black Out, NO.2 RH
75924 Tape, Black Out, NO.2 LH
75925C Tape, Black Out, NO.3 RH
75926C Tape, Black Out, NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
