Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

9 part groups · 3 illustrations

Illustrations

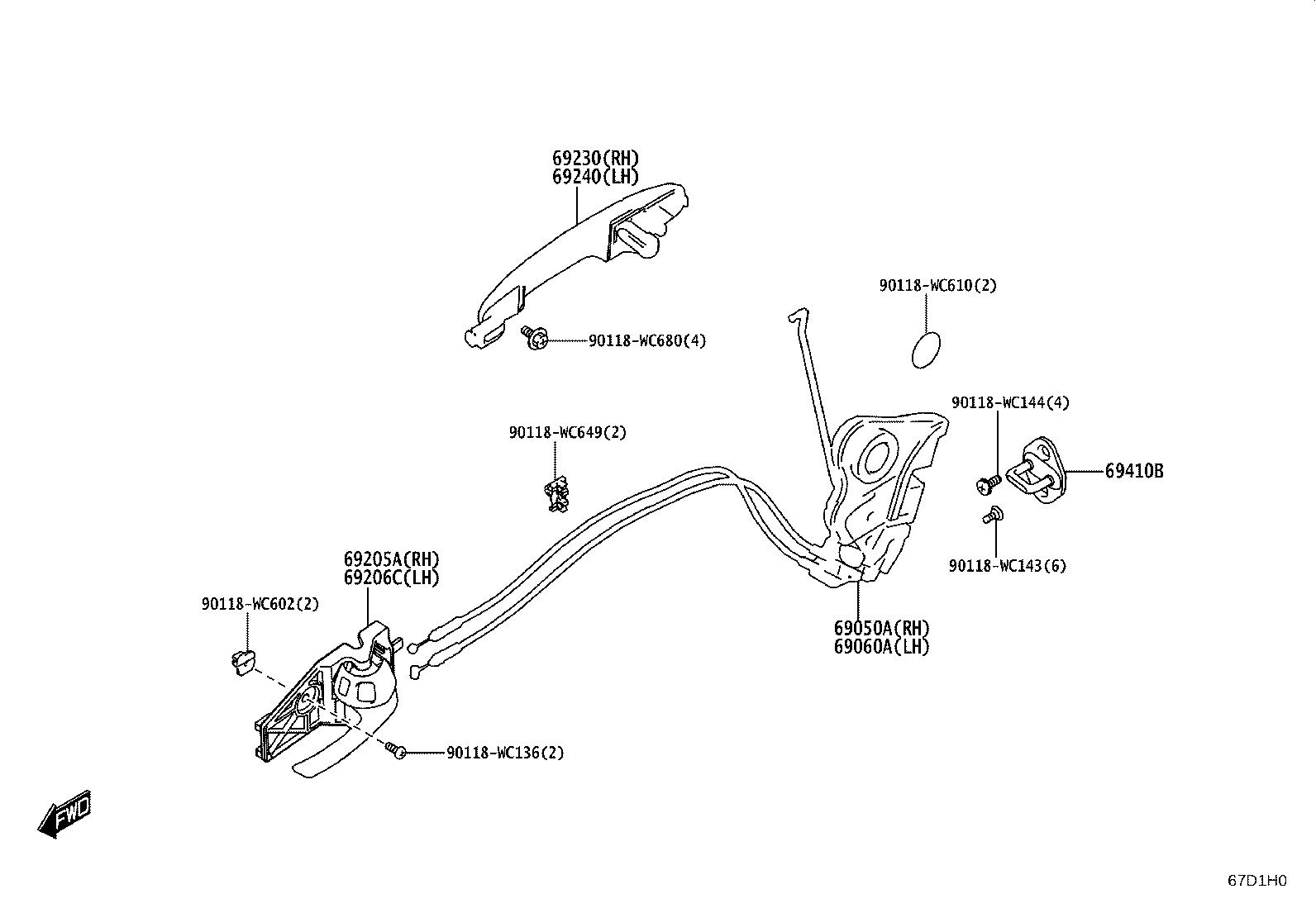

Figure 67D1GY 67D1GY 2024-04 → — Figure 67D1GZ 67D1GZ 2024-04 → — Figure 67D1H0 67D1H0 2024-04 → —

Part groups

PNCDescription
69050A Lock Assy, Rear Door W/Motor, RH
69060A Lock Assy, Rear Door W/Motor, LH
69205A Handle Sub-assy, Rear Door Inside, RH
69206C Handle Sub-assy, Rear Door Inside, LH
69230 Handle Assy, Rear Door Outside, RH
69240 Handle Assy, Rear Door Outside, LH
69277C Bezel, Rear Door Inside Handle, RH
69278C Bezel, Rear Door Inside Handle, LH
69410B Plate Assy, Rear Door Lock Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
