Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

4 part groups · 2 illustrations

Illustrations

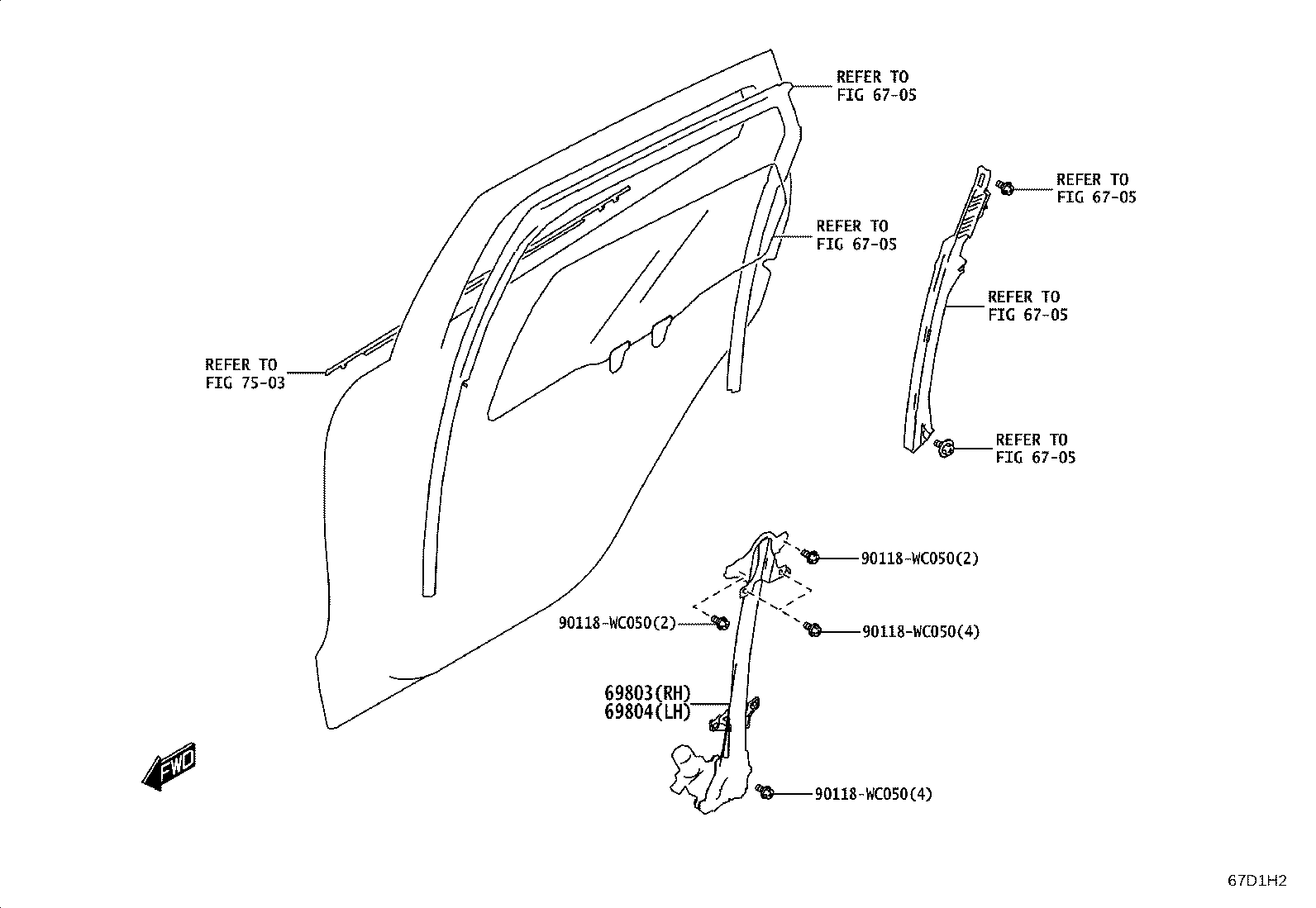

Figure 67D1H1 67D1H1 2024-04 → — Figure 67D1H2 67D1H2 2024-04 → —

Part groups

PNCDescription
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
