Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

56 part groups · 8 illustrations

Illustrations

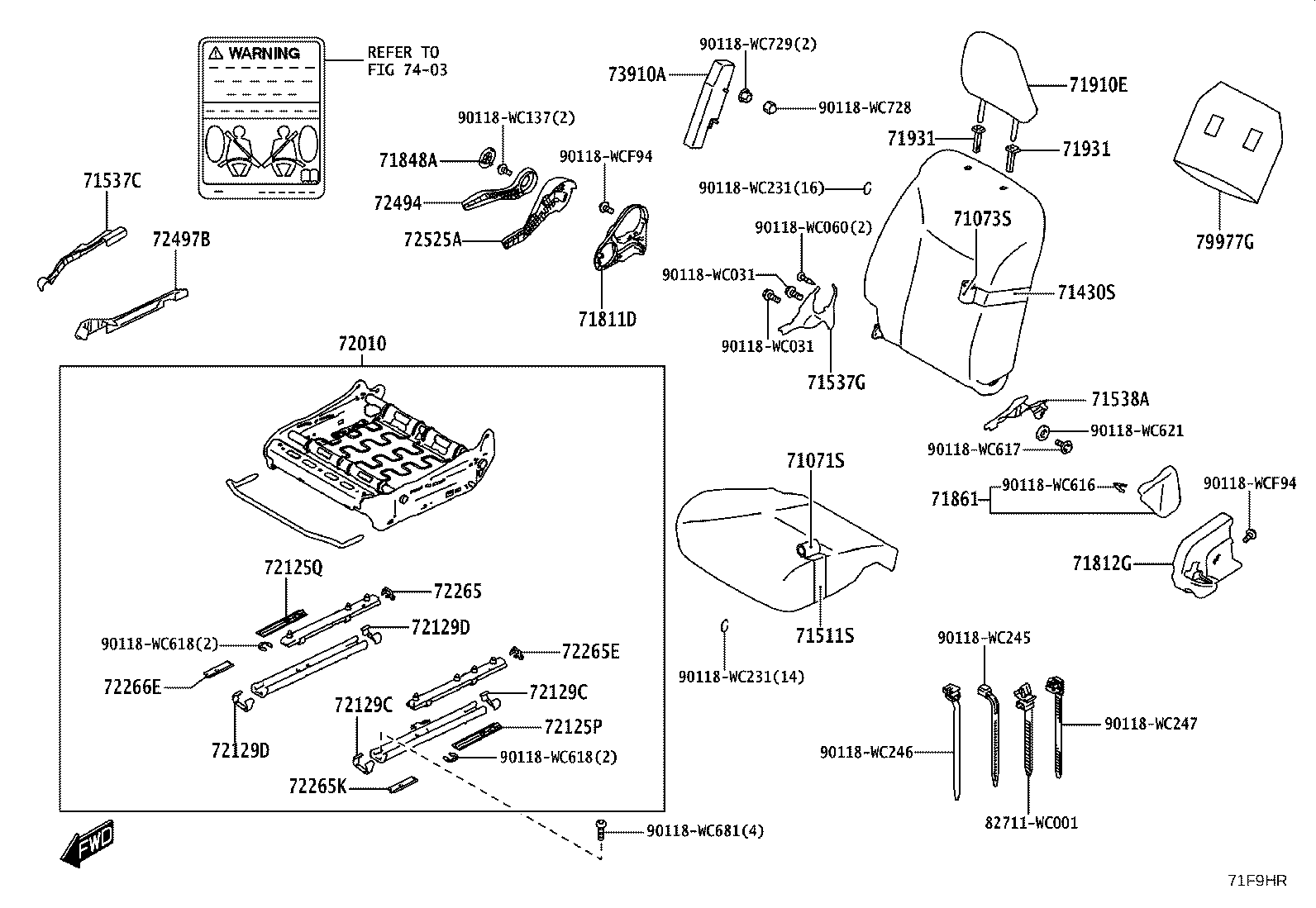

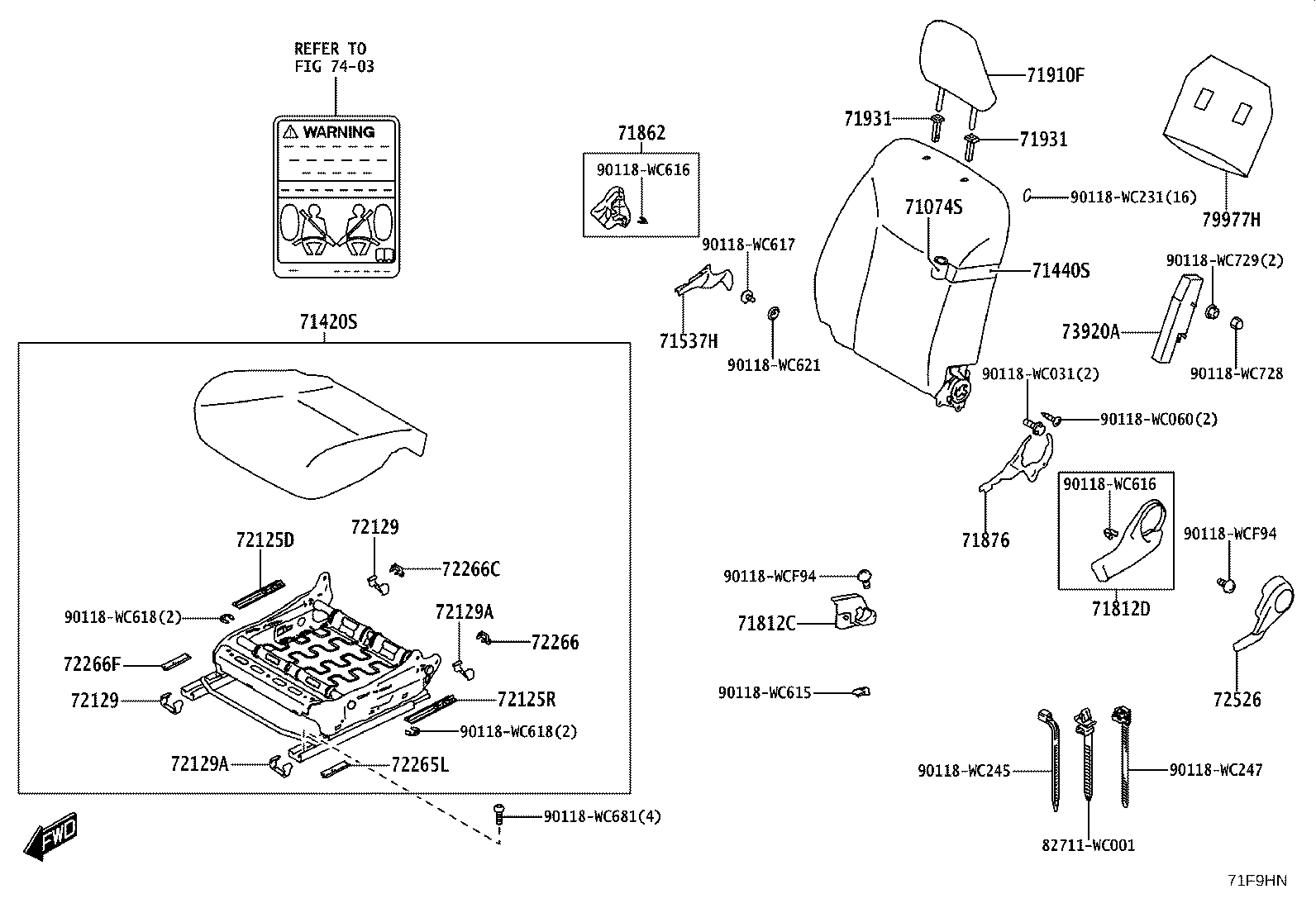

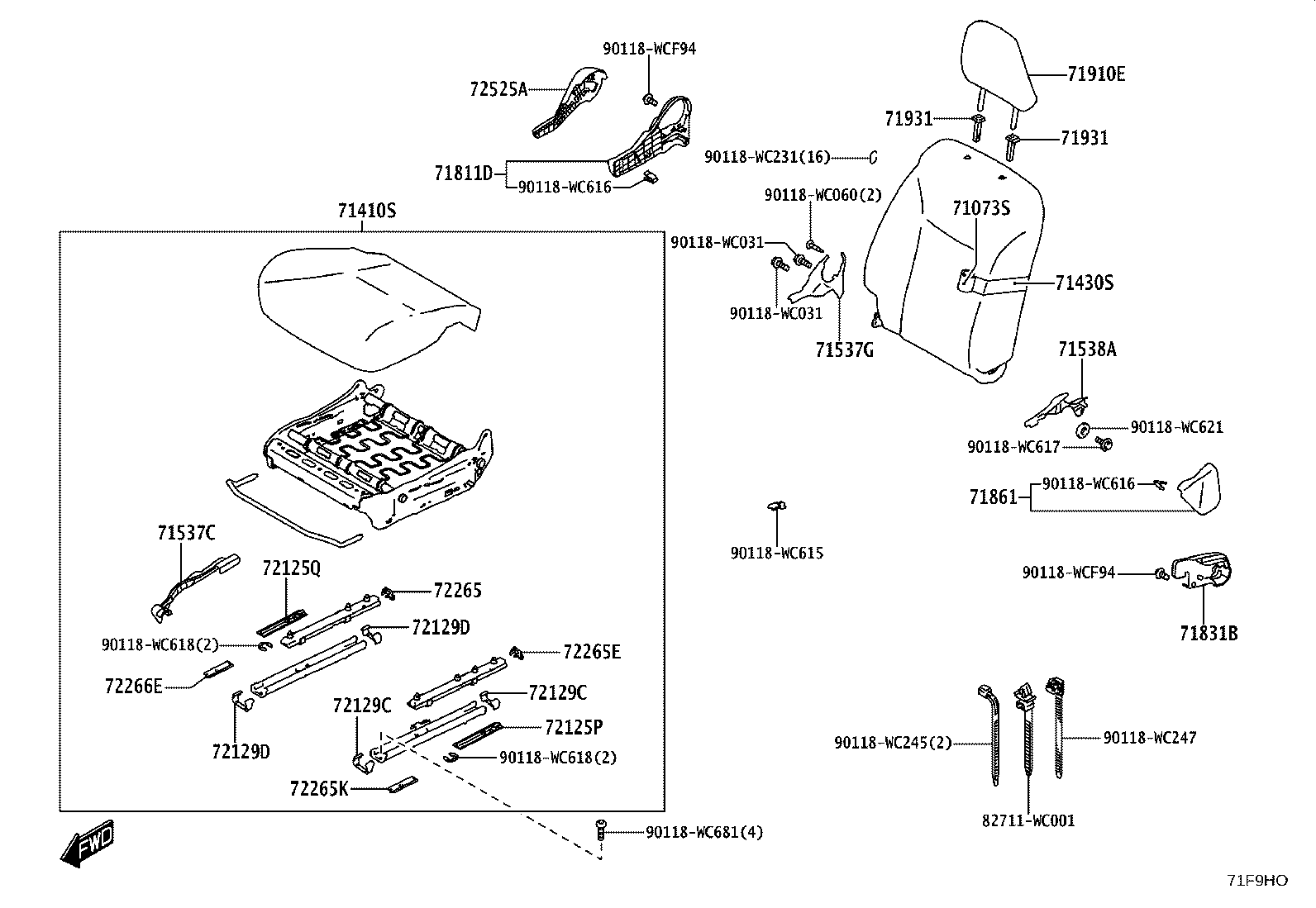

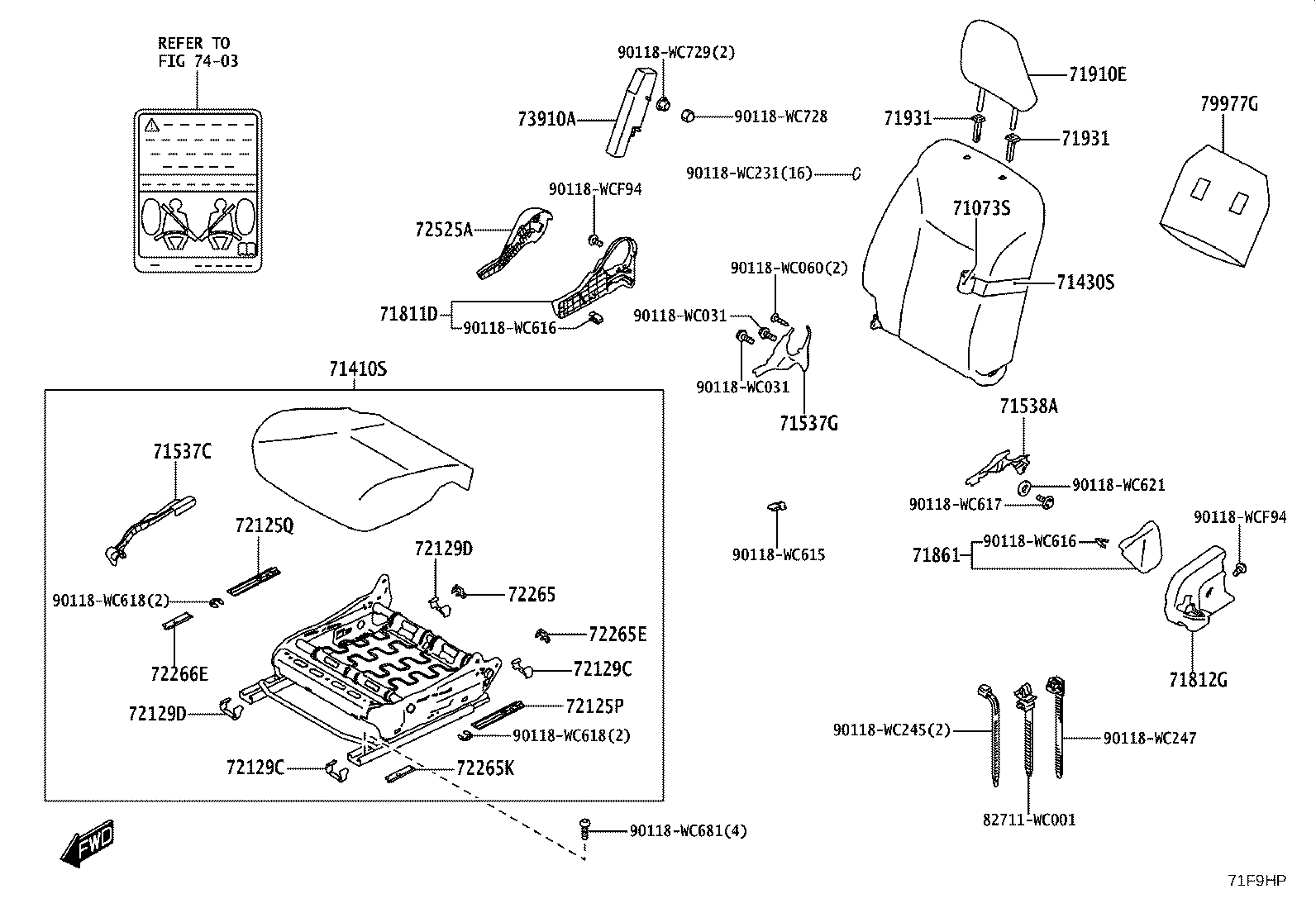

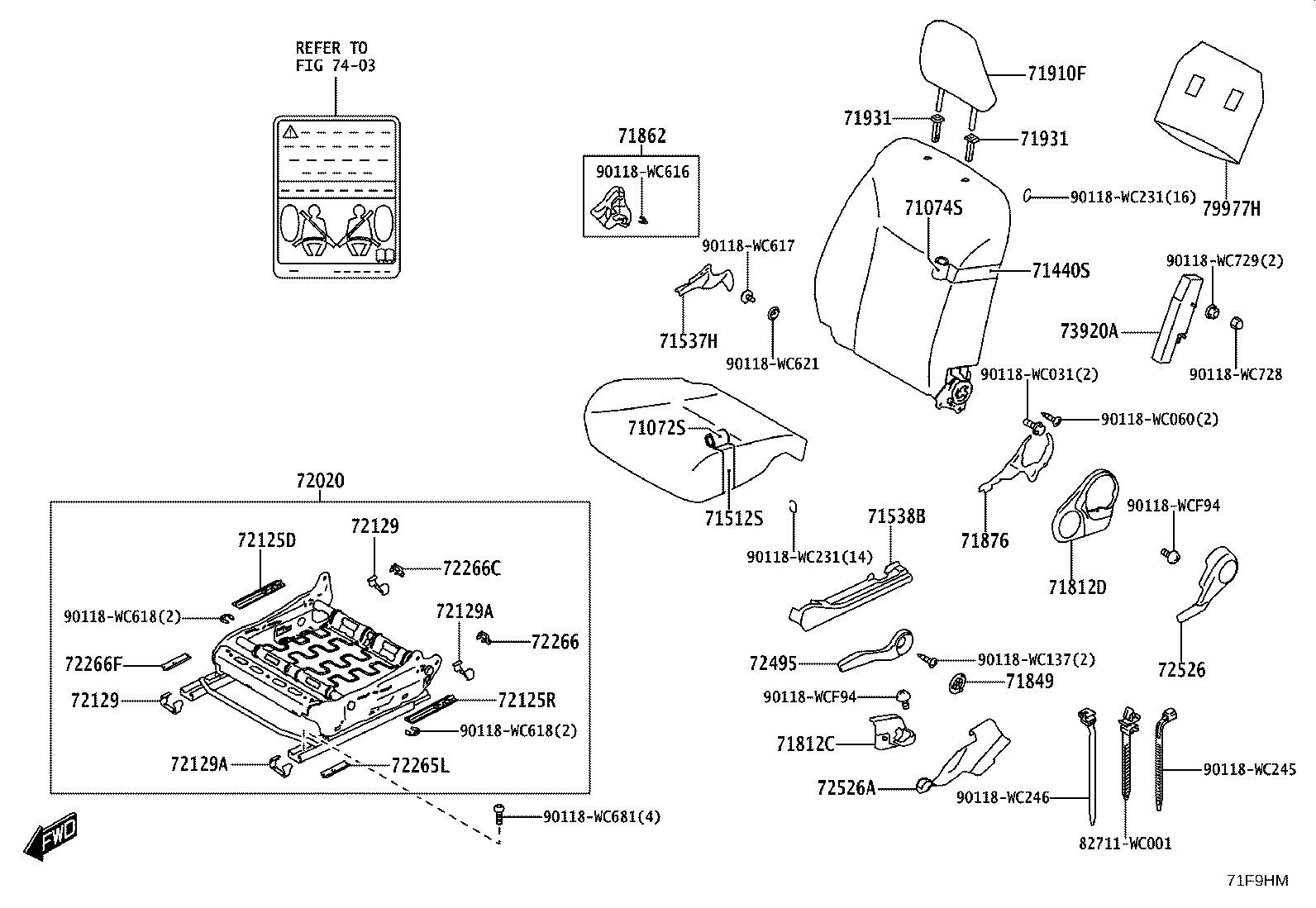

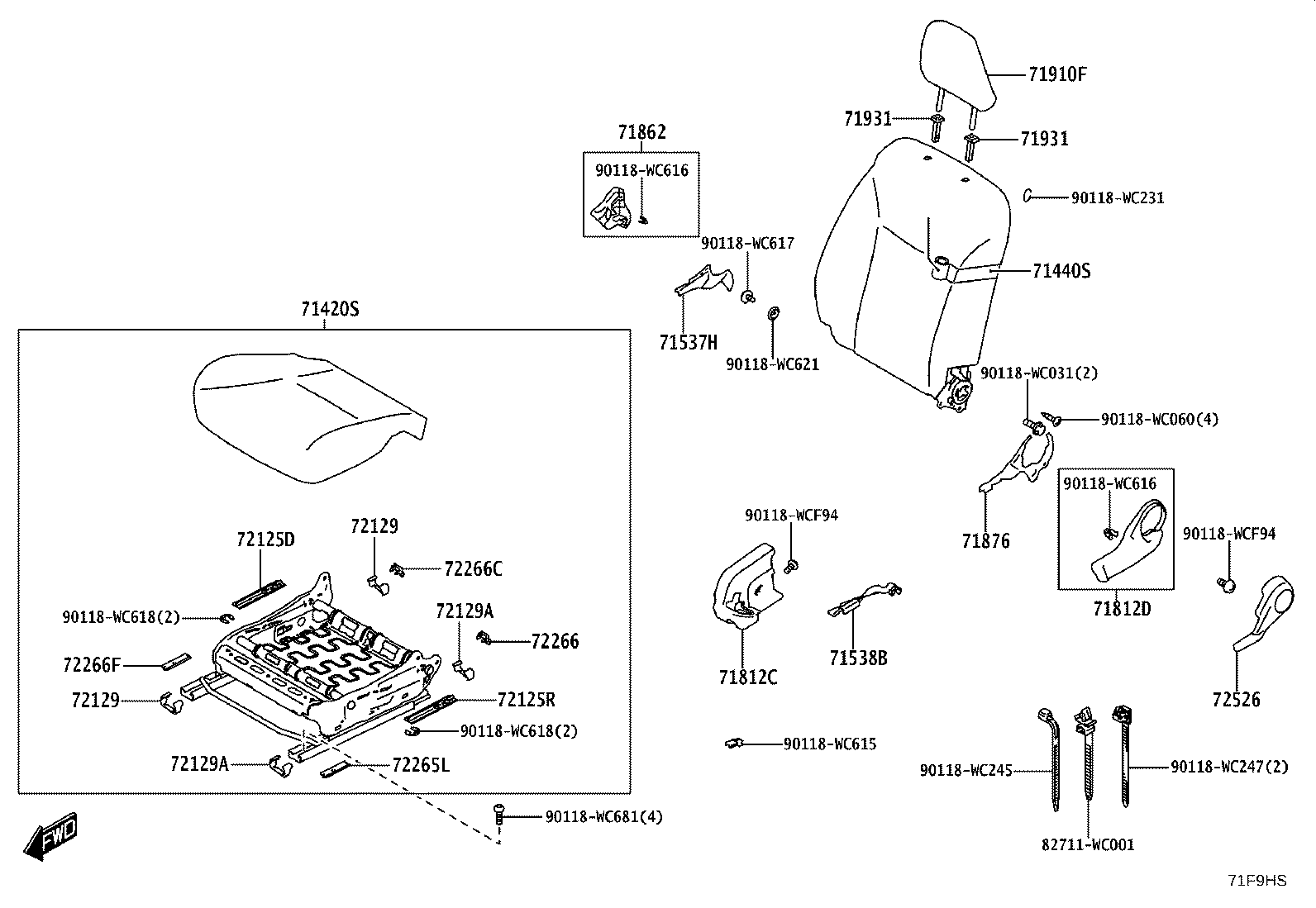

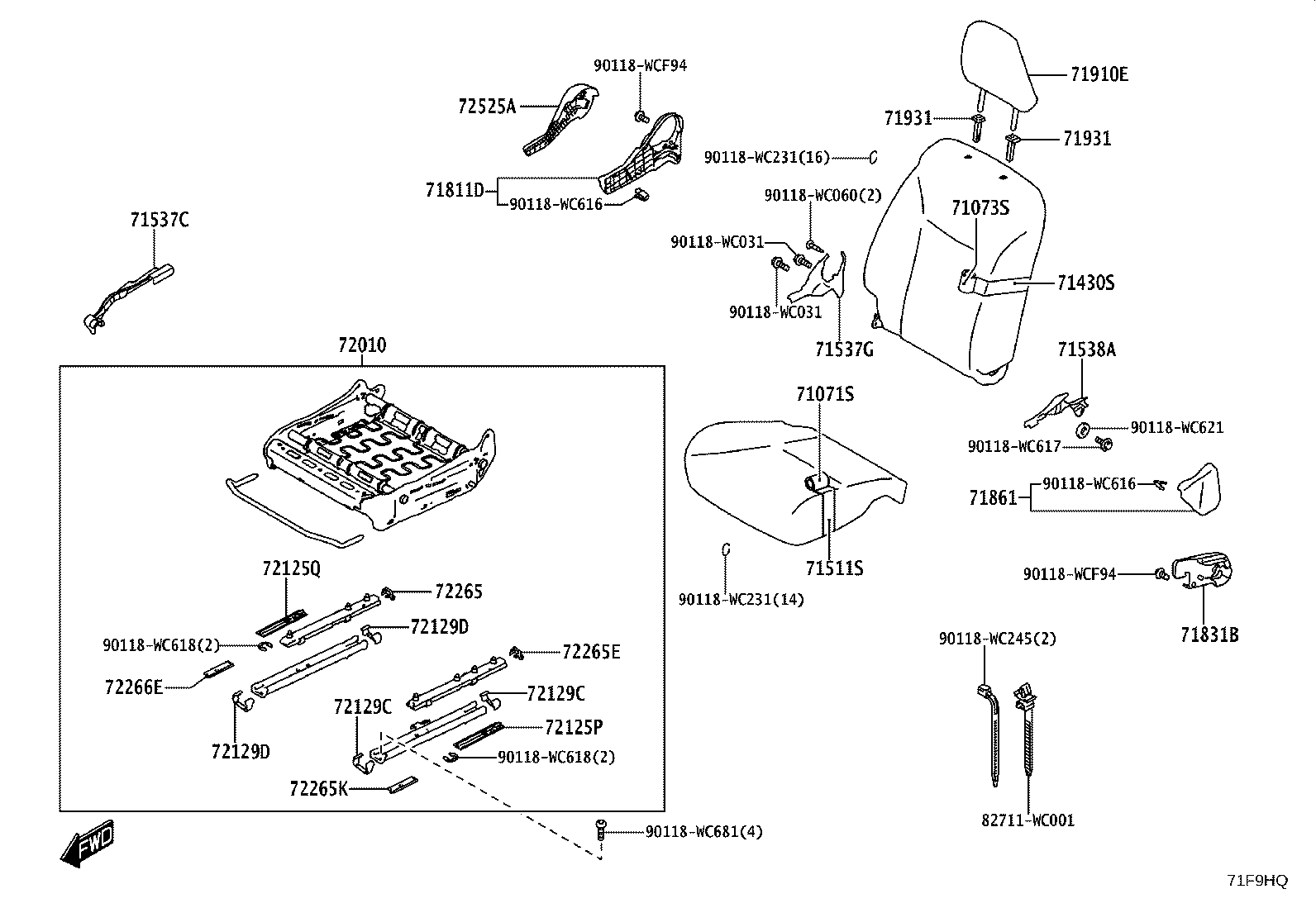

Figure 71F9HL 71F9HL 2024-04 → — Figure 71F9HM 71F9HM 2024-04 → — Figure 71F9HS 71F9HS 2024-04 → — Figure 71F9HN 71F9HN 2024-04 → — Figure 71F9HO 71F9HO 2024-04 → — Figure 71F9HP 71F9HP 2024-04 → — Figure 71F9HQ 71F9HQ 2024-04 → — Figure 71F9HR 71F9HR 2024-04 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C Protector, Front Seat Cushion Edge, RH
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71812G Cover, Reclining Adjuster, LH
71831B Cover, Front Seat Hinge, RH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71876 Cover, Reclining Adjuster Inside, LH
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72125D Cover, Seat Track, Upper Rear NO.2
72125P Cover, Seat Track, Upper Rear NO.3
72125Q Cover, Seat Track, Upper Rear NO.4
72125R Cover, Seat Track, Upper Rear NO.1
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129C Protector, Seat Track Lower Rail, NO.3
72129D Protector, Seat Track Lower Rail, NO.4
72265 Cover, Seat Track Upper Rail, RH
72265E Cover, Seat Track Upper Rail, RH
72265K Cover, Seat Track Upper Rail, Front Inner(FOR RH SEAT)
72265L Cover, Seat Track Upper Rail, Front Outer(FOR LH SEAT)
72266 Cover, Seat Track Upper Rail, LH
72266C Cover, Seat Track Upper Rail, LH
72266E Cover, Seat Track Upper Rail, Front Outer(FOR RH SEAT)
72266F Cover, Seat Track Upper Rail, Front Inner(FOR LH SEAT)
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72497B Cover, Vertical Adjuster Bracket, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
