Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 6 illustrations

Illustrations

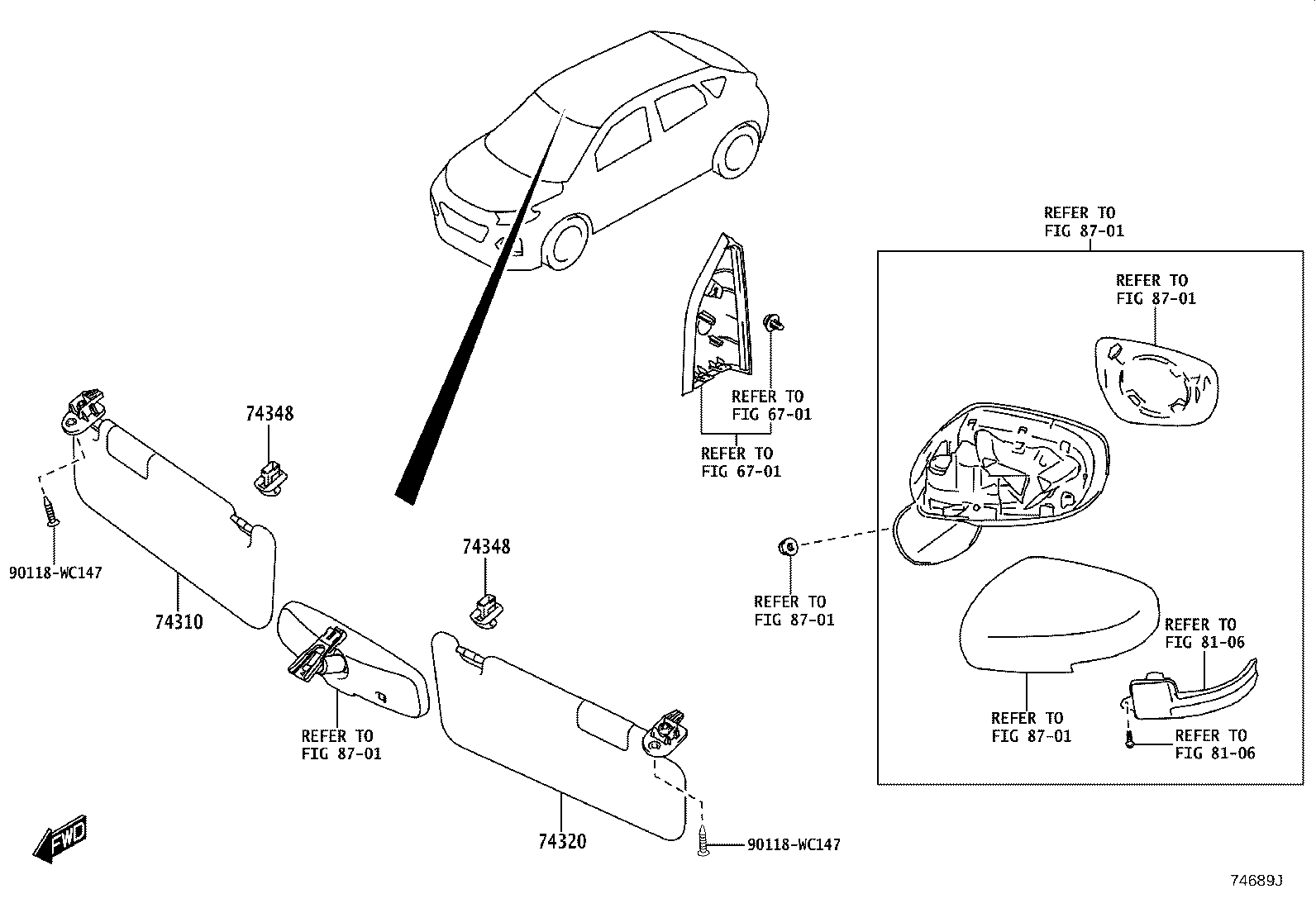

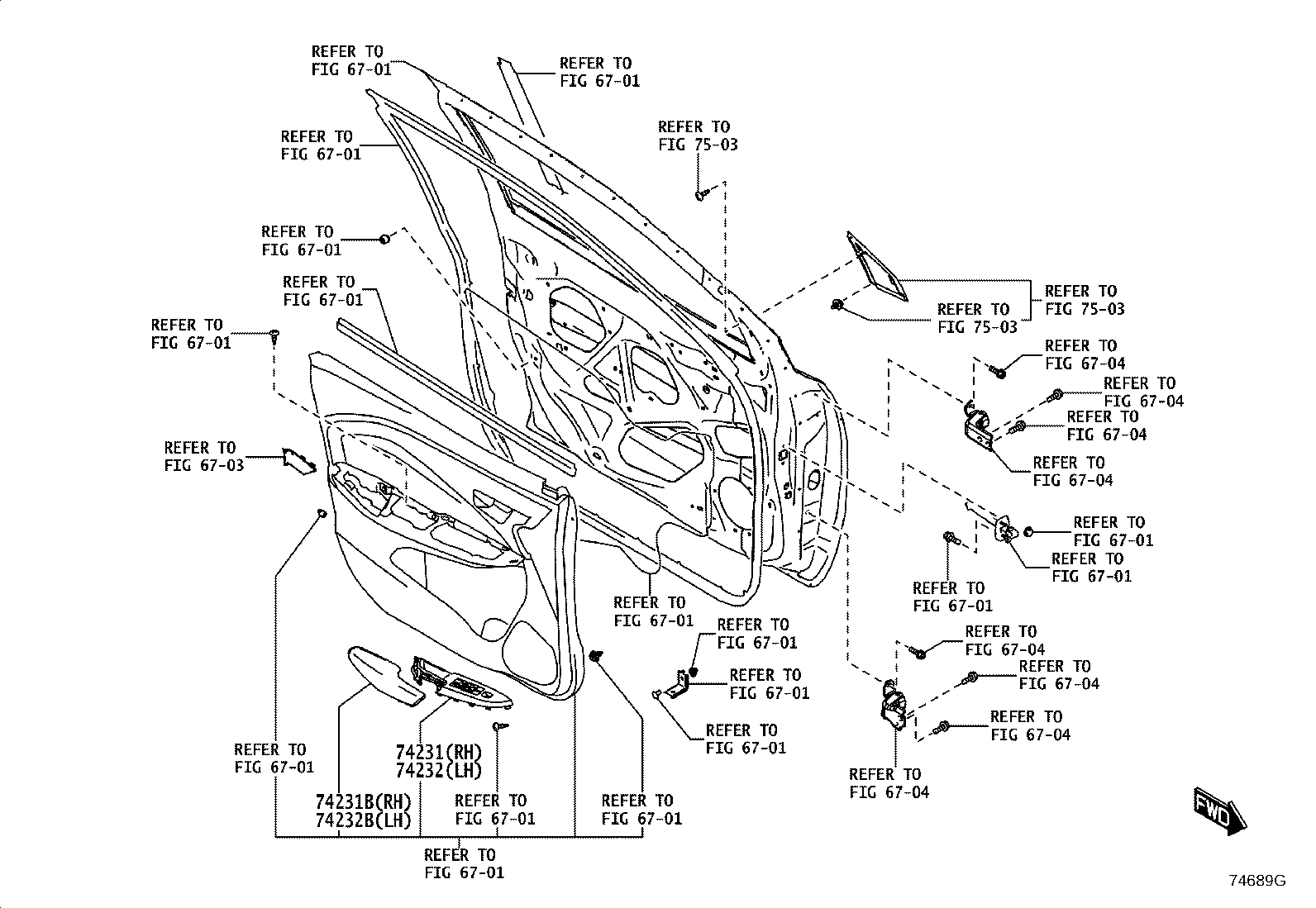

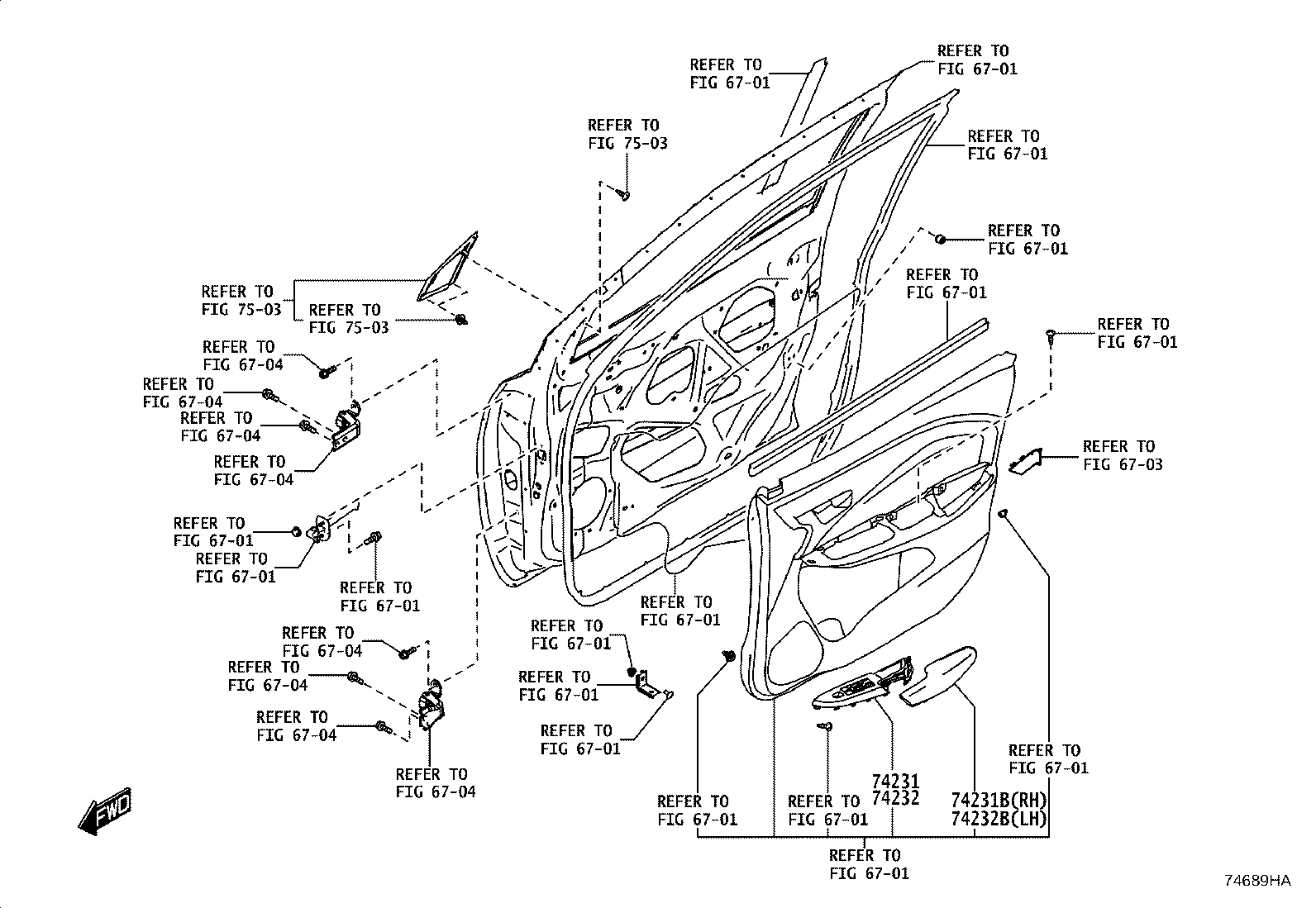

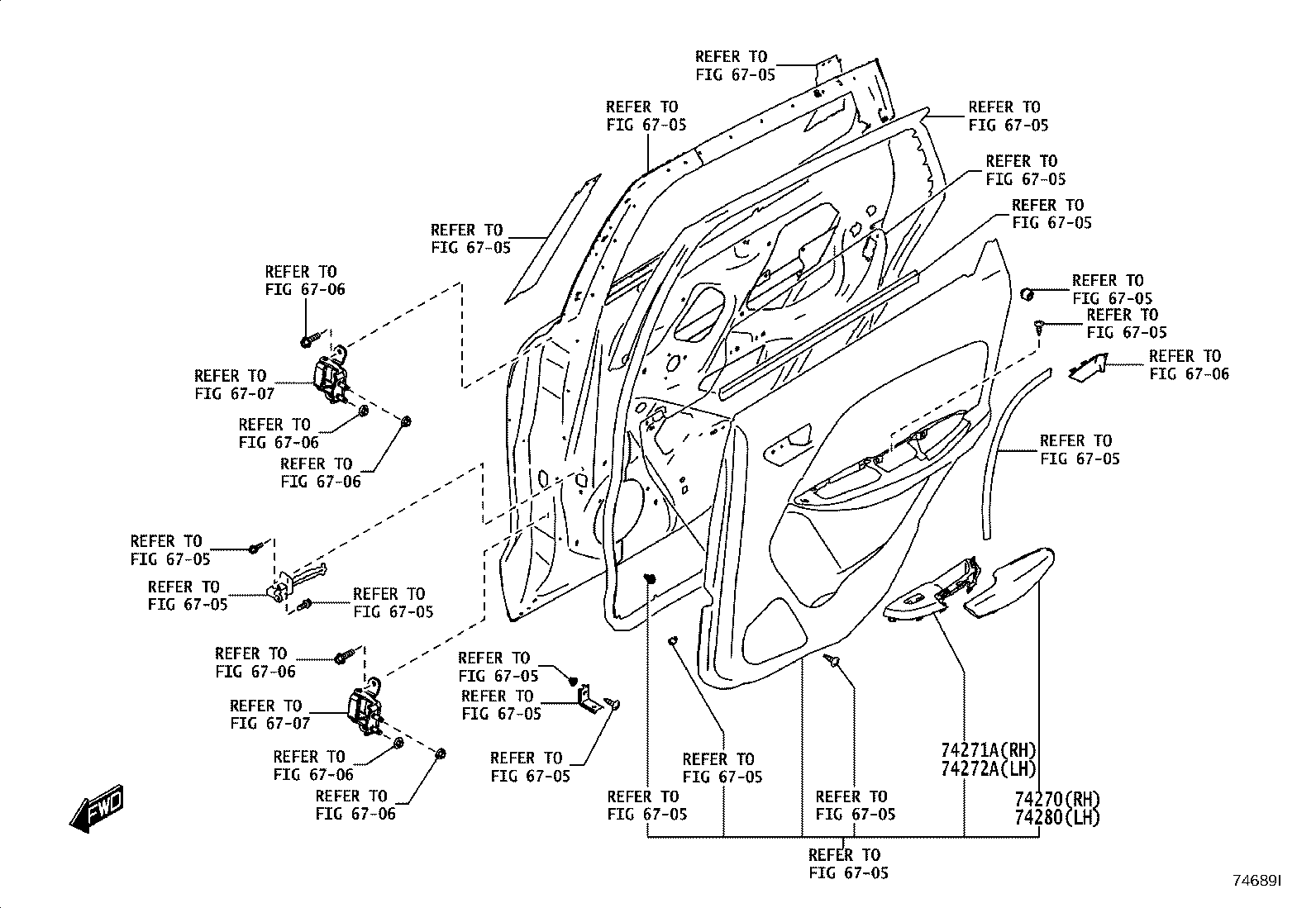

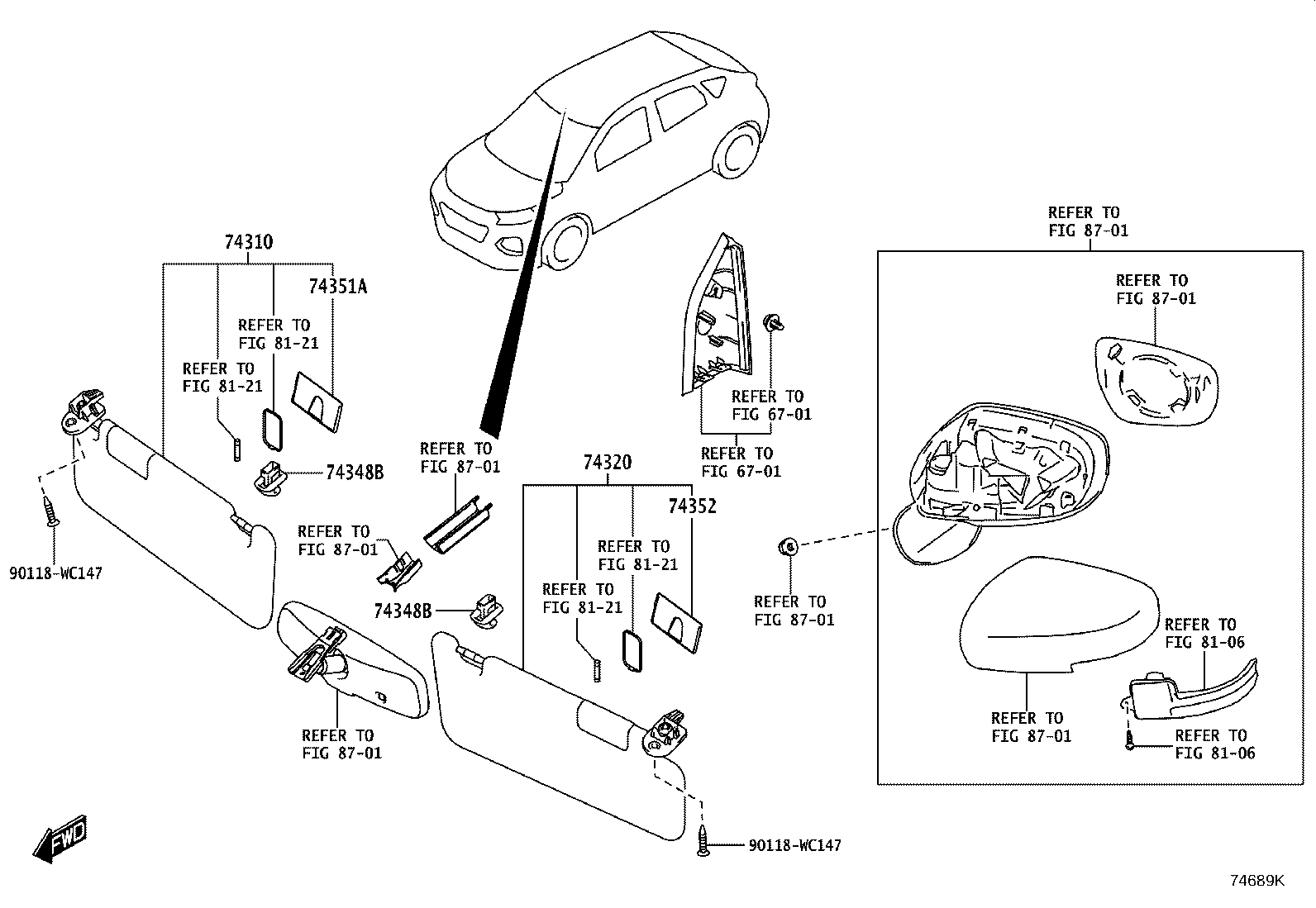

Figure 74689F 74689F 2024-04 → — Figure 74689G 74689G 2024-04 → — Figure 74689HA 74689HA 2024-04 → — Figure 74689I 74689I 2024-04 → — Figure 74689J 74689J 2024-04 → — Figure 74689K 74689K 2024-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74231B Panel, Door Armrest Base, RH
74232 Panel, Front Armrest Base, Upper LH
74232B Panel, Door Armrest Base, LH
74270 Panel Assy, Rear Door Armrest Base, RH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74348B Holder, Visor, RH
74351A Cover, Visor, NO.1
74352 Cover, Visor, NO.2
74610A Grip Sub-assy, Assist
74610E Grip Assy, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
