Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 4 illustrations

Illustrations

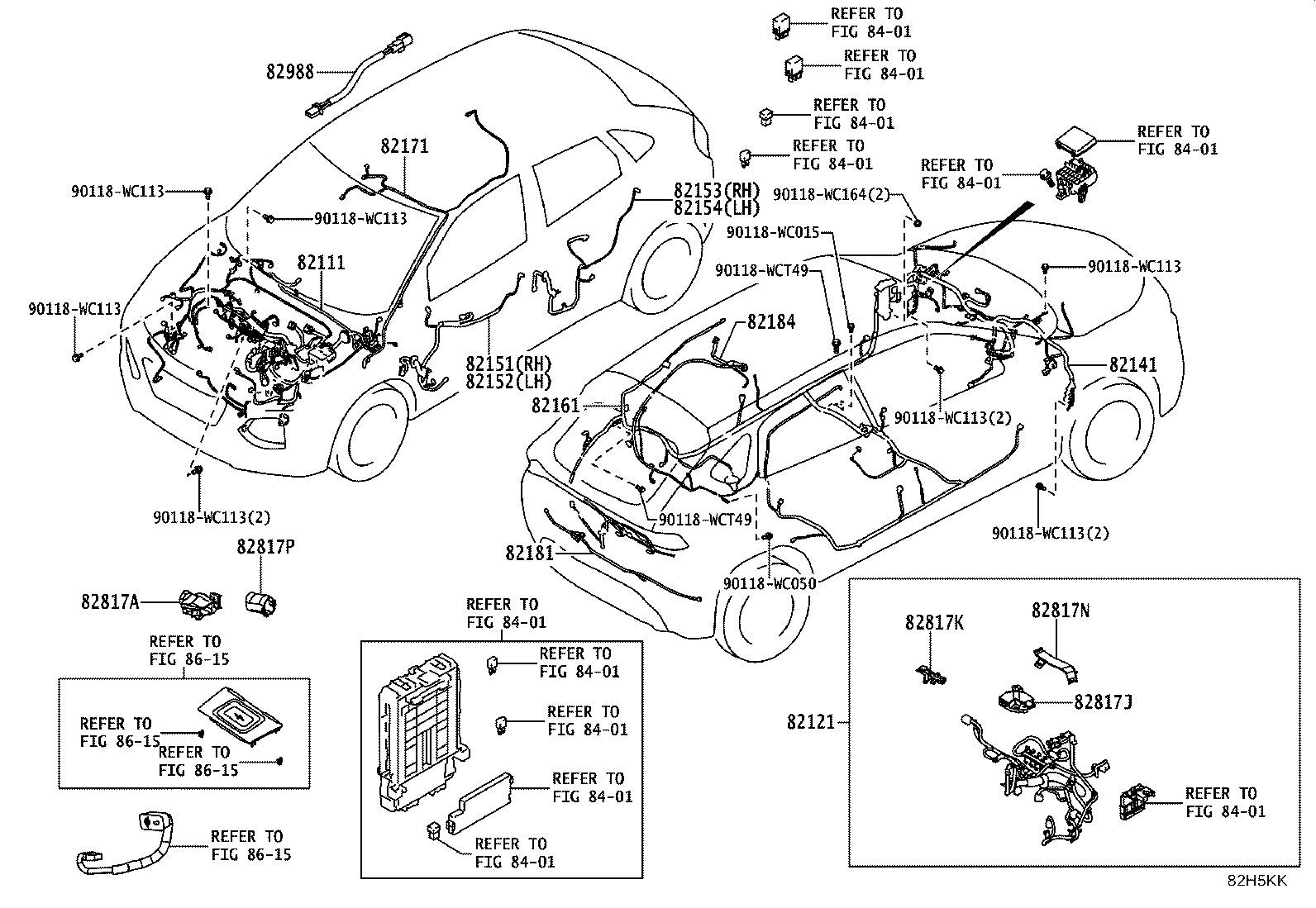

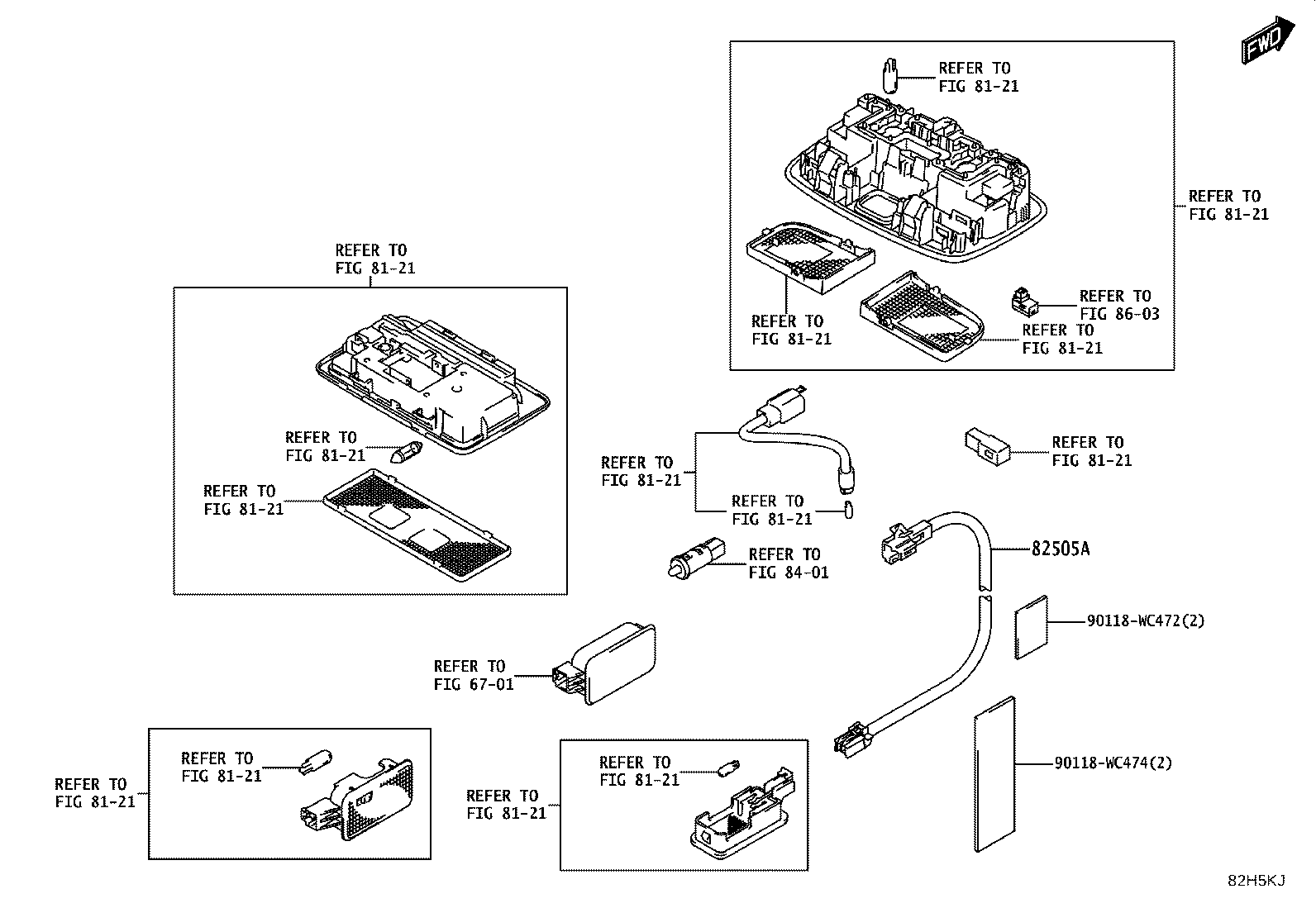

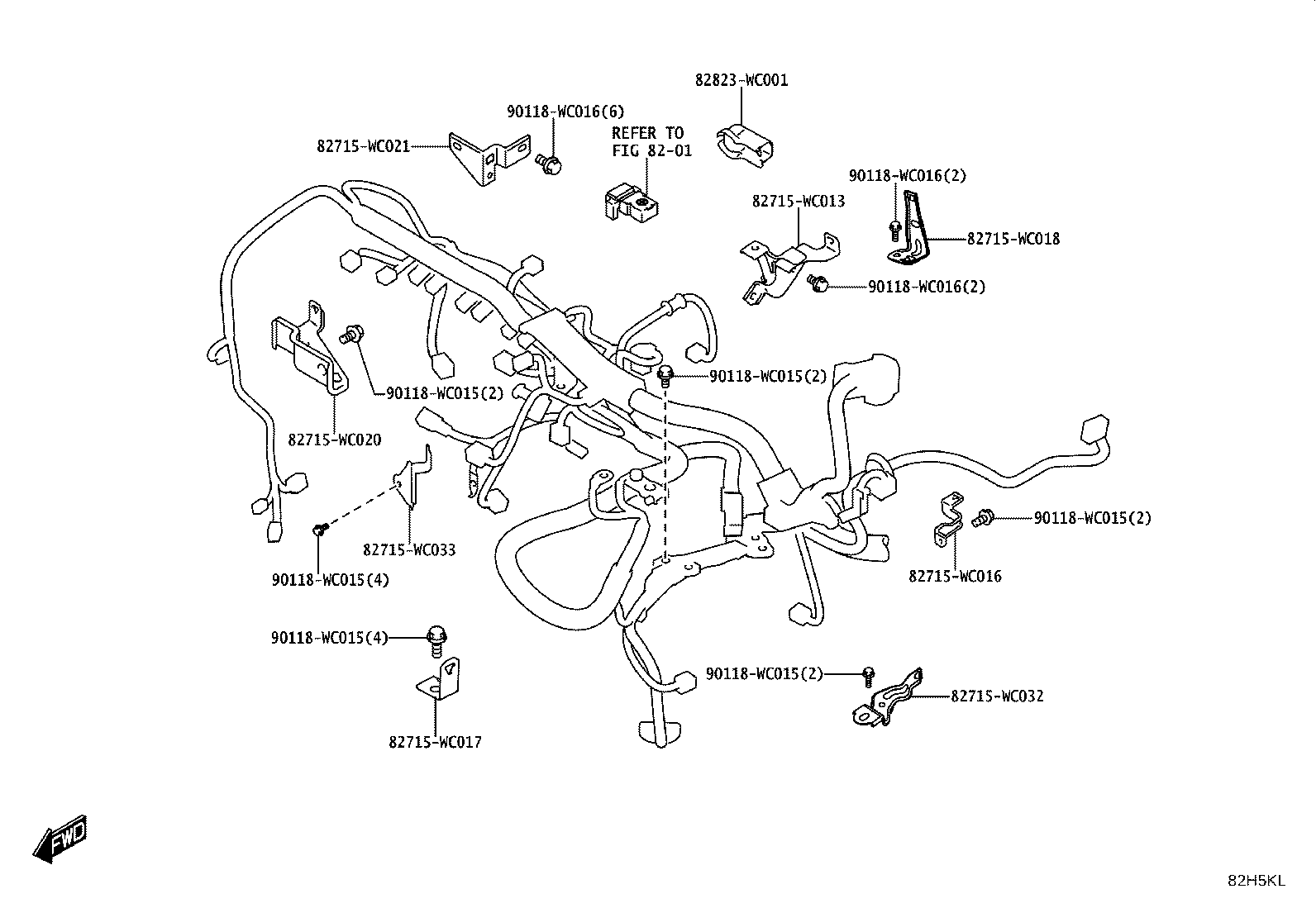

Figure 82H5KI 82H5KI 2024-04 → — Figure 82H5KJ 82H5KJ 2024-04 → — Figure 82H5KK 82H5KK 2024-04 → — Figure 82H5KL 82H5KL 2024-04 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82505A Wiring Sub-assy, Front Door
82817A Protector, Wiring Harness, NO.2
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
