Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

44 part groups · 16 illustrations

Illustrations

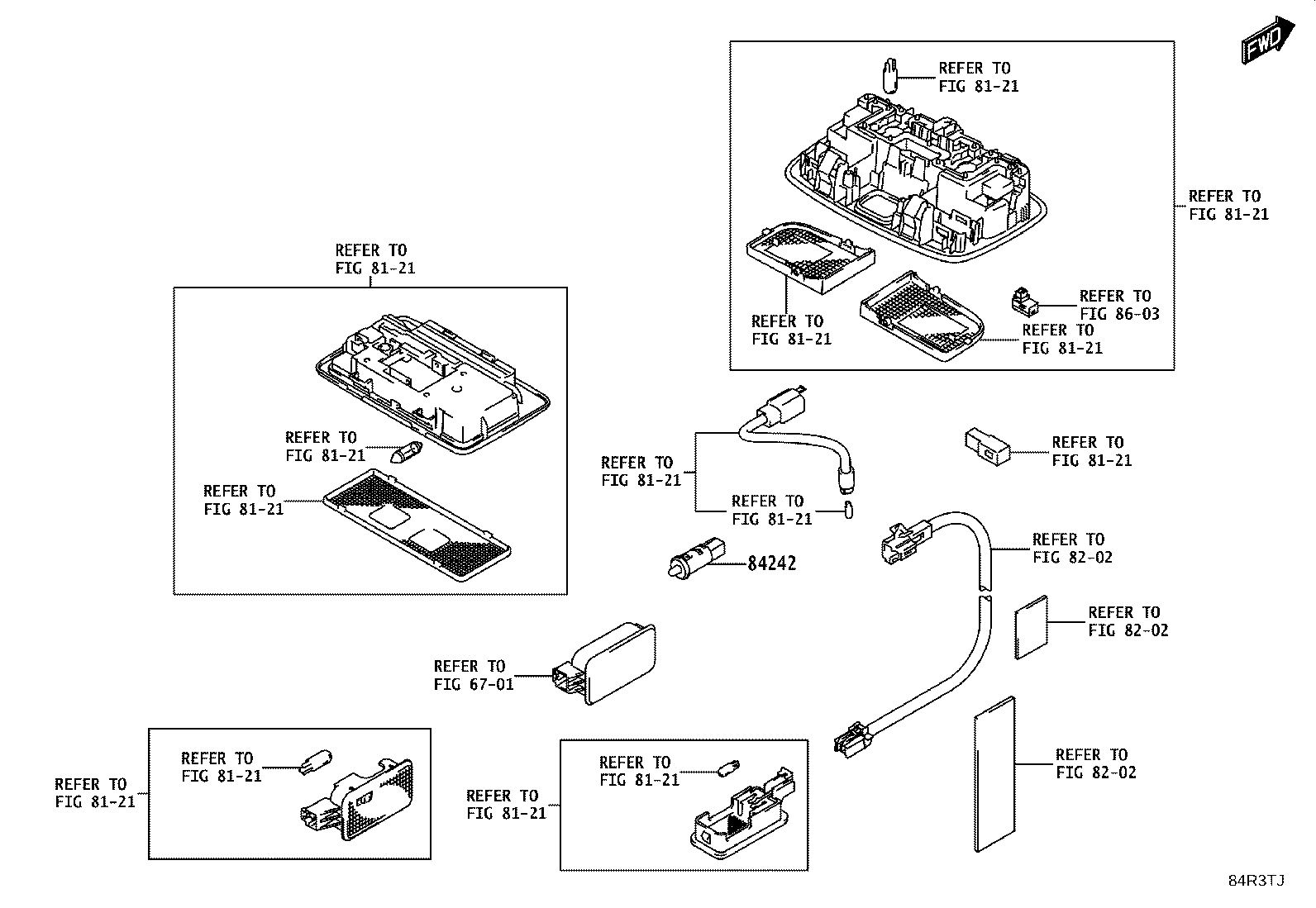

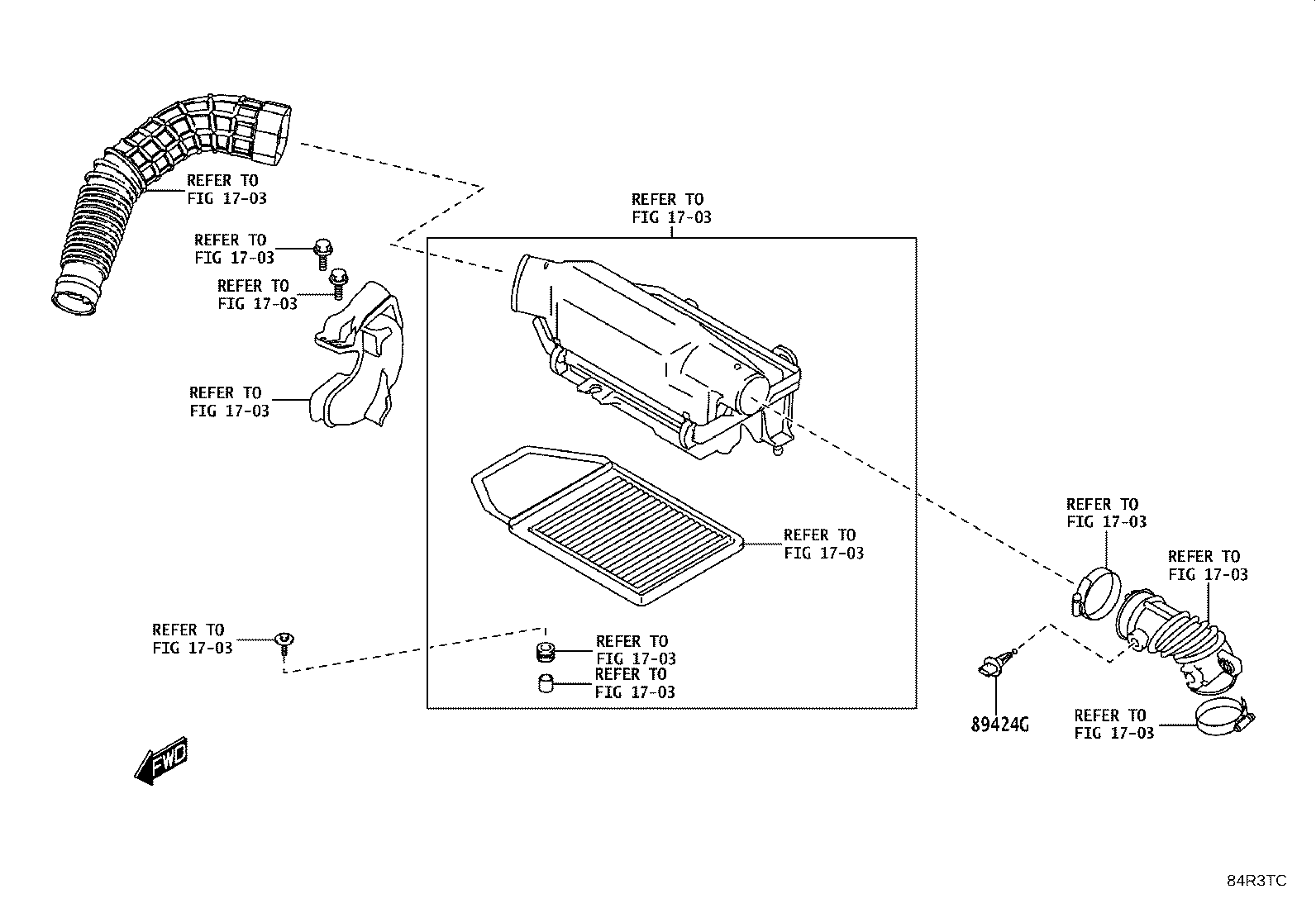

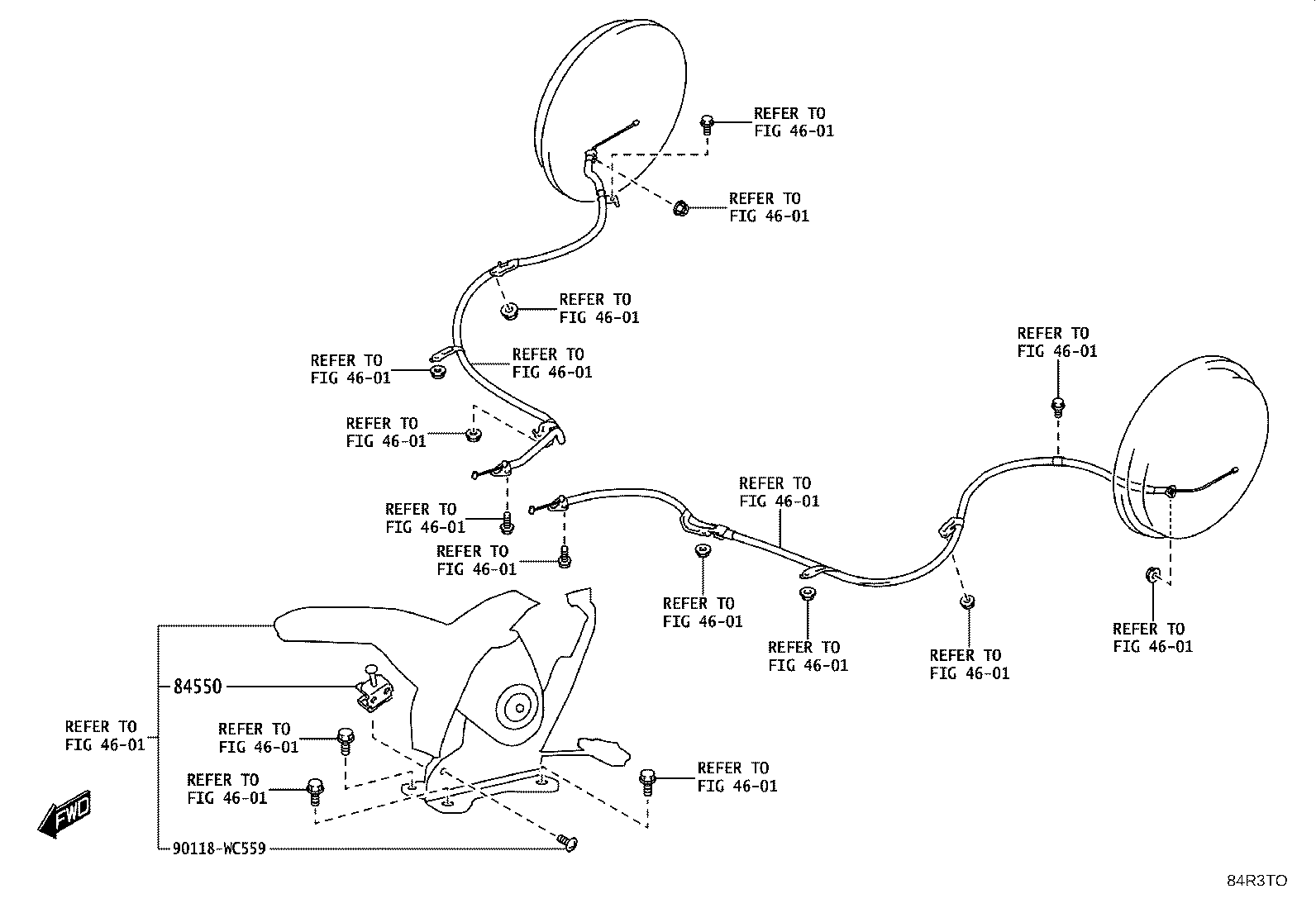

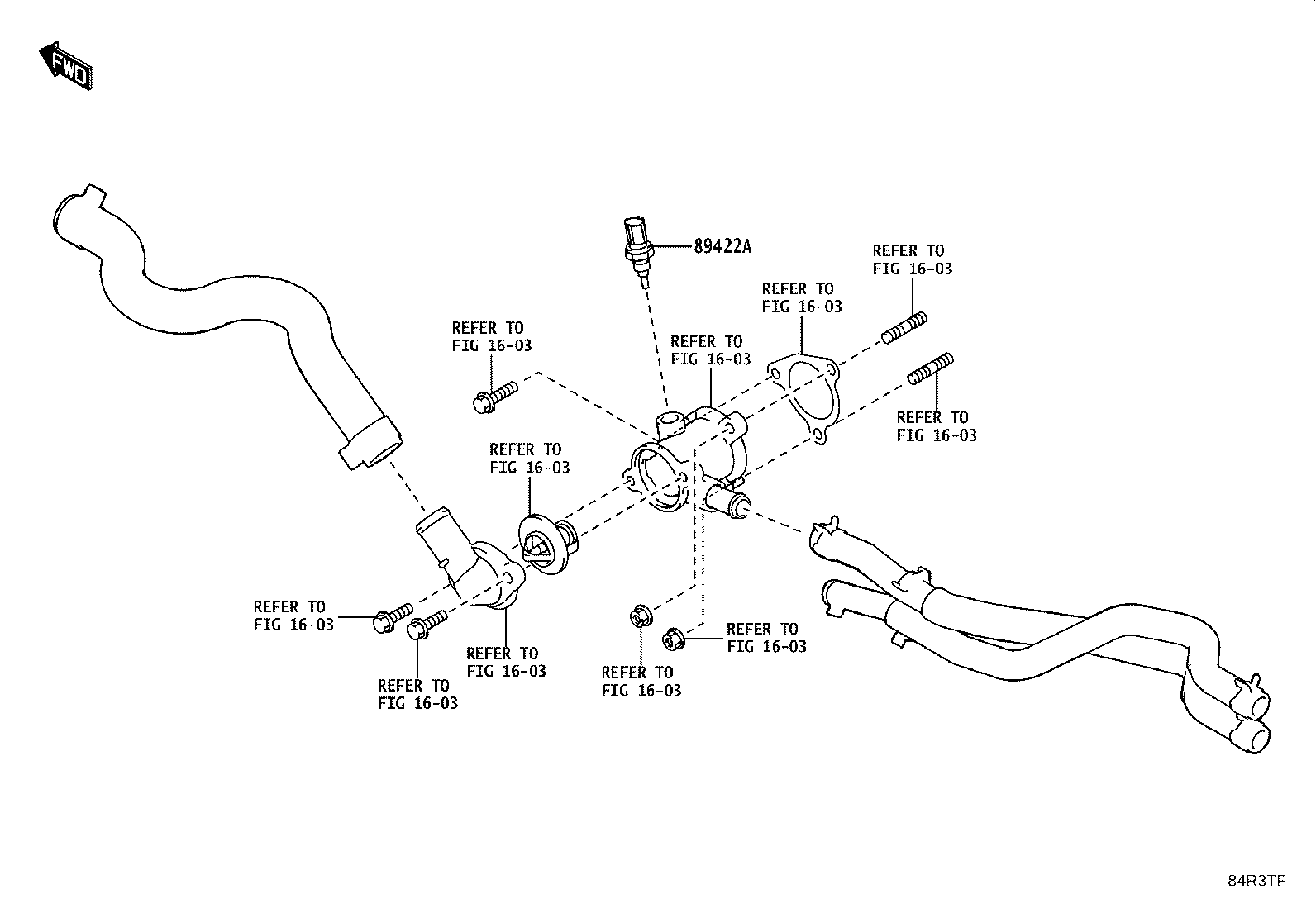

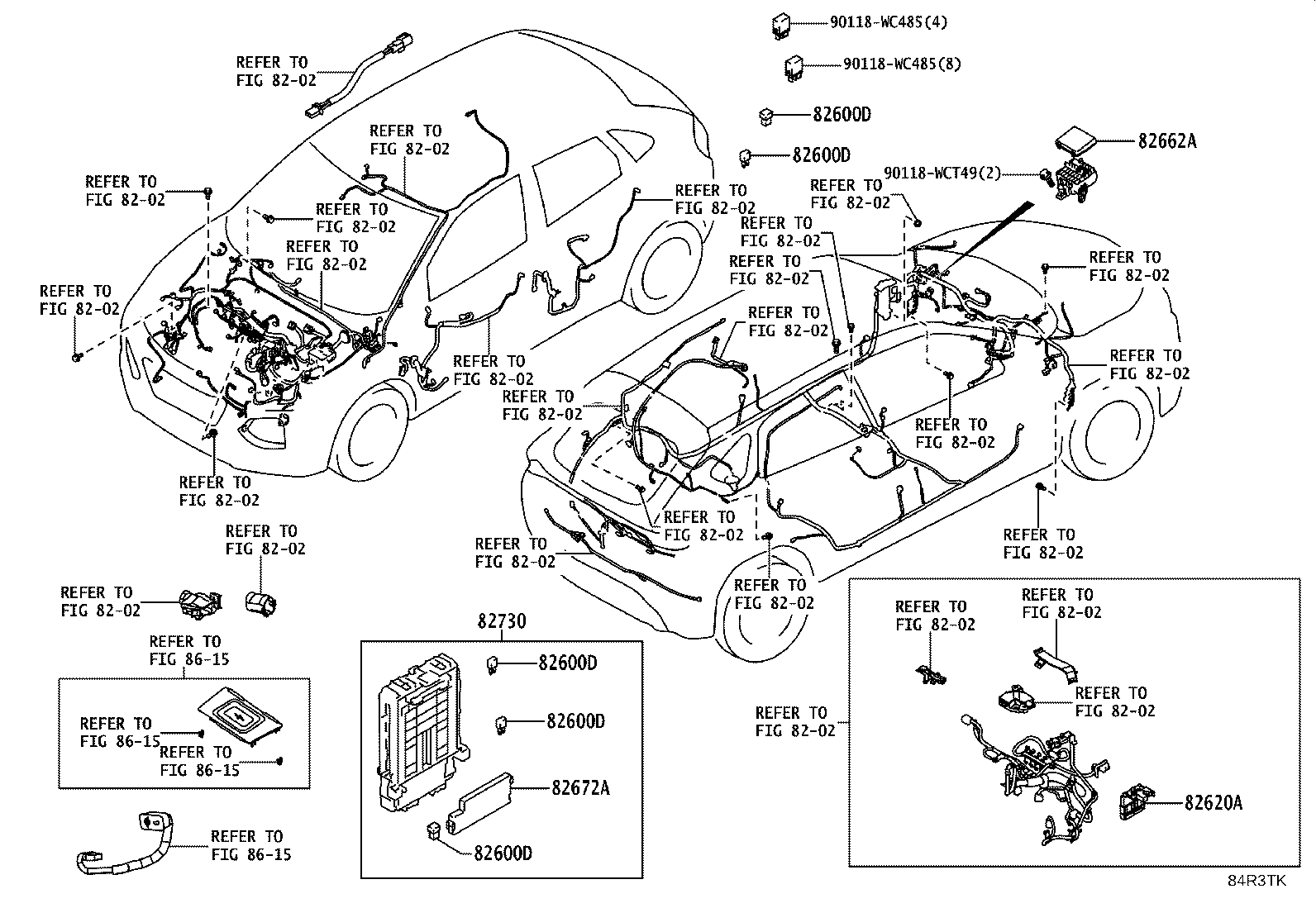

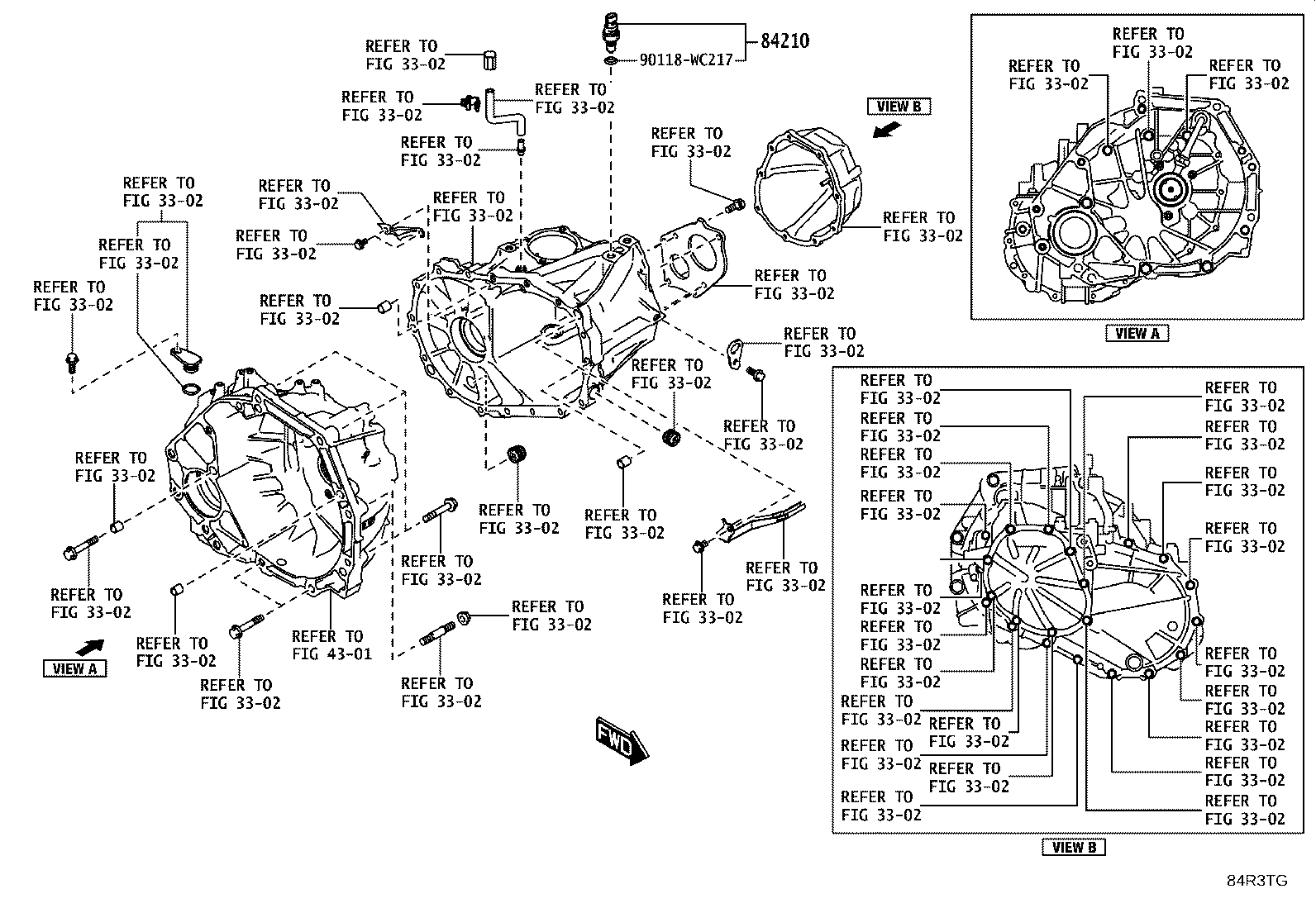

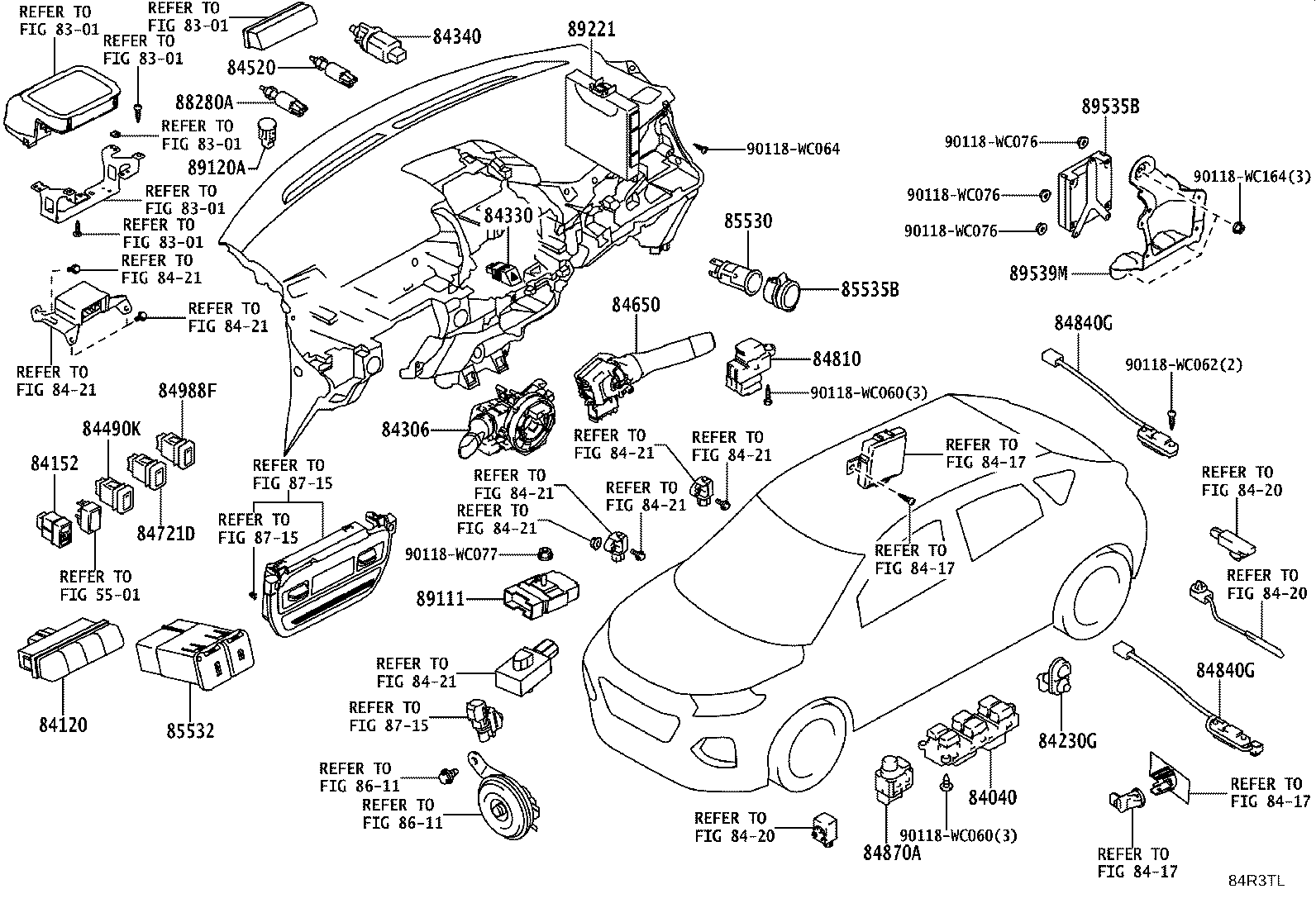

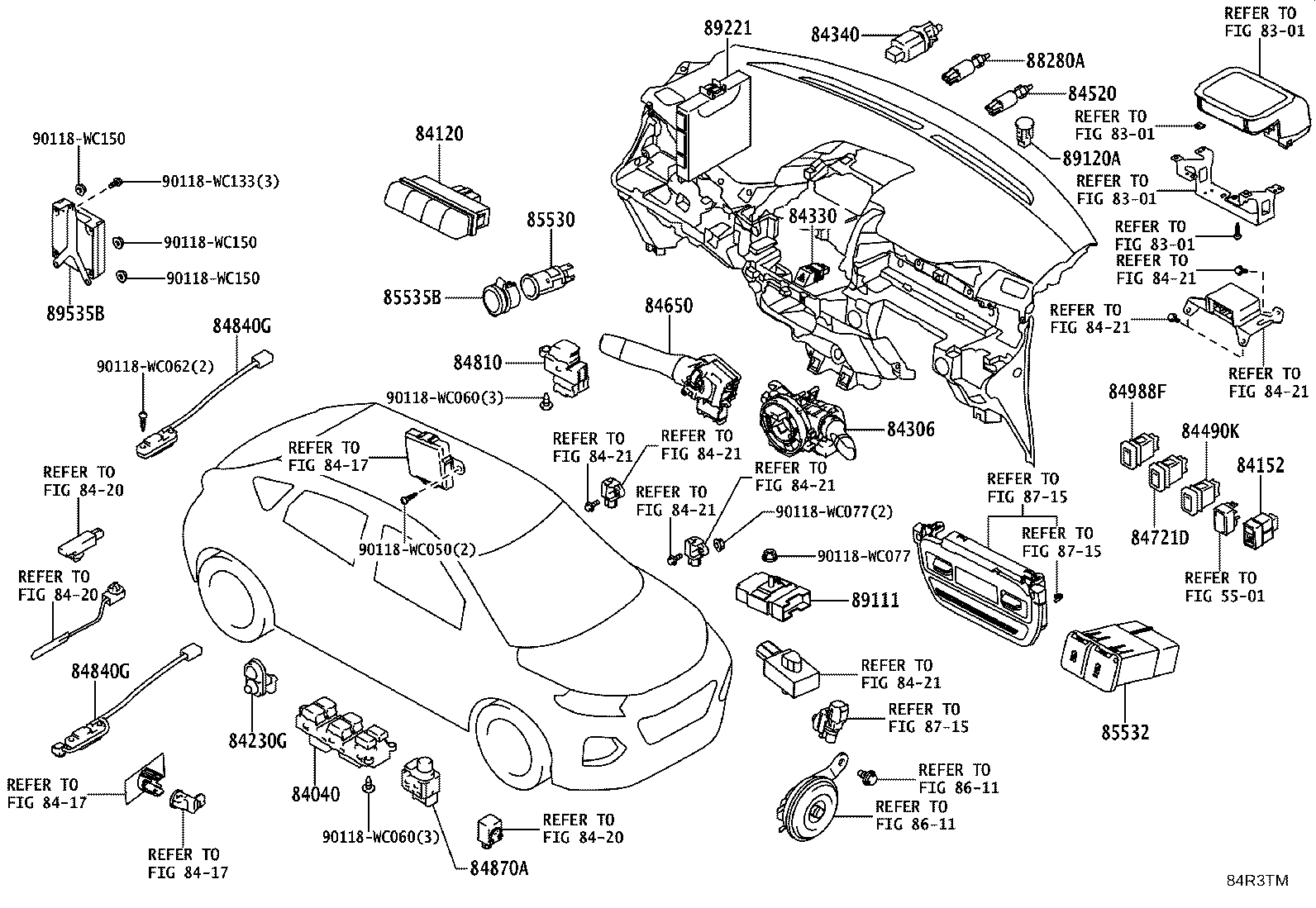

Figure 84R3TA 84R3TA 2024-04 → — Figure 84R3TB 84R3TB 2024-04 → — Figure 84R3TC 84R3TC 2024-04 → — Figure 84R3TD 84R3TD 2024-04 → — Figure 84R3TE 84R3TE 2024-04 → — Figure 84R3TF 84R3TF 2024-04 → — Figure 84R3TG 84R3TG 2024-04 → — Figure 84R3TH 84R3TH 2024-04 → — Figure 84R3TI 84R3TI 2024-04 → — Figure 84R3TJ 84R3TJ 2024-04 → — Figure 84R3TK 84R3TK 2024-04 → — Figure 84R3TL 84R3TL 2024-04 → — Figure 84R3TM 84R3TM 2024-04 → — Figure 84R3TN 84R3TN 2024-04 → — Figure 84R3TO 84R3TO 2024-04 → — Figure 84R3TP 84R3TP 2024-04 → —

Part groups

PNCDescription
82600D Instrument Panel Fuse
82620A Block Assy, Fusible Link
82662A Cover, Relay Block, Upper, NO.1
82672A Cover, Junction Block
82715 Bracket,Wiring Harness Clamp
82730 Block Assy, Instrument Panel Junction

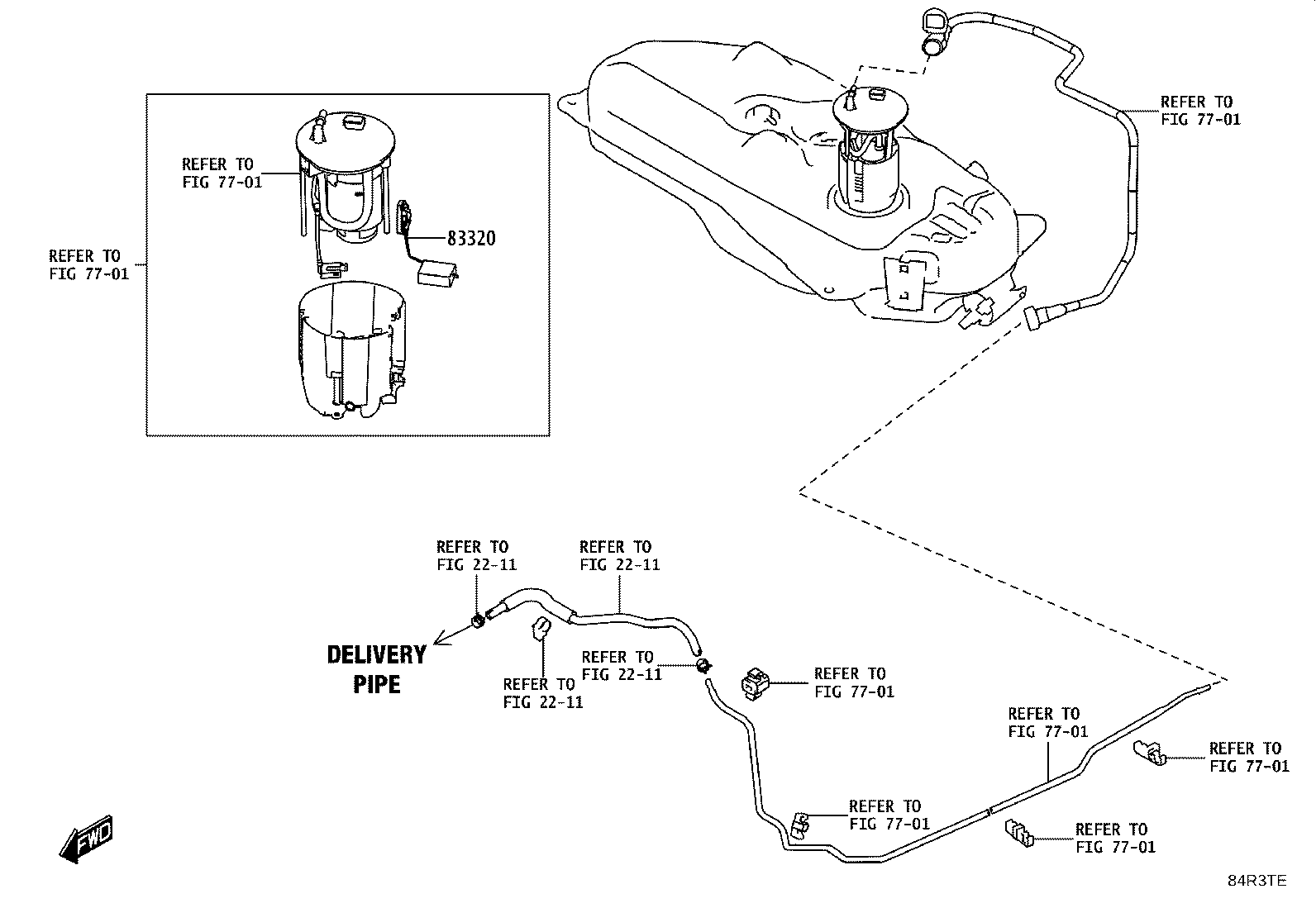

83320 Gage Assy, Fuel Sender

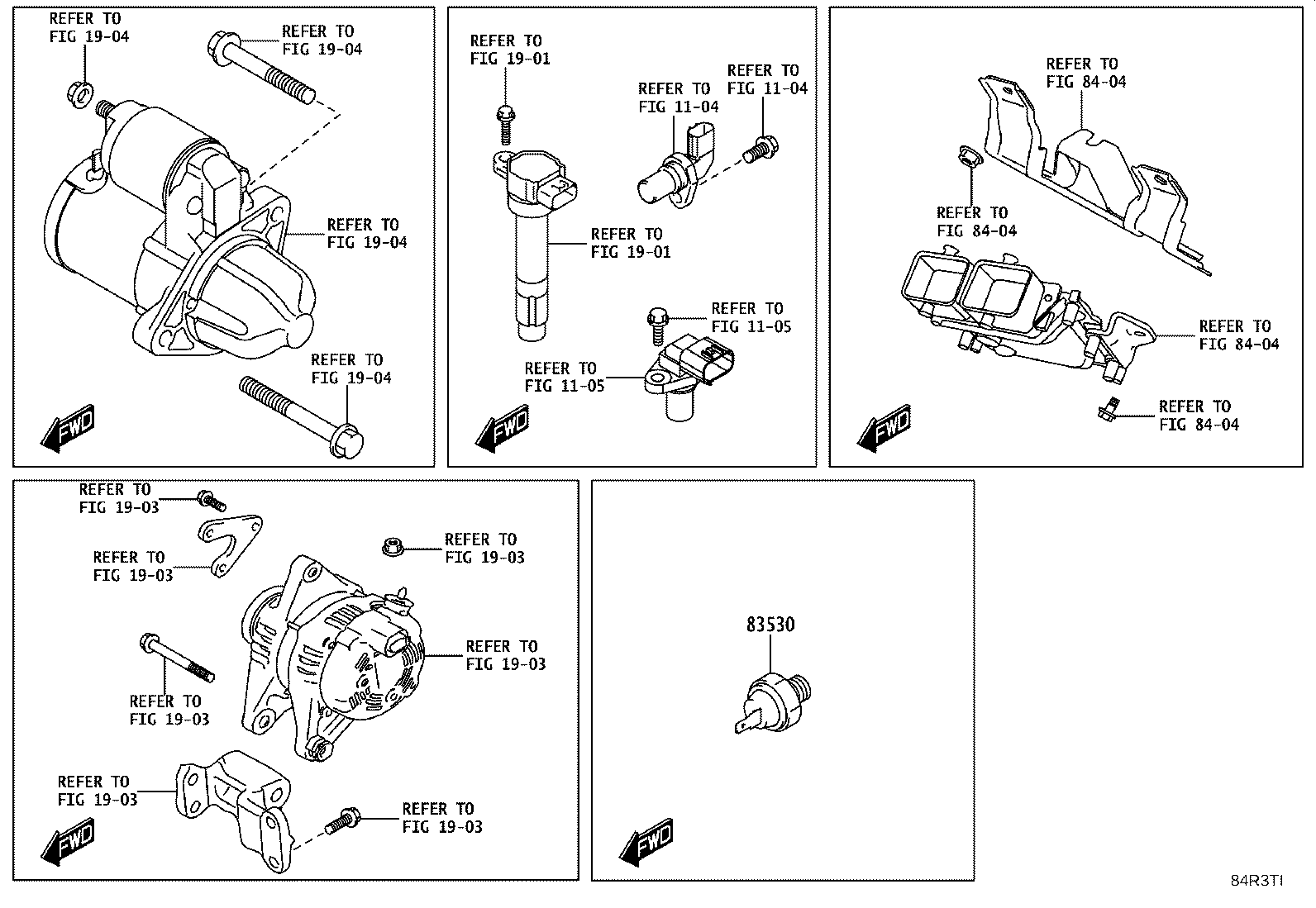

83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
84120 Switch Assy, Head UP Display
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84230G Switch Assy, Courtesy Lamp
84242 Switch, Glove Box Lamp
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84490K Switch Assy, Back Sonar
84520 Switch Assy, Clutch Start

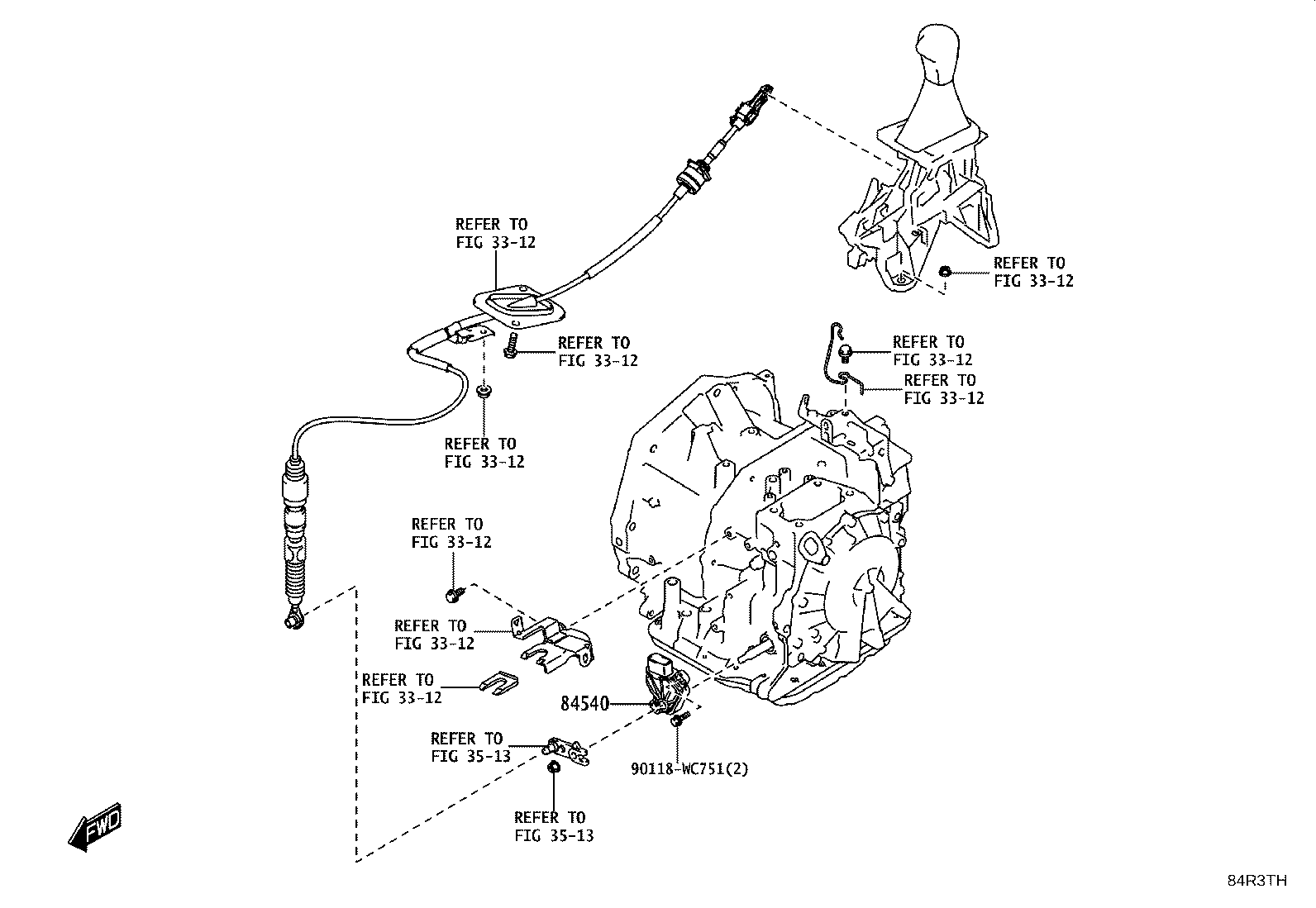

84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84721D Switch Assy, Camera
84810 Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84988F Switch, Traction Control
85530 Socket Assy, Power Outlet, NO.1
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
88280A Switch Assy, Clutch

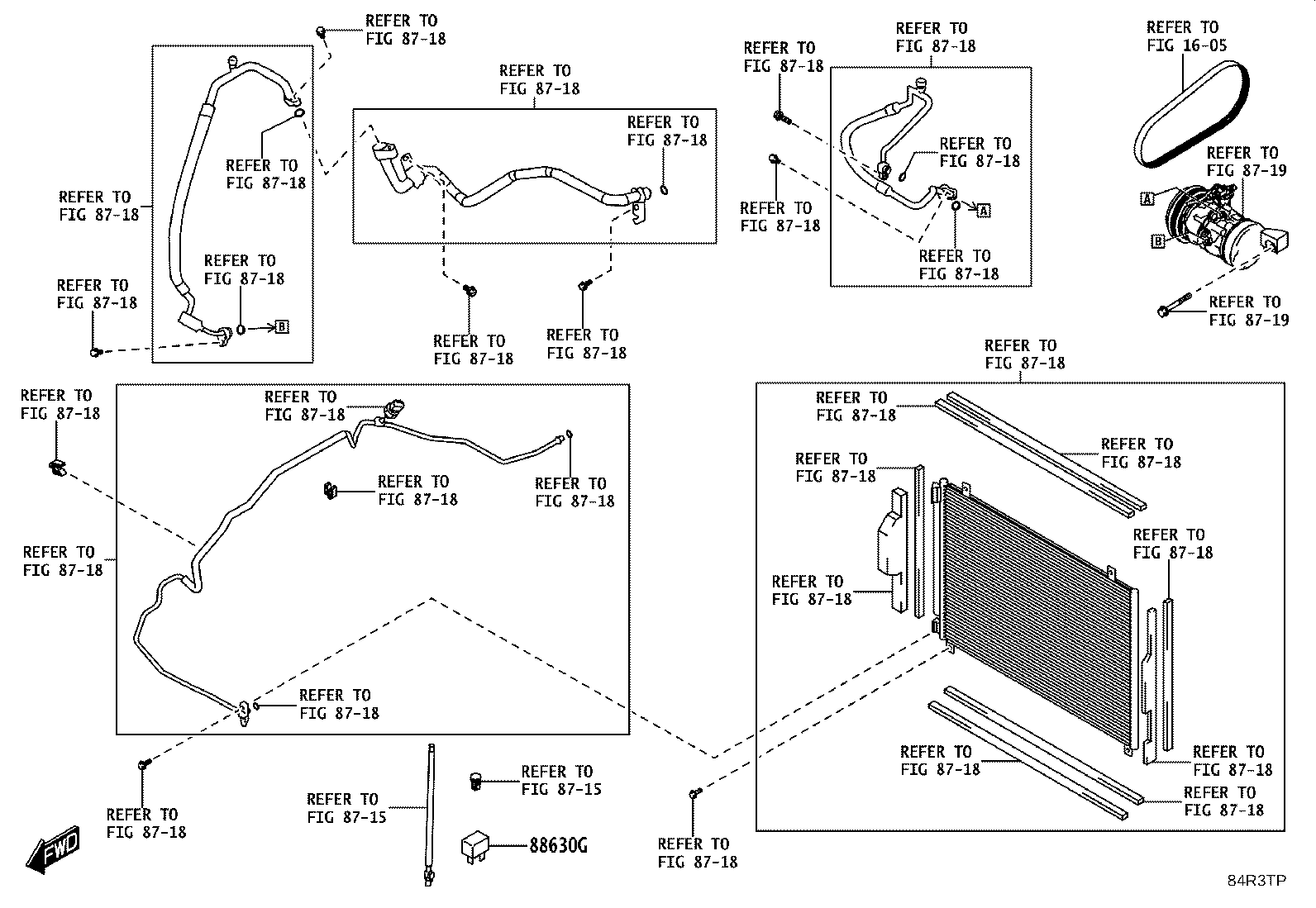

88630G Relay Assy, Cooler
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body

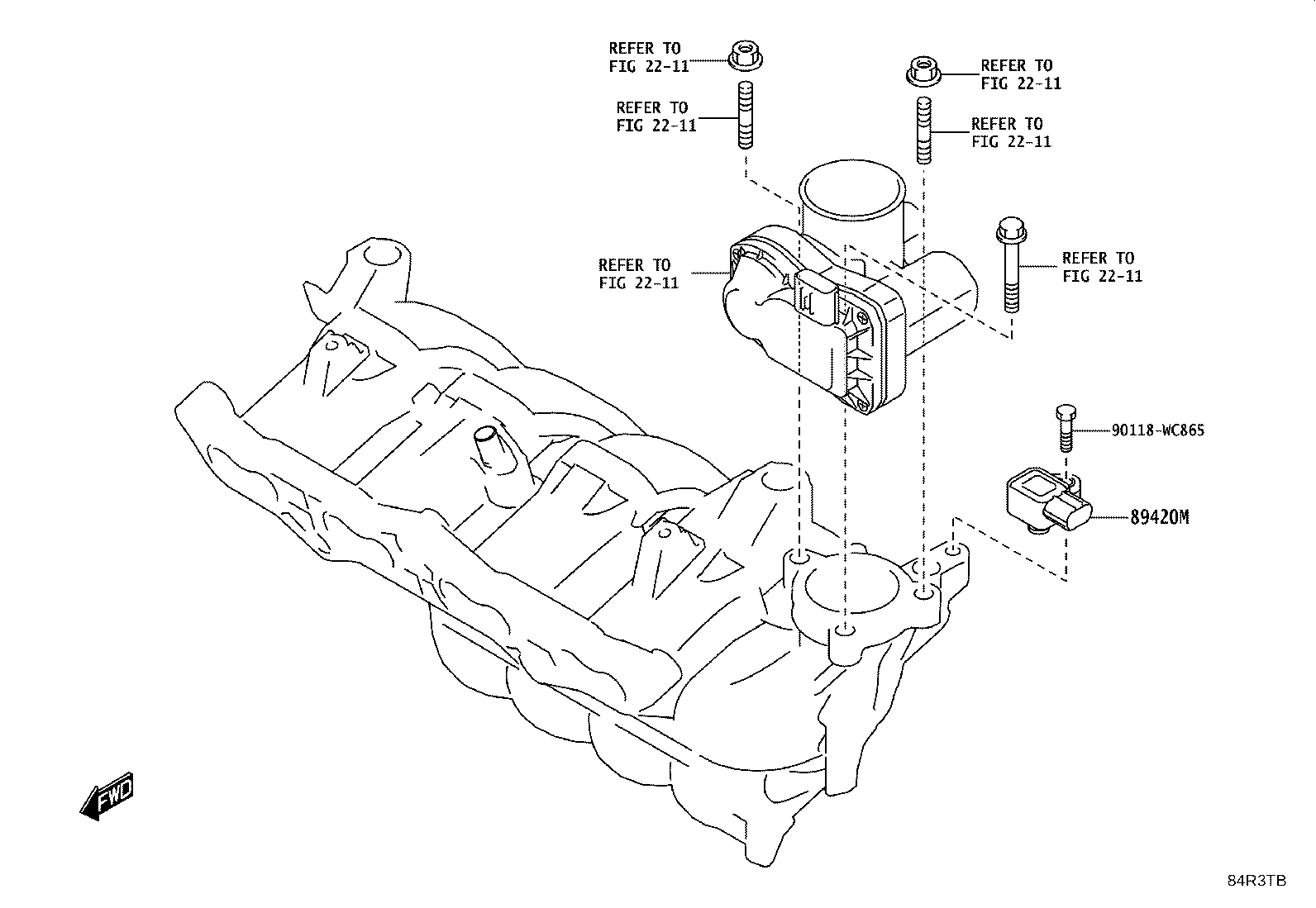

89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89424G Sensor, Inlet Air Temperature

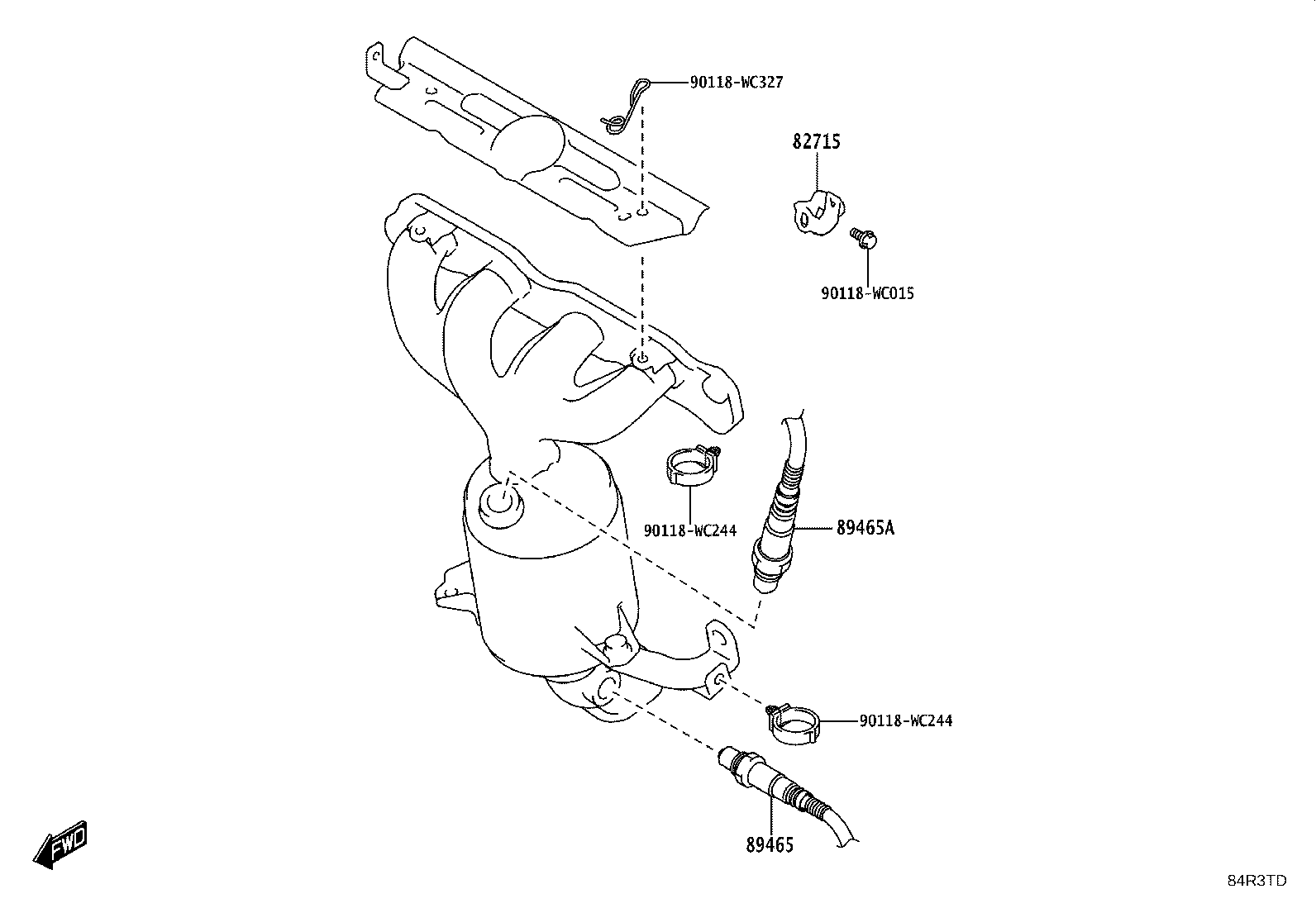

89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1

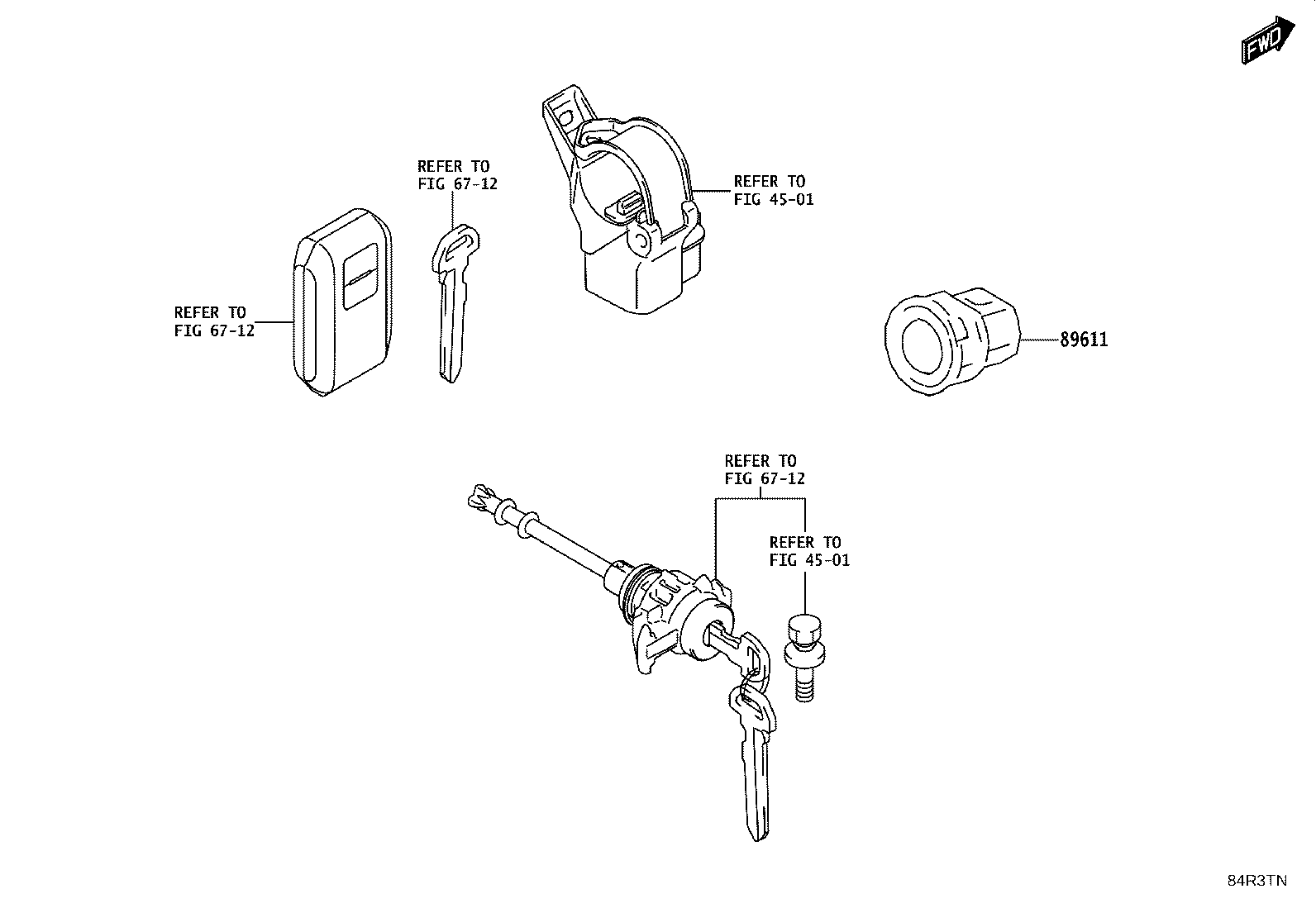

89611 Switch, Push Start
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
