Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

3 part groups · 4 illustrations

Illustrations

Figure 84R3U5

84R3U5 2024-04 → —

Figure 84R3U6

84R3U6 2024-04 → —

Figure 84R3U7

84R3U7 2024-04 → —

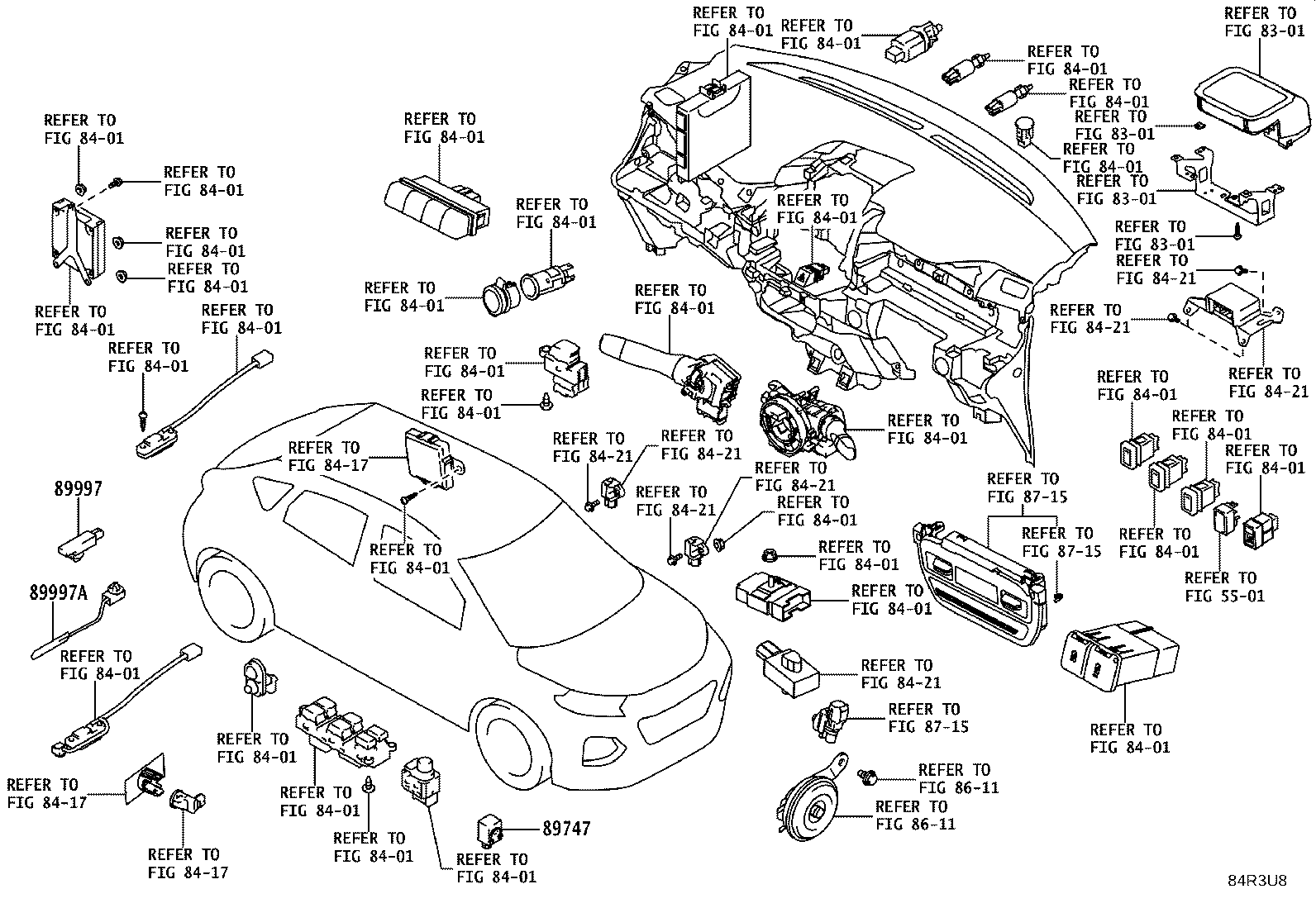

Figure 84R3U8

84R3U8 2024-04 → —

Part groups

PNC	Description
89747	Buzzer, Wireless Door Lock
89997	Antenna, Electrical Key
89997A	Antenna, Electrical Key, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
