Toyota Starlet Cross
2024-04 → present · chassis K15B · catalogue 13E310 · General
Supported model
Data version 2024-04

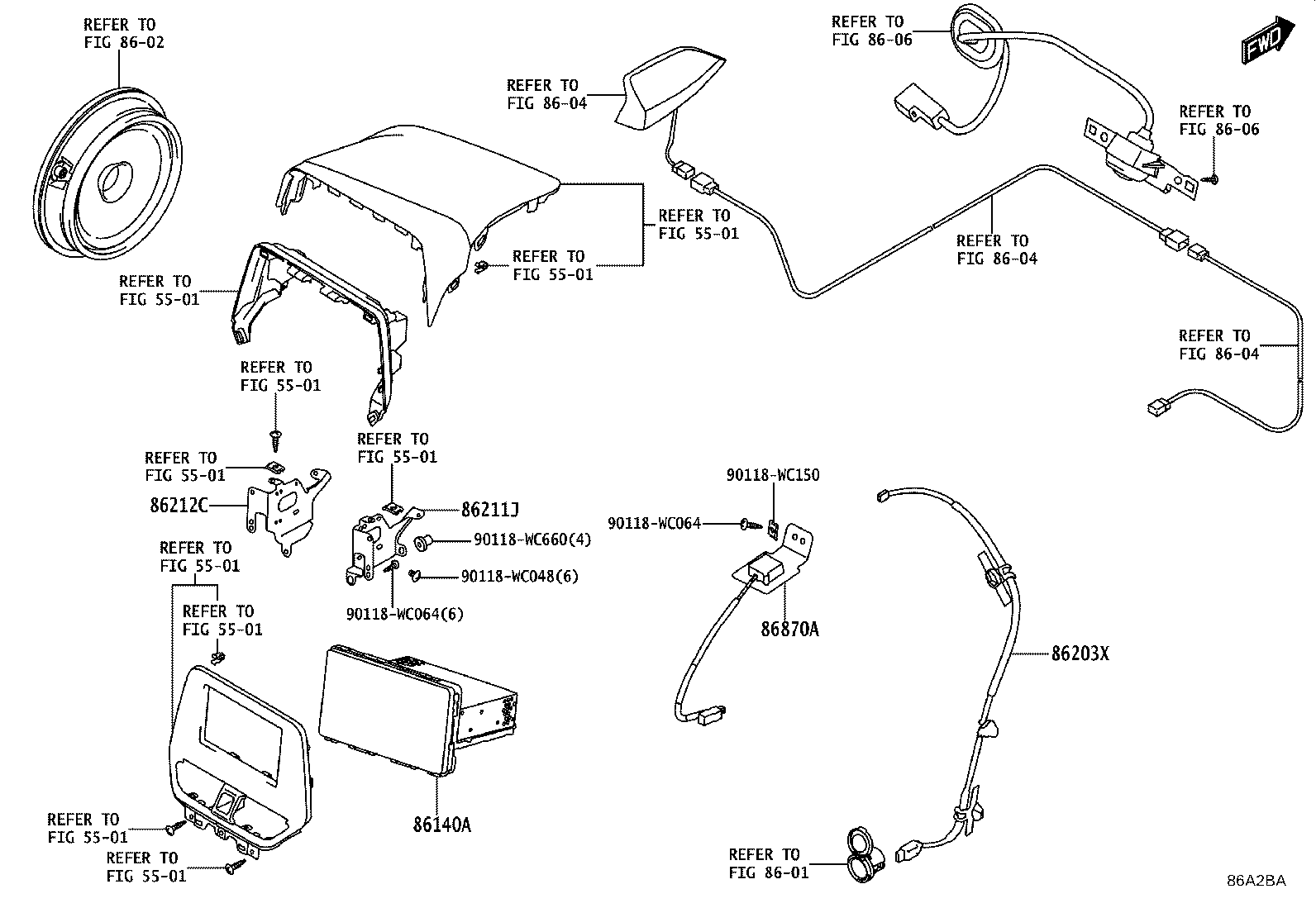

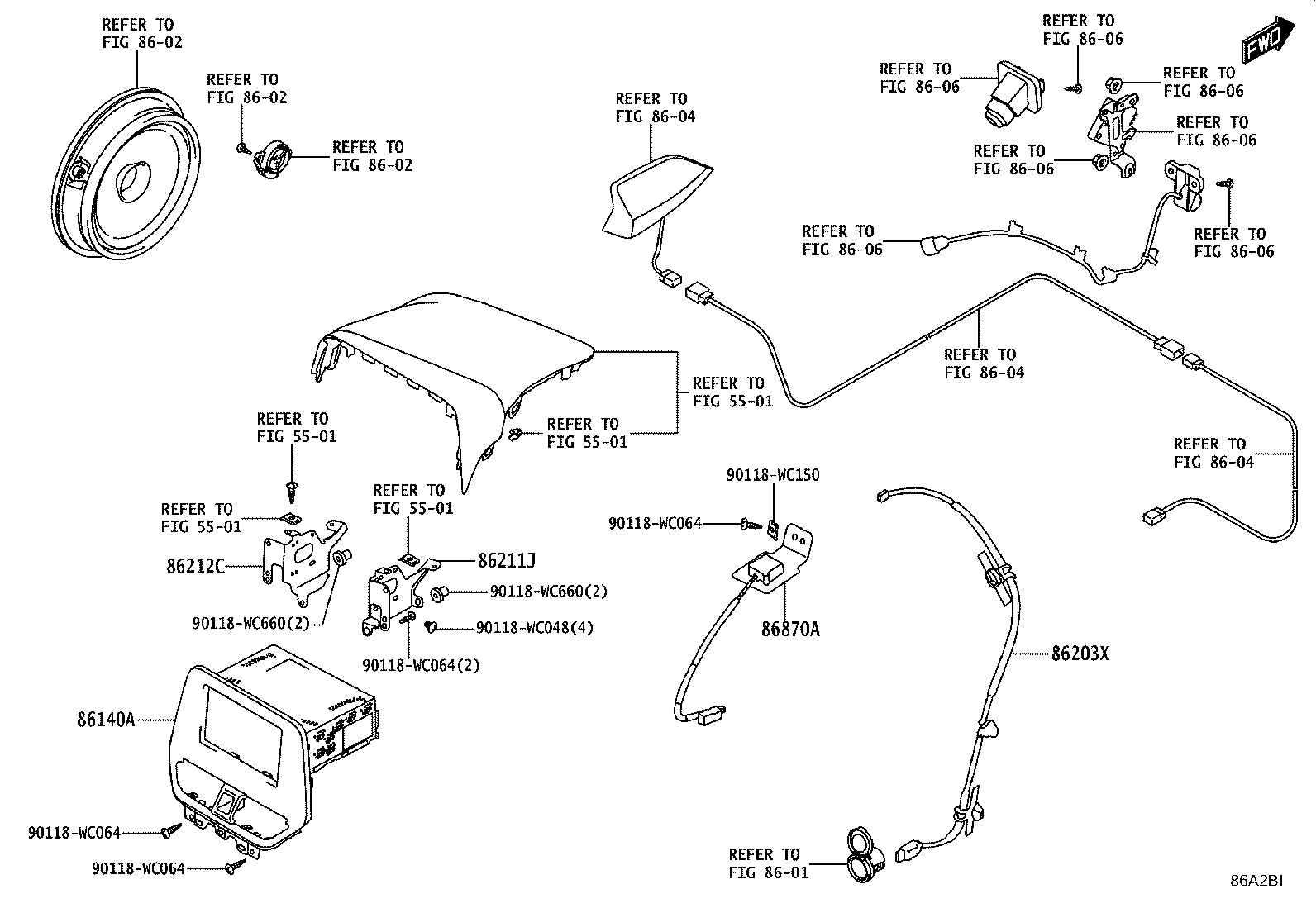

Navigation & Front Monitor Display
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86140A | Receiver Assy, Radio & Display |
| 86203X | Wiring Sub-assy, Radio |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86730A | Microphone Assy, Telephone |
| 86870A | Antenna Assy, Gps & Vics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
