Toyota Starlet Cross
2024-04 → present · chassis K15B · catalogue 13E310 · General
Supported model
Data version 2024-04
Mirror

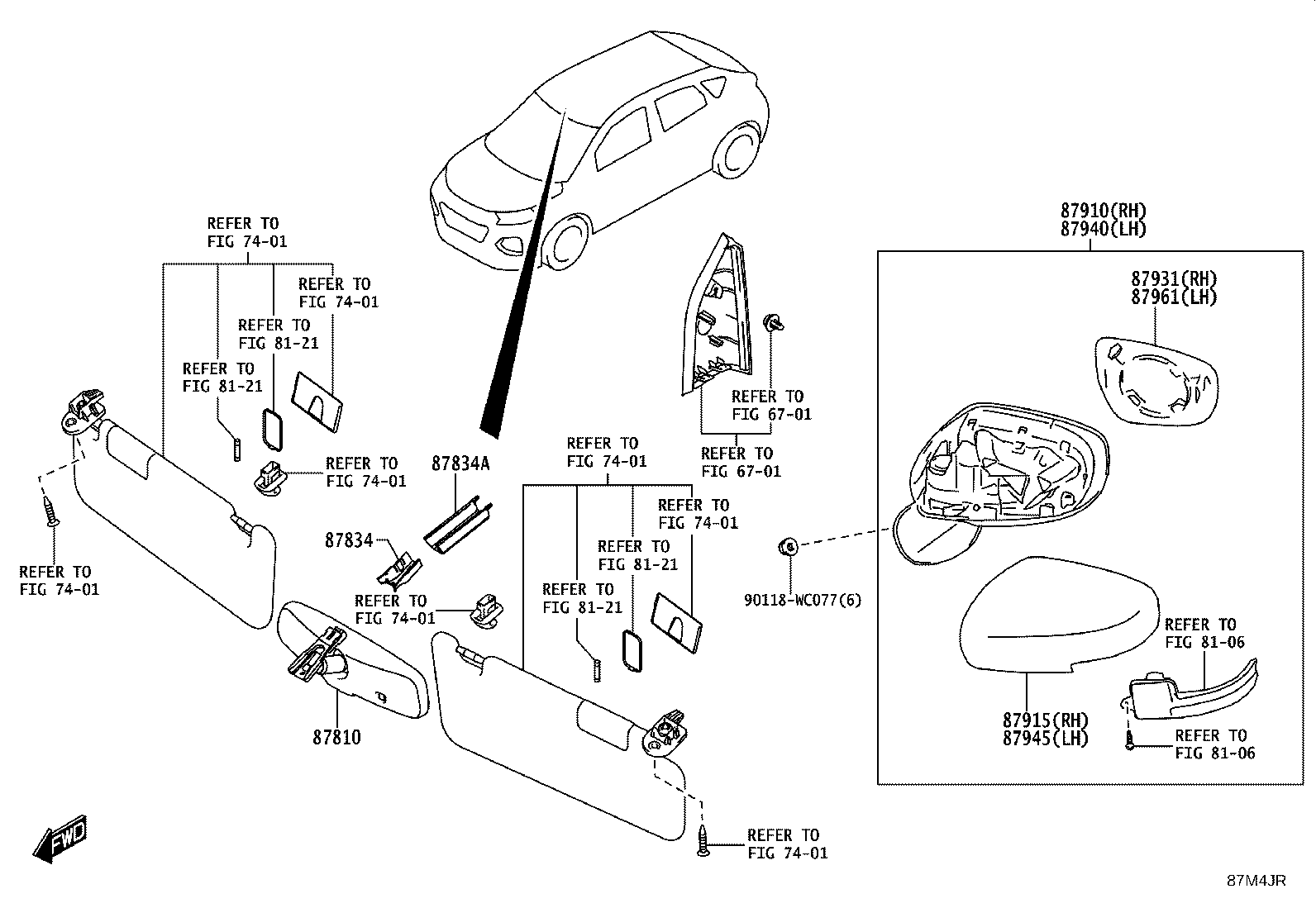

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87834A | Cover, Inner Rear View Mirror Stay Holder, NO.2 |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
