Toyota Starlet Cross

2024-04 → present · chassis K15B · catalogue 13E310 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 9 illustrations

Illustrations

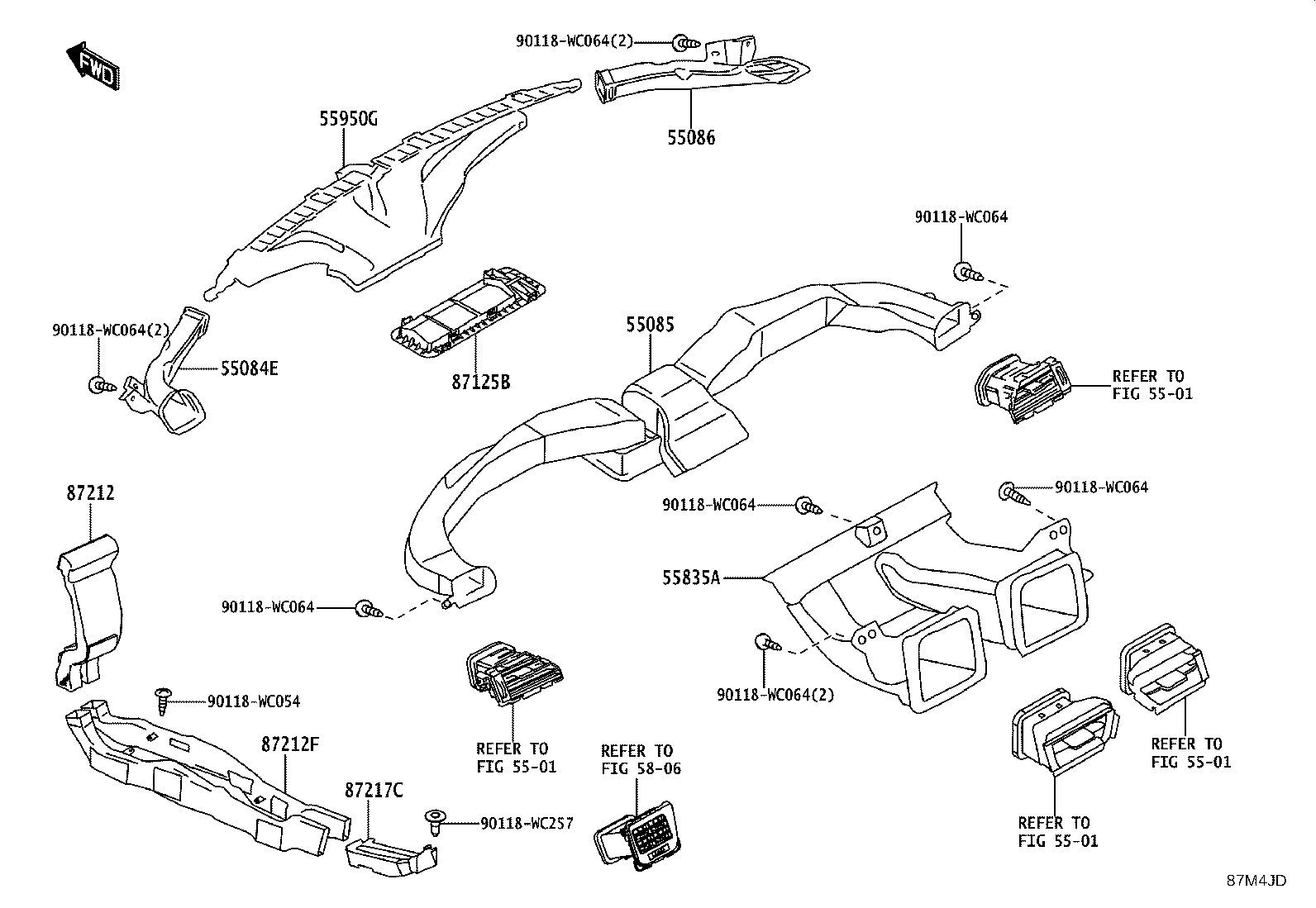

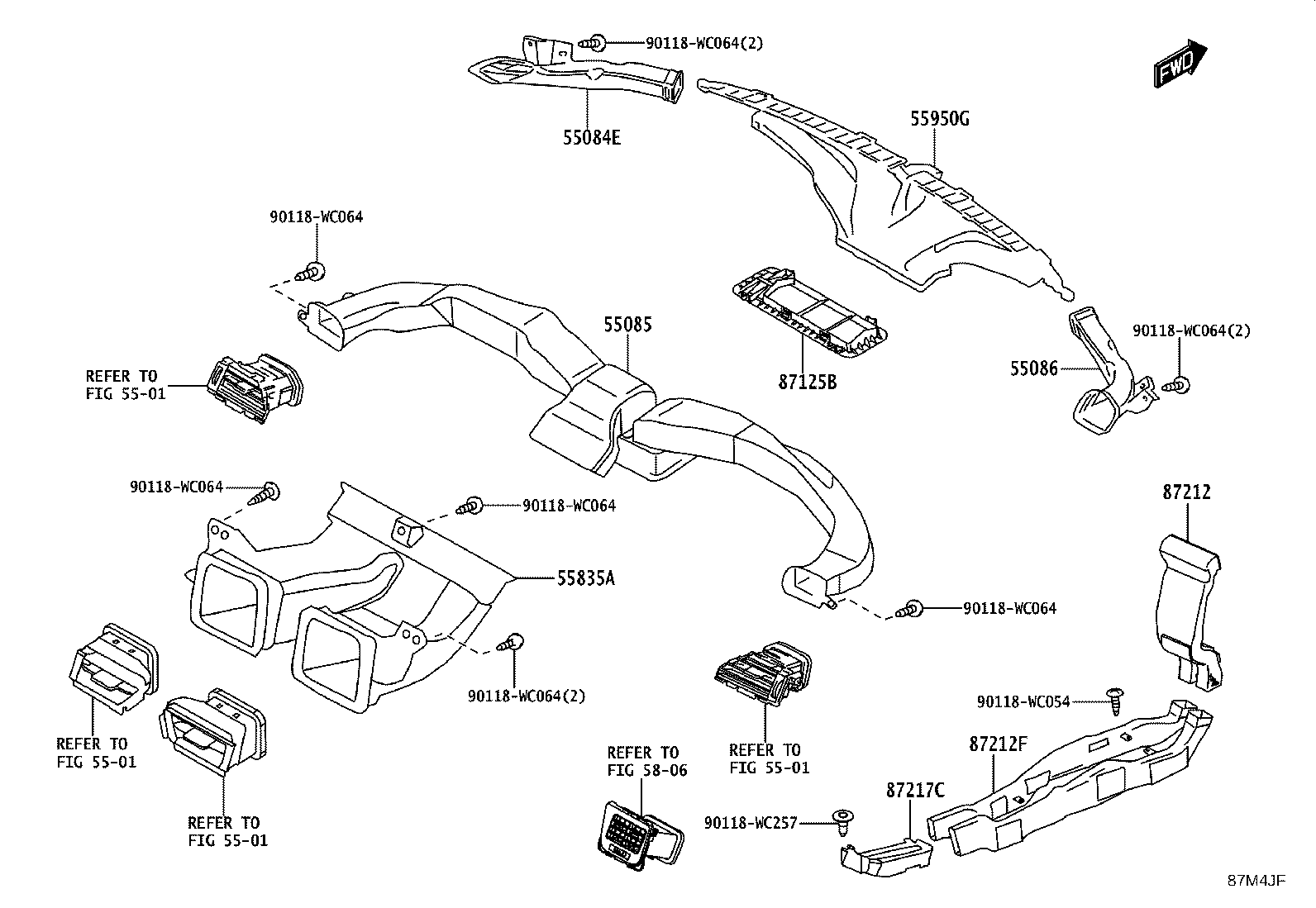

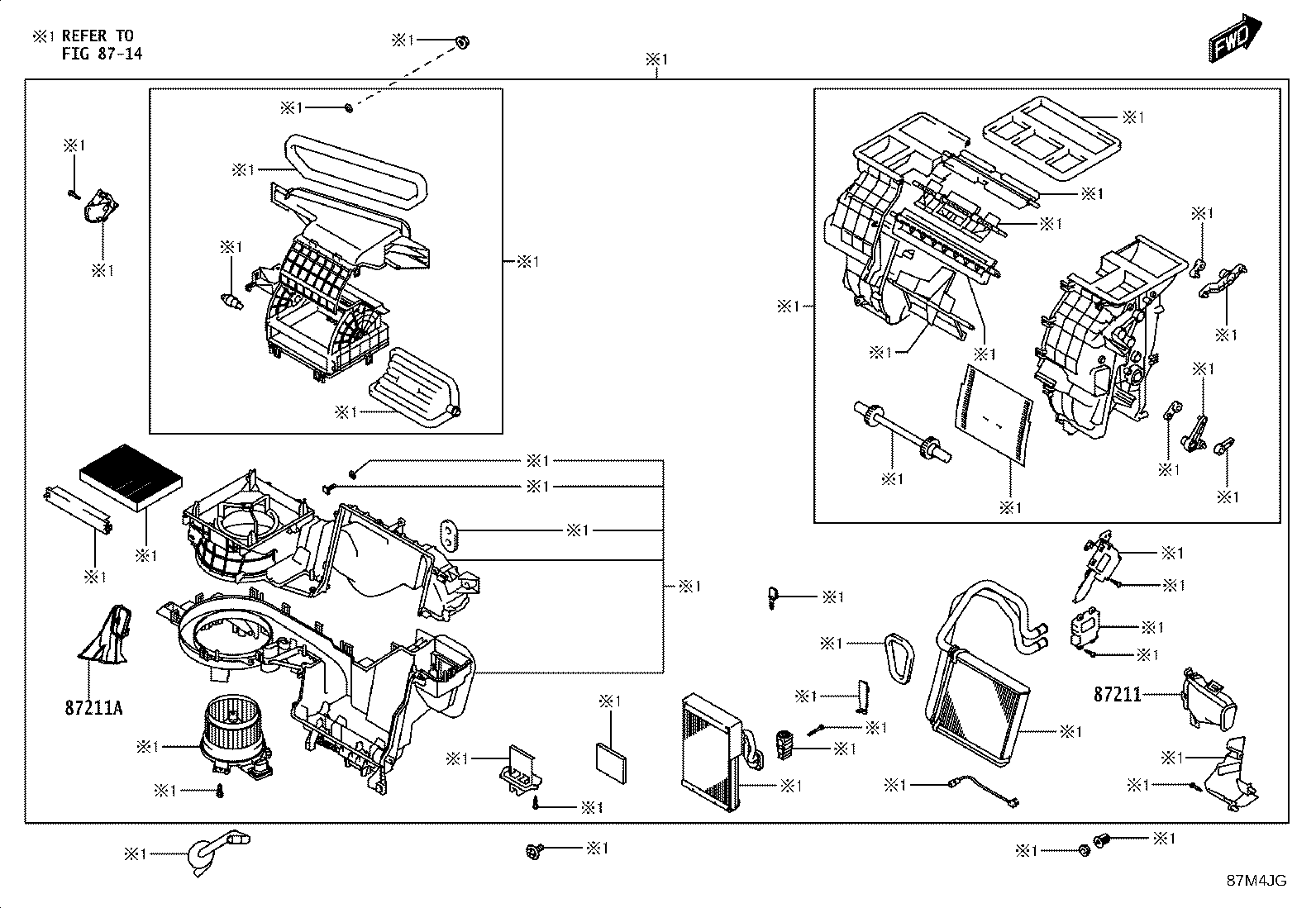

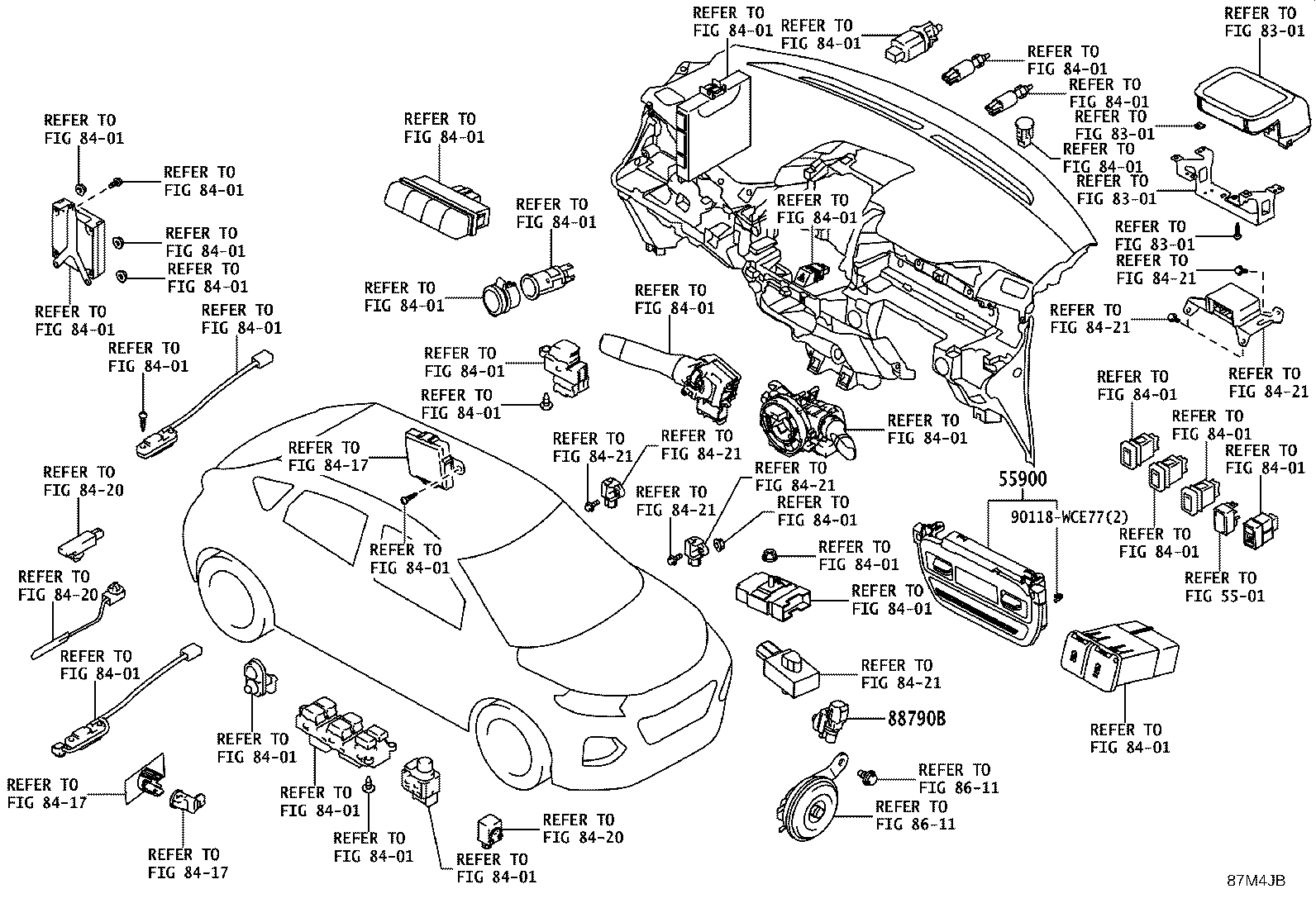

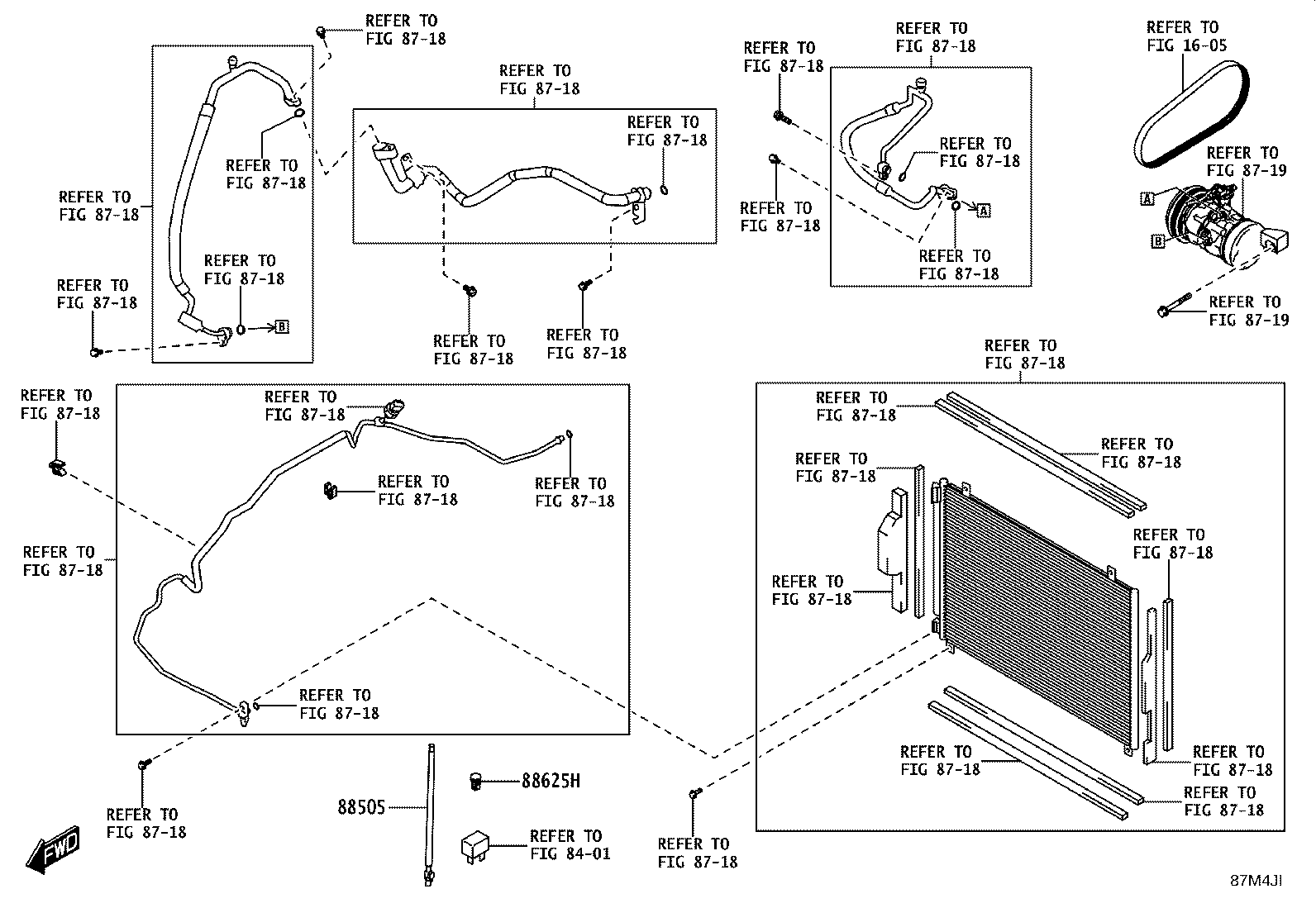

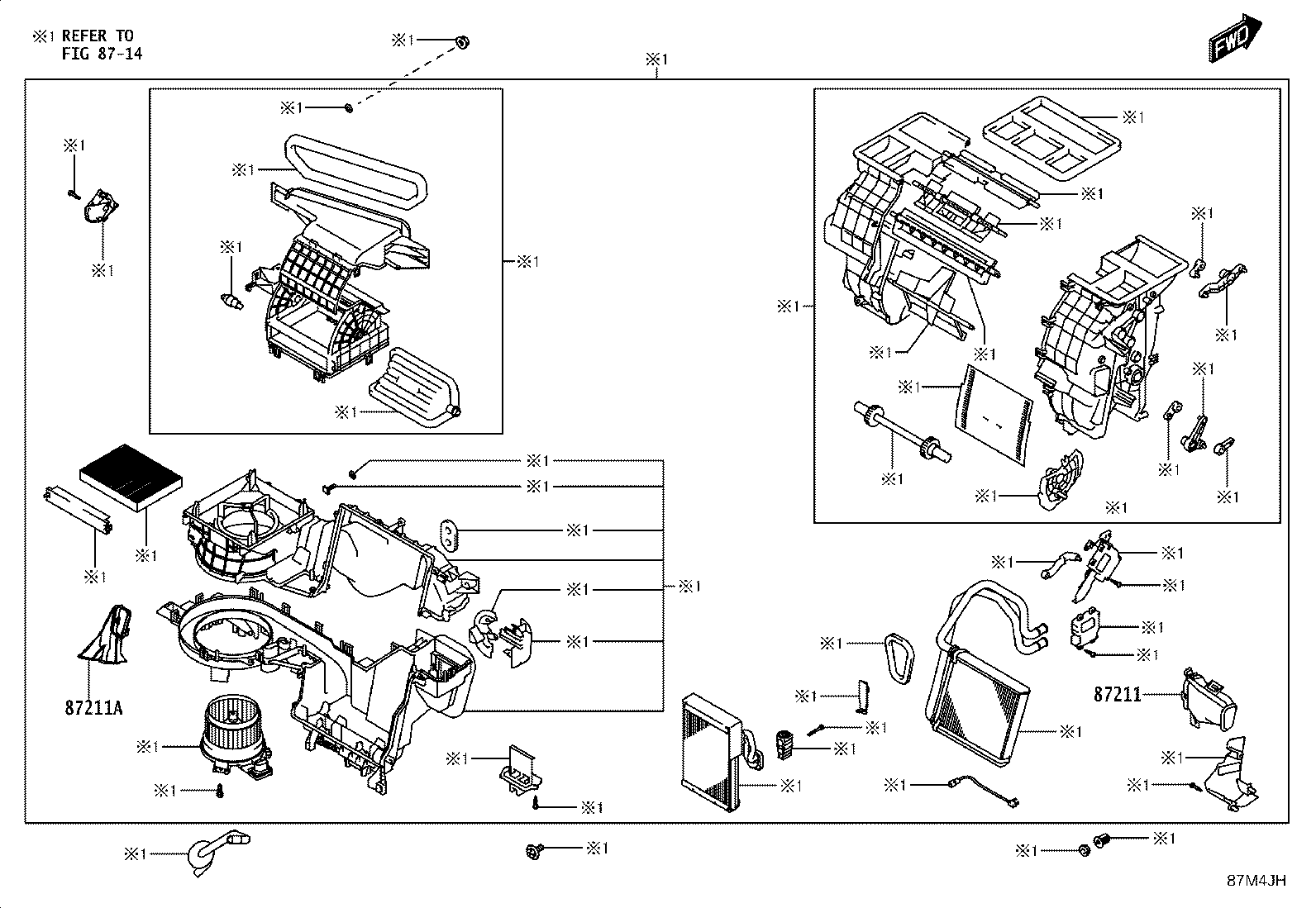

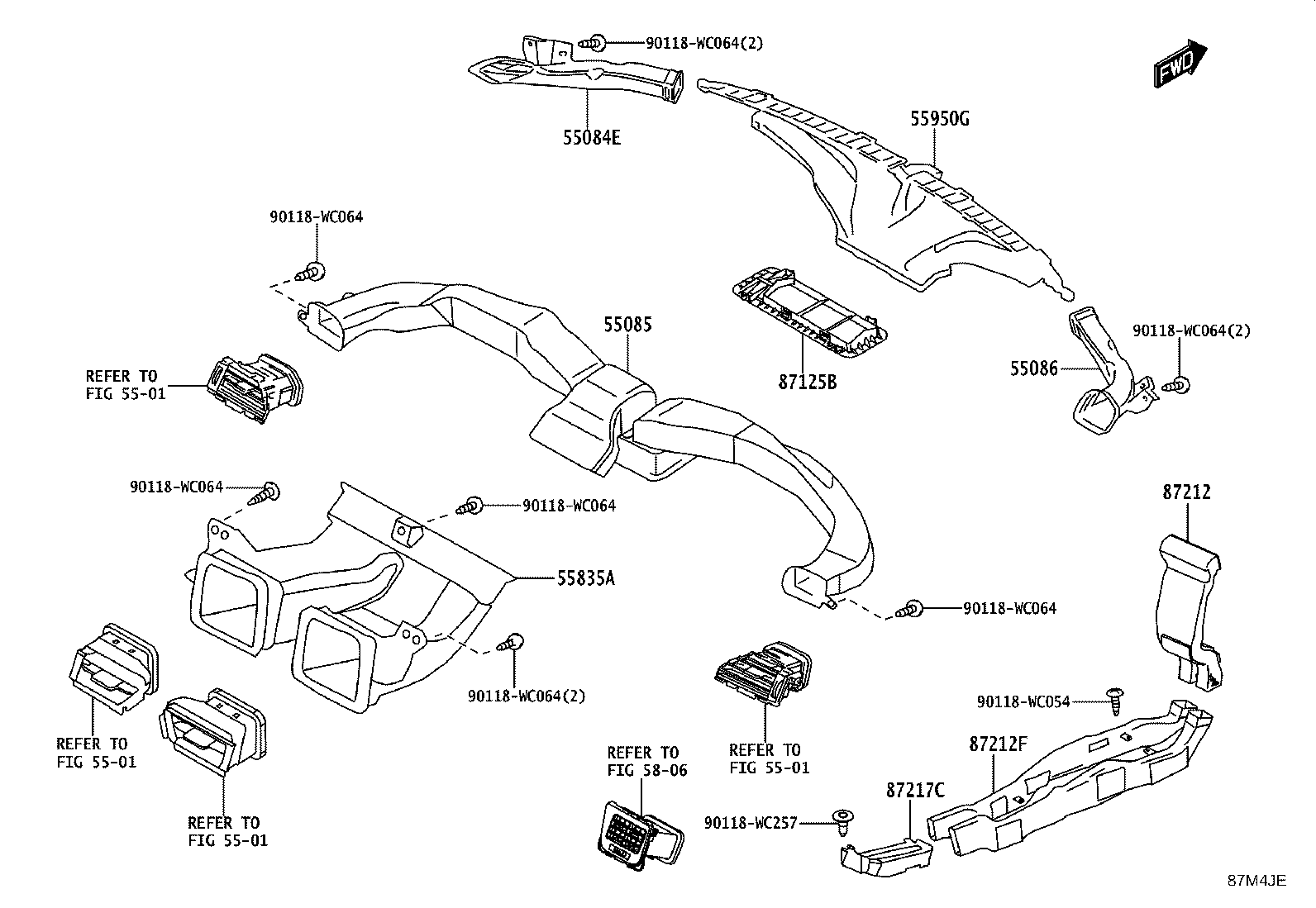

Figure 87M4JA 87M4JA 2024-04 → — Figure 87M4JB 87M4JB 2024-04 → — Figure 87M4JC 87M4JC 2024-04 → — Figure 87M4JD 87M4JD 2024-04 → — Figure 87M4JE 87M4JE 2024-04 → — Figure 87M4JF 87M4JF 2024-04 → — Figure 87M4JG 87M4JG 2024-04 → — Figure 87M4JH 87M4JH 2024-04 → — Figure 87M4JI 87M4JI 2024-04 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55835A Duct, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
87125B Grille, Heater Air Outlet
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87217C Duct, Air, Rear NO.5
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
