Toyota Vios (CHINA)

2008-02 → 2013-07 · chassis NCP92,ZSP92 · catalogue 140310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

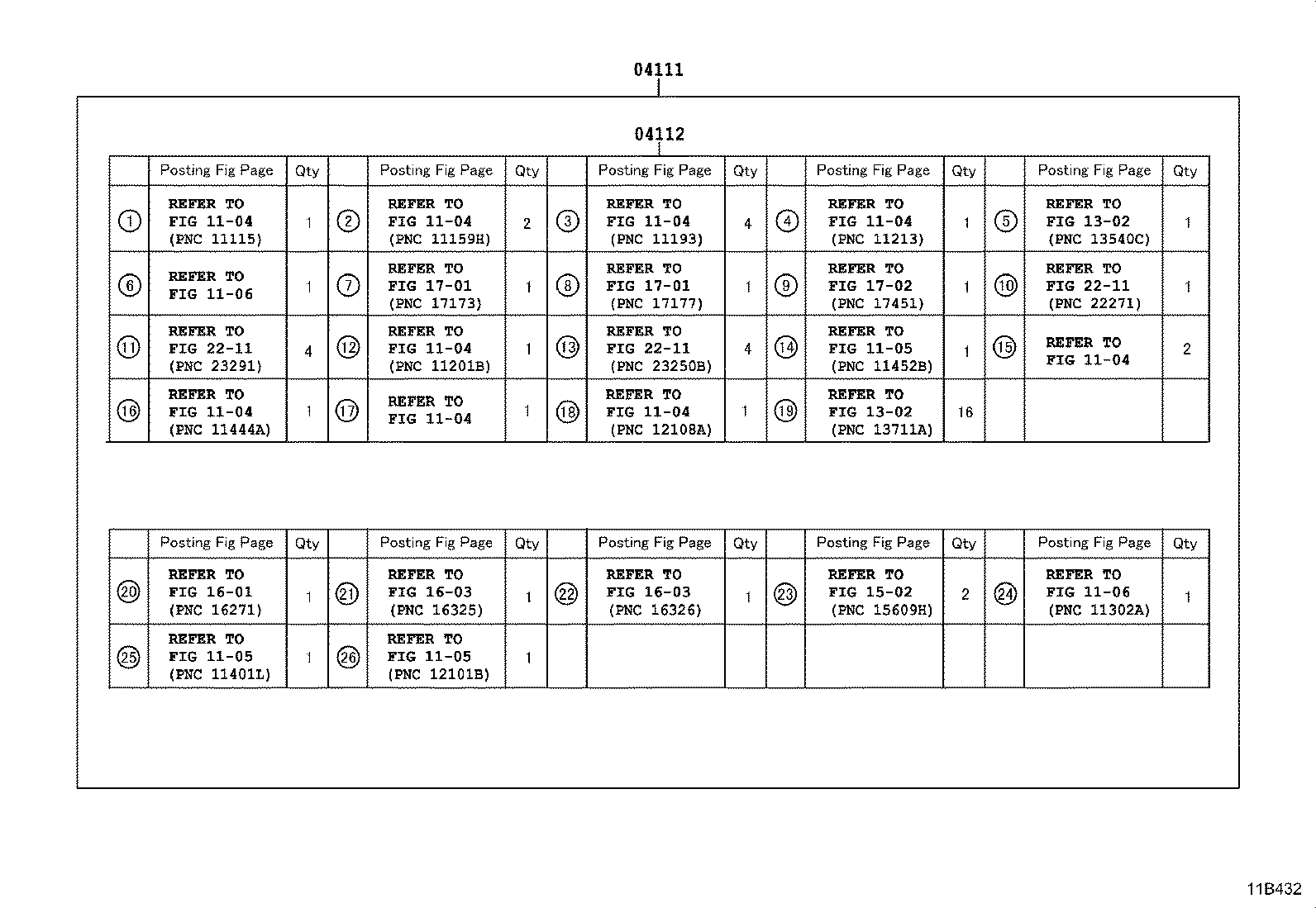

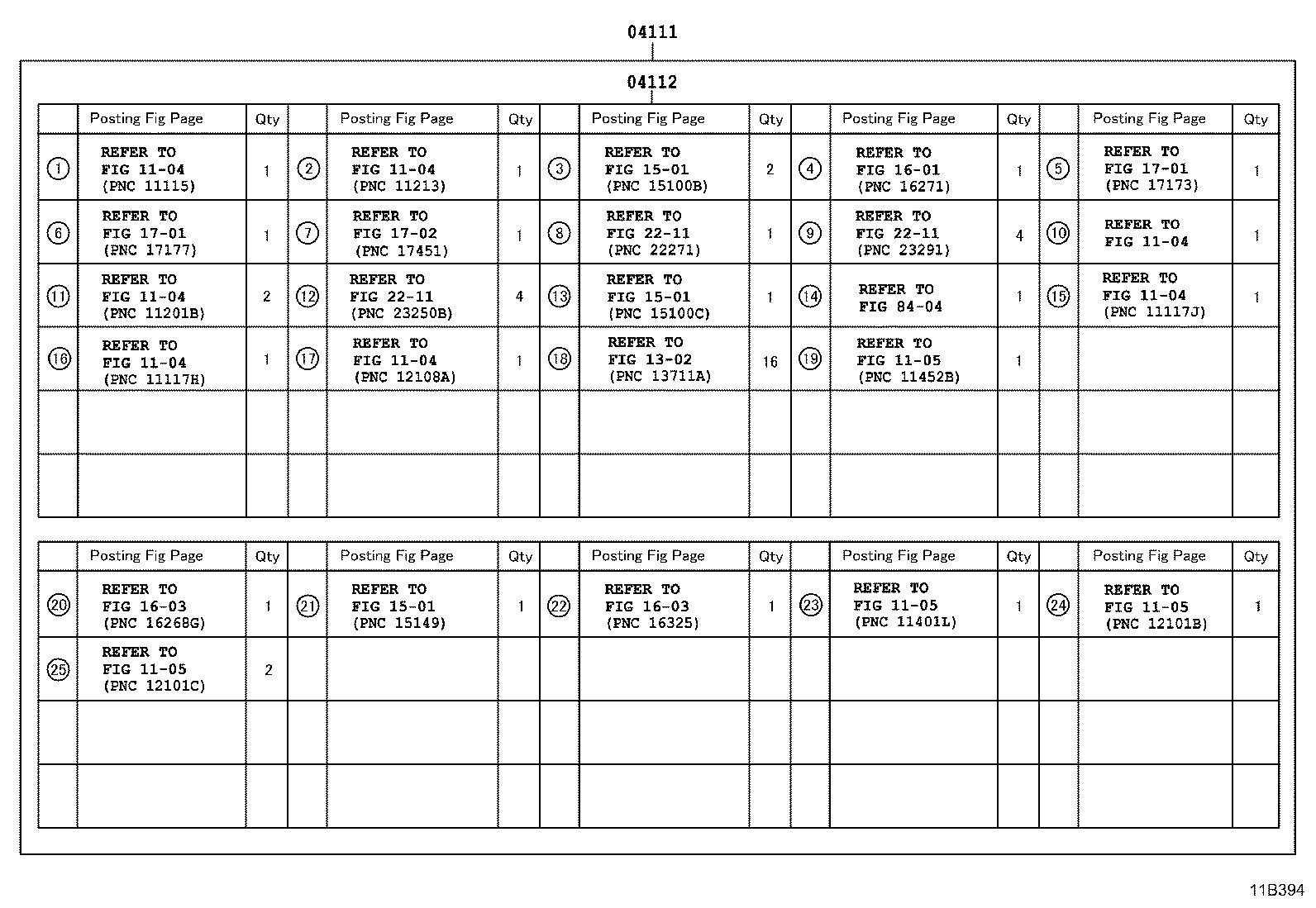

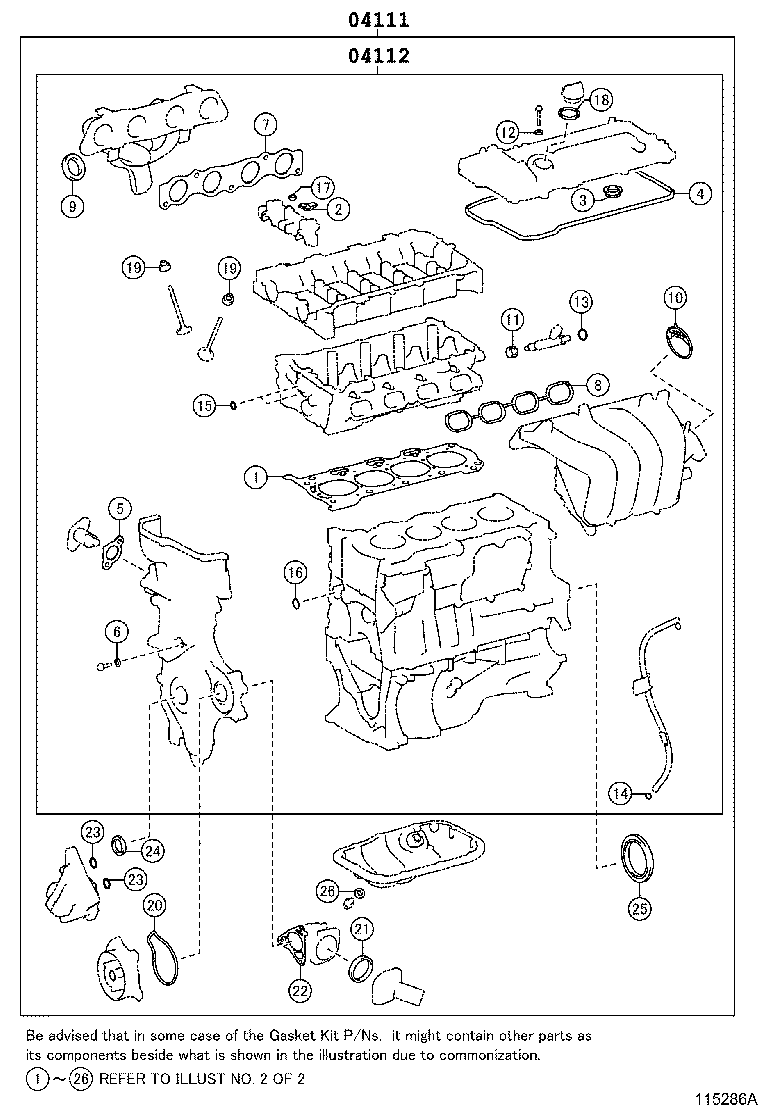

Figure 115290A 115290A 2008-02 → — Figure 11B394 11B394 2008-02 → — Figure 115286A 115286A 2008-02 → — Figure 11B432 11B432 2008-02 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
