Toyota Vios (CHINA)

2008-02 → 2013-07 · chassis NCP92,ZSP92 · catalogue 140310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 3 illustrations

Illustrations

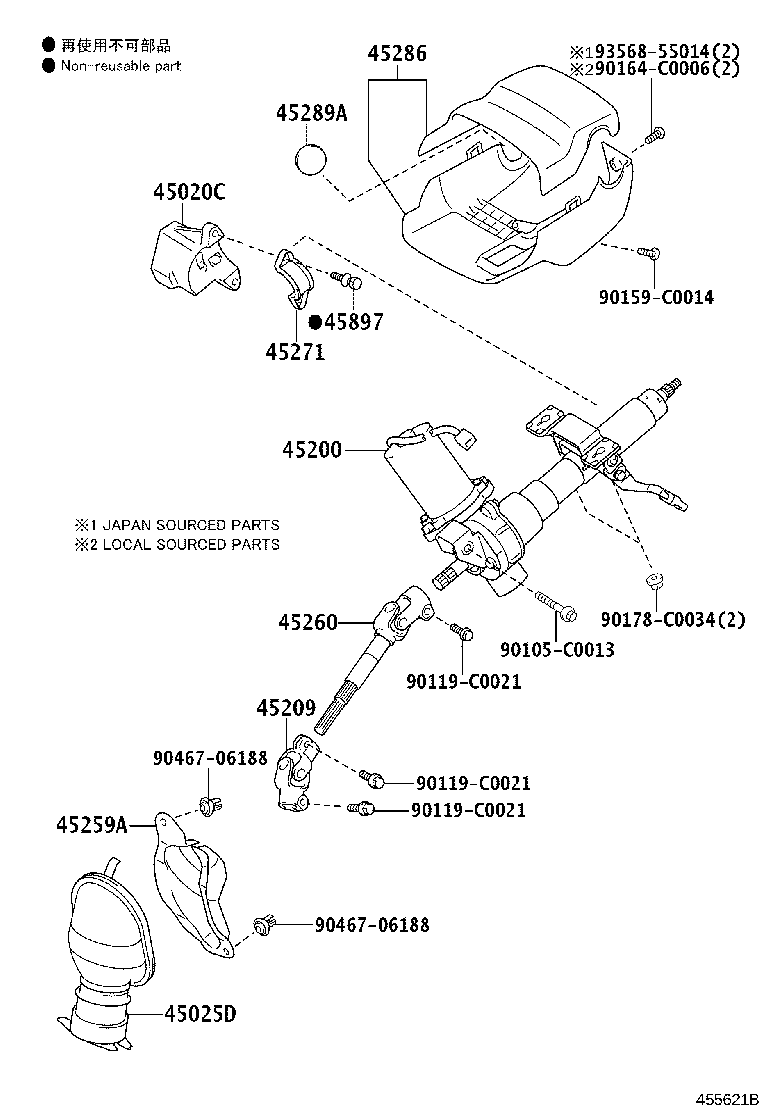

Figure 455129C 455129C 2008-02 → 2010-07 Figure 455129C 455129C 2008-02 → — Figure 455621B 455621B 2010-07 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45289A Support, Steering Column Cover
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
