Toyota Vios (CHINA)

2008-02 → 2013-07 · chassis NCP92,ZSP92 · catalogue 140310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

28 part groups · 3 illustrations

Illustrations

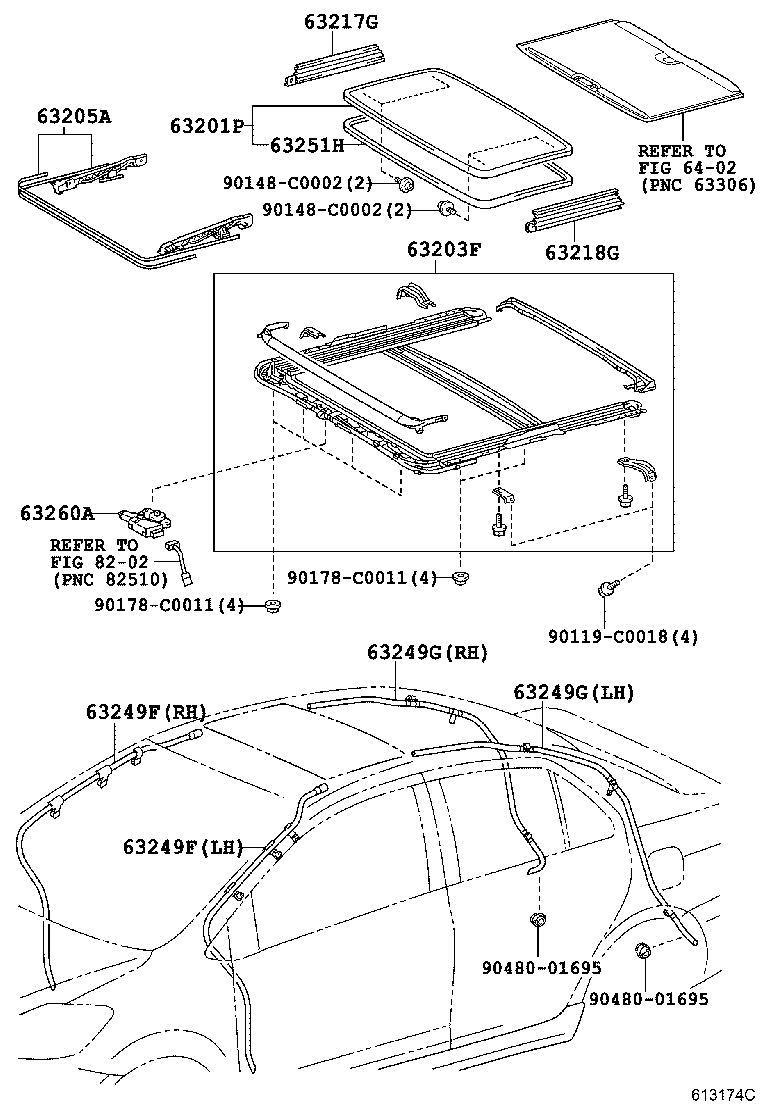

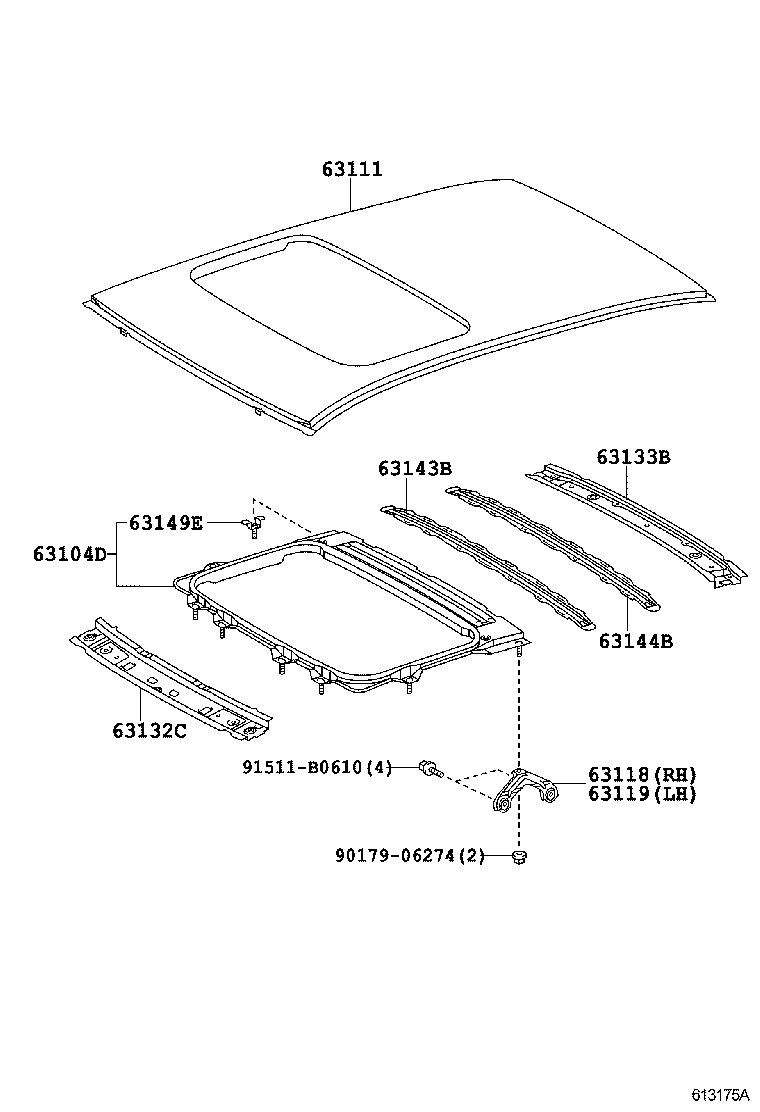

Figure 613172B 613172B 2008-02 → — Figure 613175A 613175A 2008-02 → — Figure 613174C 613174C 2008-02 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63102A Panel Sub-assy, Windshield Header
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63132C Panel, Windshield Header, Inner
63133B Frame, Back Window
63141H Reinforcement, Roof Panel, Center
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63147F Bracket, Roof Panel Reinforcement, RH
63148E Bracket, Roof Panel Reinforcement, LH
63149E Bracket, Roof Panel Reinforcement, NO.2
63201P Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63249F Hose, Sliding Roof Drain
63249G Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
75573F Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
