Toyota Vios (CHINA)
2008-02 → 2013-07 · chassis NCP92,ZSP92 · catalogue 140310 · General
Supported model
Data version 2014-01

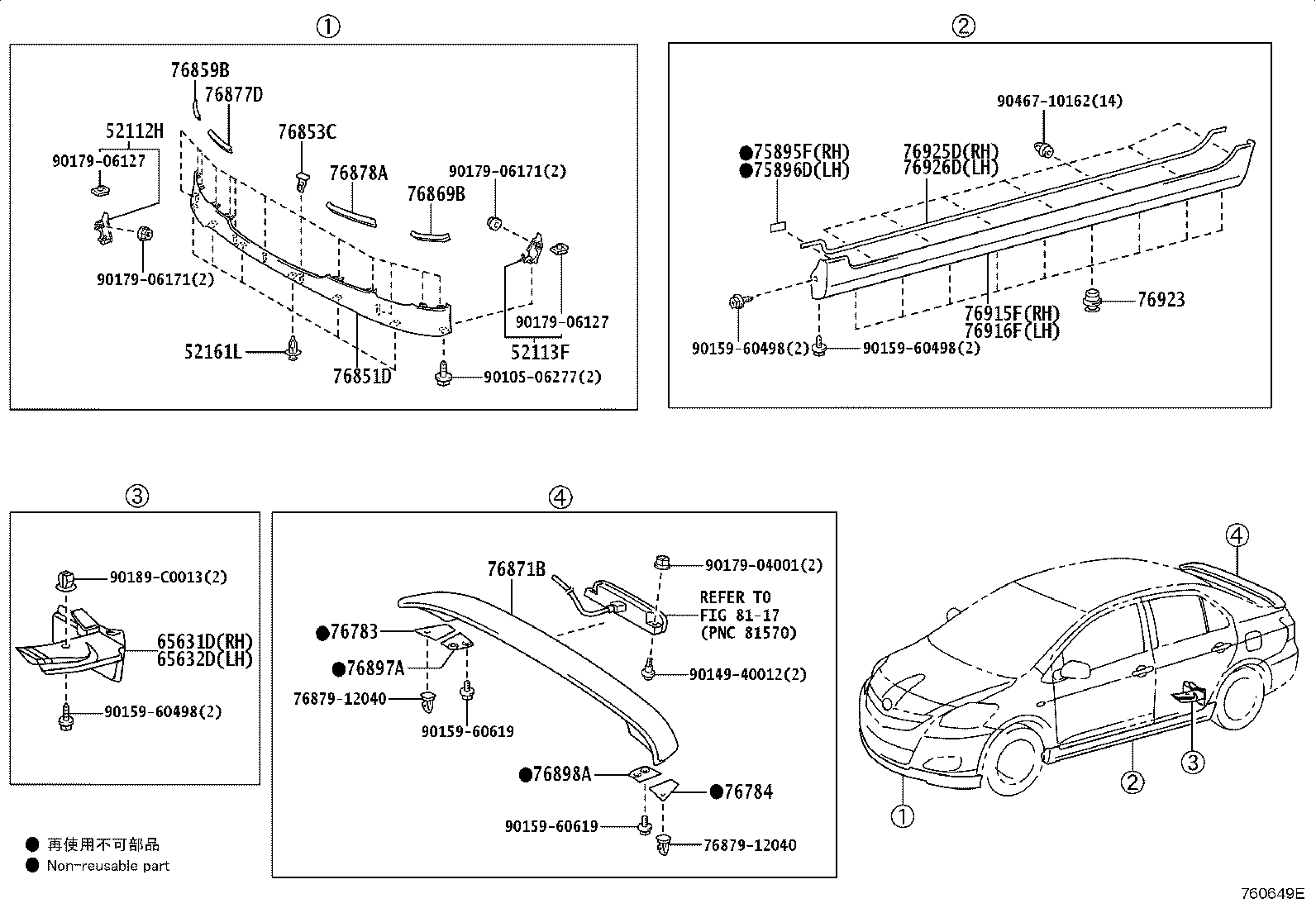

Mudguard & Spoiler
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52112H | Extension, Front Bumper, RH |
| 52113F | Extension, Front Bumper, LH |
| 52161L | Piece, Front Spoiler |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75851E | Moulding, Body Rocker Panel, RH |
| 75852B | Moulding, Body Rocker Panel, LH |
| 75895F | Tape, Moulding, NO.1 |
| 75896D | Tape, Moulding, NO.2 |
| 76783 | Tape, Rear Spoiler, Lower RH |
| 76784 | Tape, Rear Spoiler, Lower LH |
| 76851D | Cover, Front Spoiler NO.2 |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76859B | Protector, Front Spoiler Side, NO.2 RH |
| 76869B | Protector, Front Spoiler Side, NO.2 LH |
| 76871B | Cover, Rear Spoiler |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76897A | Spoiler,Rear Side RH |
| 76898A | Spoiler,Rear Side LH |
| 76915F | Mudguard, Side, FR RH |
| 76916F | Mudguard, Side, FR LH |
| 76923 | Retainer, Side Mudguard |
| 76924A | Retainer, Side Mudguard, NO.2 |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
