Toyota Vios (CHINA)
2008-02 → 2013-07 · chassis NCP92,ZSP92 · catalogue 140310 · General
Supported model
Data version 2014-01
Radio Receiver & Amplifier & Condenser
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

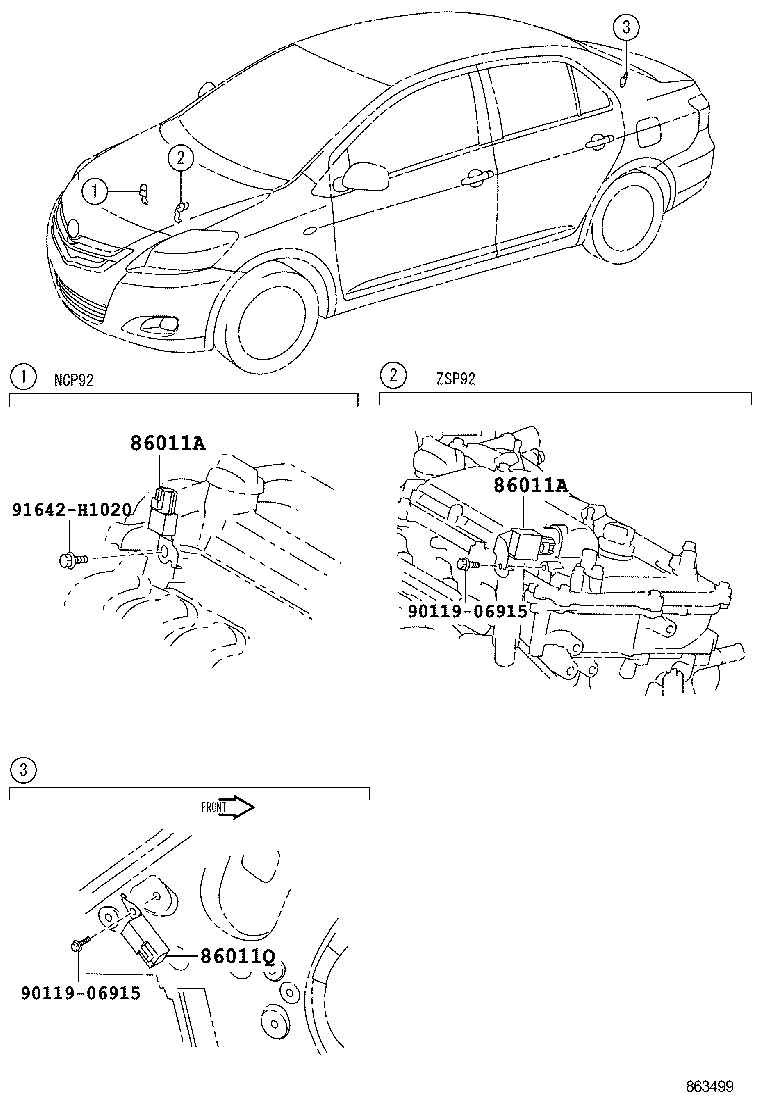

| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |

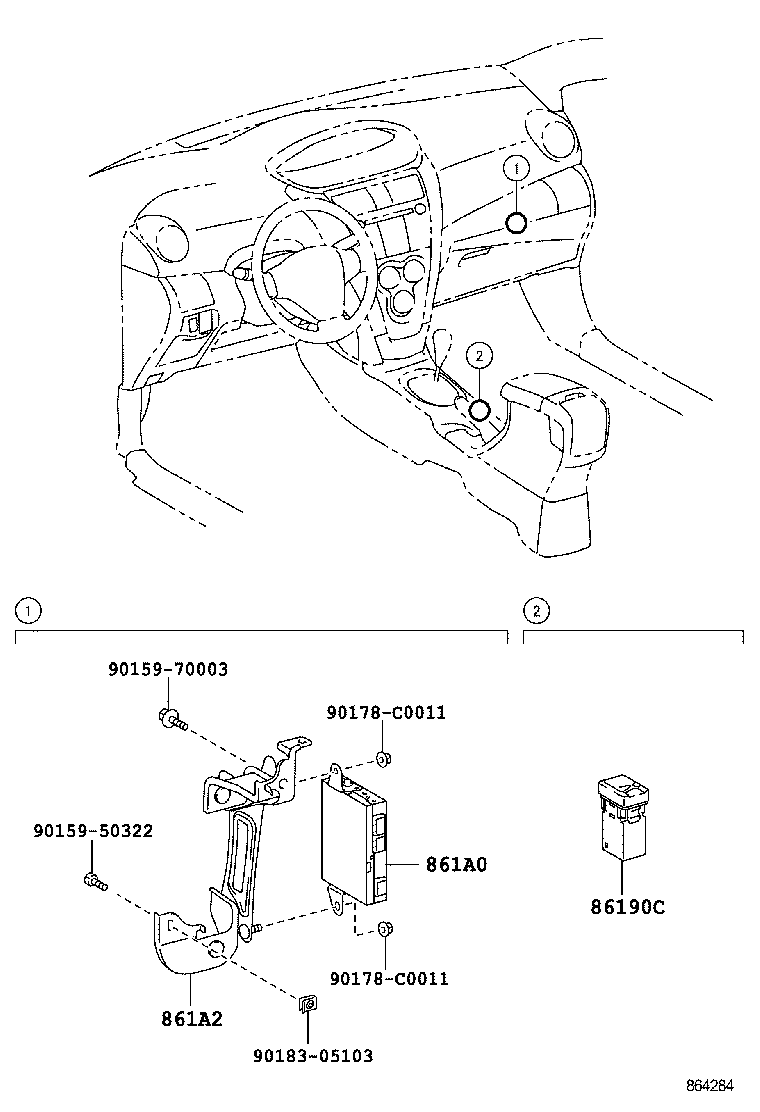

| 861A0 | Computer Assy, Multi-media Interface |
| 861A2 | Bracket, Multi-media Interface, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
