Toyota Vios (CHINA)

2008-02 → 2013-07 · chassis NCP92,ZSP92 · catalogue 140310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

12 part groups · 2 illustrations

Illustrations

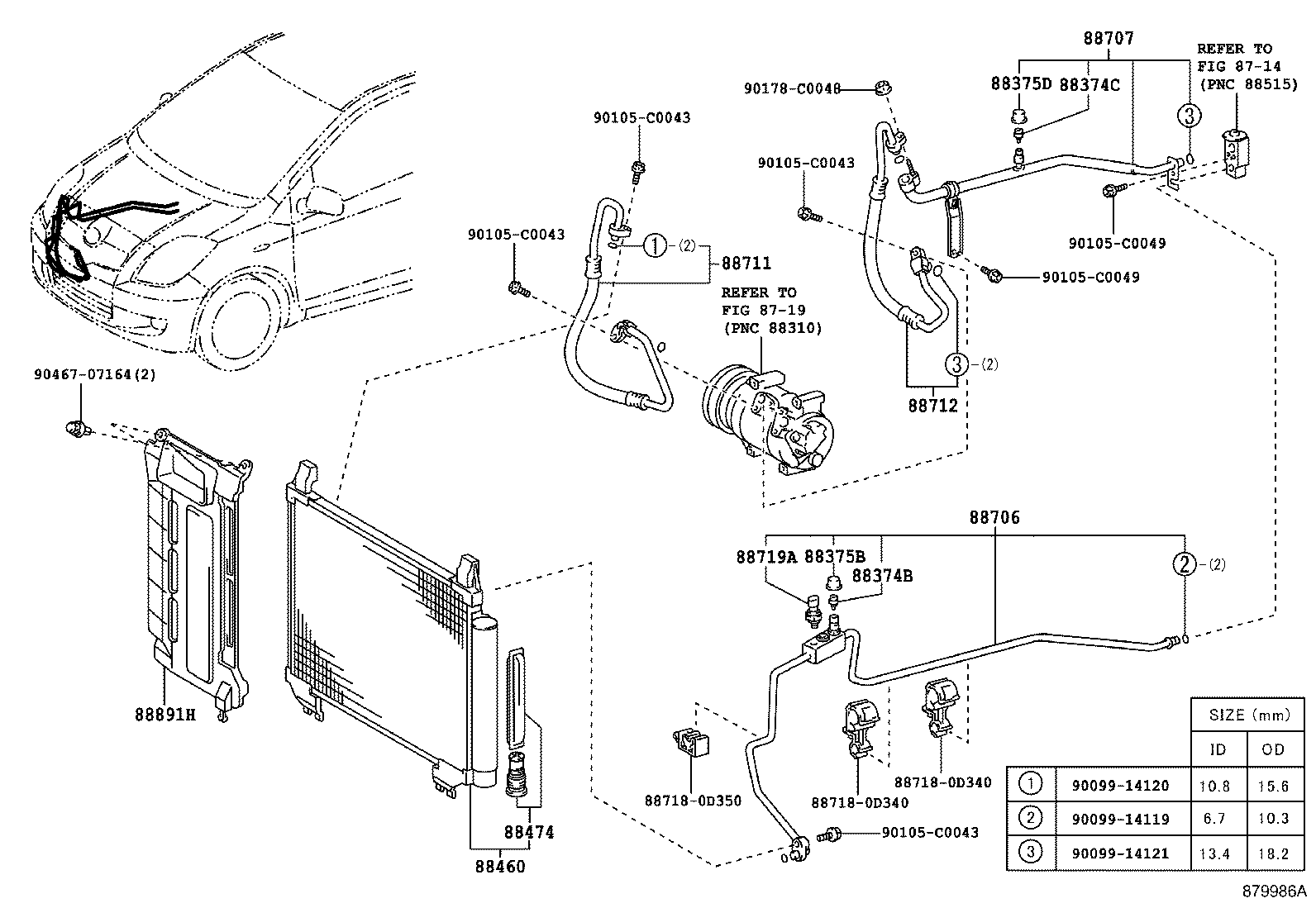

Figure 879985A 879985A 2008-02 → — Figure 879986A 879986A 2008-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88706 Pipe Sub-assy, Liquid
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
