Toyota Vios/Vios FS (CHINA)

2013-11 → 2023-04 · chassis NSP15# · catalogue 140320 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

5 part groups · 2 illustrations

Illustrations

Figure 178152B

178152B 2013-11 → 2016-12

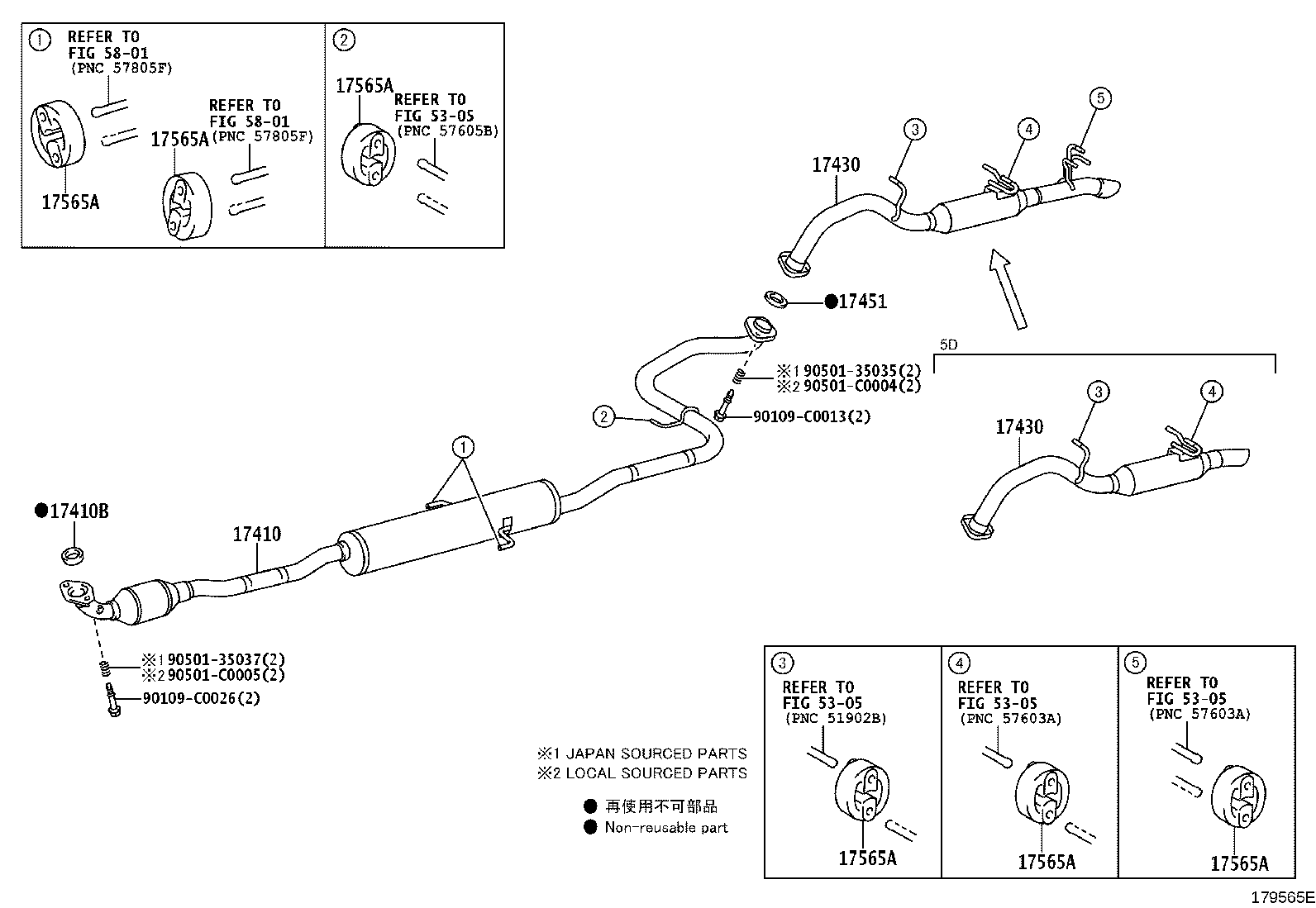

Figure 179565E

179565E 2016-12 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
