Toyota Vios/Vios FS (CHINA)
2013-11 → 2023-04 · chassis NSP15# · catalogue 140320 · General
Supported model
Data version 2023-11

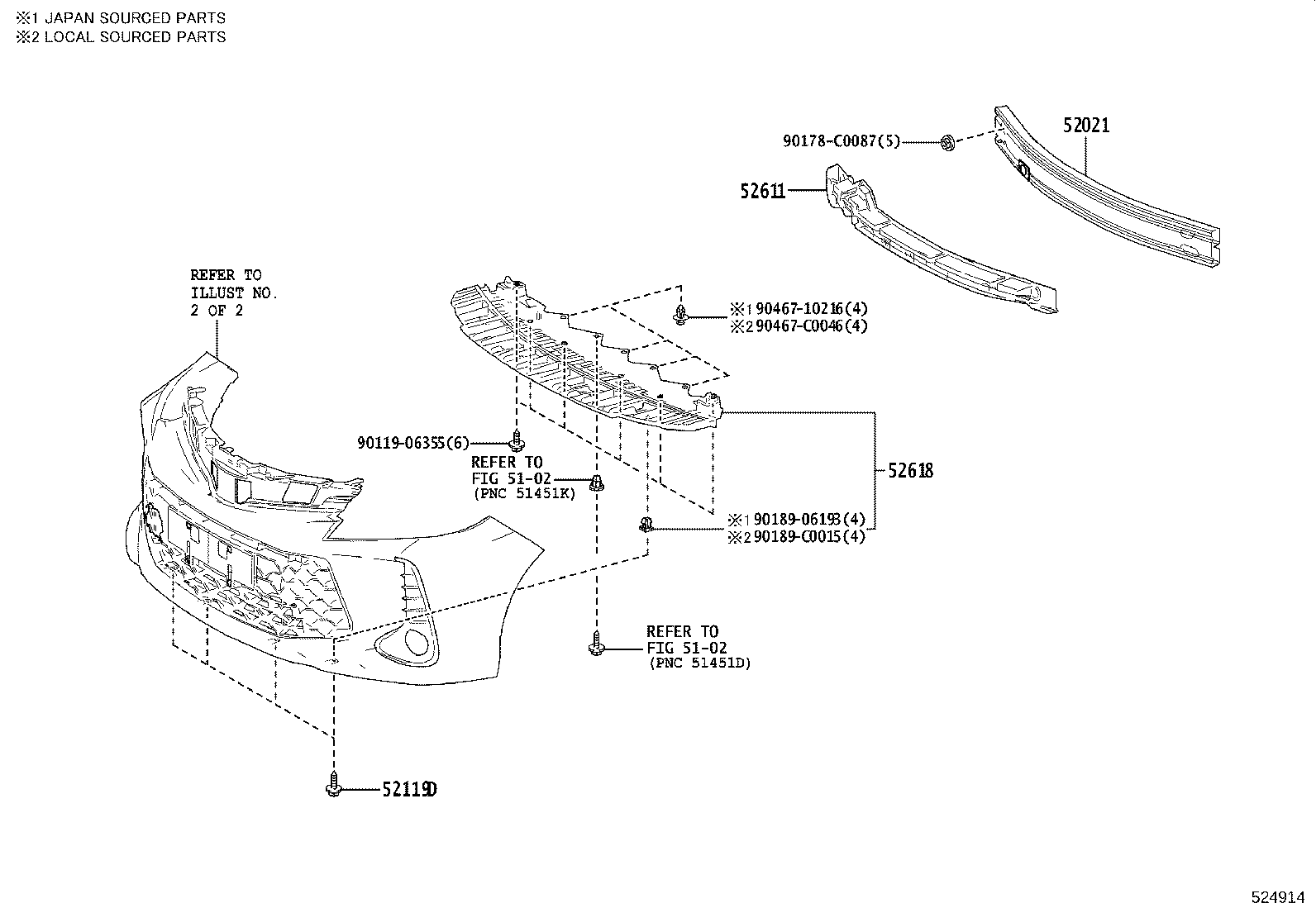

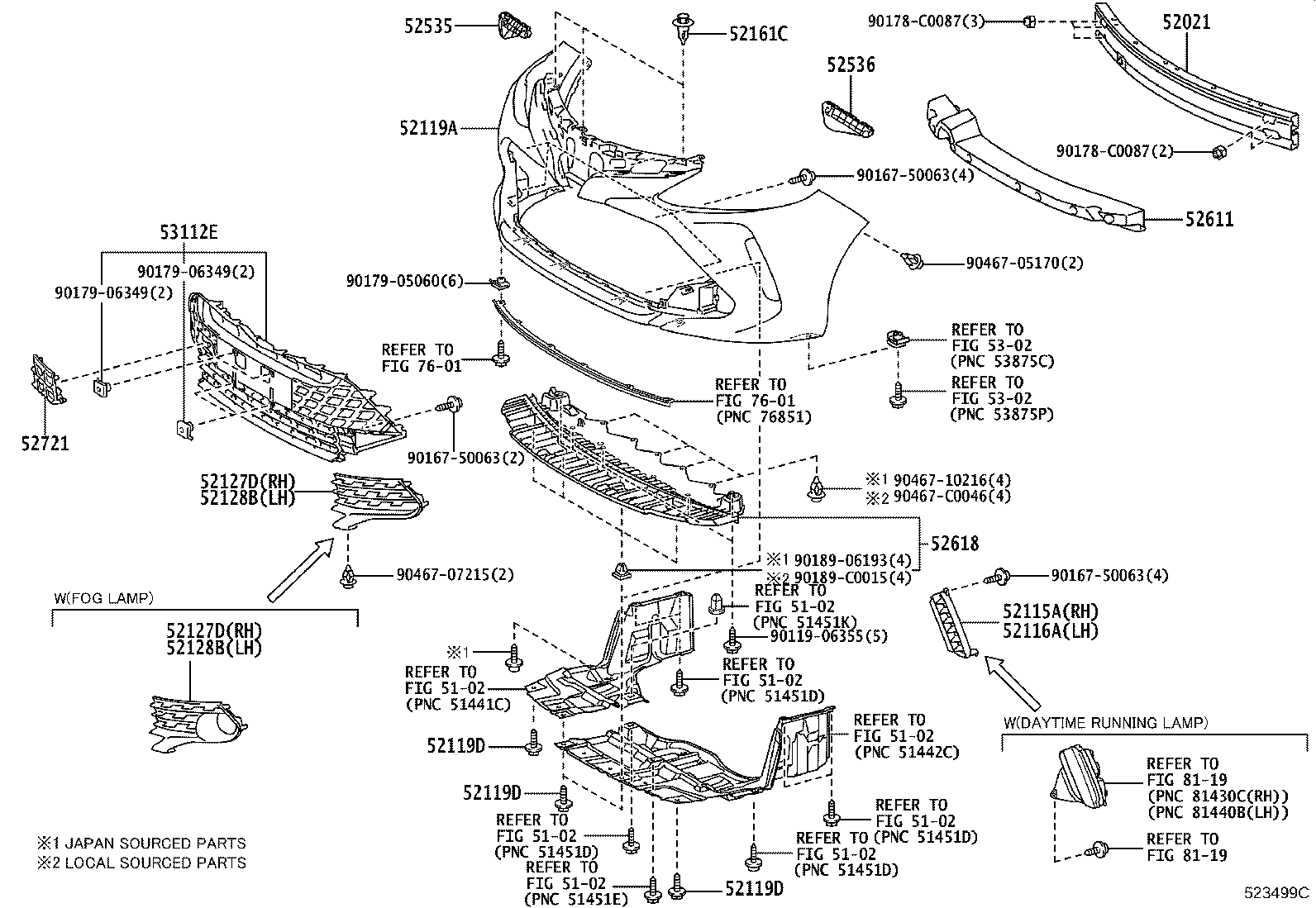

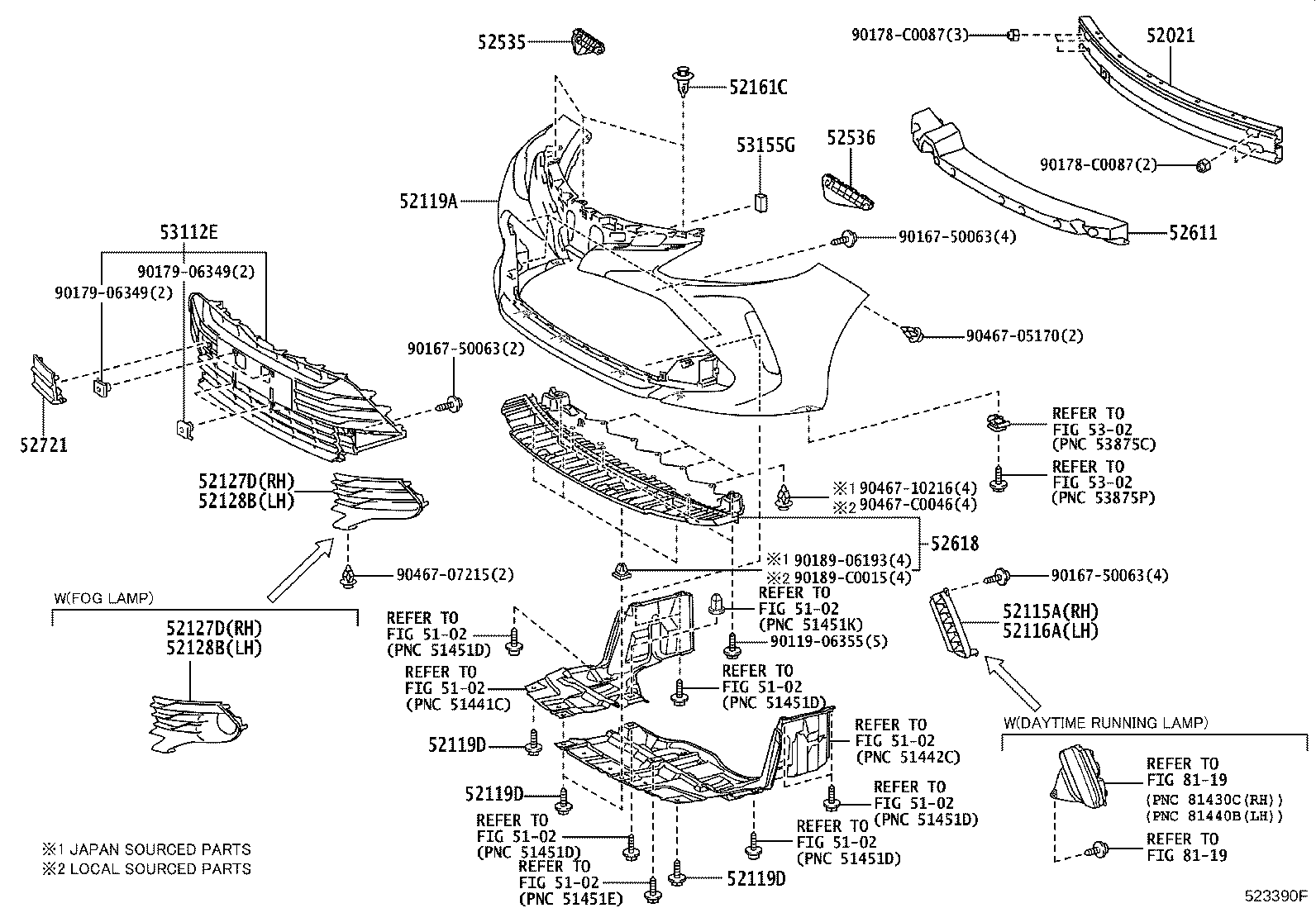

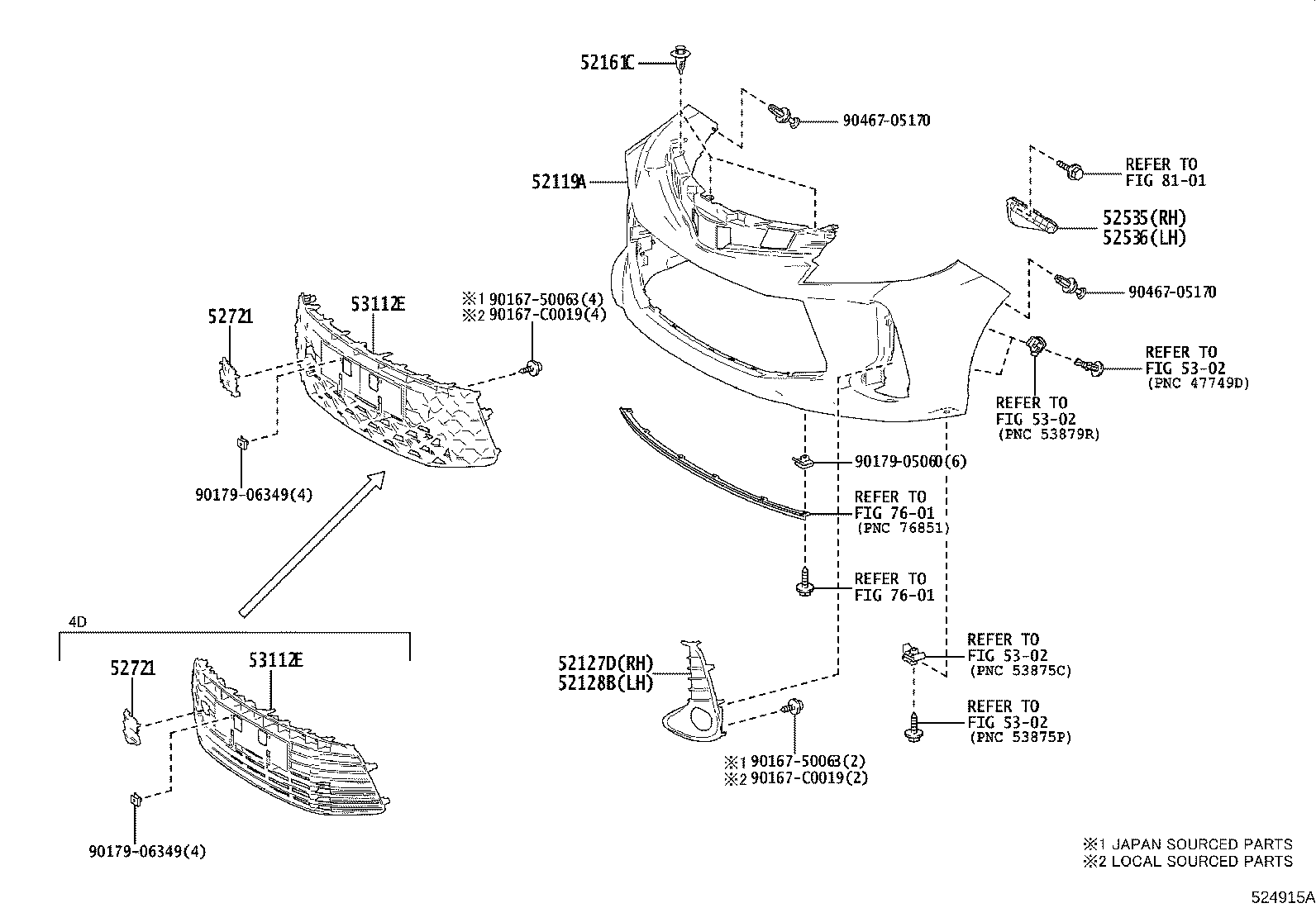

Front Bumper & Bumper Stay
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52721 | Moulding, Front Bumper Extension, RH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53155G | Seal, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
