Toyota Vios/Vios FS (CHINA)

2013-11 → 2023-04 · chassis NSP15# · catalogue 140320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

12 part groups · 2 illustrations

Illustrations

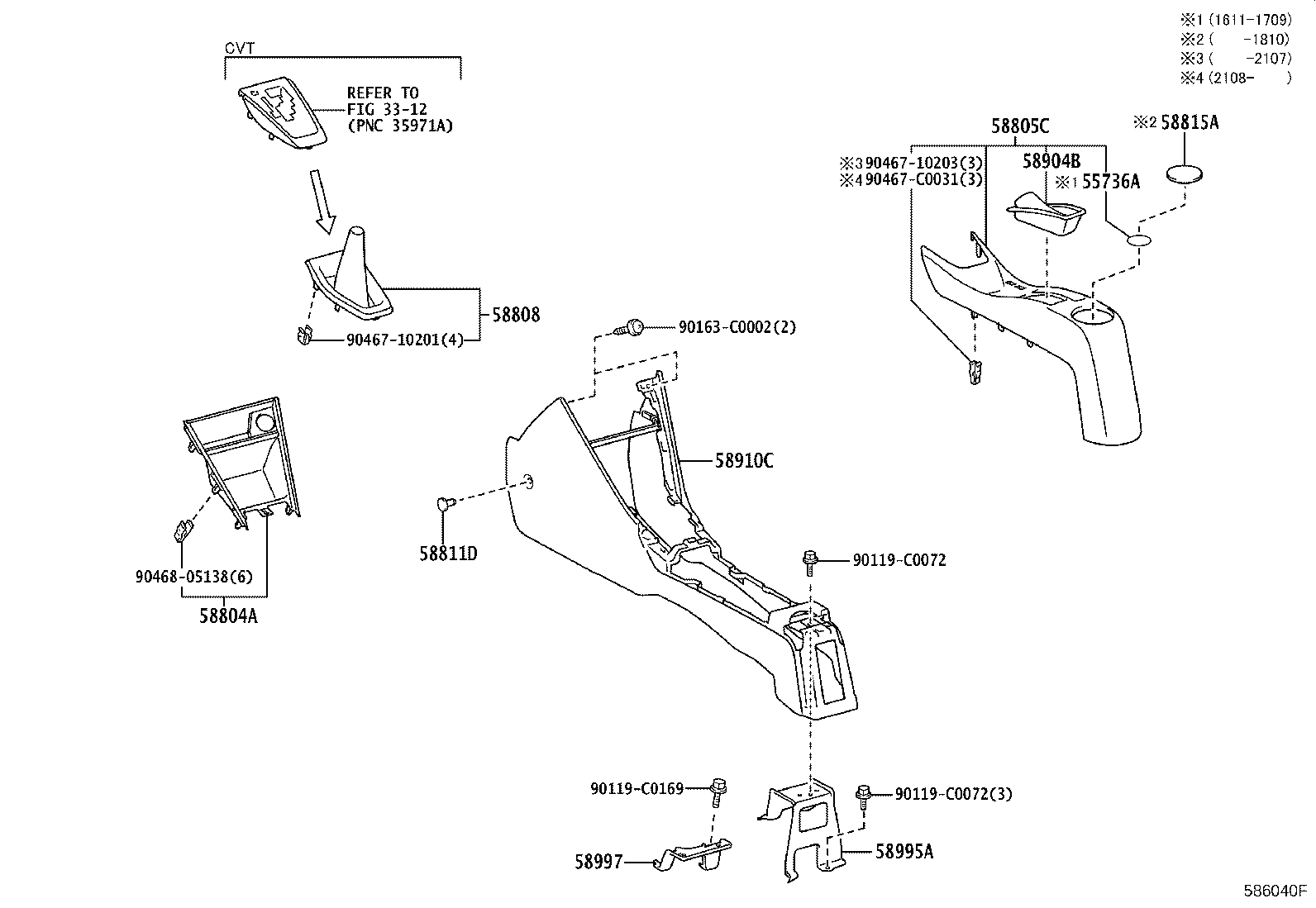

Figure 584955F 584955F 2013-11 → 2016-09 Figure 586040F 586040F 2016-09 → —

Part groups

PNCDescription
55736A Seal, Water Guard Plate
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58904B Cover Sub-assy, Parking Brake Hole
58910C Box Assy, Console, Rear
58995A Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
