Toyota Vios/Vios FS (CHINA)

2013-11 → 2023-04 · chassis NSP15# · catalogue 140320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 4 illustrations

Illustrations

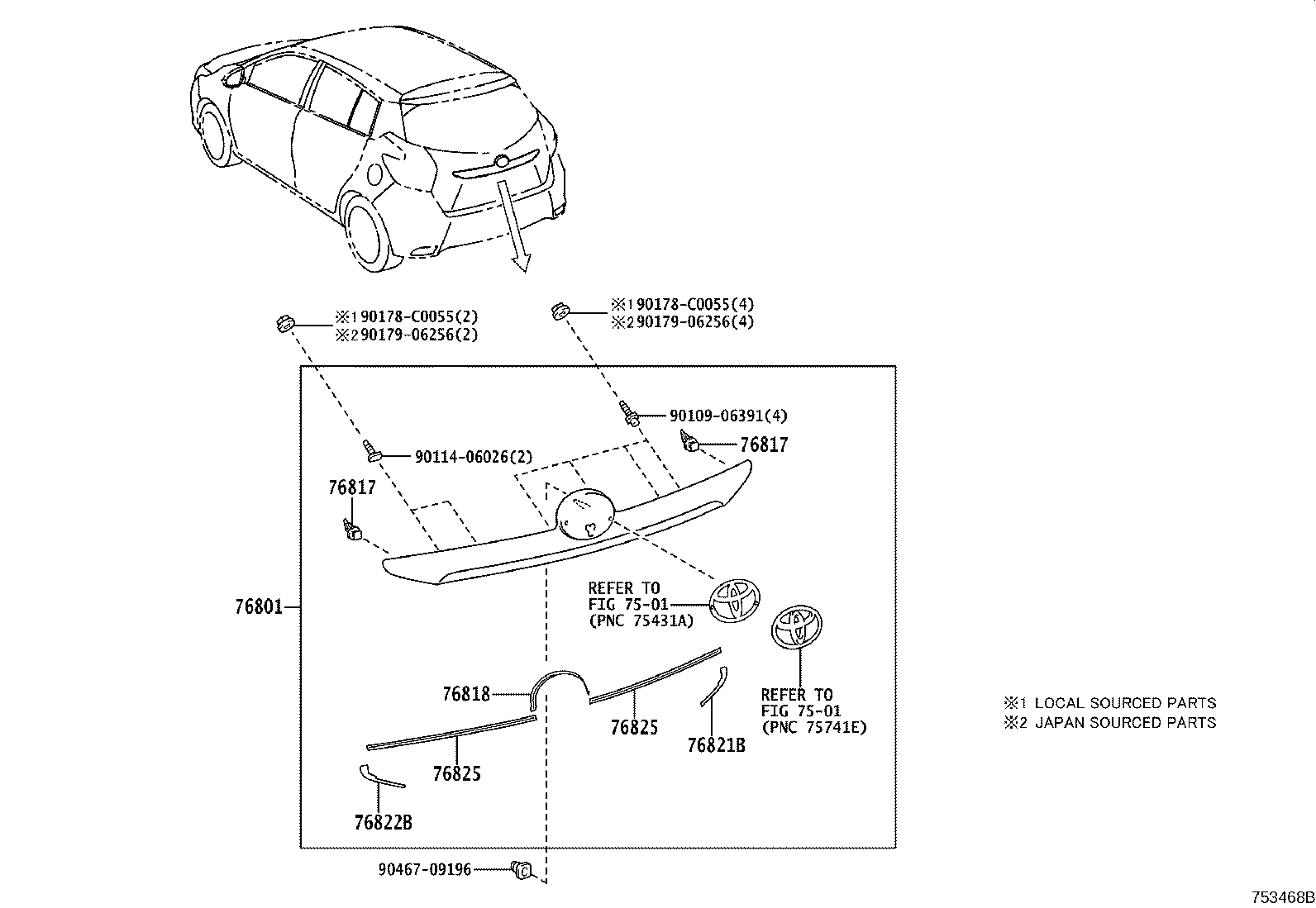

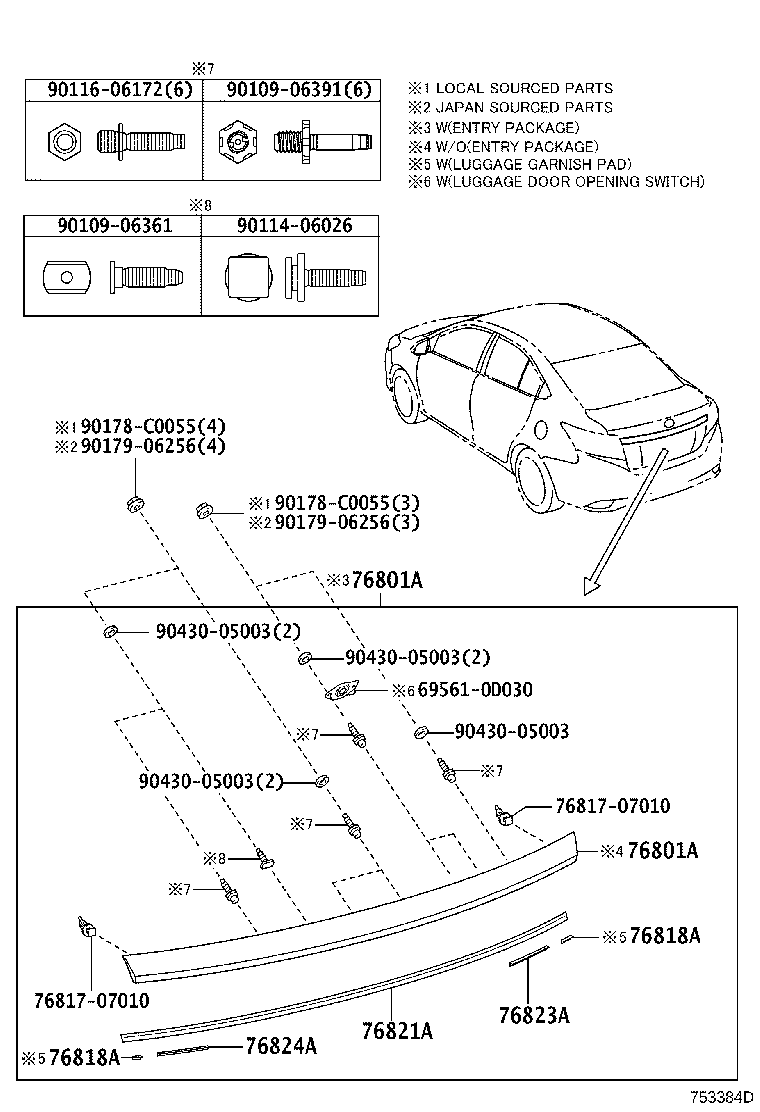

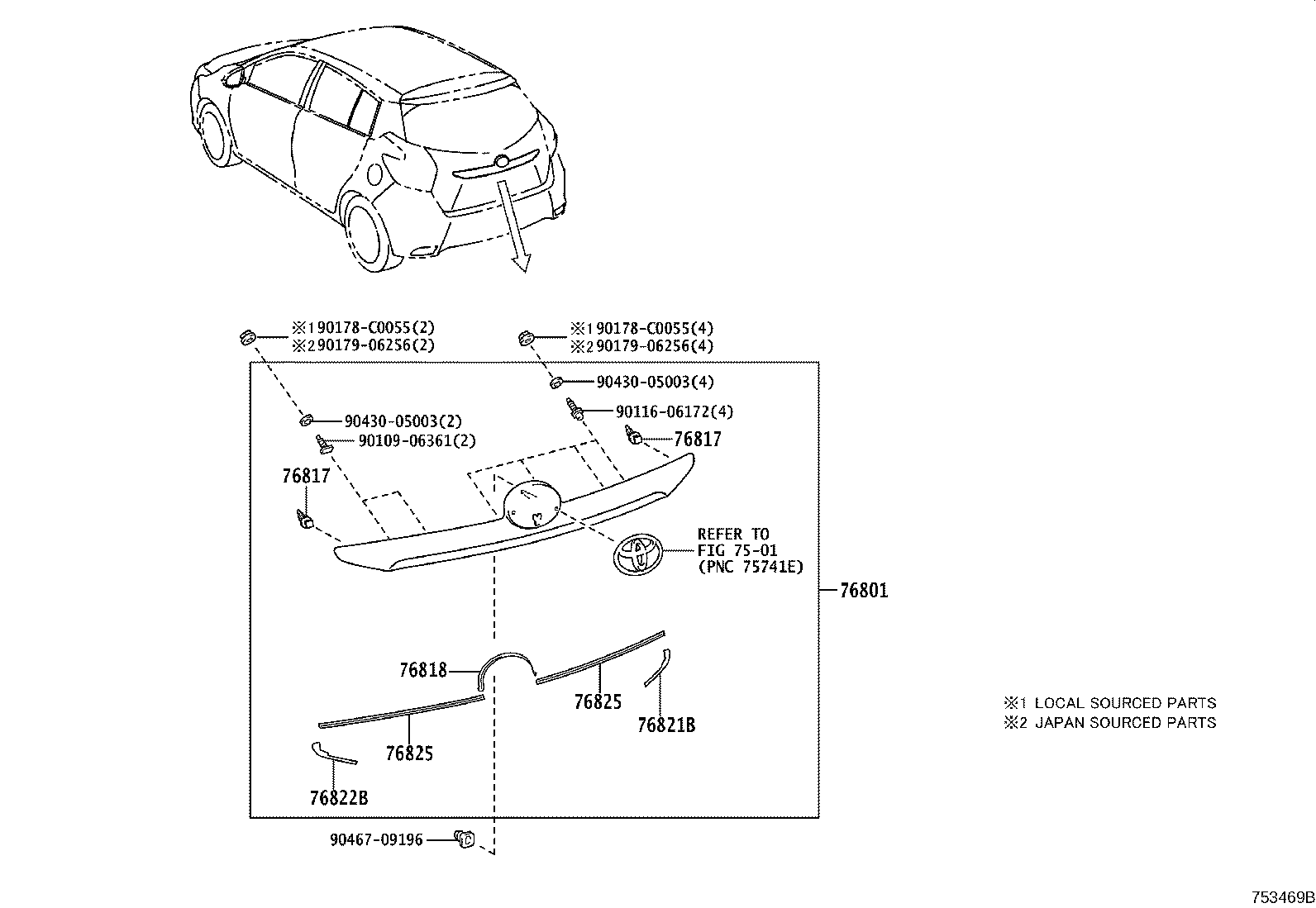

Figure 752903C 752903C 2013-11 → — Figure 753384D 753384D 2013-11 → — Figure 753468B 753468B 2017-03 → — Figure 753469B 753469B 2017-03 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76818 Pad, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76821A Protector, Luggage Compartment Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76823A Protector, Luggage Compartment Door Garnish, Outside RH
76824A Protector, Luggage Compt Door Garnish, Outside LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
