Toyota Vios/Vios FS (CHINA)

2013-11 → 2023-04 · chassis NSP15# · catalogue 140320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

1 part groups · 3 illustrations

Illustrations

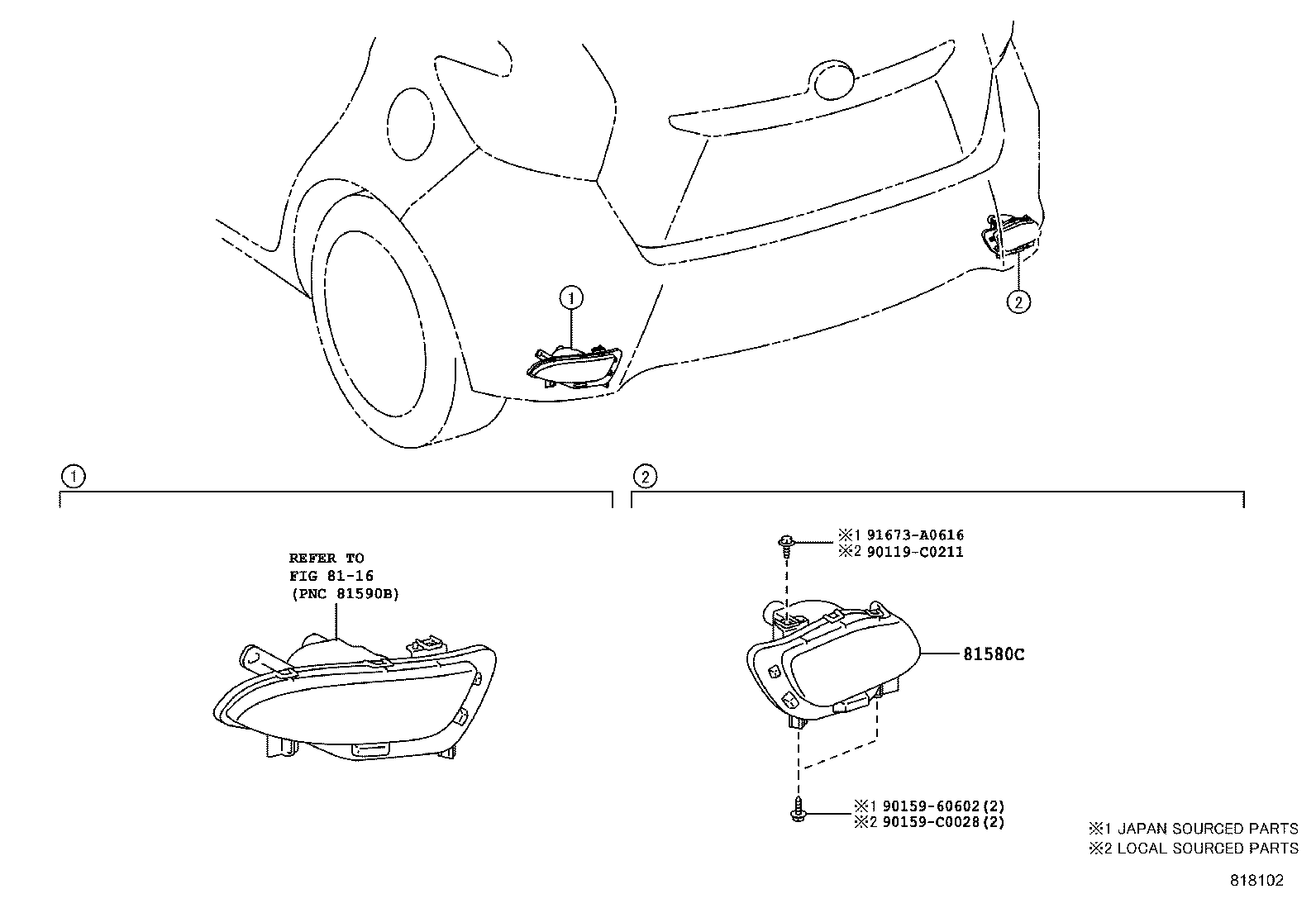

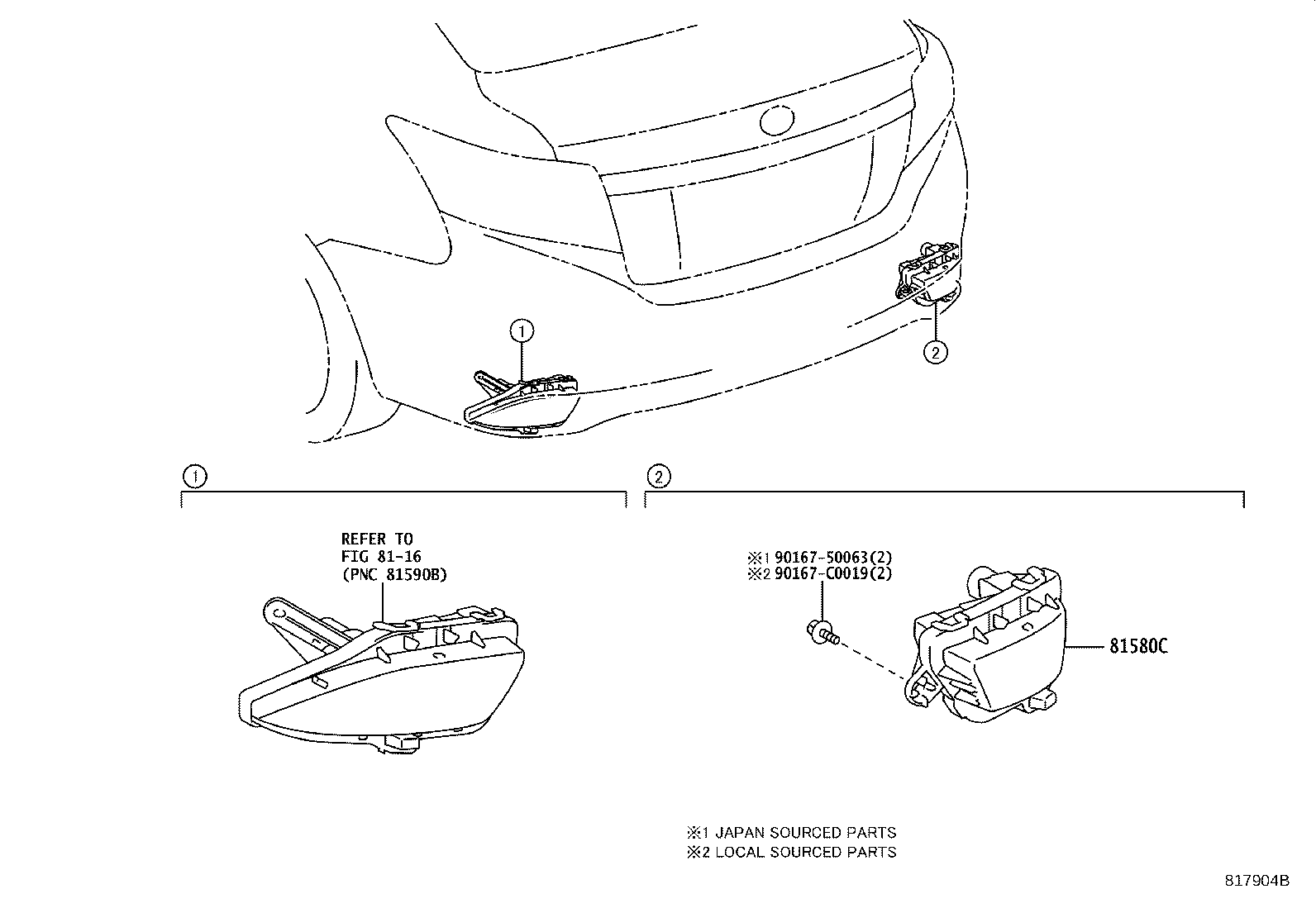

Figure 816714C 816714C 2013-11 → 2016-09 Figure 817904B 817904B 2016-09 → — Figure 818102 818102 2017-03 → —

Part groups

PNCDescription
81580C Reflector Assy, Reflex
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
