Toyota Vios/Vios FS (CHINA)

2013-11 → 2023-04 · chassis NSP15# · catalogue 140320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 2 illustrations

Illustrations

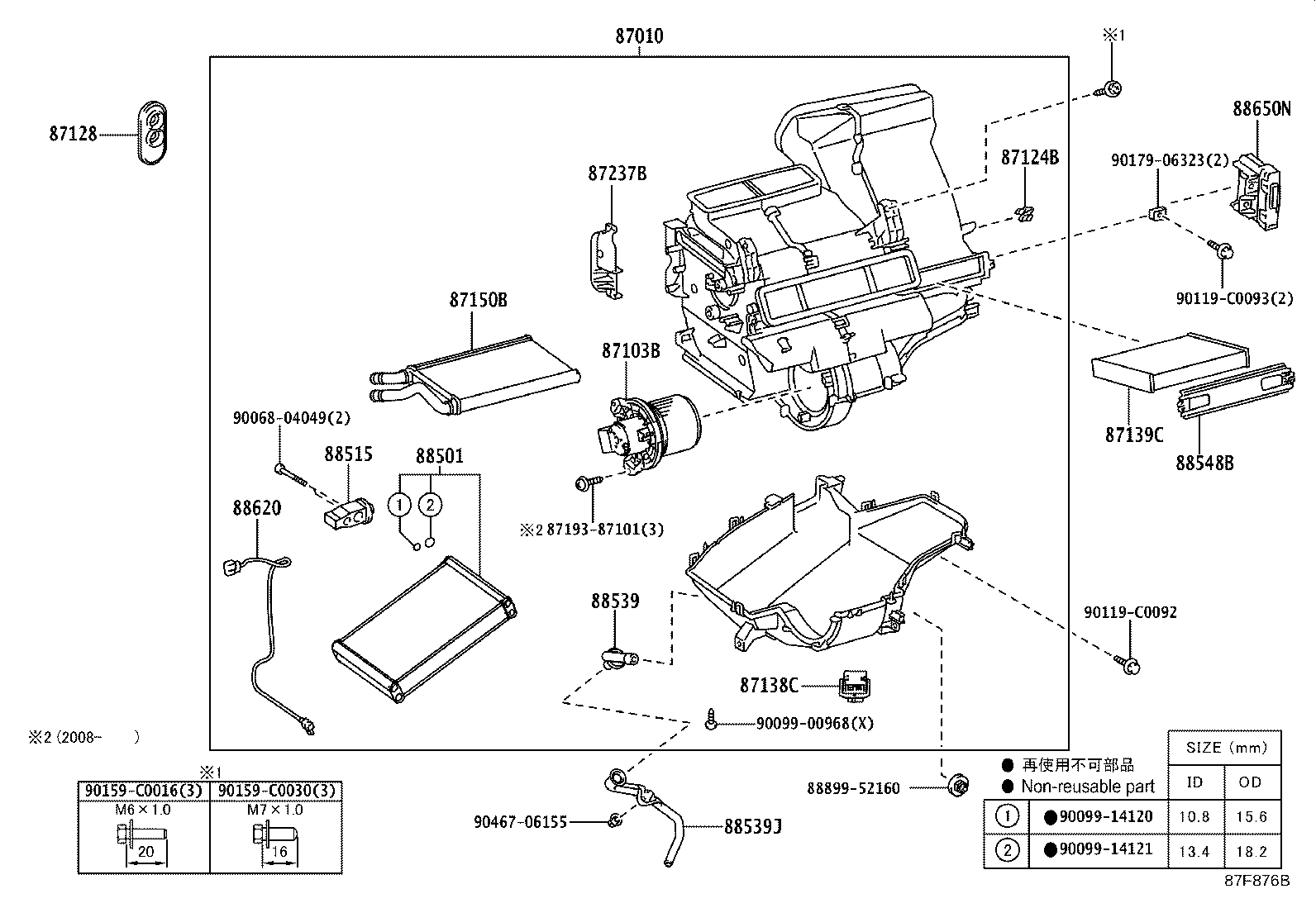

Figure 87D776B 87D776B 2013-11 → 2016-09 Figure 87F876B 87F876B 2016-09 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87124B Clamp, Heater
87128 Grommet, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87150B Radiator Assy, Heater
87237B Cover, Heater Piping
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539J Hose, Drain Cooler
88548B Case, Air Filter
88620 Thermostat Sub-assy
88650N Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
