Toyota Yaris/Echo 4D

1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

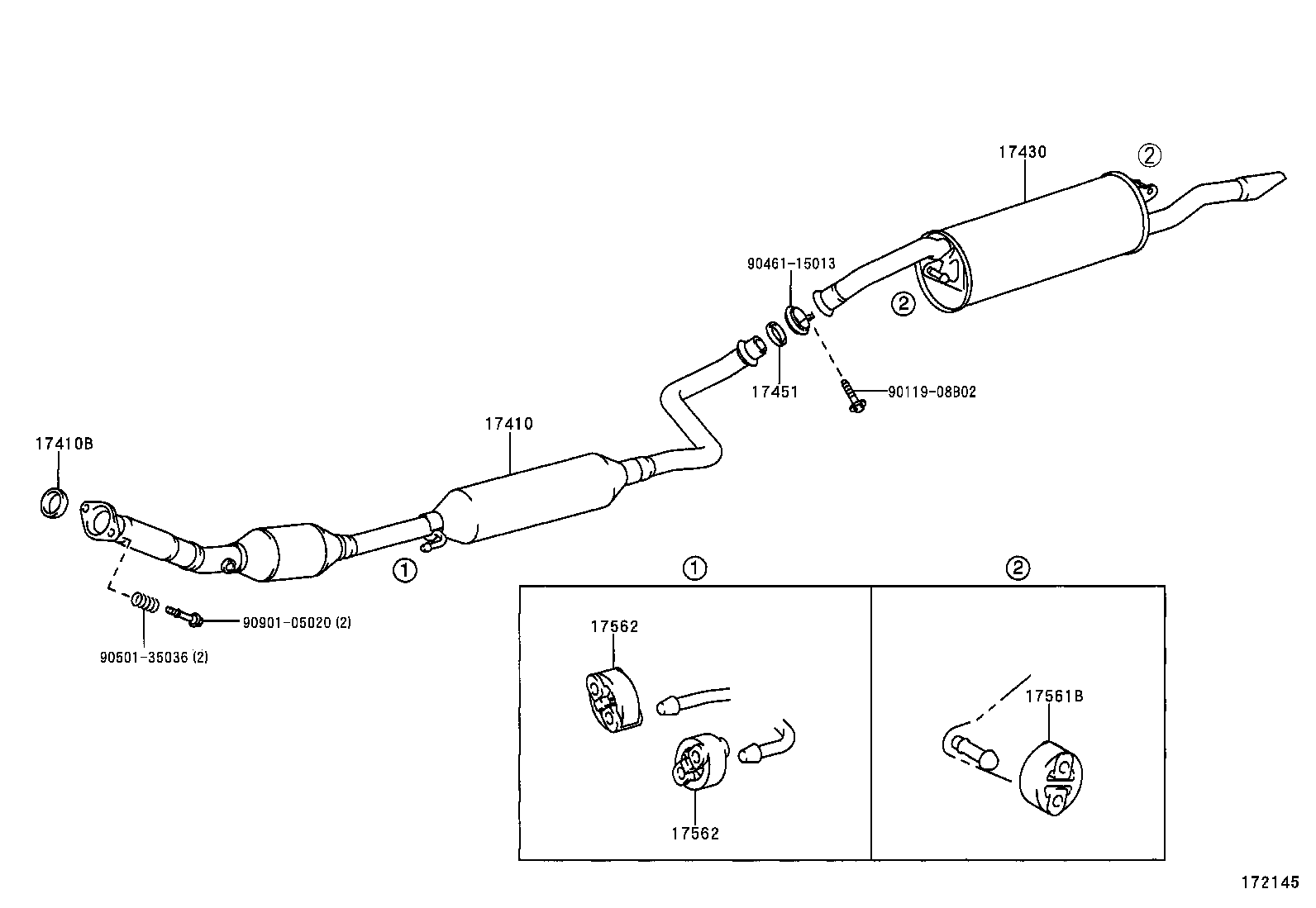

Figure 172148A 172148A 1999-08 → — Figure 172145 172145 1999-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17522 Protector, Exhaust Pipe, Upper NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
