Toyota Yaris/Echo 4D
1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General
Discontinued model
Data version 2006-07

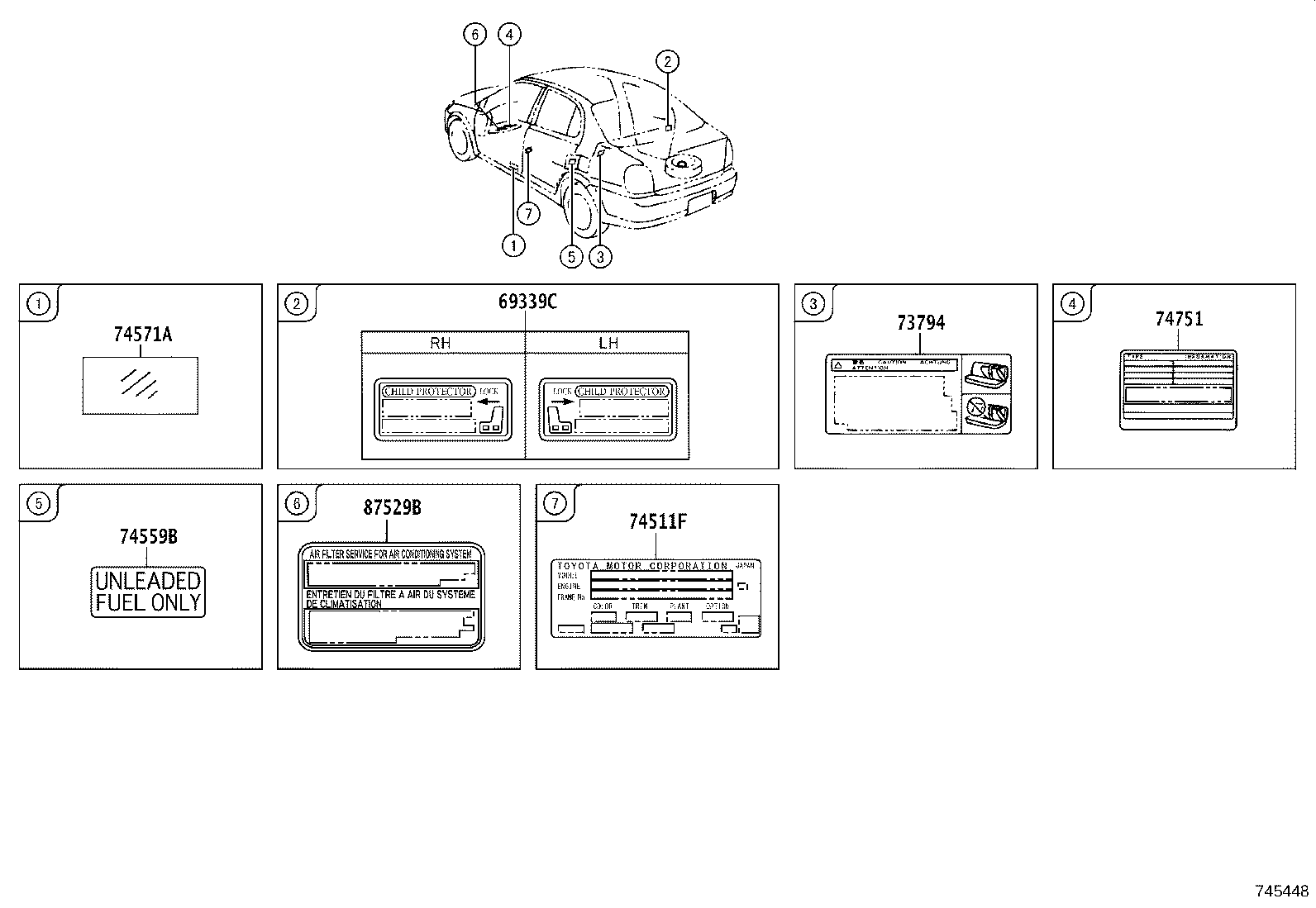

Caution Plate (EXTERIOR & INTERIOR)
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11293C | Label, Tune-up Specification Information |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 17792C | Label, Engine Vacuum Hose Information |
| 69339C | Label, Child Protector Information |
| 73794 | Label, Rear Seat Belt Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74559B | Label, Fuel Information |
| 74571A | Film, Label Cover |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
