Toyota Yaris/Echo 4D

1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

9 part groups · 2 illustrations

Illustrations

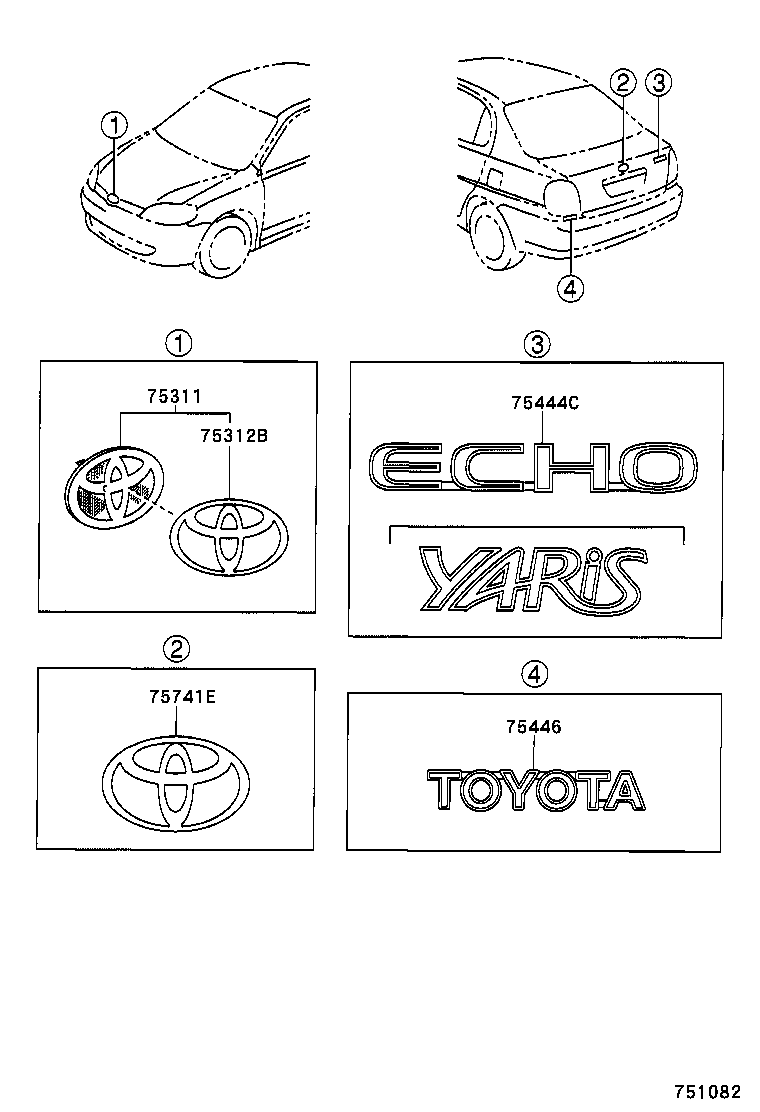

Figure 750635 750635 1999-08 → 2002-08 Figure 751082 751082 2002-08 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75431A Emblem, Back Door, NO.1
75444A Plate, Back Door Name, NO.4
75444C Plate, Luggage Compartment Door Name, NO.4
75446 Plate, Luggage Compartment Door Name, NO.6
75446A Plate, Back Door Name, NO.6
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
