Toyota Yaris/Echo 4D

1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

9 part groups · 2 illustrations

Illustrations

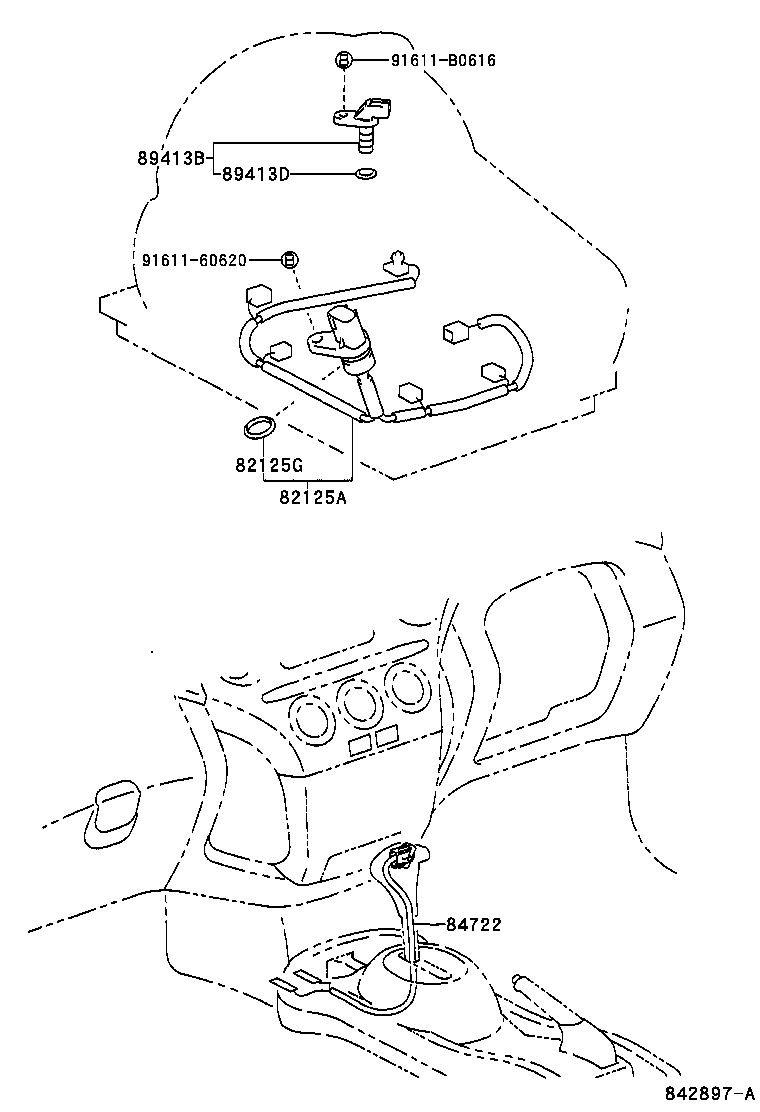

Figure 842898A 842898A 1999-08 → — Figure 842897A 842897A 1999-08 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85420J Solenoid Assy, Transmission
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
