Toyota Yaris/Echo 4D

1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 3 illustrations

Illustrations

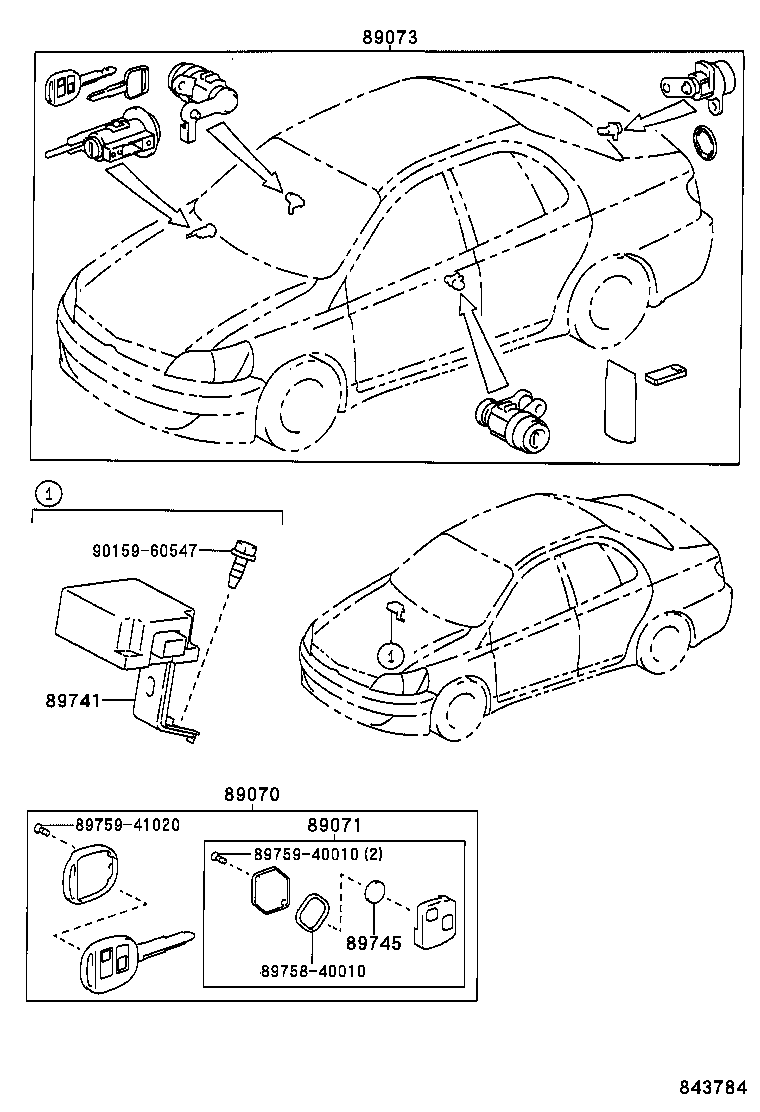

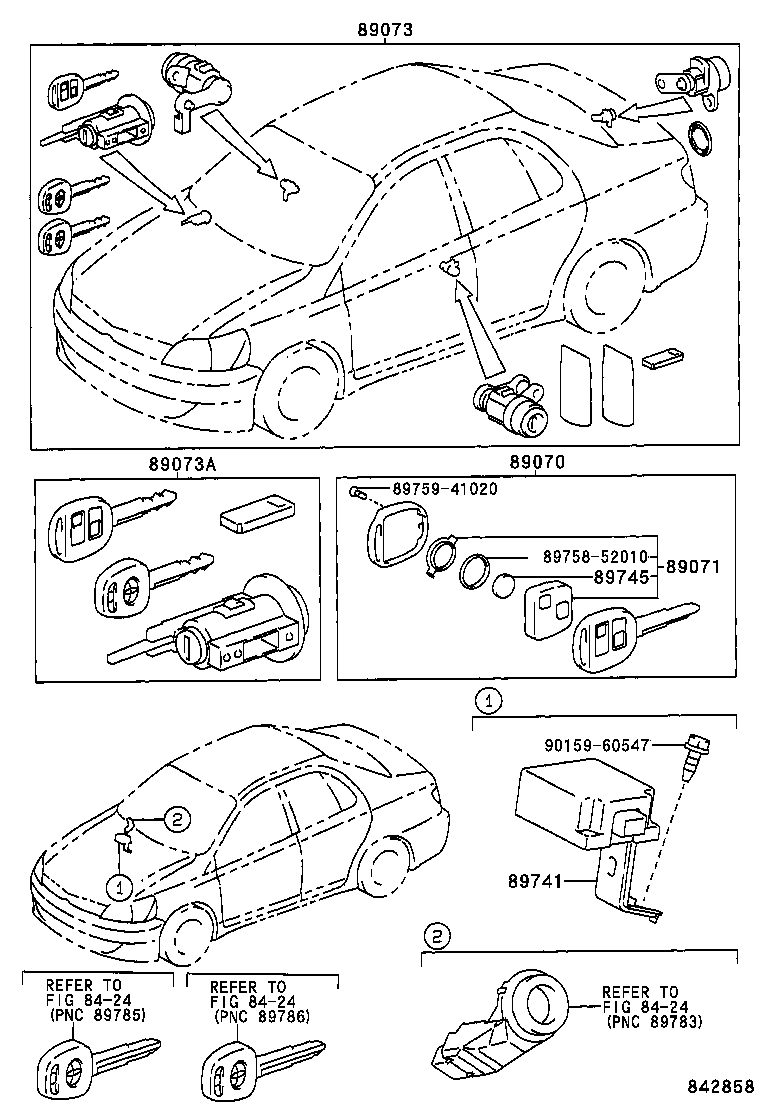

Figure 842857 842857 1999-08 → — Figure 842858 842858 1999-08 → — Figure 843784 843784 2000-09 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
