Toyota Yaris/Echo 4D
1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General
Discontinued model
Data version 2006-07

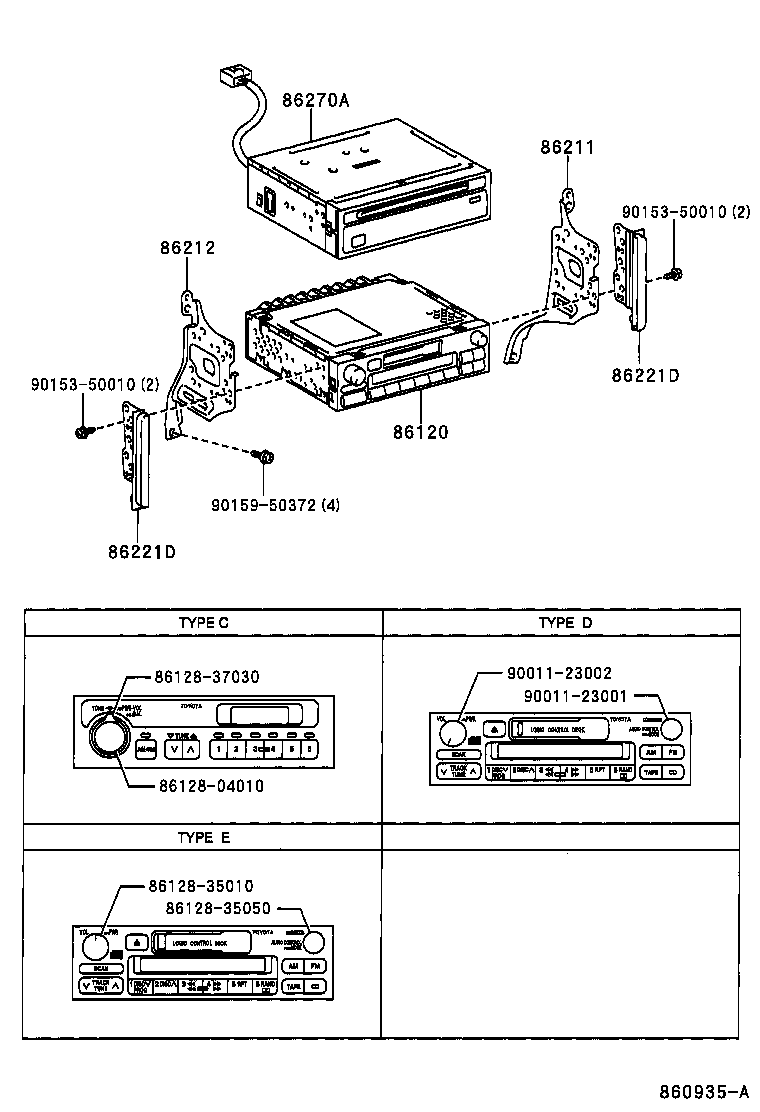

Radio Receiver & Amplifier & Condenser
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011Q | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86221D | Panel, Radio Receiver |
| 86270A | Disc Player Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
