Toyota Yaris/Echo 4D
1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General
Discontinued model
Data version 2006-07

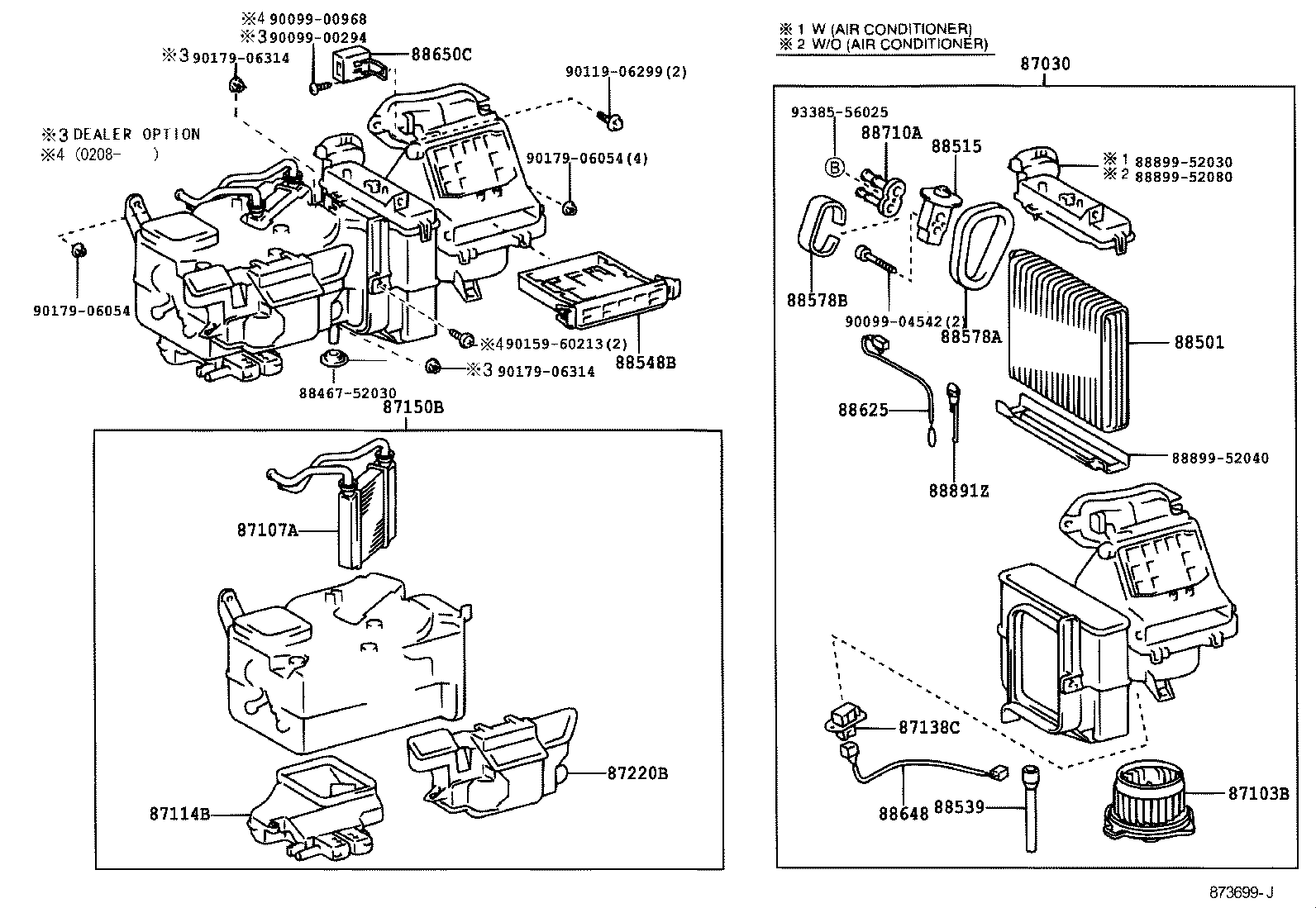

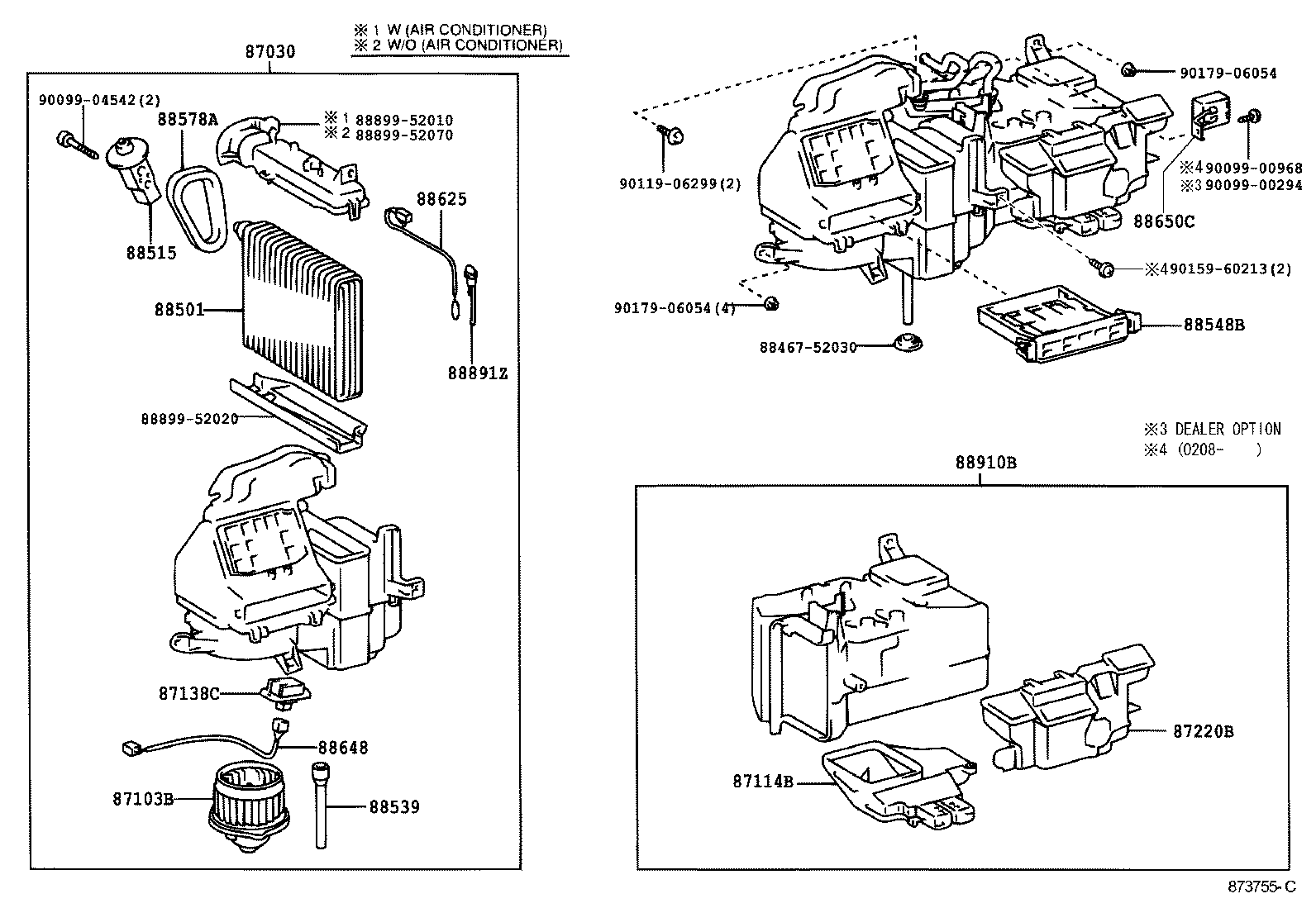

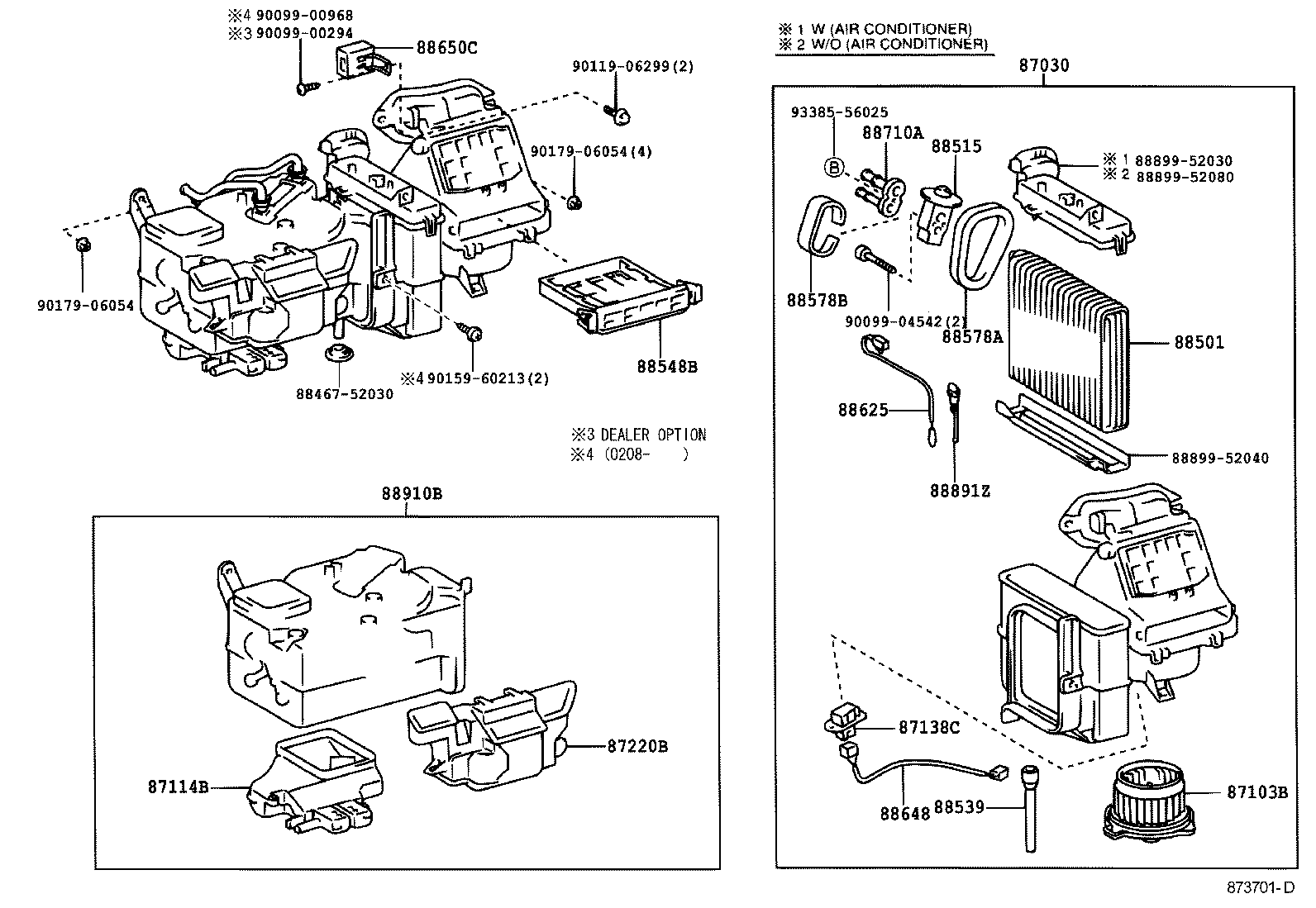

Heating & Air Conditioning - Cooler Unit
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87030 | Blower Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87138C | Resistor, Blower |
| 87150B | Radiator Assy, Heater |
| 87220B | Duct Assy, Air |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88548B | Case, Air Filter |
| 88578A | Packing, Cooler Stabilizer Amplifier |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648 | Wiring, Cooler, NO.1 |
| 88650C | Amplifier Sub-assy, Airconditioner |
| 88710A | Tube Assy, Air Conditioner |
| 88891Z | Bracket, Cooler Thermistor |
| 88910B | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
