Toyota Yaris/Echo 4D

1999-08 → 2006-01 · chassis NCP1# · catalogue 141260 · General

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 9 illustrations

Illustrations

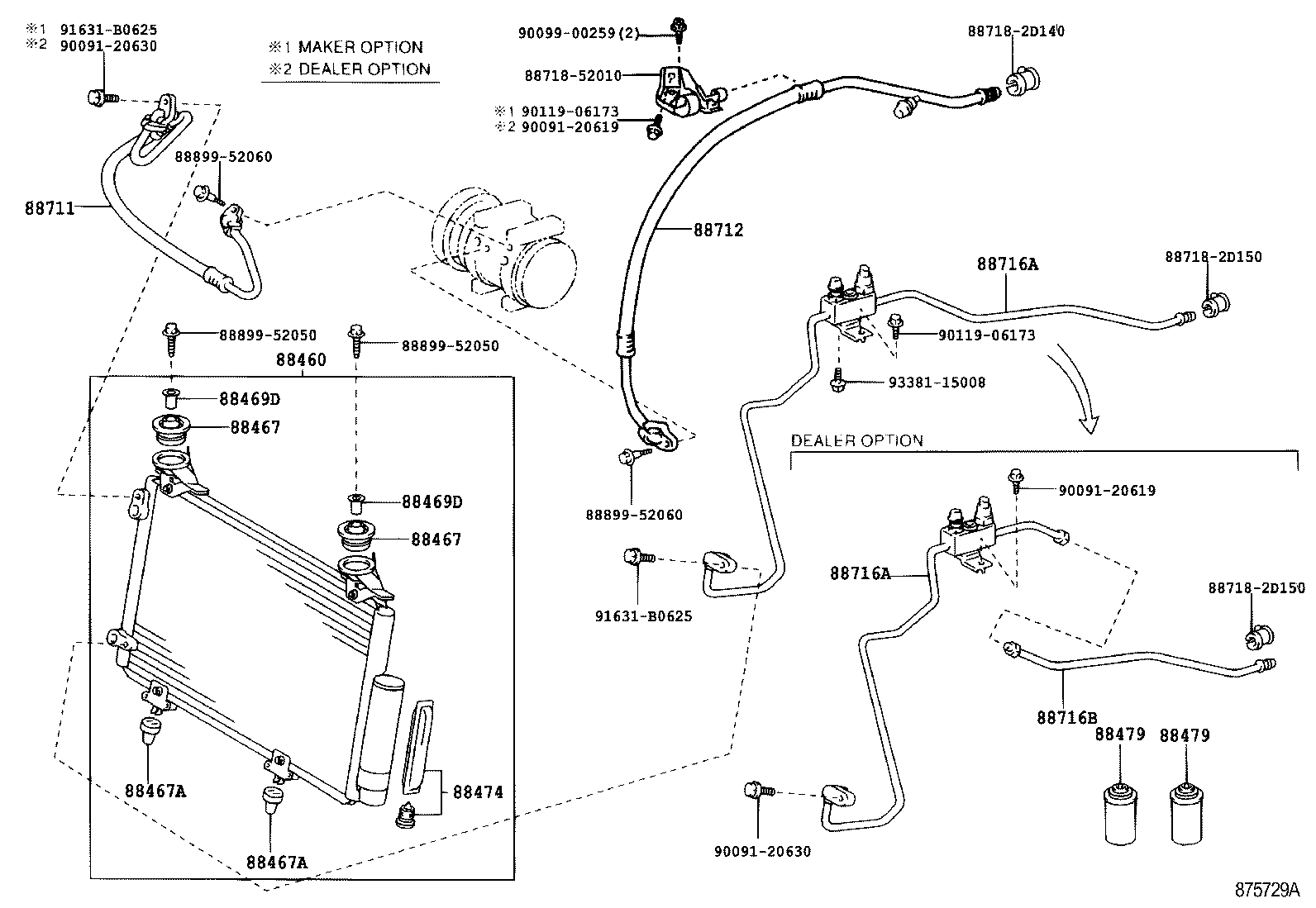

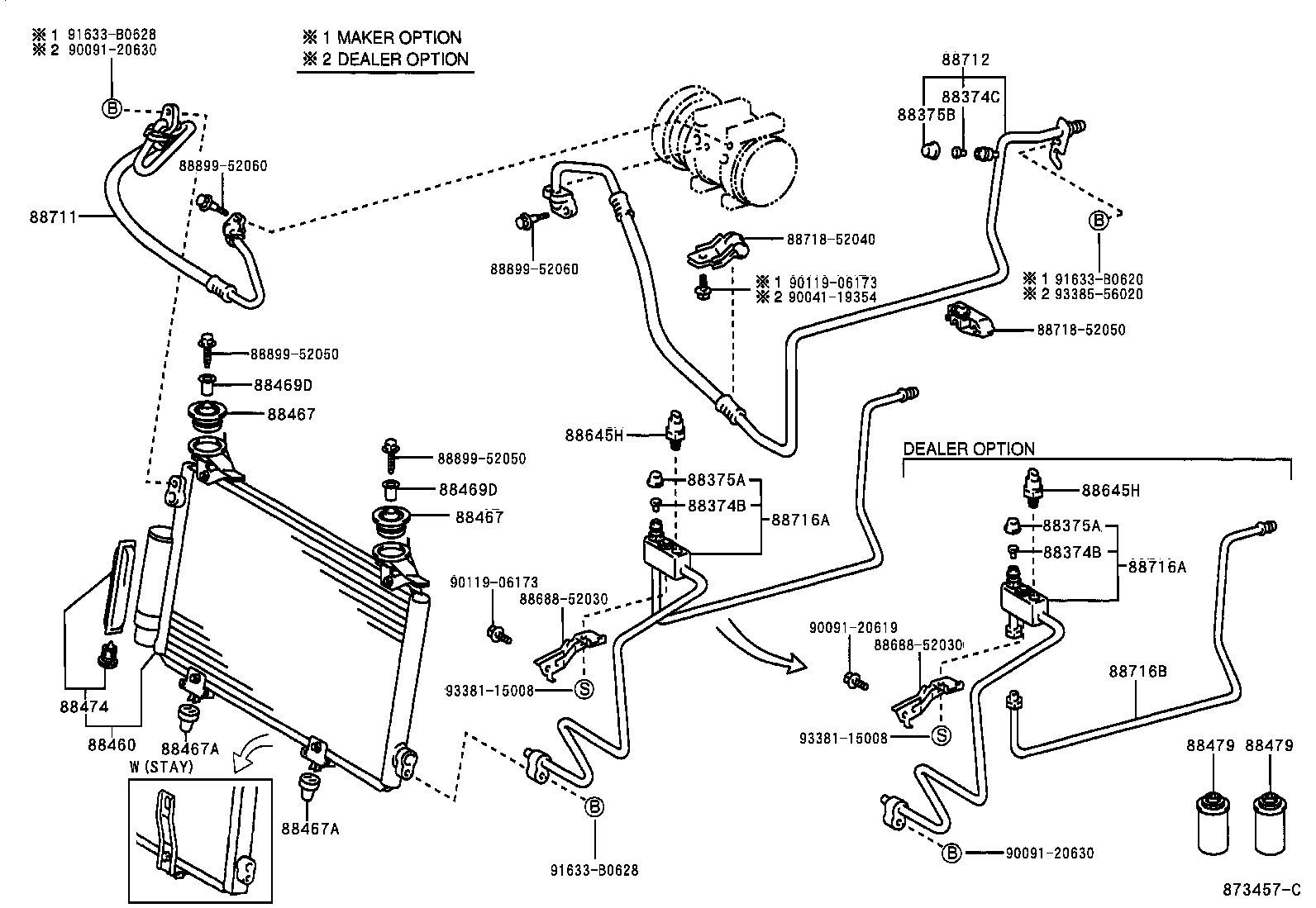

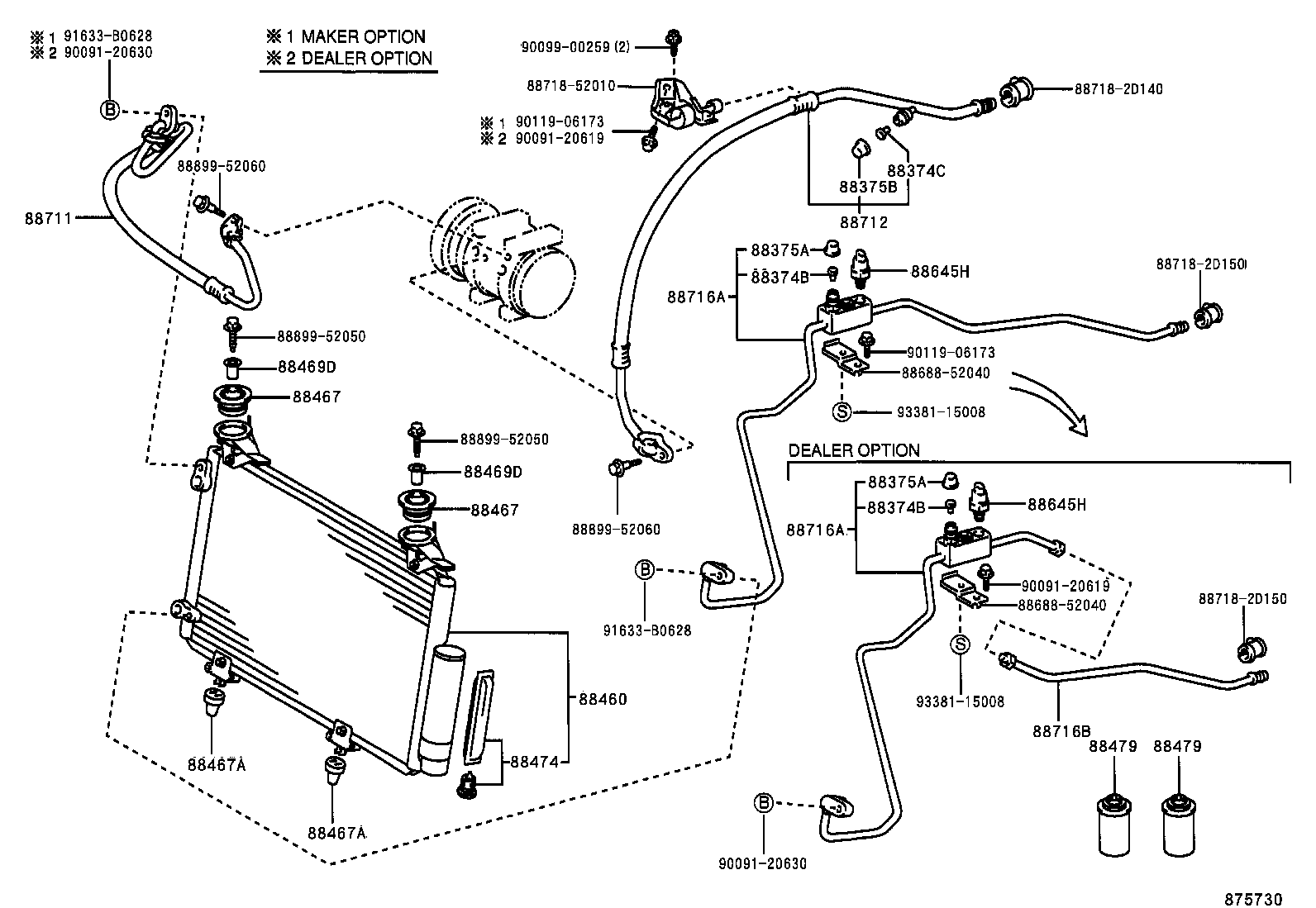

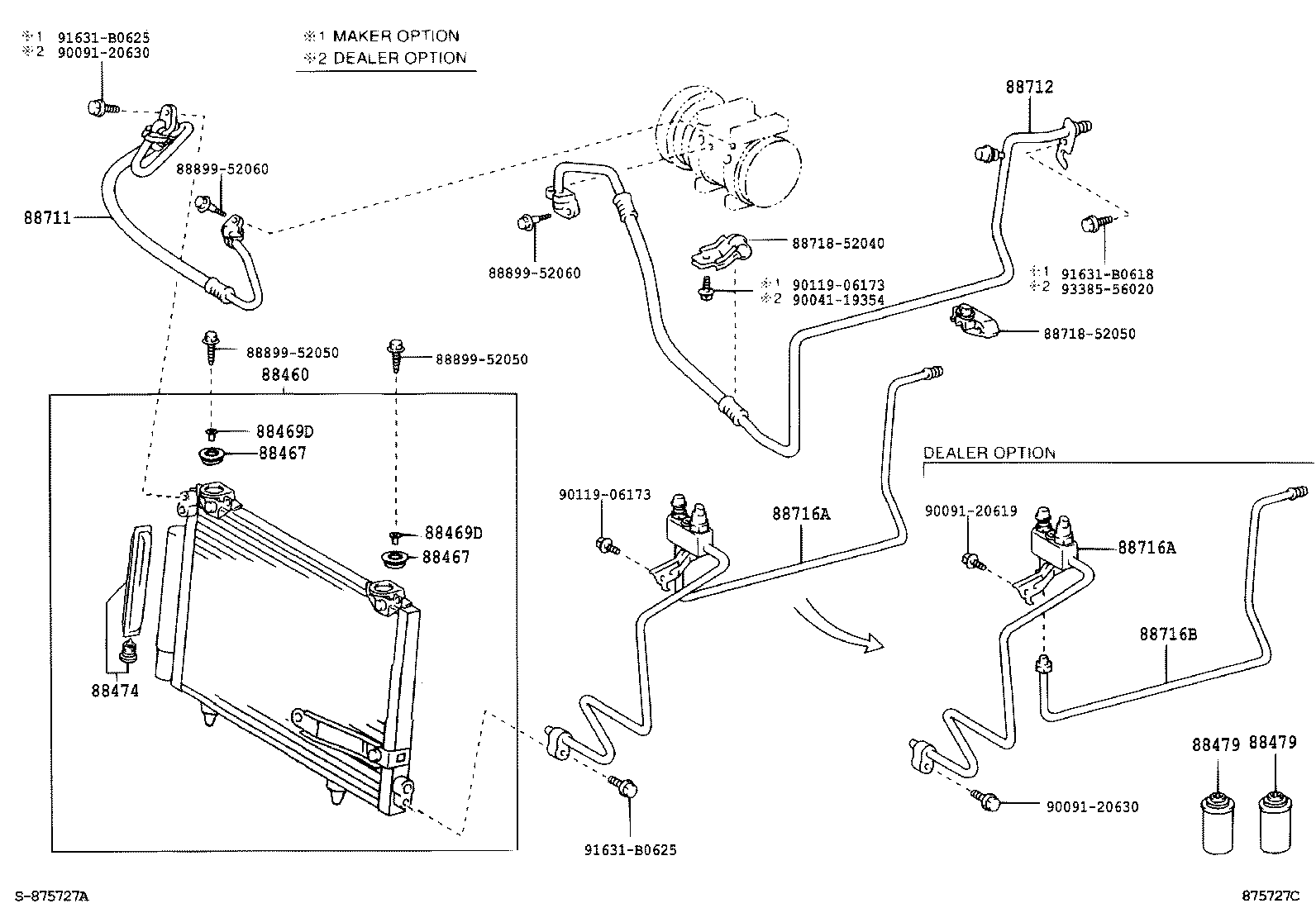

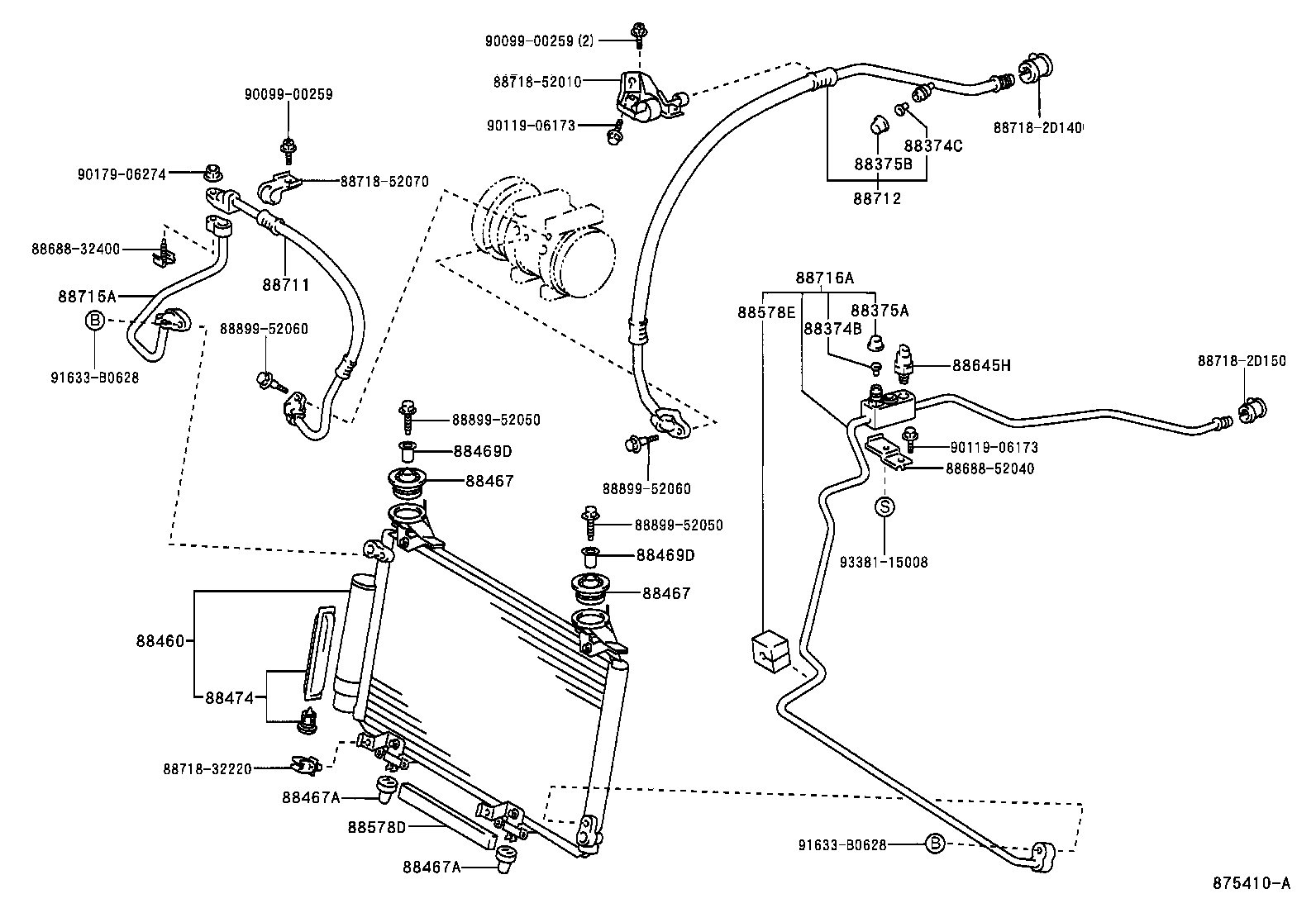

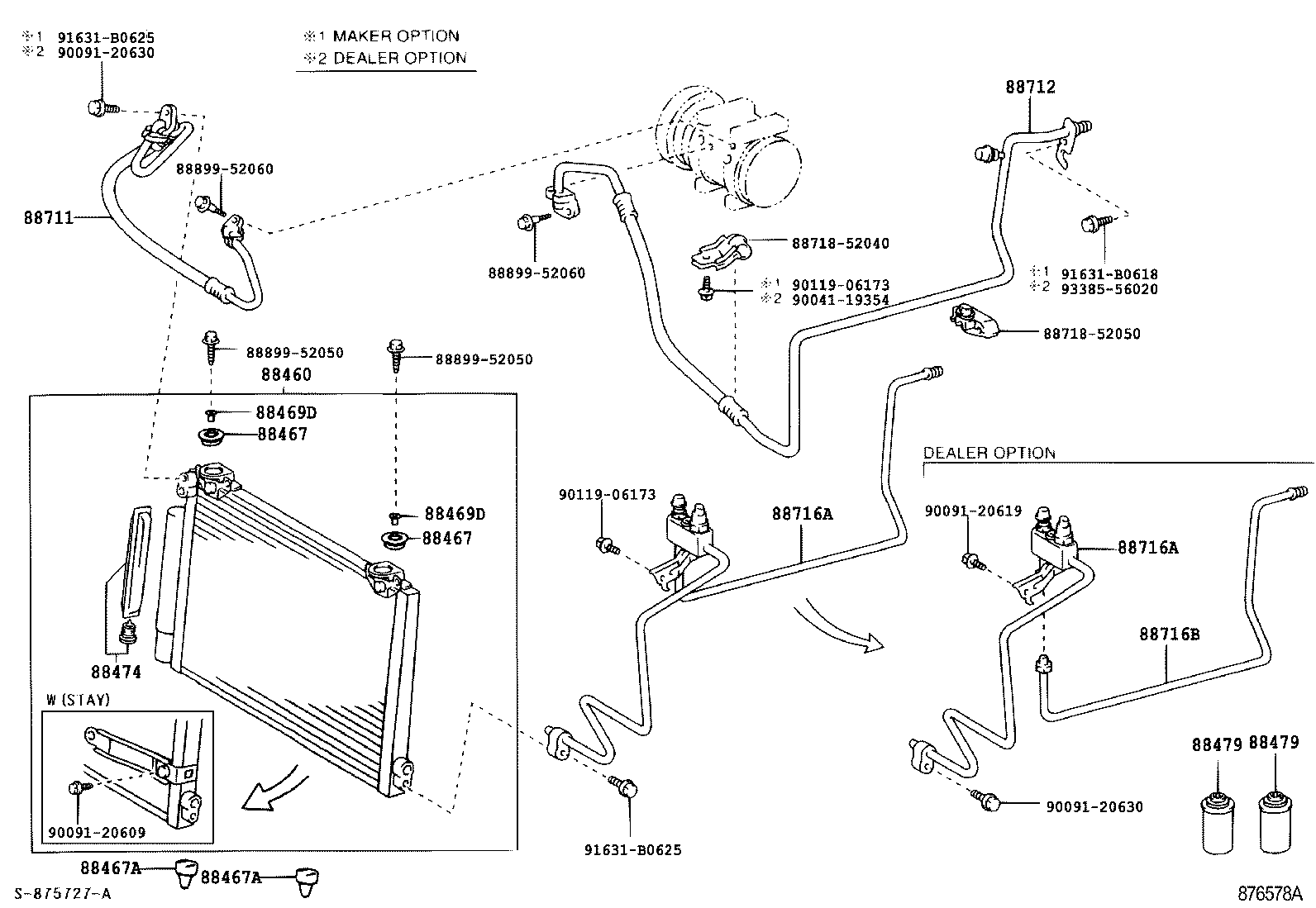

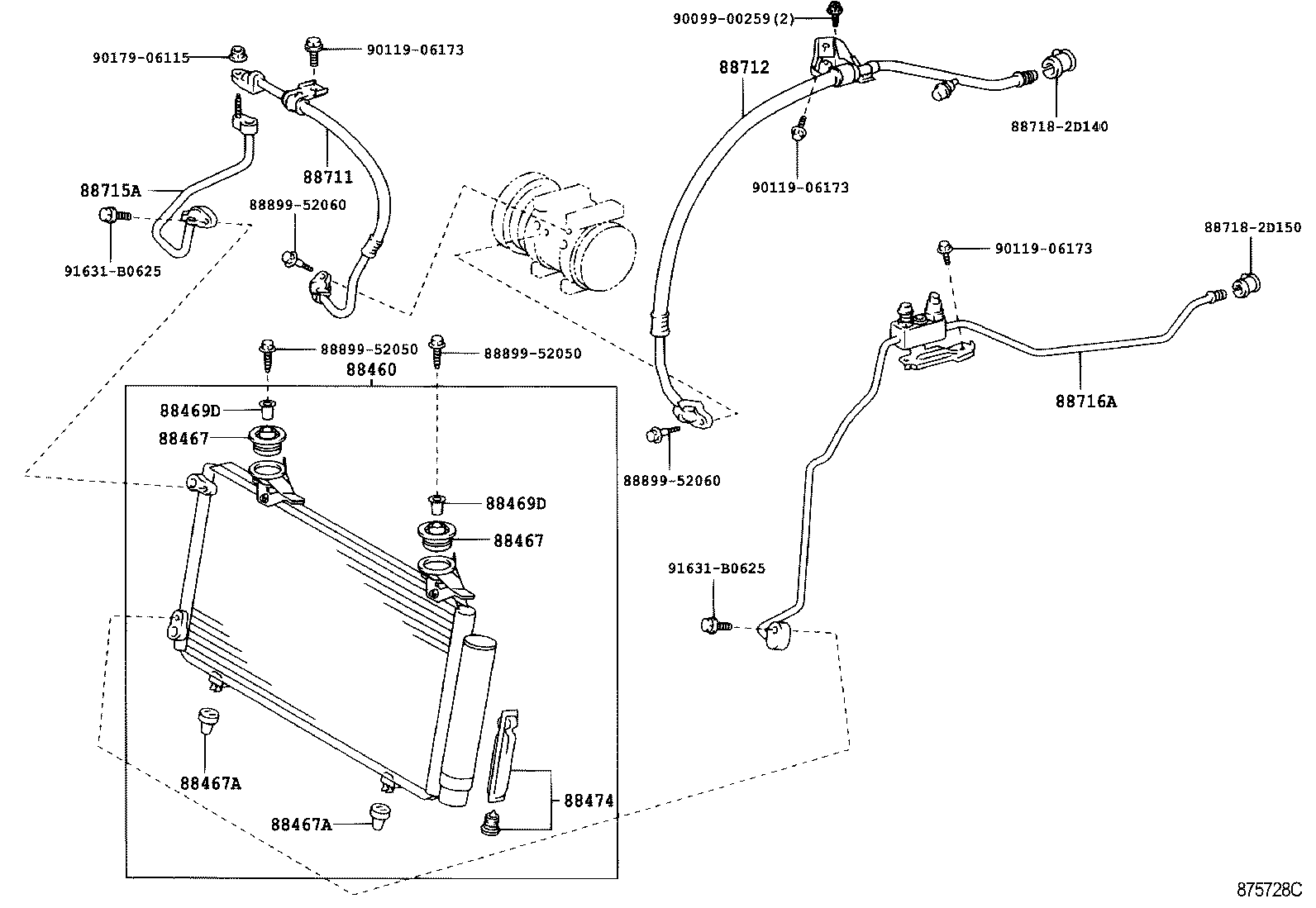

Figure 873458B 873458B 1999-08 → 2001-12 Figure 875730 875730 1999-08 → 2002-08 Figure 873457C 873457C 1999-08 → 2002-08 Figure 875410A 875410A 2001-12 → 2002-08 Figure 875727C 875727C 2002-08 → 2003-03 Figure 875728C 875728C 2002-08 → — Figure 875729A 875729A 2002-08 → — Figure 876578A 876578A 2003-03 → — Figure 873225 873225 1999-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
