Toyota Tercel

1990-09 → 1994-09 · chassis EL40 · catalogue 141340 · General

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 3 illustrations

Illustrations

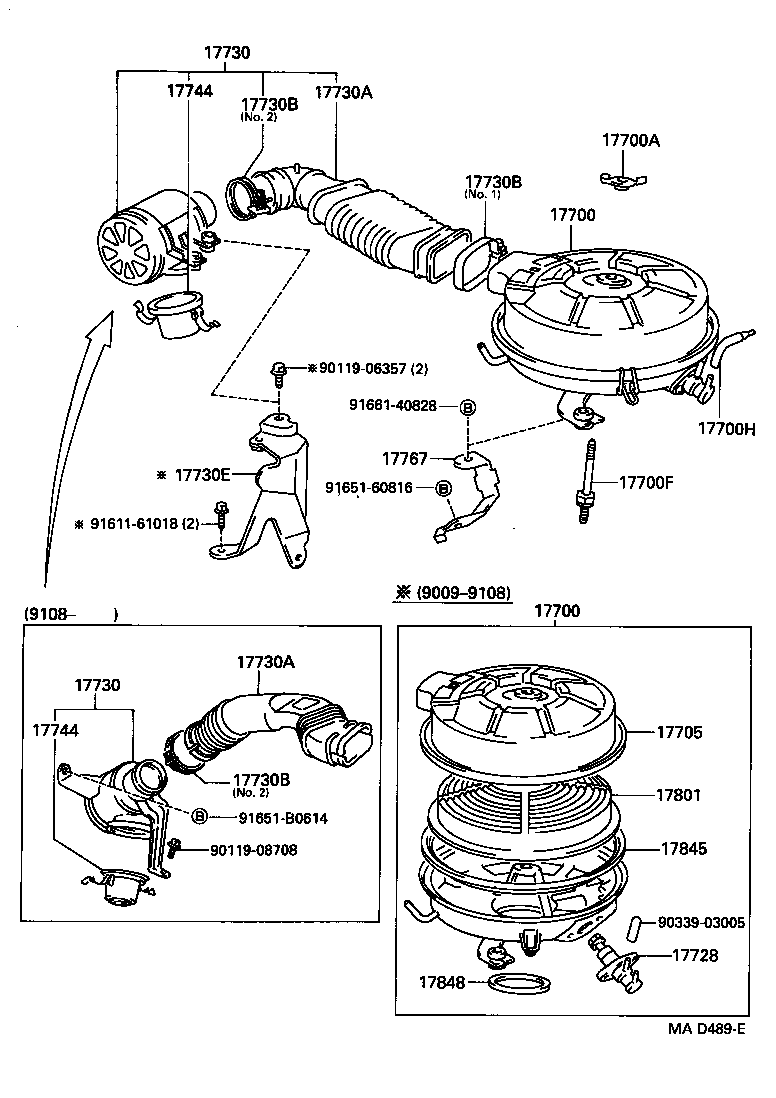

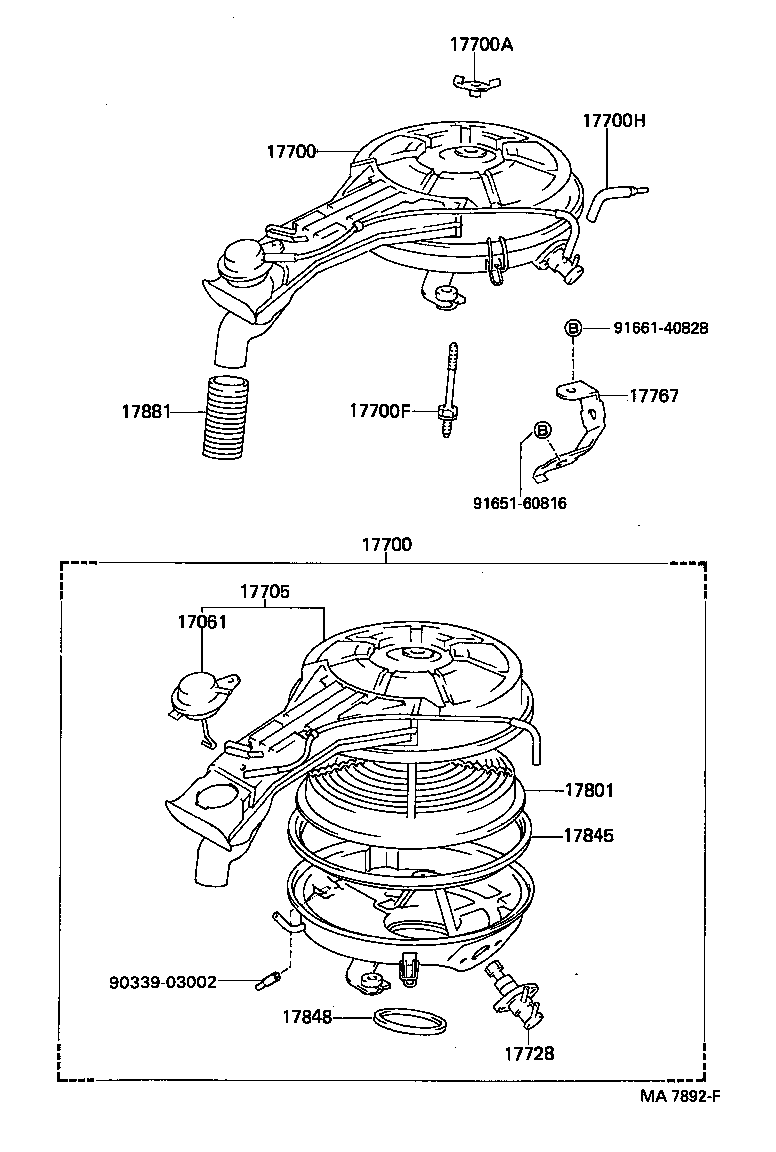

Figure MA7839C MA7839C 1990-09 → — Figure MA7892F MA7892F 1990-09 → — Figure MAD489E MAD489E 1990-09 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17730 Precleaner Assy, Air W/Hose
17730A Hose, Precleaner
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730E Bracket, Precleaner, NO.1
17744 Cup, Precleaner
17767 Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
