Toyota Tercel

1990-09 → 1994-09 · chassis EL40 · catalogue 141340 · General

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 4 illustrations

Illustrations

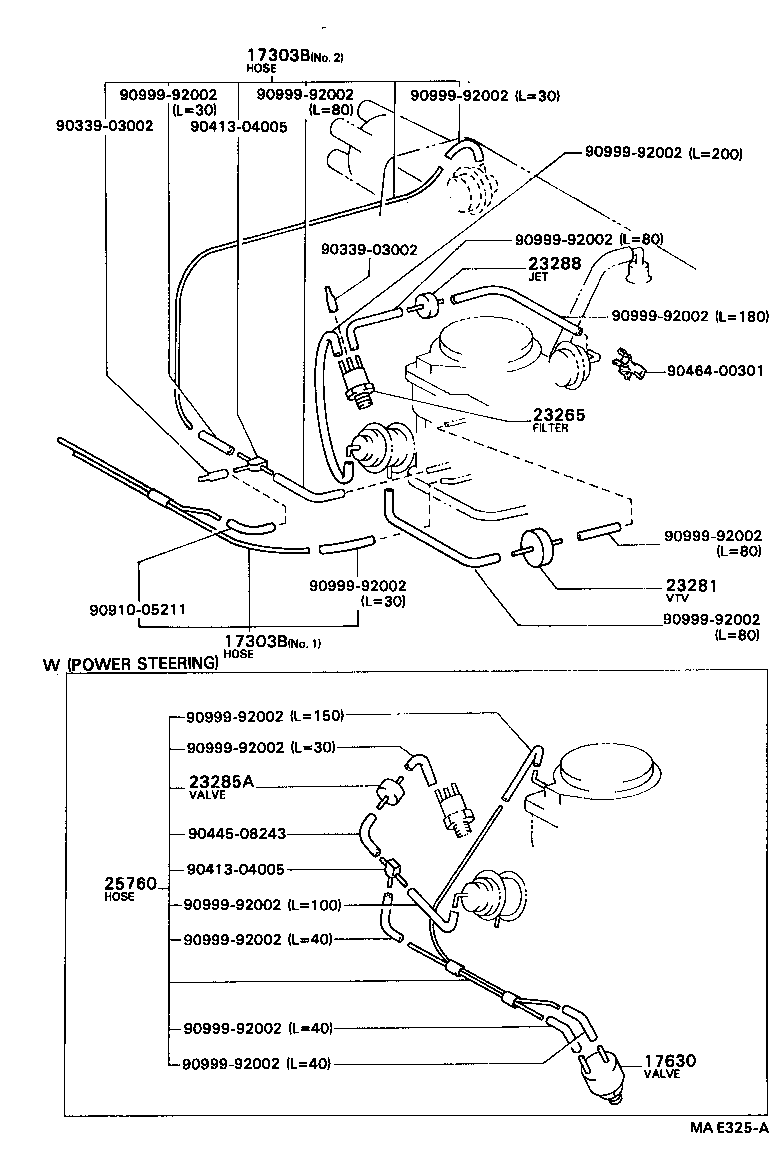

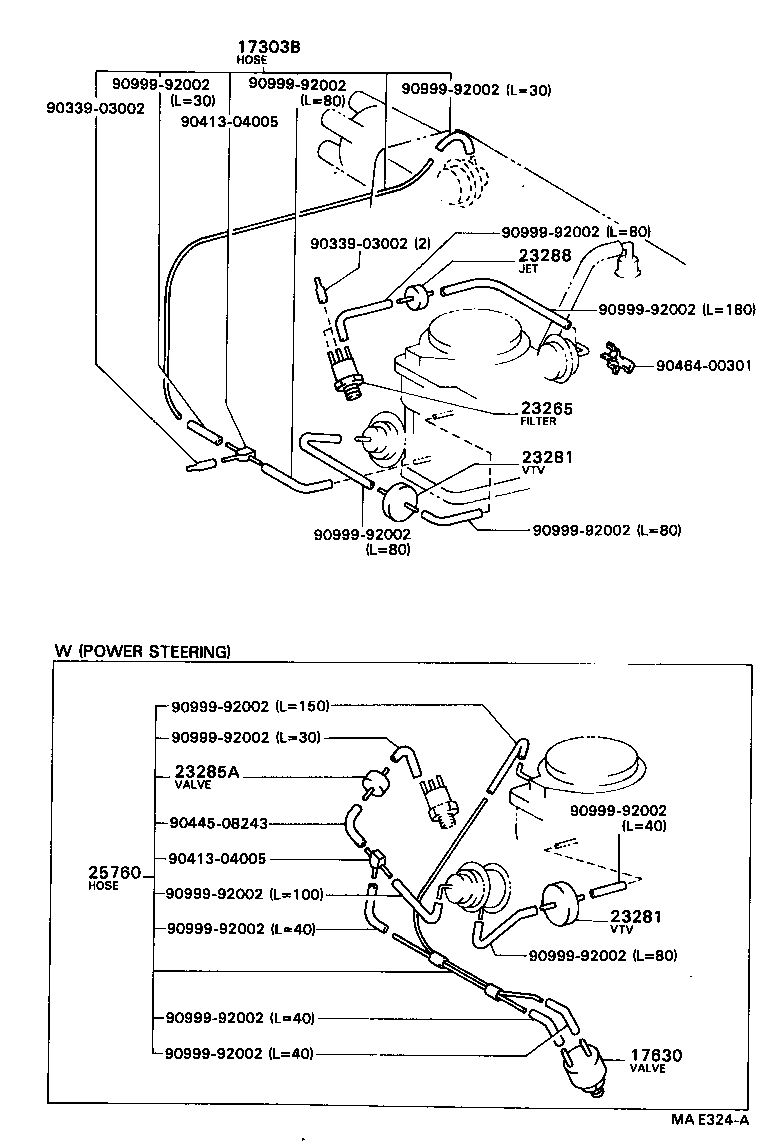

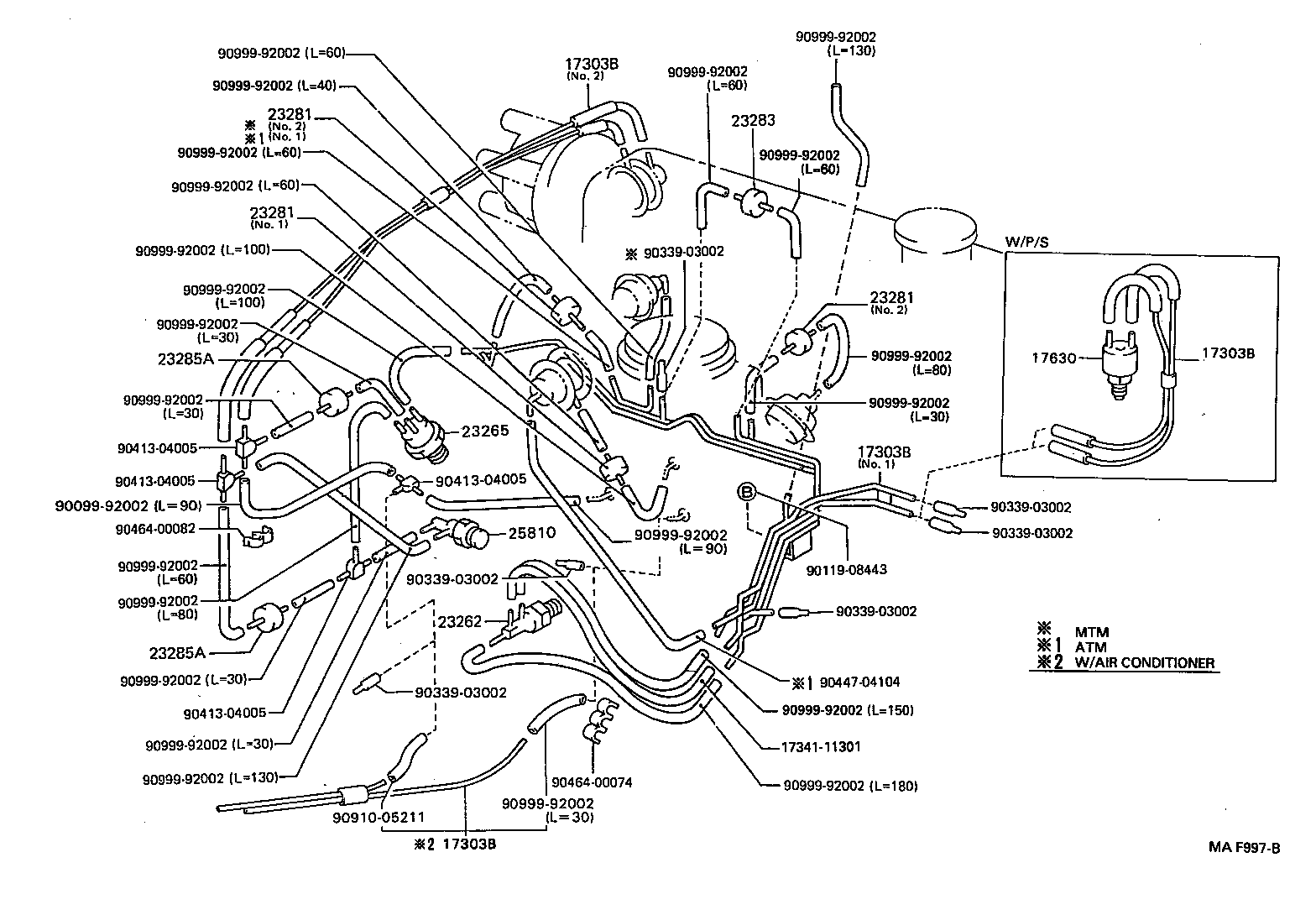

Figure MA9504B MA9504B 1990-09 → — Figure MAE324A MAE324A 1990-09 → 1992-08 Figure MAE325A MAE325A 1990-09 → 1992-08 Figure MAF997B MAF997B 1992-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
