Toyota Tercel

1990-09 → 1994-09 · chassis EL40 · catalogue 141340 · General

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 2 illustrations

Illustrations

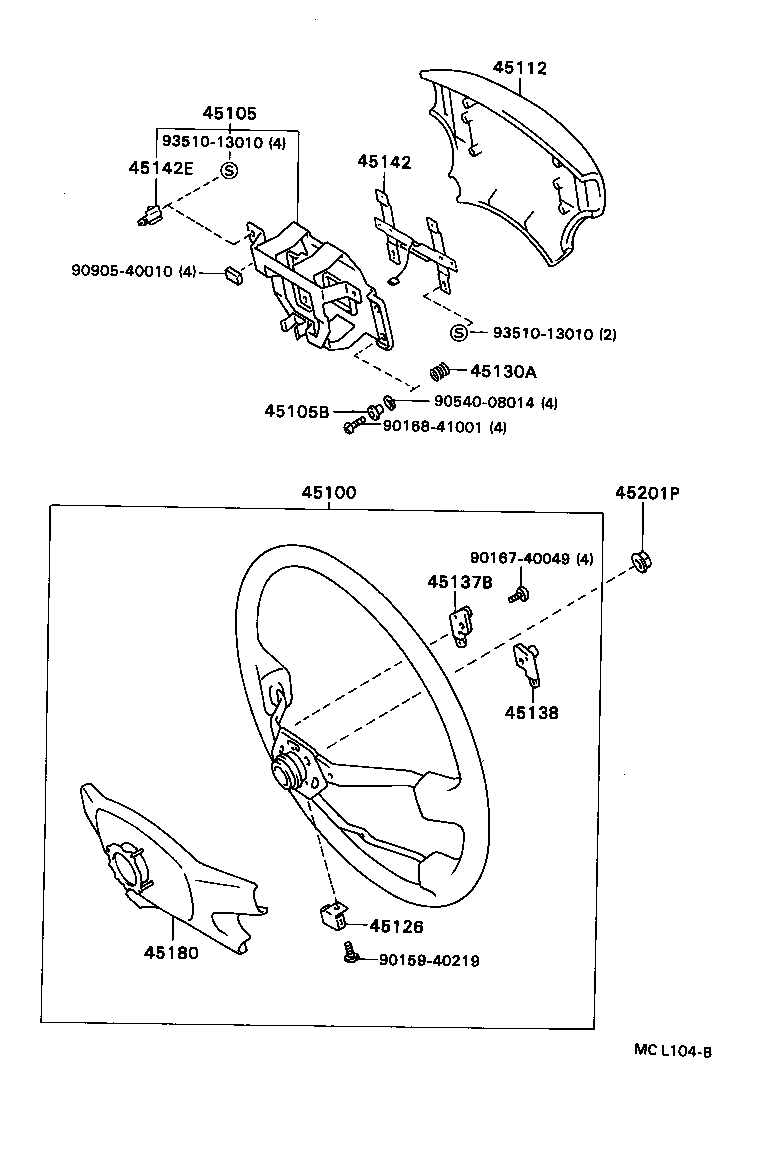

Figure MCL103A MCL103A 1990-09 → — Figure MCL104B MCL104B 1990-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45126 Plate, Steering Wheel Pad Set
45130A Spring, Compression(FOR HORN BUTTON)
45137B Plate, Horn Button Stop, NO.1
45138 Plate, Horn Button Stop, NO.2
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
