Toyota Tercel

1990-09 → 1994-09 · chassis EL40 · catalogue 141340 · General

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

4 part groups · 2 illustrations

Illustrations

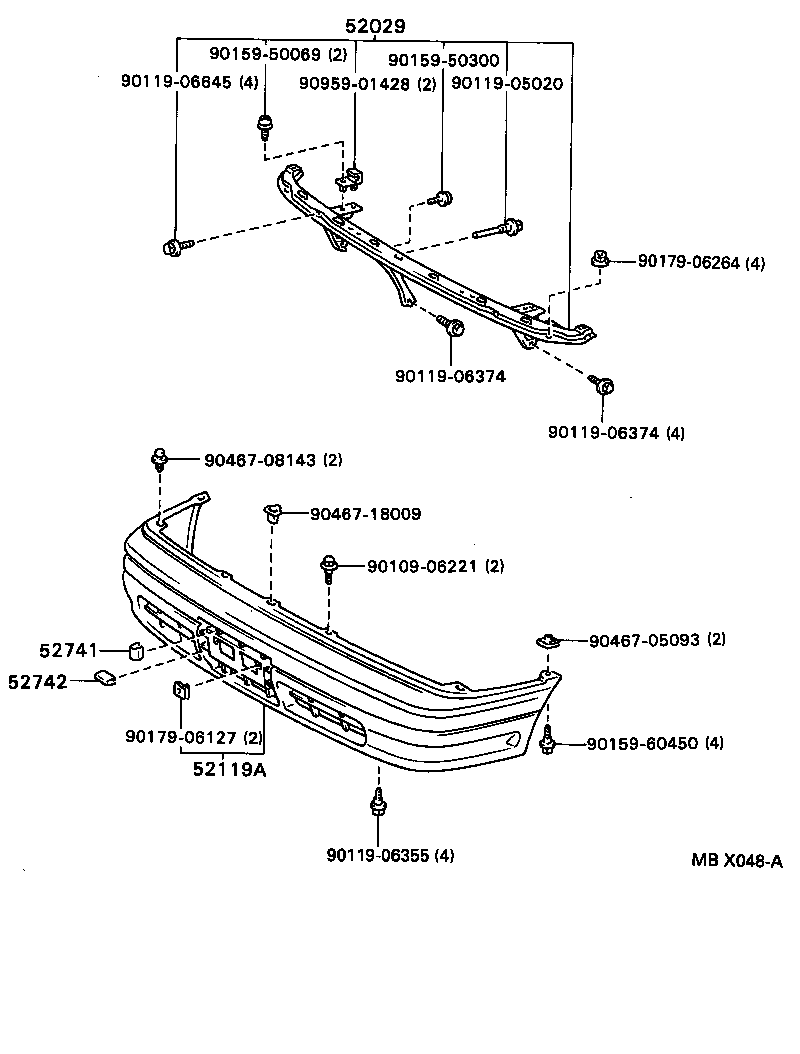

Figure MBV570B MBV570B 1990-09 → 1992-08 Figure MBX048A MBX048A 1992-08 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52119A Cover, Front Bumper
52741 Garnish, Front Bumper Bar, NO.1
52742 Garnish, Front Bumper Bar, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
