Toyota Tercel
1990-09 → 1994-09 · chassis EL40 · catalogue 141340 · General
Discontinued model
Data version 1995-03

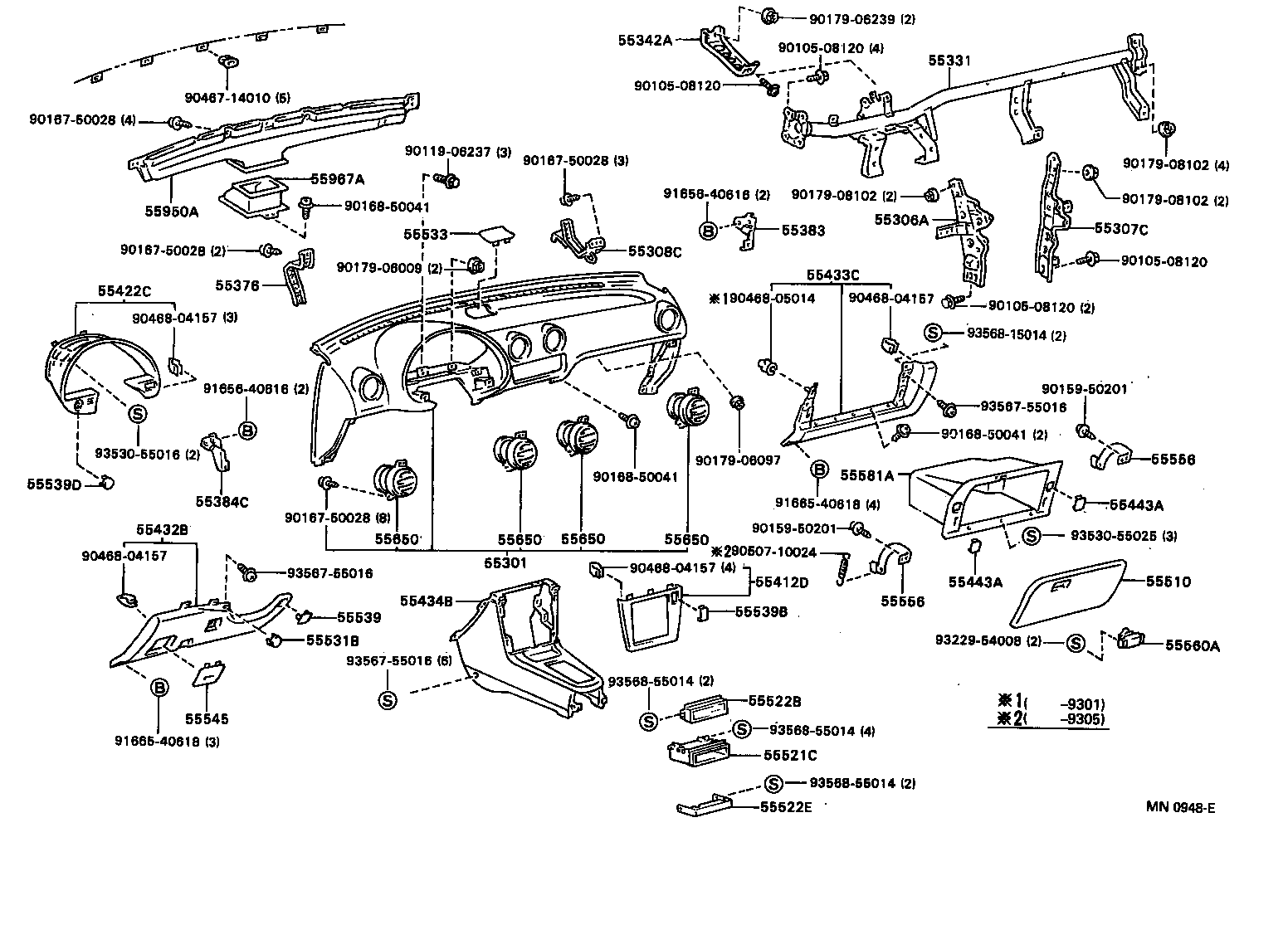

Instrument Panel & Glove Compartment
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55383 | Bracket, Finish Panel Mounting, NO.3 |
| 55384C | Bracket, Finish Panel Mounting, NO.4 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55443A | Cover, Instrument Panel Box Door |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55522E | Cover, Cup Holder Opening |
| 55531B | Cover, Choke Knob Hole |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55562A | Link, Glove Compartment Door Lock |
| 55565 | Handle, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55581A | Compartment, Glove |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55967A | Nozzle, Defroster, Lower |
| 55991 | Bracket, Defroster Duct, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
