Toyota Tercel

1990-09 → 1994-09 · chassis EL40 · catalogue 141340 · General

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 3 illustrations

Illustrations

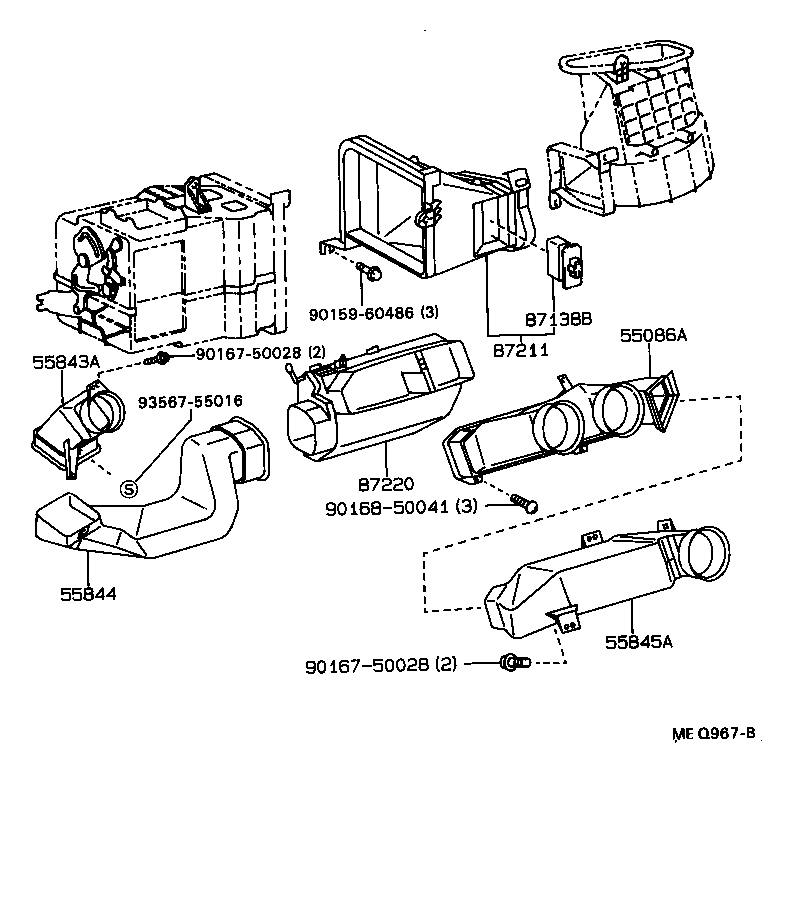

Figure MER253A MER253A 1990-09 → — Figure MER813 MER813 1990-09 → — Figure MEQ967B MEQ967B 1990-09 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
81942A Sheet, Heater Control Name, NO.1
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
