Toyota Tercel
1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General
Discontinued model
Data version 2000-02

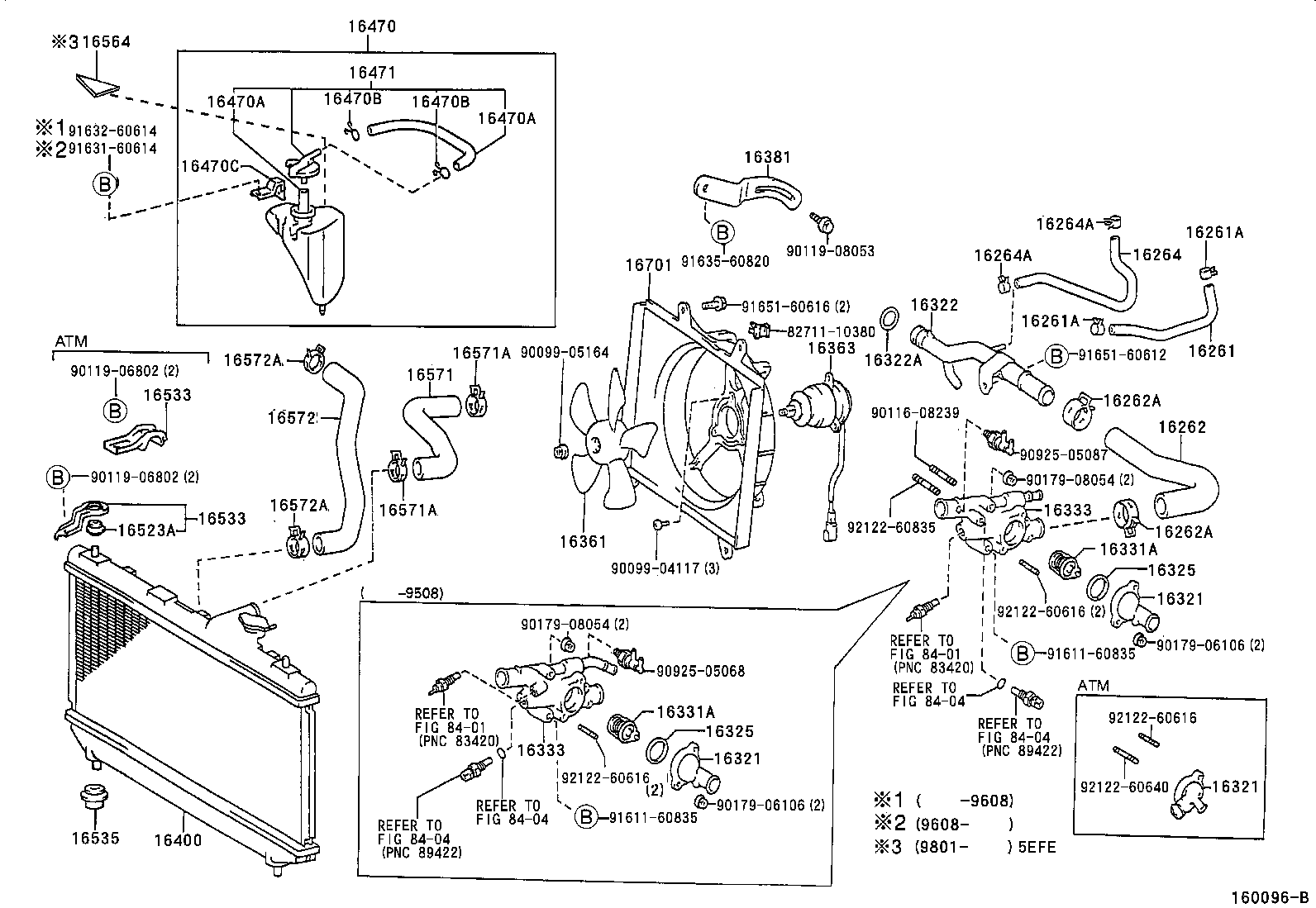

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-11060 |
Hose, Water By-pass
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 99555-00200 note |
Hose, Water By-pass
1995-12 → —
|
5EFE EL53 | — | |
| 99555-00300 note |
Hose, Water By-pass
1995-08 → 1995-12
ended
|
5EFE EL53 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1994-09 → —
|
5EFE EL53 | — | |
| 16262 — Hose, Water Inlet | ||||
| 16262-10010 |
Hose, Water Inlet
1994-09 → 1994-10
ended
|
2E,5EFE EL5# 5F | — | |
| 16262-10011 |
Hose, Water Inlet
1994-10 → —
|
2E EL50 5F | — | |
| 16262-10020 |
Hose, Water Inlet
1994-09 → 1994-10
ended
|
2E,5EFE EL5# ATM | — | |
| 16262-10022 |
Hose, Water Inlet
1994-10 → —
|
2E EL50 3FC | — | |
| 16262-10030 |
Hose, Water Inlet
1994-10 → —
|
5EFE EL53 5F | — | |
| 16262-10040 |
Hose, Water Inlet
1994-10 → —
|
5EFE EL53 4FC | — | |
| 16262A — Clip(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
Clip(FOR WATER INLET HOSE)
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-11071 |
Hose, Water By-pass, NO.2
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 16264-11080 |
Hose, Water By-pass, NO.2
1995-08 → —
|
5EFE EL53 | — | |
| 16265-11040 |
Hose, Water By-pass, NO.2
1994-09 → —
|
2E EL50 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1994-09 → —
|
5EFE EL53 | — | |
| 90467-13001 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
1994-09 → —
|
2E EL50 | — | |
| 16321 — Inlet, Water | ||||
| 16321-10011 |
Inlet, Water
1994-09 → —
|
2E,5EFE EL5# 5F | — | |
| 16321-11011 |
Inlet, Water
1994-09 → —
|
2E,5EFE EL5# ATM | — | |
| 16322 — Pipe, Water Inlet | ||||
| 16322-11081 |
Pipe, Water Inlet
1994-09 → —
|
2E EL50 | — | |
| 16322-11110 |
Pipe, Water Inlet
1995-08 → —
|
5EFE EL53 | — | |
| 16322-11162 |
Pipe, Water Inlet
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 16322A — Ring, O(FOR WATER INLET) | ||||
| 96711-35028 |
Ring, O(FOR WATER INLET)
1994-09 → 1995-03
ended
|
2E,5EFE EL5# | — | |
| 96761-35028 |
Ring, O(FOR WATER INLET)
1995-03 → —
|
2E,5EFE EL5# | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-63011 |
Gasket, Water Inlet Housing, NO.1
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16331A — Thermostat | ||||
| 90916-03046 note |
Thermostat
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16333 — Housing, Water Outlet | ||||
| 16333-10011 |
Housing, Water Outlet
1994-09 → 1995-08
ended
|
2E EL50 | — | |
| 16333-10011 |
Housing, Water Outlet
1995-08 → —
|
2E EL50 GEN;2E EL50 +2 | — | |
| 16333-11100 |
Housing, Water Outlet
1994-09 → 1995-08
ended
|
5EFE EL53 | — | |
| 16333-11190 note |
Housing, Water Outlet
1997-05 → 1997-12
ended
|
2E EL50 LHD 5F +1 | — | |
| 16333-11190 |
Housing, Water Outlet
1995-08 → —
|
2E EL50 5F GCC | — | |
| 16333-11200 |
Housing, Water Outlet
1995-08 → 1997-04
ended
|
5EFE EL53 | — | |
| 16333-11201 |
Housing, Water Outlet
1997-04 → —
|
5EFE EL53 | — | |
| 16361 — Fan | ||||
| 16361-11020 |
Fan
1994-09 → 1995-08
ended
|
2E,5EFE EL5# 5F;2E EL50 +2 | — | |
| 16361-11020 |
Fan
1995-08 → —
|
2E EL50 3FC GEN;2E,5EFE +2 | — | |
| 16361-74070 |
Fan
1994-09 → 1995-08
ended
|
5EFE EL53 4FC;2E EL50 +2 | — | |
| 16361-74070 |
Fan
1995-08 → —
|
2E EL50 3FC GCC | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-11070 |
Motor, Cooling Fan
1994-09 → 1995-08
ended
|
2E,5EFE EL5# 5F;2E EL50 +2 | — | |
| 16363-11070 |
Motor, Cooling Fan
1995-08 → —
|
2E EL50 3FC GEN;2E,5EFE +2 | — | |
| 16363-11080 |
Motor, Cooling Fan
1994-09 → 1995-08
ended
|
5EFE EL53 4FC;2E EL50 +2 | — | |
| 16363-11080 |
Motor, Cooling Fan
1995-08 → —
|
2E EL50 3FC GCC | — | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-11021 |
Bar, Fan Belt Adjusting
1994-09 → —
|
2E,5EFE EL5# 3FC,5F | — | |
| 16381-11030 |
Bar, Fan Belt Adjusting
1997-12 → —
|
5EFE EL53 4FC | — | |
| 16381-11030 |
Bar, Fan Belt Adjusting
1996-08 → 1997-12
ended
|
5EFE EL53 4FC | — | |
| 16381-11030 |
Bar, Fan Belt Adjusting
1994-09 → 1996-08
ended
|
5EFE EL53 4FC | — | |
| 16400 — Radiator Assy | ||||
| 16400-11590 |
Radiator Assy
1994-09 → 1997-12
ended
|
5EFE EL53 5F | — | |
| 16400-11591 |
Radiator Assy
1997-12 → —
|
5EFE EL53 5F | — | |
| 16400-11600 note |
Radiator Assy
1994-09 → 1997-12
ended
|
2E EL50 5F GEN | — | |
| 16400-11601 note |
Radiator Assy
1997-12 → —
|
2E EL50 5F GEN | — | |
| 16400-11610 note |
Radiator Assy
1994-09 → 1995-05
ended
|
2E EL50 5F GEN | — | |
| 16400-11611 note |
Radiator Assy
1995-05 → 1997-12
ended
|
2E EL50 5F GEN | — | |
| 16400-11612 note |
Radiator Assy
1997-12 → —
|
2E EL50 5F GEN | — | |
| 16400-11620 |
Radiator Assy
1994-09 → 1997-12
ended
|
5EFE EL53 4FC | — | |
| 16400-11621 |
Radiator Assy
1997-12 → —
|
5EFE EL53 4FC | — | |
| 16400-11630 note |
Radiator Assy
1995-08 → 1997-12
ended
|
2E EL50 LHD 5F | — | |
| 16400-11630 |
Radiator Assy
1994-09 → 1995-08
ended
|
2E EL50 5F GCC | — | |
| 16400-11690 |
Radiator Assy
1994-09 → 1995-05
ended
|
2E EL50 3FC GCC | — | |
| 16400-11730 |
Radiator Assy
1994-09 → 1997-12
ended
|
2E EL50 3FC GEN | — | |
| 16400-11731 |
Radiator Assy
1997-12 → —
|
2E EL50 3FC GEN | — | |
| 16400-11790 |
Radiator Assy
1995-05 → 1997-12
ended
|
2E EL50 3FC GCC | — | |
| 16400-11791 |
Radiator Assy
1997-12 → —
|
2E EL50 3FC GCC | — | |
| 16400-11840 note |
Radiator Assy
1997-12 → —
|
2E EL50 LHD 5F | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-11090 |
Tank Assy, Radiator Reserve
1994-09 → 1998-01
ended
|
2E,5EFE EL5# | — | |
| 16470-11130 |
Tank Assy, Radiator Reserve
1998-01 → —
|
2E,5EFE EL5# | — | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16470C — Bracket(FOR RADIATOR RESERVE TANK) | ||||
| 16611-11050 |
Bracket(FOR RADIATOR RESERVE TANK)
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-11090 |
Cap Sub-assy, Reserve Tank
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-11050 |
Cushion, Radiator Support
1994-09 → —
|
2E,5EFE EL5# 5F | — | |
| 16533 — Support, Radiator, Upper | ||||
| 16505-11160 |
Support, Radiator, Upper
1994-09 → —
|
2E,5EFE EL5# 5F | — | |
| 16533-11050 |
Support, Radiator, Upper
1994-09 → —
|
2E,5EFE EL5# ATM | — | |
| 16535 — Support, Radiator, Lower | ||||
| 90480-23018 |
Support, Radiator, Lower
1994-09 → —
|
2E,5EFE EL5# 5F | — | |
| 90916-04004 |
Support, Radiator, Lower
1994-09 → —
|
2E,5EFE EL5# ATM | — | |
| 16564 — Cushion, Radiator Reserve Tank | ||||
| 16564-11010 |
Cushion, Radiator Reserve Tank
1998-01 → —
|
5EFE EL53 | — | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-11220 |
Hose, Radiator, Inlet
1994-09 → —
|
2E EL50 | — | |
| 16571-11240 |
Hose, Radiator, Inlet
1994-09 → —
|
5EFE EL53 | — | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90467-31003 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16572-11250 |
Hose, Radiator, Outlet
1994-09 → —
|
2E,5EFE EL5# 5F | — | |
| 16572-11260 |
Hose, Radiator, Outlet
1994-09 → —
|
2E,5EFE EL5# ATM | — | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1994-09 → —
|
2E,5EFE EL5# | — | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-11250 |
Shroud Sub-assy, Fan
1994-09 → 1995-08
ended
|
2E,5EFE EL5# 5F;2E EL50 +2 | — | |
| 16711-11250 |
Shroud Sub-assy, Fan
1995-08 → —
|
2E EL50 3FC GEN;2E,5EFE +2 | — | |
| 16711-11260 |
Shroud Sub-assy, Fan
1994-09 → 1995-08
ended
|
5EFE EL53 4FC;2E EL50 +2 | — | |
| 16711-11260 |
Shroud Sub-assy, Fan
1995-08 → —
|
2E EL50 3FC GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
