Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

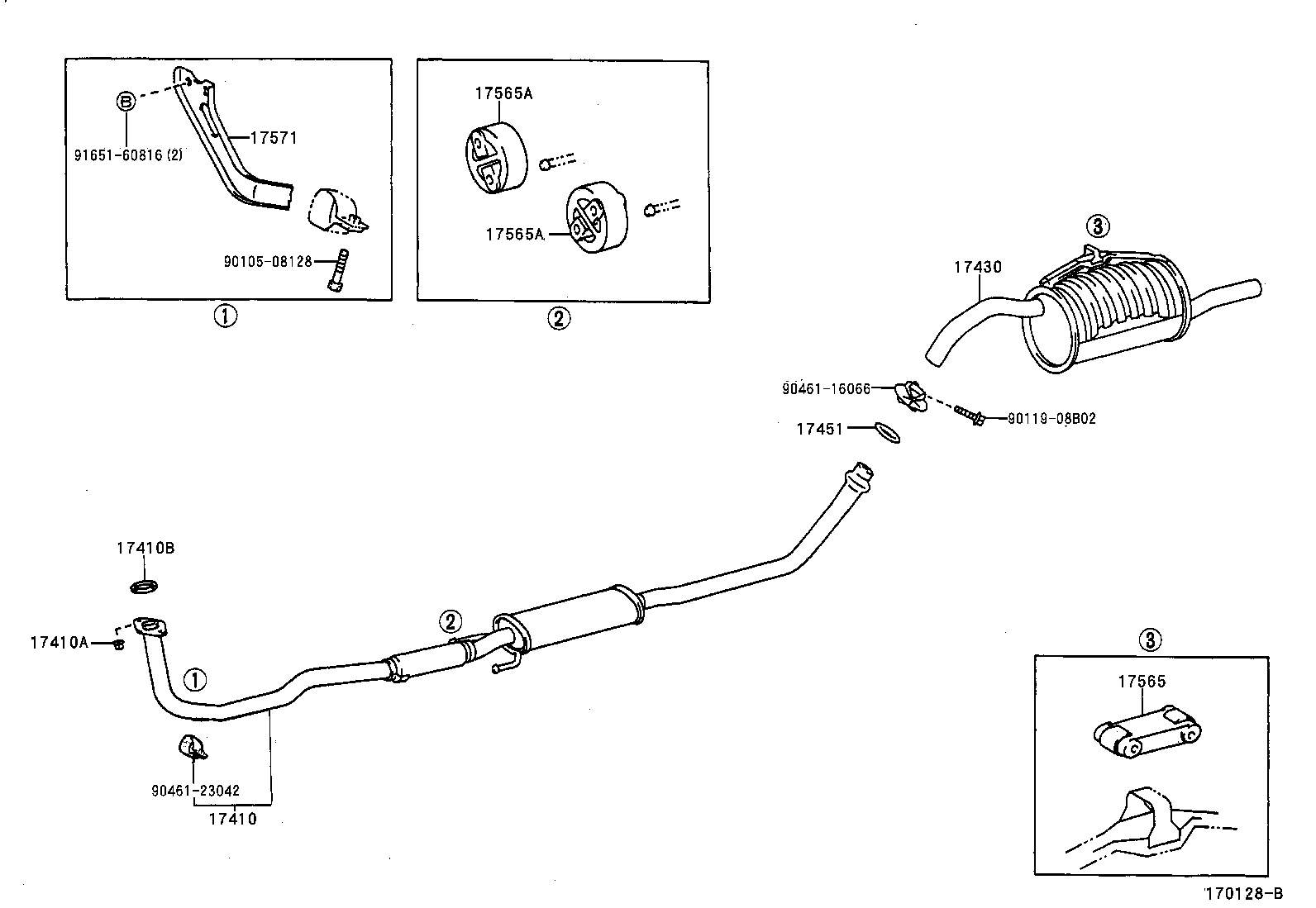

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

20 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17410-11361	Pipe Assy, Exhaust, Front 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
17410-11371	Pipe Assy, Exhaust, Front 1994-09 → 1995-08 ended	5EFE EL53 5F	—
17410-11760	Pipe Assy, Exhaust, Front 1994-09 → —	2E EL50	—
17410-11880	Pipe Assy, Exhaust, Front 1995-08 → —	5EFE EL53 4FC	—
17410-11890	Pipe Assy, Exhaust, Front 1995-08 → —	5EFE EL53 5F	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1994-09 → 1995-08 ended	2E,5EFE EL5#	—
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1995-08 → —	2E EL50	—
17410B — Gasket, Exhaust Pipe
17451-11010	Gasket, Exhaust Pipe 1998-03 → —	5EFE EL53	—
90917-06061	Gasket, Exhaust Pipe 1995-08 → —	2E EL50	—
90917-06061	Gasket, Exhaust Pipe 1994-09 → 1995-08 ended	2E,5EFE EL5#	—
90917-06080	Gasket, Exhaust Pipe 1995-08 → 1998-03 ended	5EFE EL53	—
17430 — Pipe Assy, Exhaust, Tail
17430-11710	Pipe Assy, Exhaust, Tail 1994-09 → —	5EFE EL53	—
17430-11780	Pipe Assy, Exhaust, Tail 1994-09 → —	2E EL50	—
17451 — Gasket, Exhaust Pipe
90917-06045	Gasket, Exhaust Pipe 1994-09 → 1995-08 ended	5EFE EL53	—
90917-06081	Gasket, Exhaust Pipe 1994-09 → —	2E EL50	—
90917-06082	Gasket, Exhaust Pipe 1995-08 → —	5EFE EL53	—
17565 — Support, Exhaust Pipe, NO.5
17566-11150	Support, Exhaust Pipe, NO.5 1994-09 → —	2E,5EFE EL5#	—
17565A — Support, Exhaust Pipe, NO.4
17565-11160	Support, Exhaust Pipe, NO.4 1994-09 → —	2E,5EFE EL5#	—
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-11020	Bracket, Exhaust Pipe Support, NO.1 1994-09 → —	2E EL50	—
17571-11180	Bracket, Exhaust Pipe Support, NO.1 1994-09 → 1995-08 ended	5EFE EL53	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
