Toyota Tercel

1994-09 → 1999-07 · chassis EL50,53 · catalogue 141350 · General

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

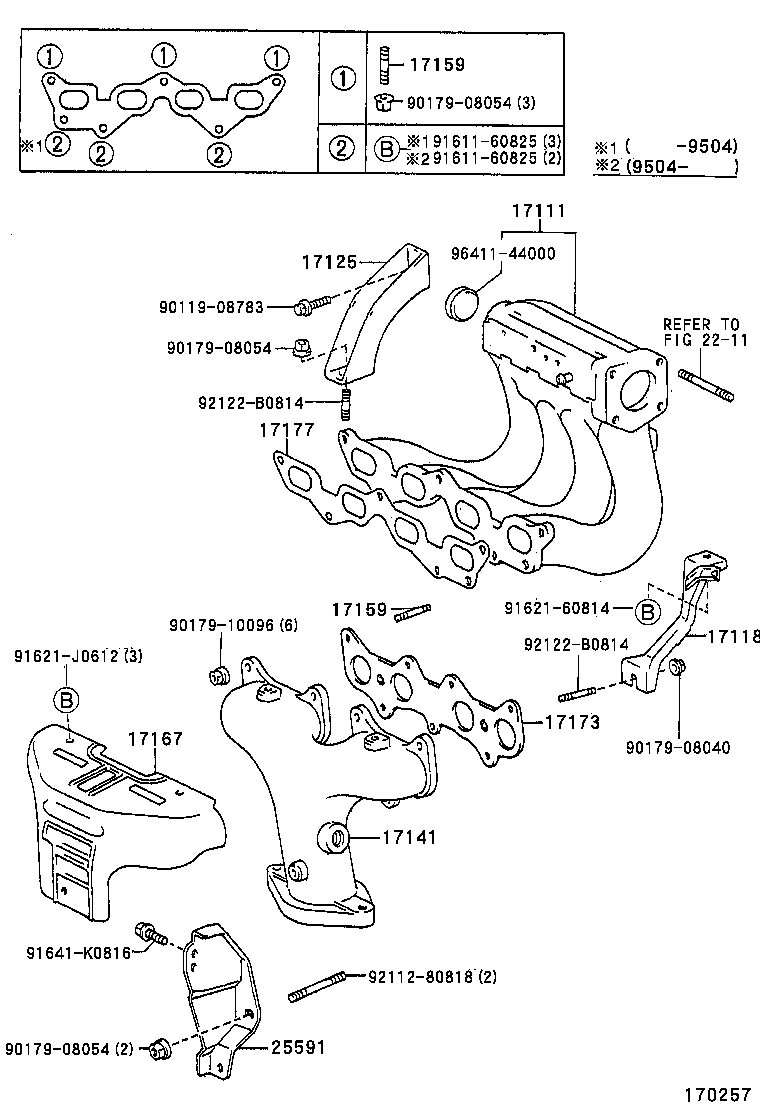

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

36 parts on this figure

Part number	Description	Fitment	Price
17111 — Manifold, Intake
17101-11210	Manifold, Intake 1994-09 → —	2E EL50	—
17101-11240	Manifold, Intake 1994-09 → 1995-04 ended	5EFE EL53 4FC	—
17101-11241	Manifold, Intake 1995-04 → 1995-08 ended	5EFE EL53 4FC	—
17101-11261	Manifold, Intake 1994-09 → 1995-04 ended	5EFE EL53 5F	—
17101-11262	Manifold, Intake 1995-04 → 1995-08 ended	5EFE EL53 5F	—
17101-11270	Manifold, Intake 1995-08 → 1996-08 ended	5EFE EL53	—
17101-11360	Manifold, Intake 1996-08 → —	5EFE EL53	—
17118 — Stay, Manifold
17118-11120	Stay, Manifold 1994-09 → —	2E EL50	—
17118-11220	Stay, Manifold 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
17118-11230	Stay, Manifold 1994-09 → 1995-08 ended	5EFE EL53 5F	—
17118-11250	Stay, Manifold 1995-08 → —	5EFE EL53	—
17125 — Stay, Surge Tank, NO.1
17125-11030	Stay, Surge Tank, NO.1 1994-09 → 1995-08 ended	5EFE EL53	—
17125-11050	Stay, Surge Tank, NO.1 1995-08 → —	5EFE EL53	—
17141 — Manifold, Exhaust
17141-10010	Manifold, Exhaust 1994-09 → —	2E EL50	—
17141-11230	Manifold, Exhaust 1994-09 → 1995-08 ended	5EFE EL53 5F	—
17141-11240	Manifold, Exhaust 1994-09 → 1995-08 ended	5EFE EL53 4FC	—
17141-11310	Manifold, Exhaust 1995-08 → —	5EFE EL53	—
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-10131 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → —	2E EL50	—
90116-10196 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1995-02 → —	5EFE EL53	—
92122-40828 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1996-08 → —	2E EL50	—
92122-40828 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → 1996-08 ended	2E EL50	—
92122-61025 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → 1995-02 ended	5EFE EL53	—
92132-60825 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → —	5EFE EL53	—
92132-60825 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1994-09 → —	2E EL50	—
17167 — Insulator, Exhaust Manifold Heat, NO.1
17107-10011 note	Insulator, Exhaust Manifold Heat, NO.1 1994-09 → 1995-08 ended	2E EL50 GEN	—
17107-10011 note	Insulator, Exhaust Manifold Heat, NO.1 1995-08 → —	2E EL50 5F;2E EL50 +2	—
17167-10022	Insulator, Exhaust Manifold Heat, NO.1 1994-09 → —	2E EL50	—
17167-11210	Insulator, Exhaust Manifold Heat, NO.1 1994-09 → 1995-08 ended	5EFE EL53	—
17167-11320	Insulator, Exhaust Manifold Heat, NO.1 1995-08 → —	5EFE EL53	—
17173 — Gasket, Exhaust Manifold TO Head
17173-10021	Gasket, Exhaust Manifold TO Head 1994-09 → —	2E EL50	—
17173-11050	Gasket, Exhaust Manifold TO Head 1994-09 → —	5EFE EL53	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-10020	Gasket, Intake Manifold TO Head, NO.1 1994-09 → —	2E EL50	—
17177-11021	Gasket, Intake Manifold TO Head, NO.1 1994-09 → 1995-04 ended	5EFE EL53	—
17177-11050	Gasket, Intake Manifold TO Head, NO.1 1995-08 → —	5EFE EL53	—
17177-11070	Gasket, Intake Manifold TO Head, NO.1 1995-04 → 1995-08 ended	5EFE EL53	—
25591 — Bracket, Manifold Support
25591-11080	Bracket, Manifold Support 1995-08 → —	5EFE EL53	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
